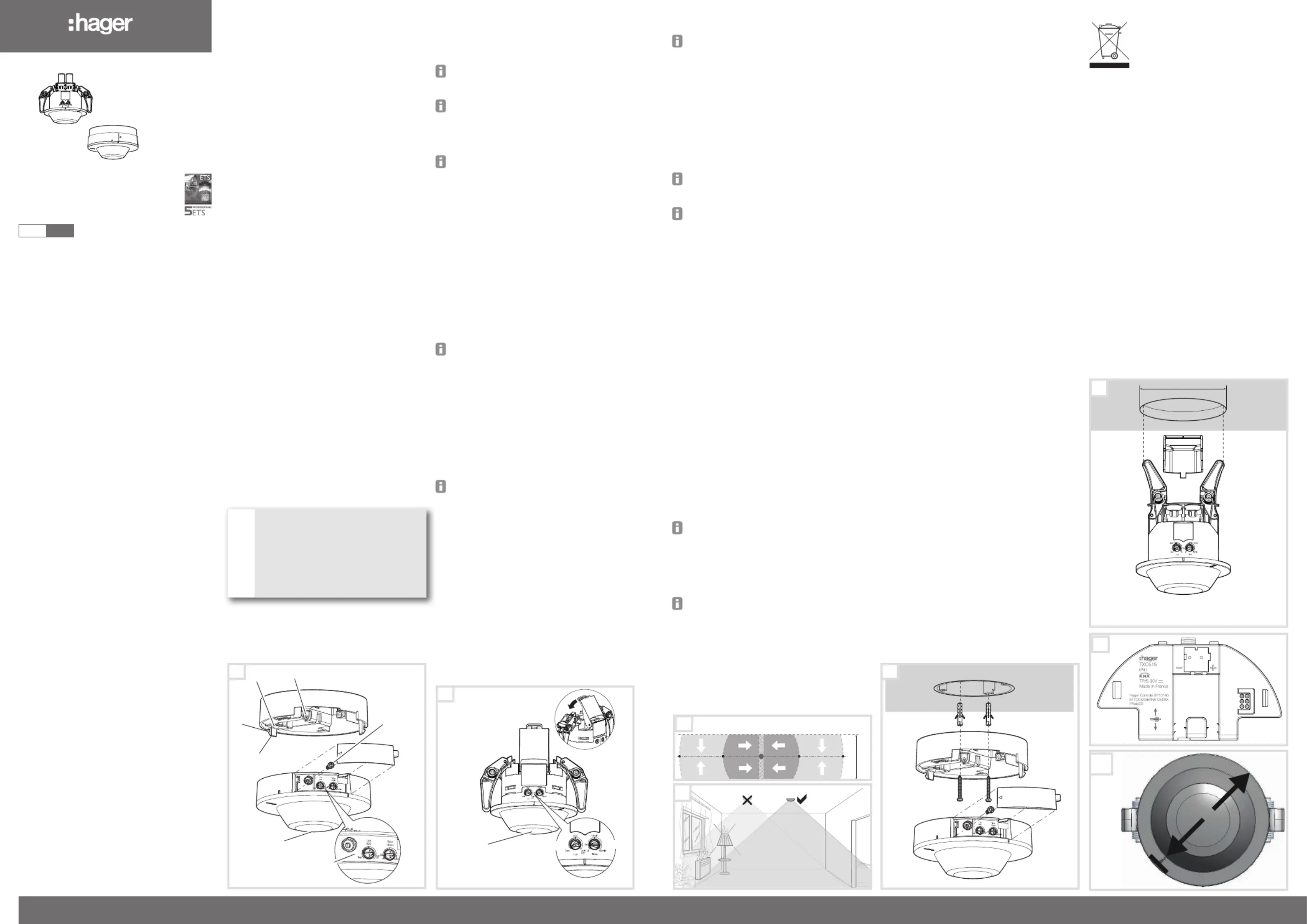

Side 1/2

6LE007299A

Bn,.:

01 02

TXD505

KNX motion detector corridor

built-in

Rilevatore di movimento KNX da

incasso per corridoio

TXC515

KNX motion detector

corridor built-in

Rilevatore di movimento KNX

a parete per corridoio

T +33 (0) 3 88 02 87 00 info@hager.com hager.com - 06.2022Hager Controls, BP10140, 67703 SAVERNE CEDEX, FRANCE

Safety instructions

Electrical equipment must only be installed and

assembled by a qualified electrician in accord-

ance with the relevant installation standards,

regulations, directives and safety and accident

prevention directives of the country.

Failure to comply with these installation in-

structions may result in damage to the device,

fire or other hazards.

Due to its detection behaviour, the device is not

suitable for use in burglary detection or alarm

systems.

These instructions are an integral component

of the product and must be retained by the end

user.

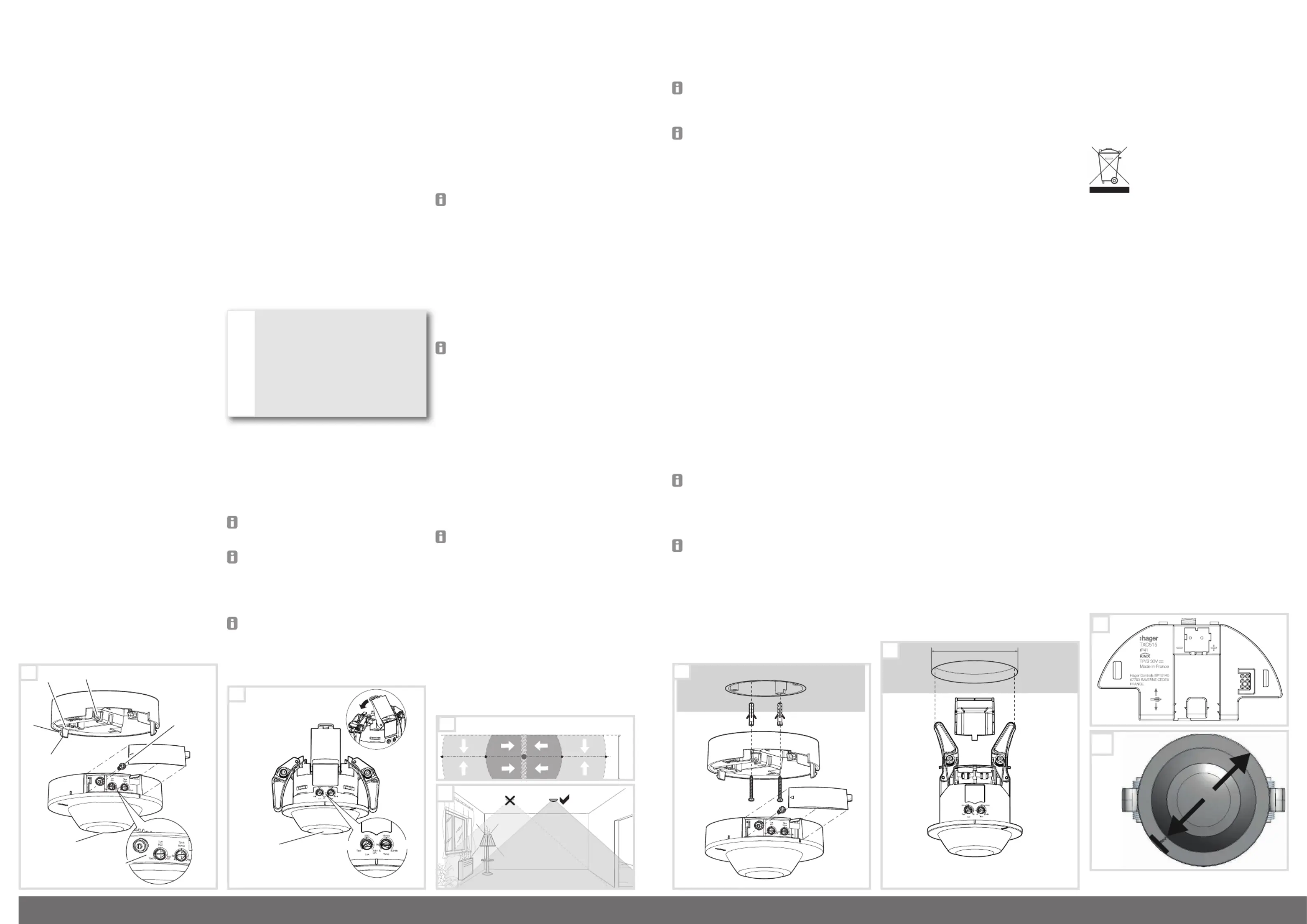

Design and layout of the device

(Figure 1/2)

(1) Slot for bus connecting terminals

(2) Security screw fixing point

(3) Unlocking opening

(4) Securing clips

(5) Detector lens with integrated status LED red/

green

(6) Response brightness potentiometer

(7) Delay time potentiometer

(8) Potentiometer cover

(9) Security screw

(10) Fixing springs

(11) Cover for connection department

Function

Correct use

- Automatic transmission of switching commands for

lighting and scene control via the KNX bus depend-

ent on heat motion and ambient brightness

- Manual control of KNX functions via remote

control (optional, see Accessories)

- TXD505: Cavity installation

- TXC515: Surface-mounted installation or instal-

lation on mounting boxes according to valid

standard (e.g. DIN 4907)

Product characteristics

- Detection of motion especially in hallways/long

aisles

- Combination of presence and motion detector

with enhanced detection sensitivity in the cen-

tral presence-detection area

- Response brightness adjustable

- Delay time adjustable

- Master/Slave operation can be parameterised

via ETS

- Optional: Operation modes automatic/semiauto-

matic are adjustable via IR configuration hand-

held controller (see Accessories)

- Test mode

Behaviour during operation

The motion detector detects heat motion caused

by people, animals, or objects in accordance with

IEC 63180.

- Will be switched on for the delay time if move-

ments are detected in the detection area and

the set light level is undershot. Each detected

movement restarts the delay time.

- Will be switched off if no additional movements

are detected in the detection area and the set

delay time has elapsed or the set light level is

exceeded.

Information for electricians

Installation and electrical connection

DANGER!

Electrical shock when live parts are

touched!

An electric shock can lead to death!

Isolate all power before working on

the device and cover any live parts in

the area!

Selecting installation location

The motion detector must be installed horizontally

and with a distance of approx. 1m to doors on the

corridor ceiling. It has a detection area of 30 x 5m.

The detection area depends on the installation

height. At an installation height of 3m, the range at

ground level is approx. 30m in length and approx.

5m in width (figure 3).

At an installation height greater than 2.5 m, the

detection area increases. At the same time, the

detection sensitivity decreases.

Observe the motion orientation: A distinction is

made between "direct approach" and "trans-

verse motion". Motions transverse to the motion

detector can be detected better than motions

toward the motion detector (Figure 3).

The device must be completely installed and

closed to meet the degree of protection IP41.

If used as a presence detector, the device must

be installed so that areas with less motion activ-

ity (desk, seating area) are within the detection

area (Figure 3).

Avoid sources of interference in the detection

area. Sources of interference, e.g. heating

elements, ventilation systems, air conditioners

and lamps that are cooling down can cause

undesired switching (Figure 4).

Select an installation location that is free of

vibration. Vibrations can cause undesired

switching.

Connecting and installing the built-in variant

TXD505 (figure 6)

Observe the installation direction. Install the

device in such a way that the arrow shown in

figure 8 corresponds to the axis of the corridor.

Establish installation opening Ø 68 mm.

Connect the bus cable.

Close cover (11).

Insert the two fixing springs (10) through the

installation aperture while pressing upwards

and allow them to spring back.

Connecting and installing the surface-mounted

variant TXC515 (figure 5)

Observe the installation direction. Install the

device in such a way that the arrow shown in

figure 7 corresponds to the axis of the corridor.

Feed the connection cable through the cable

entry cut-out (13).

Install device base under the ceiling using

appropriate fixings, a screw & plug set is

included. If available, install device socket in a

flush-mounted box.

Connect the bus cable.

Snap device module onto base.

Screw in security screw (9).

Close cover (8).

Commissioning

The device is in warm-up phase after bus volt-

age recovery (up to 45s). During this time the

status LED is flashing green.

Testing the detection

In test mode, the motion detector works with maxi-

mum response brightness. If movement is detected

the red LED flashes briefly.

Set the potentiometer response brightness (6)

to the Test position (figure1/2).

The device is in test mode.

Carry out test by moving in the detection area.

If the motion detector switches on without mo-

tion in the detection area, then sources of inter-

ference are present (see Installation location).

After 2 minutes in test mode the device is auto-

matically set to the standard values (500 Lux).

Setting the response brightness

The response brightness is the brightness value

saved in the motion detector; when this value is

undershot the connected load is switched on if

movements are detected. The brightness threshold

can be set continuously between approx. 5 and

2000 Lux (daytime operation/brightness-independ-

ent).

Turn the response brightness potentiometer (6)

to the desired position.

Setting the delay time

The delay time is the period of time set in the

motion detector which is the shortest time that the

lighting is switched on when the light level is under-

shot and motion is detected. The delay time can be

set between pulse and approx. 5 s to 60 min.

Turn the delay time potentiometer (7) to the

desired position.

Commissioning with the IR configuration hand-

held controller

The IR configuration hand-held transmitter can

be used to change the values set directly on the

device (see Accessories) if the setting has been

enabled in the ETS.

A detailed description of the EE807 hand-held

controller can be found in the enclosed instruc-

tions.

Operation by IR hand-held controller

The IR hand-held transmitter can be used to trigger

the actions parameterized with the device.

A detailed description of the EE808 hand-held

controller can be found in the corresponding

instructions.

Adjusting the detection area

If the detection area of the detector is too wide or

covers areas that should not be monitored, the

adhesive strips provided can restrict the detection

area if required.

system link Loading the physical address and

application software

Project planning and commissioning from ETS 5

on.

The device is connected and ready for operation.

Remove cover (8) if there is one.

Set potentiometer delay time (6) .Adr/On

Status LED (5) lights up red.

Load the physical address into the device.

Label the device with the physical address.

Load the application software into the device.

After completion of the loading process or to

cancel, adjust potentiometer delay time.

The status LED (5) goes out.

Snap on cover

easy link:

Information on the system configuration can be

taken from the extensive description of the service

module easy link.

Appendix

Technical data

KNX medium TP 1

Configuration mode S-Mode, E-Controller

Rated voltage KNX 30 V SELV

Current consumption KNX max. 10 mA

Connection mode KNX bus connecting terminal

Response brightness approx. 5 ... 2000 Lux

Delay time 5 s ... 60 min

Detection angle 360°

Recommended installation height 2.5 m ... 3.5 m

Maximum installation height 4 m

Detection area motion

(installation height 3 m)

transverse motion towards detector ~ 30 x 5 m

Towards detector ~ 14 x 5 m

Degree of protection IP41

Protection class II

Impact resistance IK 04

Operating altitude < 2000 m

Dimensions TXD505 (Ø x H) 85 x 75.8 mm

Dimensions TXC515 (Ø x H) 105 x 61.3 mm

Accessories

IR configuration hand-held transmitter EE807

IR hand-held transmitter EE808

(5)

(10)

(11)

(10)

(6)

(7)

(1)

(8)

(9)

(2)

(3)

(5)

(4)

(6)

(7)

7m 7m 15m15m

Ø 68 mm

Correct Disposal of this product (Waste

Electrical & Electronic Equipment)

(Applicable in the European Union and other

European countries with separate collection

systems).

This marking shown on the product or its literature

indicates that it should not be disposed of with other

household waste at the end of its working life. To prevent

possible harm to the environment or human health from

uncontrolled waste disposal, please separate this device

from other types of waste. Recycle the device responsibly

to promote the sustainable reuse of material resources.

Household users should contact either the retailer where

they purchased this product, or their local government of-

fice, for details of where and how they can take this device

for environmentally safe recycling.

Business users should contact their supplier and check

the terms and conditions of the purchase contract. This

product should not be mixed with other commercial waste

for disposal.

Produkt Specifikationer

Mærke:	Hager
Kategori:	Bevægelsesdetektor
Model:	TXC515

Har du brug for hjælp?

Hvis du har brug for hjælp til Hager TXC515 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Bevægelsesdetektor Hager Manualer

10 August 2025

10 August 2025

9 August 2025

9 August 2025

9 August 2025

9 August 2025

21 Juli 2025

30 December 2025

9 December 2024

9 December 2024

Bevægelsesdetektor Manualer

Nyeste Bevægelsesdetektor Manualer

Abus Smartvest Pro FUBW45000 Manual

29 Oktober 2025

Axis D2110-VE Manual

12 Oktober 2025

Homematic IP HmIP-SPDR Manual

29 September 2025

Brinno MAS100 Manual

28 September 2025

Crestron CEN-ODT-C-POE Manual

24 September 2025

Crestron ZUMLINK-US-HALLWAY-DLS-RLY Manual

24 September 2025

Crestron ZUMLINK-US-HALLWAY-DLS Manual

24 September 2025

Crestron ZUMLINK-US-ONEWAY-DLS Manual

23 September 2025

Crestron ZUMLINK-IR-QUATTRO-DLS-RLY Manual

23 September 2025

Crestron ZUMLINK-IR-QUATTRO-HD-DLS-RLY Manual

23 September 2025
