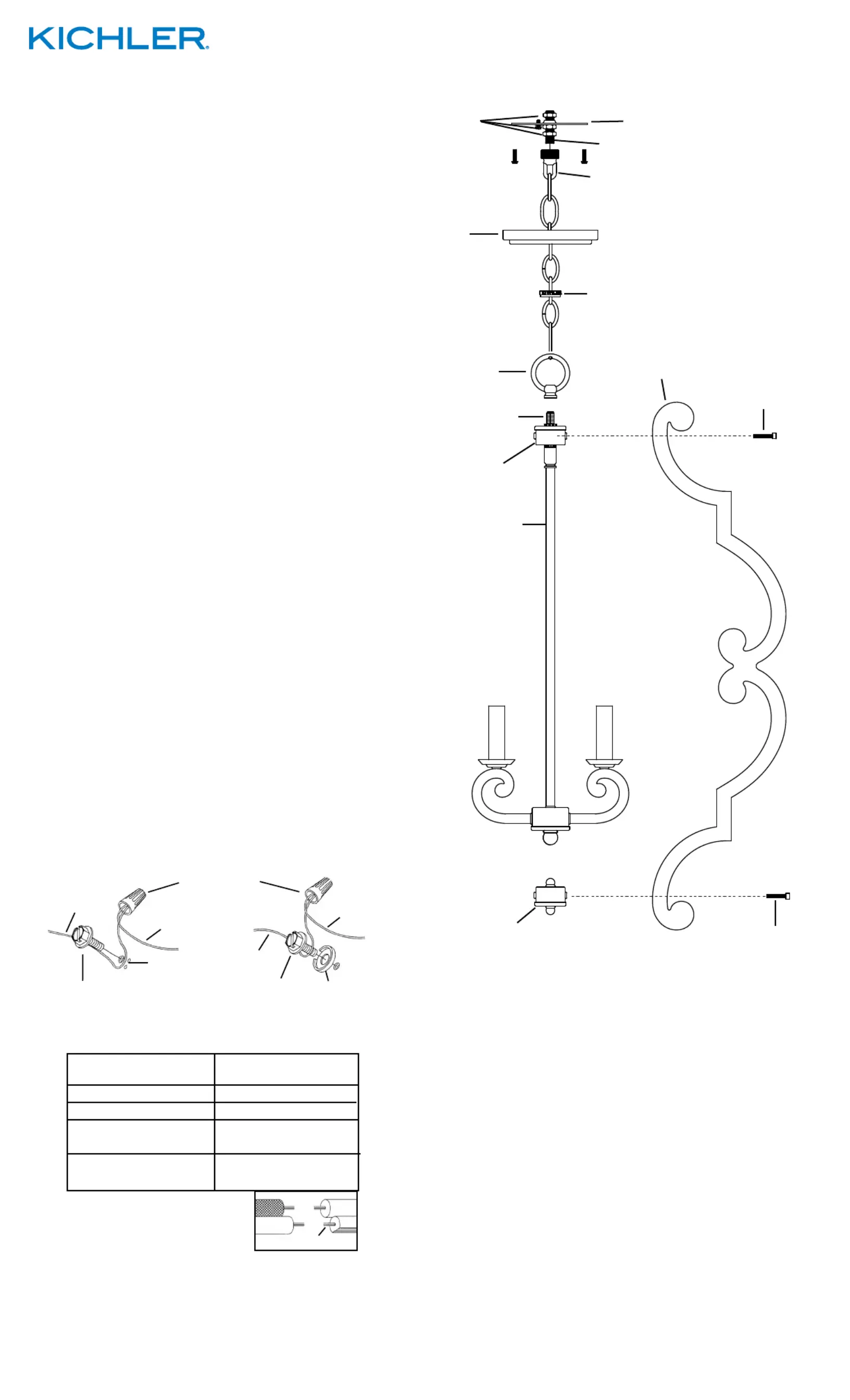

IMPORTANT: The fixture must be supported while mounting
fixture to ceiling.
1) TURN OFF POWER.
Before you start, NEVER attempt any work IMPORTANT:
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your
home. Place the main power switch in the “OFF”
position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker
switch(s), that control the power to the fixture or room
c) Place the wall switch in the “OFF” position. If the fixture
to be replaced has a switch or pull chain, place those in
the “OFF” position.
2) Pass fixture wire through hole in bottom of loop. Thread
loop onto threaded pipe on top of fixture body.
3) Align hole in bottom of arm with hole in bottom trim piece.
4) Thread ball stud through hole in arm and into bottom trim
piece. Tighten ball stud to secure arm in place.
4) Repeat steps 3 and 4 for remaining arms.
5) Align hole in top of arm with hole in top trim on center stem.
6) Thread ball stud through hole in arm and into top trim.
Tighten ball stud to secure arm in place.
7) Repeat steps 5 and 6 for remaining arms.
8) Thread hexnut onto threaded pipe so that 5 threads are
exposed above hexnut. From underside of mounting strap,
thread long end of threaded pipe into hole in mounting strap
until hexnut touches mounting strap. Tighten hexnut against
mounting strap.
9) Thread second hexnut onto other end of threaded pipe.
Tighten hexnut up against mounting strap. Thread third
hexnut onto same end of threaded pipe until almost touching
second hexnut.
10) Connect mounting strap to outlet box.
11) Weave electrical wire and ground wire through chain links no
more than 3 inches apart. Pass wires through threaded ring,
screw collar loop, canopy and threaded pipe and into
outlet box
12) Grounding instructions: (See Illus. A or B).
A) On fixtures where mounting strap is provided with a
hole and two raised dimples. Wrap ground wire from
outlet box around green ground screw, and thread into
hole.
B) On fixtures where a cupped washer is provided. Attach
ground wire from outlet box under cupped washer and
green ground screw, and thread into mounting strap.
If fixture is provided with ground wire. Connect fixture
ground wire to outlet box ground wire with wire connector
(not provided.) after following the above steps. Never
connect ground wire to black or white power supply wires.
13) Make wire connections (connectors not provided). Reference
chart below for correct connections and wire accordingly.
14) Raise canopy to ceiling. Pass hole in canopy over end of
threaded pipe.
15) Thread screw collar loop onto threaded pipe protruding from
canopy. Screw threaded ring onto screw collar loop. Tighten
threaded ring up against canopy.
Date Issued: 9/18/15 IS-43255-US
GREEN GROUND
SCREW
CUPPED
WASHER
A
B
OUTLET BOX
GROUND
FIXTURE
GROUND
DIMPLES
WIRE CONNECTOR
(NOT PROVIDED)
OUTLET BOX
GROUND
GREEN GROUND
SCREW
FIXTURE
GROUND
K I C H L E R
MOUNTING STRAP
ABRAZADERA DE MONTAJE
HEXNUT
TUERCA
HEXAGONAL
THREADED PIPE
TUBO ROSCADO
CANOPY
ESCUDETE
THREADED RING
ANILLO ROSCADO
LOOP
ANILLO
SCREW COLLAR LOOP
OJAL DE COLLAR
ROSCADO
THREADED PIPE
TUBO ROSCADO
BOTTOM TRIM
PIEZA INFERIOR
DEL BORDE
ARM
BRAZO
CENTER STEM
VÁSTAGO CENTRAL
TOP TRIM
PIEZA SUPERIOR
DEL BORD
BALL STUD
VÁSTAGO DE
CABEZA ESFÉRICA
BALL STUD
VÁSTAGO DE
CABEZA ESFÉRICA
We’re here to help 866-558-5706
Hrs: M-F 9am to 5pm EST
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth)
*Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
