Side 1/3

1. Remove lock-up knobs[K] and lock washers[J] from mounting screws[D]. Retain lock-up knobs

and lock washers.

2. Attach mounting strap[C] to outlet box[A] using the strap mounting screws[B]. Mounting strap

can be adjusted to suit position of fixture.

3. Adjust each support cable[G] to the desired length.

NOTE: To shorten the cable, push up on the cable at the cable strain relief[H] attached to

canopy[E] and push cable into the canopy. To lengthen the cable, push up on the pin on the cable

strain relief and gently pull down on the cable to the desired length. Adjust the length of the power

wire and ground wire[F] simultaneously by gently pulling wires out of canopy or pushing wires into

canopy.

4. Cut power wire and ground wire a MINIMUM of 20 inches from the top edge of canopy.

5. Attach the inspection cable[I] to the mounting strap or to the inside of the outlet box and secure

into place to prevent damage to the wires during wiring.

6. Grounding instructions: (See Illus. a or b).

a. On fixtures where mounting strap is provided with a hole and two raised dimples, wrap

ground wire from outlet box around green ground screw, and thread into hole.

b. On fixtures where a cupped washer is provided, attach ground wire from outlet box under

cupped washer and green ground screw, and thread into mounting strap.

If fixture is provided with ground wire, connect fixture ground wire to outlet box ground wire with

wire connector after following the above steps. Never connect ground wire to black or white power

supply wires.

7. Make wire connections. Reference chart below for correct connections and wire accordingly.

Connect Black or Red

Supply Wire to:

Connect White Supply

Wire to:

Black White

*Parallel cord (round &

smooth)

*Parallel cord (square &

ridged)

Clear, Brown, Gold or Black

without Tracer

Clear, Brown, Gold or Black

with Tracer

Insulated wire (other

than green) with copper

conductor

Insulated wire (other

than green) with silver

conductor

*Note: When parallel wire (SPT

1 & SPT 2) are used. The neutral

wire is square shaped or ridged

and the other wire will be round

in shape or smooth (See illus.) Neutral Wire

8. Raise fixture to ceiling, carefully passing mounting screws through mounting screw holes in

canopy.

NOTE: Make sure wires do not get pinched between mounting strap and canopy or canopy and

ceiling.

9. While holding canopy in place, slip lock washers[J] over threads protruding through holes in

canopy (2 places) and then screw lock-up knobs[K] onto threads protruding through holes in

canopy (2 places) to secure fixture to ceiling. Tighten to secure.

10. Install recommended bulb(s), not supplied.

GREEN GROUND

SCREW

CUPPED

WASHER

OUTLET BOX

GROUND

FIXTURE

GROUND

DIMPLES

WIRE CONNECTOR

OUTLET BOX

GROUND

GREEN GROUND

SCREW

FIXTURE

GROUND

For warranty information please visit: kichler.com/warranty

REV 1-AUG-2023

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

CAUTIONS

CAUTION – RISK OF SHOCK:

Disconnect Power at the main circuit breaker panel or main fusebox before

starting and during the installation.

WARNING:

1. This fixture is intended for installation in accordance with the National

Electrical Code (NEC) and all local code specifications. If you are not familiar

with code requirements, installation by a certified electrician is recommended.

Failure to adhere to these codes and instructions may result in serious injury

and/or property damage and will void the warranty.

CLEANING:

• Always be certain that electric current is turned o before cleaning.

• Only a soft damp cloth should be used. Harsh cleaning products may damage

the finish.

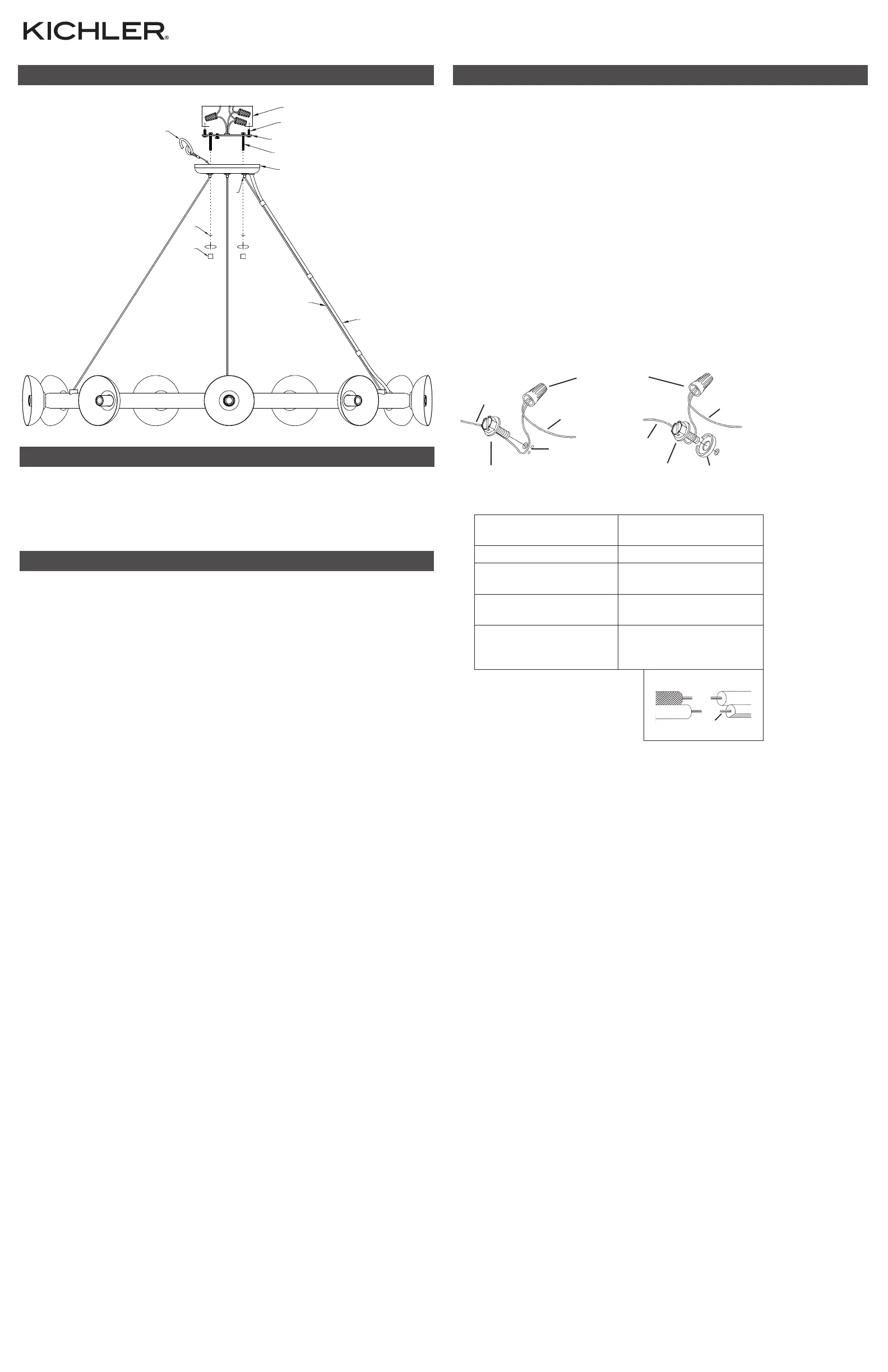

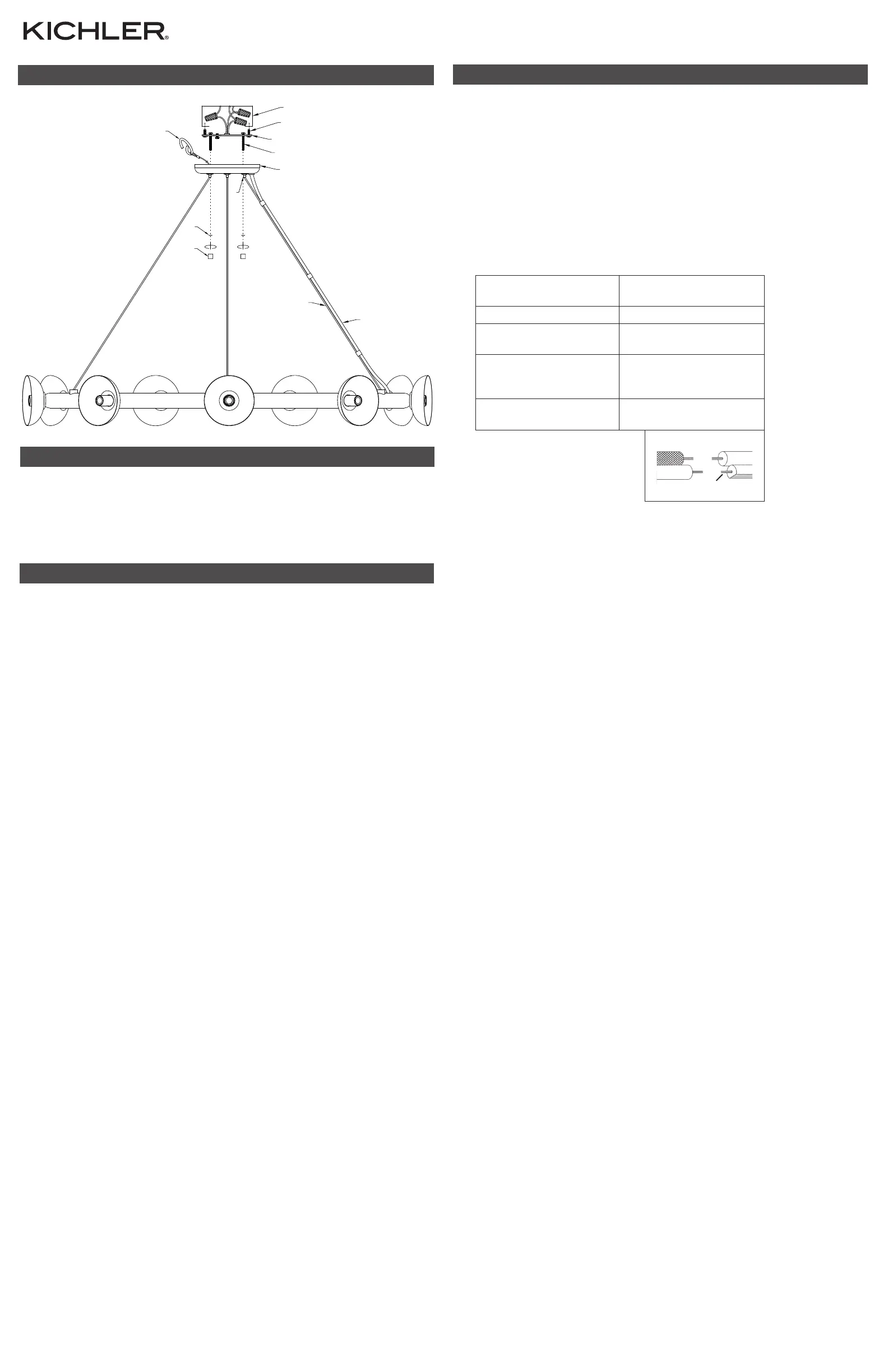

INSTALLATION INSTRUCTIONSFIXTURE DIAGRAM

IS-52642-US

PARTS LIST

[A] Outlet Box (not

supplied)

[B] Strap Mounting Screw

(qty. 2)

[C] Mounting Strap

[D] Mounting Screw (qty. 2)

[E] Canopy

[F] Power Wire and Ground

Wire

[G] Support Cable

[H] Cable Strain Relief

[I] Inspection Cable

[J] Lock Washer (qty. 2)

[K] Lock-up Knob (qty. 2)
