WP-211X Quick Start

P/N:

2 9 0 0 - 3 0 1 3 9 8 QS

Rev:

Scan for full manual

WP-211X Quick Start Guide

This guide helps you install and use your WP-211X for the rst time.

Go to www.kramerav.com/downloads/WP-211X to download the latest user manual and check if rmware

upgrades are available.

Step 1: Check in the b what’s ox

WP-211X 4K HDR HDMI Auto Switcher Wall Plate

1 Quick start guide

Installation accessories

Frame (or frame set) and faceplate

1 Power adapter and cord

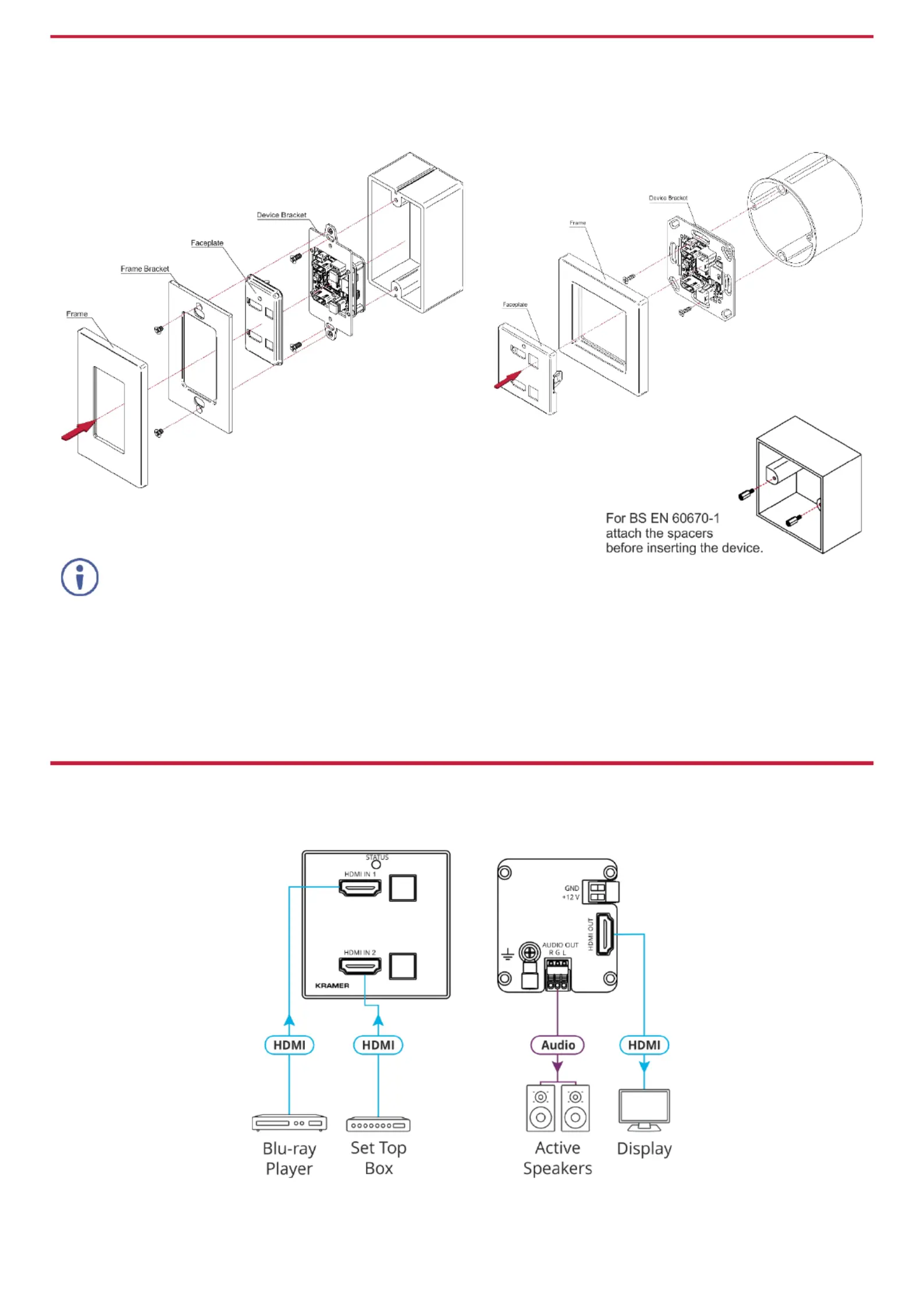

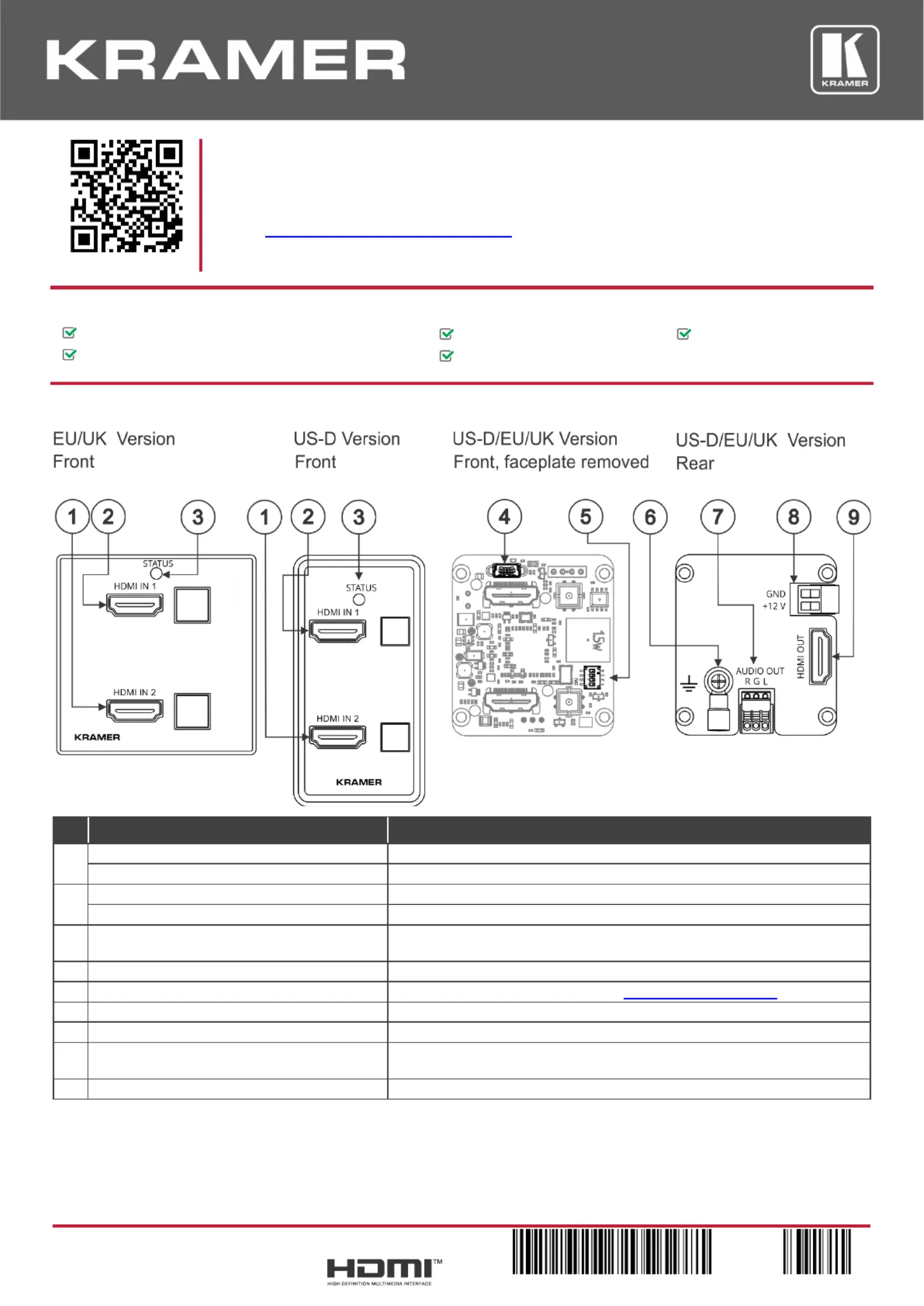

Step 2: Get to know your -211X WP

Feature

Function

HDMI IN 2 Connector

Connects to an HDMI source.

HDMI IN 2 Button

Press to select the HDMI 2 input (button lights orange).

HDMI IN 1 Connector

Connects to an HDMI source.

HDMI IN 1 Button

Press to select the HDMI 1 input (button lights orange).

STATUS LED

Lights green when the device is powered and blue when an HDMI output is

connected.

PROG Mi USB Connector ni

Connect to upgrade the firmware.

SETUP 4-way DIP-Switches

Set the operation DIP-switches (see Setting the DIP-Switches).

Ring Tongue Terminal Grounding Screw

Connect to grounding wire (optional).

AUDIO OUT 3-pin Terminal Block Connector

Connect to an unbalanced analog audio acceptor.

Power Supply 2-pin Terminal Block

Connector

Connect to the power supply. Connect GND to GND, + V to + 12 12V.

HDMI OUT Connector

Connect to an HDMI acceptor.

The terms HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
