Side 1/8
Fo ld Fo ld Fo ld
READ ME FIRST
QUICK INSTALL GUIDE

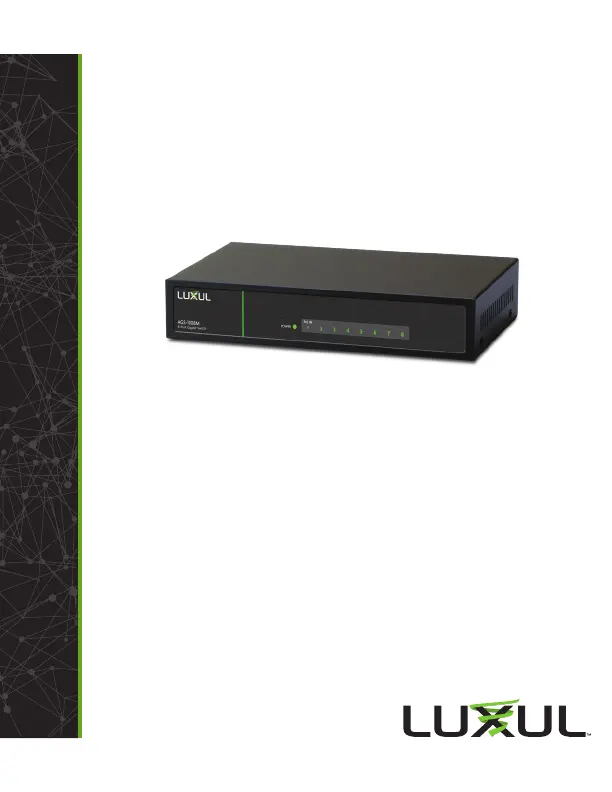

8-Port Gigabit Switch
AGS-1008M
Includes:
AGS-1008M 8-Port Gigabit Switch
Magnet Mount Kit
Rubber Feet
Power Cord
SETUP AND CONFIGURATION
1
Physical Installation
The AGS-1008M can be magnet-mounted or used as a desktop switch. Install
the AGS-1008M in a stable/safe place to avoid any possible damage. Avoid
placement in direct sunlight. Do not place heavy articles on the AGS-1008M
and verify the ground connection of the outlet is functioning properly.
Desktop/Shelf Installation
For desktop/shelf installation, attach the four rubber feet to the corner inden-
tations on the bottom of the AGS-1008M, then place the switch horizontally
on a solid, level platform.
Magnet Installation
Locate the small, circular magnets included in the AGS-1008M box. Place the
magnets in the circular indentions located on the bottom of the AGS-1008M,
lining up the screw-holes. Use the screws included in the AGS-1008M box to
fasten the magnets to the device. Take care to not tighten the magnets too
much as they may snap under excessive pressure.
Attach Feet for Desktop Installation Installation of Magnetic Feet
2
Connecting Ethernet and Power
Ethernet and Power Connections
Use any RJ-45 to connect the AGS-1008M to an Ethernet-enabled device,
including servers, routers or other switches. No crossover cable is necessary.
The AGS-1008M supports 10/100/1000 Mbps Ethernet; 10/100 Mbps half/
full-duplex mode and 1000 Mbps full-duplex mode.
The AGS-1008M may be powered by either the included AC adapter, or
via PoE.
To power the switch to line power, use only the included power
adapter to connect the AGS-1008M to a surge protected outlet.
c CAUTION: Use only the included power supply. A dierent power
supply could damage the AGS-1008M.
To power the switch via PoE, connect the AGS-1008M to another switch via
the PoE In port.
PoE Powered
AC Powered
Luxul Switch
Powering the AGS-1008M by AC or PoE
Sales
801-822-5450
sales@luxul.com
Technical Support
801-822-5450
support@luxul.com
LUX-QIG-AGS-1008M-v6 04161810
Copyright and Trademark Notices
No part of this document may be modified or adapted in any way, for any purposes without permission in
writing from Luxul. The material in this document is subject to change without notice. Luxul reserves the
right to make changes to any product to improve reliability, function, or design. No license is granted, either
expressly or by implication or otherwise under any Luxul intellectual property rights. An implied license
only exists for equipment, circuits and subsystems contained in this or any Luxul product.
© Copyright 2017 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply
Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and
registered trademarks are property of their respective holders.
