READ ME FIRST

QUICK INSTALL GUIDE

52-Port Gigabit PoE+

L2/L3 Managed Switch

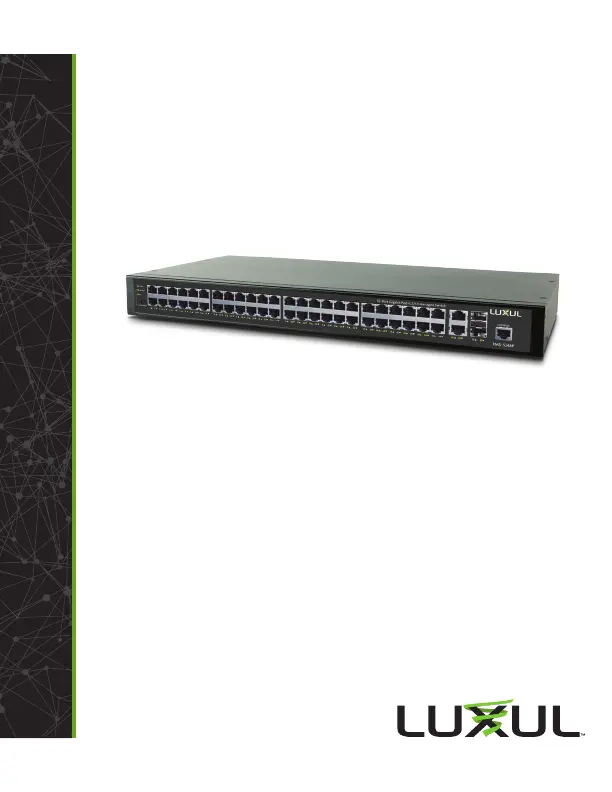

XMS-5248P

Includes:



52-Port PoE Switch



Rack Mount Kit



Rubber Feet



Power Cord

INSTALLATION AND SETUP

Physical Installation

The XMS-5248P can easily be installed in a standard 19” rack. Two mounting ears

are included for installing and stabilizing the switch. When attaching the mounting

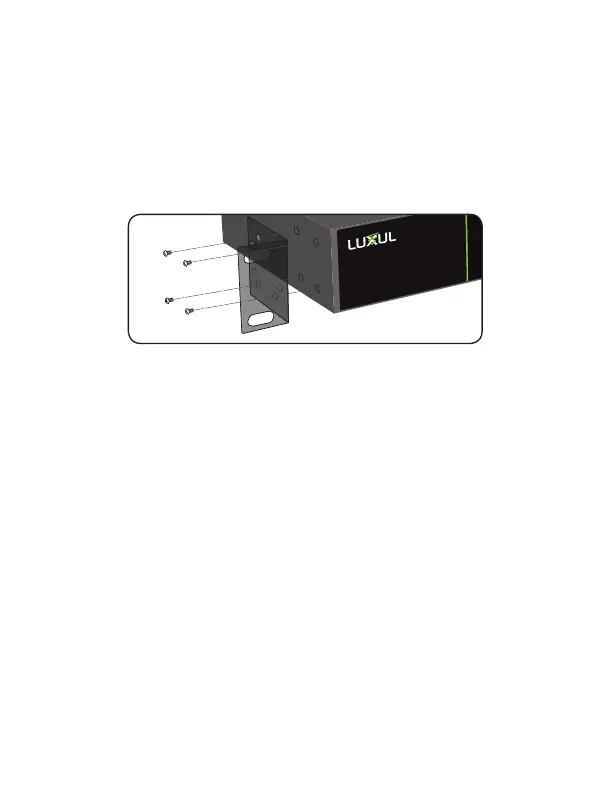

ears and installing the switch in a rack, please refer to the following illustration:

Rack-Mounting the XMS-5248P



Using the included screws to attach the mounting ears to each side

of the switch.



Mount the switch in the rack with the LEDs facing outwards. Be sure the

switch is level and properly secured in the rack.

Desktop Setup

For use as a desktop device, position and apply the included rubber feet to the

bottom of the XMS-5248P.

Connecting Ethernet and Power

Ethernet and Power Connections

Use one of the 50 Ethernet ports to connect the XMS-5248P to any Ethernet-

enabled device, including servers, routers or other switches.

No crossover cable is necessary.

The XMS-5248P supports 10/100/1000 Mbps Ethernet; 10/100 Mbps half/

full-duplex mode and 1000 Mbps full-duplex mode. Ports 1-48 are PoE+ and

are enabled by default. Ports 49 and 50 are Gigabit Ethernet only (non PoE).

Use the included power cable to connect the XMS-5248P to a surge-

protected outlet. The AC input socket is on the rear panel. The built-in

power supply supports 100~240VAC at 50/60Hz.

The rear panel also features a redundant power supply (RPS) connector. To

utlize this feature, you’ll need an external power supply and an appropriate

RPS cable to connect the XMS-5248P to the external power supply.

Network Cabling

Luxul recommends at least Cat-5e unshielded twisted pair (CAT5e UTP)

cabling. To ensure best performance and stable data transmission at 1000

Mbps, use Category-6 unshielded twisted pair (CAT6 UTP).

c CAUTION: Multiple Uplink channels can create loops, resulting in

network failure. Ensure only one Uplink channel exists

between switches or between the XMS-5248P and a router.

n NOTE: When powering up, the port LEDs may take a moment to

initialize. This is normal as the XMS-5248P initialization and

startup sequence completes.

n NOTE: The XMS-5248P has an internal 740W power supply. Do not

exceed 25.5W each or 740W combined consumption of all

external PoE devices.
