Side 1/4

BCI-GM31

Navigation Unlock & Reverse Camera Input

Interface for GM LAN 29-Bit Vehicles

Pacic Accessory Corporation

® | Ph. 866-931-8021 | support@pac-audio.com

www.pac-audio.com

Rev. 031015

Page 1

Disconnect the black 14-pin and brown 16-pin harness from the back of the

radio. Connect the male 14 & 16 Pin connectors of the BCI-GM31 harness into

the 14-pin and 16-pin ports on the back of the radio. Connect the factory 14-pin

and 16-pin harness into the female connectors on the BCI-GM31 harness.

Connect the black 24-pin micro-t connector of the BCI-GM31 harness into the

BCI-GM31.

If you are adding a reverse camera:

The radio’s camera reverse input will need to be enabled via the dealership

using the GM MDI tool. Once enabled, disconnect the yellow RCA’s in the BCI-

GM31 harness and connect the radio side RCA to the aftermarket cameras

video output RCA. If you wish to be able to view the reverse camera at anytime

you must power up the aftermarket reverse camera via accessory +12V, not a

reverse +12v signal.

Vehicles equipped with a Factory Reverse Camera:

If you wish to enable the viewing of the reverse camera at anytime you must

power up the factory reverse camera when this feature is active. To do this a

wire must be ran from the BCI-GM31’s red camera turn on wire to the factory

power wire for the reverse camera. The location of this wire will vary depending

upon which vehicle you are installing the BCI-GM31 into. Please see below for

the different locations.

Please Note: If the customer does not wish to use the Reverse Camera unlock

feature you do not have to locate and connect this wire.

The BCI-GM31 is a Navigation Unlock integration interface that allows the factory navigation features

of your 29-bit GM LAN radio or the reverse camera to be used by the passenger at anytime.

BCI-GM31

GM LAN 29bit Universal

Navigation Unlock Interf ace

To Vehicle

See Chart Below

For Connections

To Factory Radio

BCI-GM31-HAR

Connection Diagram

W ire C olor Fu nction

Red Reverse C am e ra Turn O n Outpu t (+)

Bla ck G ro und Output

Brown Reverse C am e ra Trig ger Input (-)

1. Locate the reverse camera module underneath the passenger seat (Fig A).

2. The reverse camera wire is the blue wire in pin 1 of the 12 pin plug (Fig B).

3. Connect the red camera turn on wire from the BCI-GM31 to the blue wire

using a diode (Fig C). The diode is needed to prevent the reverse lights from

coming on when the reverse camera is activated.

4. Verify that the reverse lights do not come on when the reverse camera

unlock feature is being used.

Please Note: If you are installing the BCI-GM31 into a 2007-2008 vehicle that

does not have the reverse camera module located under the passenger seat,

please refer to the following pages for alternate camera wire locations.

Fig A

Fig B

Reverse

Camera

Module

Red Camera Activation Wire

Blue Camera Wire

Connect Diode

Here

Connect Red Wire

From NU-GM29 Here

Fig C

Introduction & Features

Installation

Factory Reverse Camera Power Wire Location 2007-2008 Vehicles

BCI-GM31

Navigation Unlock & Reverse Camera Input

Interface for GM LAN 29-Bit Vehicles

Pacic Accessory Corporation

® | Ph. 866-931-8021 | support@pac-audio.com

www.pac-audio.com

Rev. 031015

Page 2

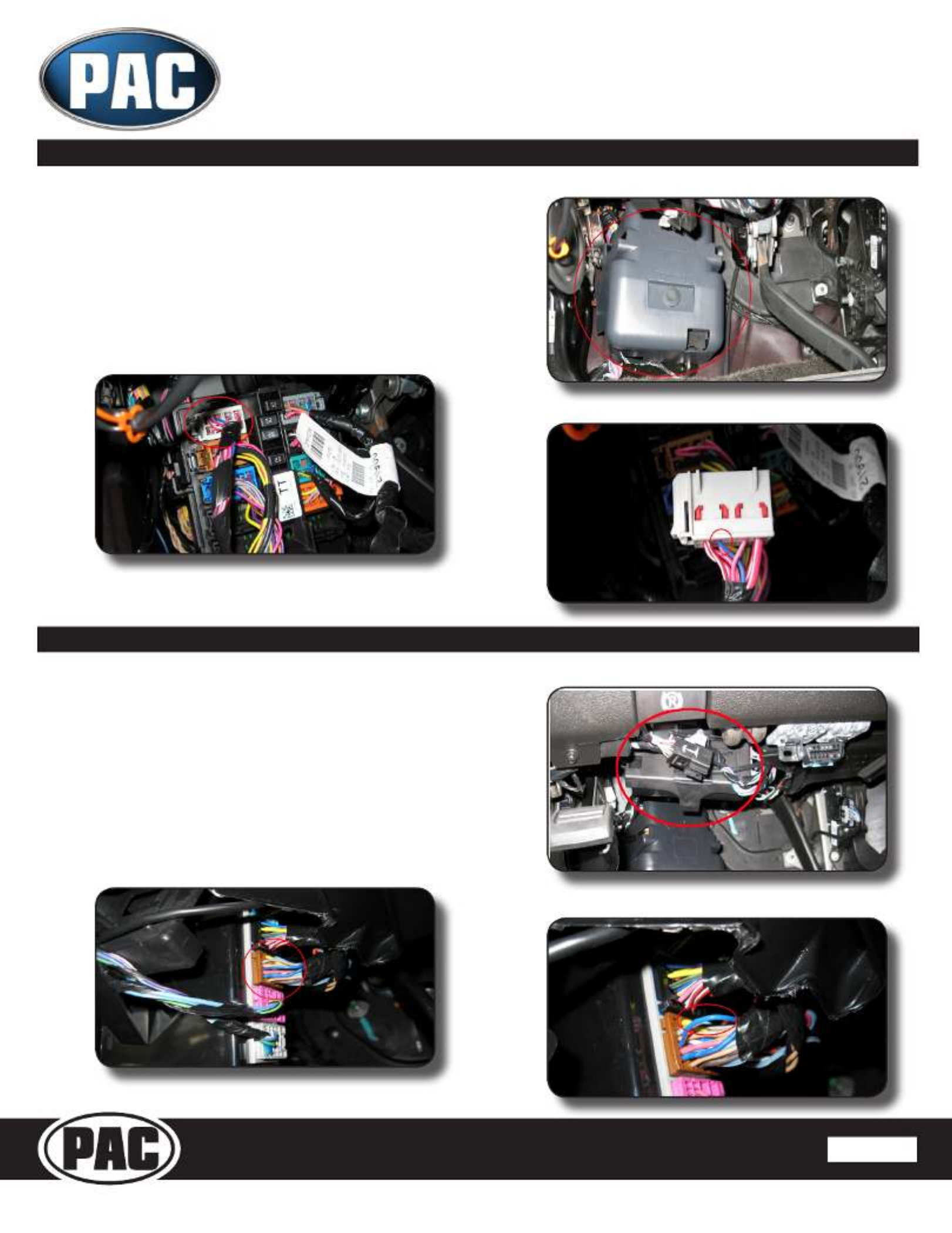

1. You will need to locate the junction block underneath the driver dash to the

right of the kickpanel on the rewall (Fig A).

2. Remove the cover and locate the 8 pin gray plug in the top left corner of the

junction block (Fig B).

3. The reverse camera wire is the blue wire in pin 2 (Fig C)

4. Connect the red camera turn on wire from the BCI-GM31 to this blue wire.

5. Verify that the reverse lights do not come on when the reverse camera

unlock feature is being used.

Fig A

Fig B

Fig C

1. You will need to locate the BCM underneath the driver dash to the left of

the Steering Column (Fig A).

2. Pull on the release tab at the bottom and slide the BCM down. Locate the

brown plug that is the third one up (Fig B).

3. The reverse camera wire is the blue wire in pin 4 (Fig C)

4. Connect the red camera turn on wire from the BCI-GM31 to this blue wire.

5. Verify that the reverse lights do not come on when the reverse camera

unlock feature is being used.

Fig A

Fig B

Fig C

Reverse Camera Wire Location 2009 Avalanche/Escalade/Suburban/Tahoe/Yukon

Reverse Camera Wire Location 2009 H2
