PAC-Audio.com

Page 1

Rev: V1

Date: 021323

CANPRO Harness

for Select Tesla Vehicles

CP1- TSL1

Output 8 Pos. 250mA

Output 7 Pos. 250mA

Output 6 Pos. 250mA

Output 5 Pos. 250mA

Output 4 Pos. 250mA

Output 3 Speed Pulse

Output2 Pos. 250mA

Output1 Pos. 250mA

Output 9 Neg. 250mA

The CP1TSL1 is a factory matched plug & play harness for use with the CANPRO CP1-S CAN-Bus Interface Module for

Tesla Model 3 and Model Y applications using the 26pin data harness. The harness and module allow a simple and safe

way to access vehicle information, status and triggers from the CAN-Bus for a wide range of aftermarket uses such as

radar detectors, camera activation, sound system upgrades, lighting and more!

Introduction and Features

Important Notes

1. Any unused outputs should be insulated to prevent shorting.

2. The outputs of the CANPRO are low current (250mA) and require the use of a separate relay if additional current is required.

3. The vehicle should be in a resting state prior to opening connection to the 26pin data harness. See Installation note for further

information.

Wiring Connection Chart

Outputs

To Factory

Harness

To Factory

Harness

Description

Description Polarity

Polarity

Polarity Wire Color

Wire Color

Output 1 Accessory + Positive (250mA) White-Red

Output 2 Illumination + Positive (250mA) Blue

Output 3 Speed Pulse Pulse Green-Black

Output 4 Reverse + Positive (250mA) Violet-Black

Output 5 Ignition* + Positive (250mA) Yellow-Black

Output 6 Left Turn Signal + Positive (250mA) Red-Black

Output 7 Right Turn Signal + Positive (250mA) Gray-Red

Output 8 High Beam + Positive (250mA) Blue-Black

Output 9 Parking Brake - Negative (250mA) Brown-Black

Output Wires

1-9

DIP Switches

16pin

Interface

Connector

Status

LED

CANPRO CP1-S

* In Electric Vehicles, Output 5 provides a positive output when the vehicle is in a “Ready to Drive” state.

PAC-Audio.com

Page 2

Rev: V1

Date: 021323

CANPRO Harness

for Select Tesla Vehicles

CP1- TSL1

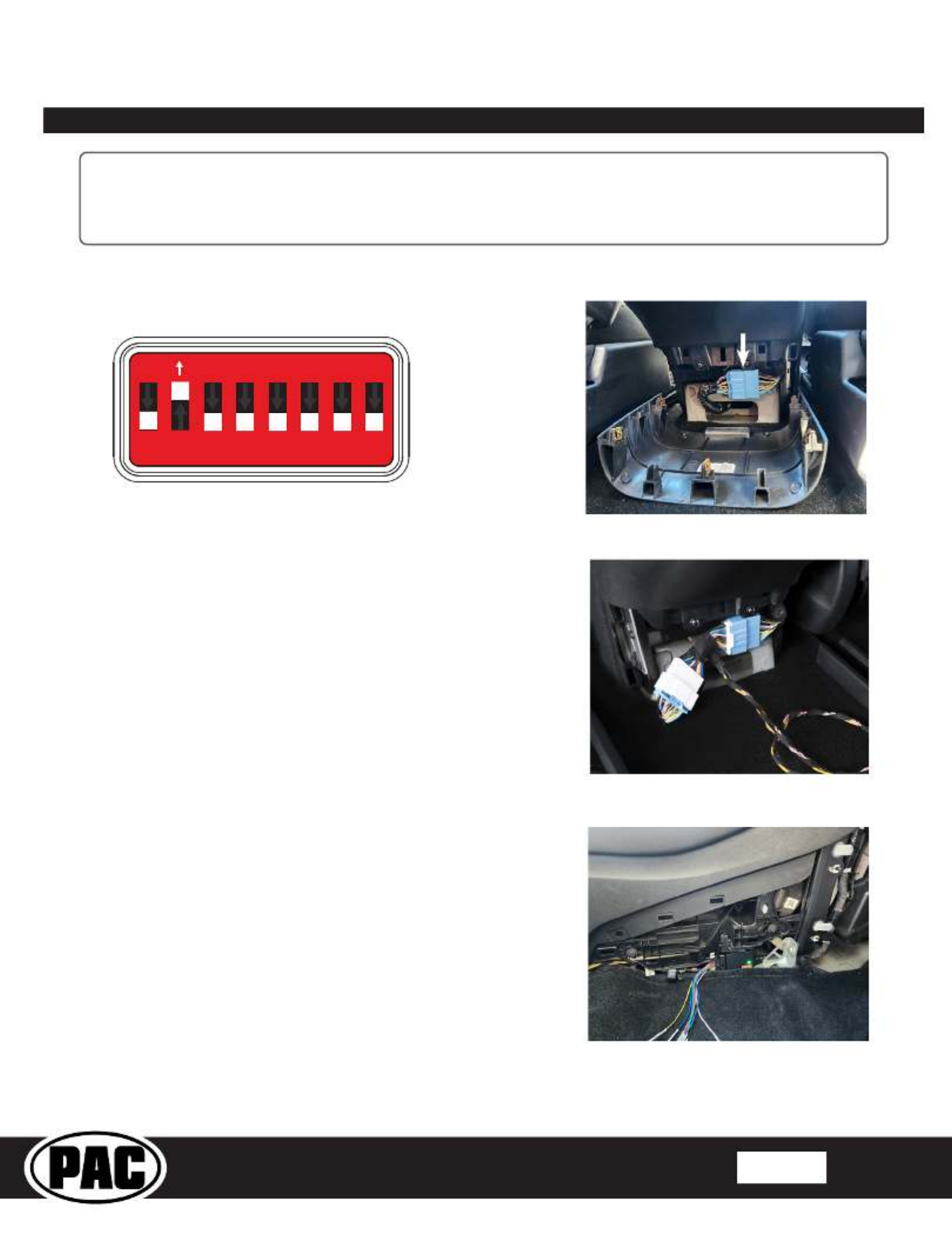

Installation

1. Set the DIP switches on the CP1-S as shown in below.

2. Access the vehicle's CAN data harness by removing the

panel located at the rear of the center console. (FIG A)

3. To remove the console end panel, pull out (towards rear

of vehicle) along the bottom edge to release the lower

retaining clips and then pull out along the top of the panel

to release the upper retaining clips.

4. Ensure the vehicle is (Refer to NOTE at the Powered O󰀨

top of the page) and unplug the 26pin CAN data harness.

(FIG A)

5. Connect one end of the CP1-TSL1 harness to the matching

connector in the vehicle. Connect the remaining vehicle

connector from the CP1-TSL1 to the other end of the

vehicle harness. (FIG B)

6. On the passenger side of the center console, unclip the

side trim panel. (FIG C)

7. Route the CP1-TSL1 16pin interface connector from the

rear of the console to the passenger side of the console.

8. Determine a mounting location for the CP1-S module and

connect the 16pin connector to the module.

9. Lengthen and route any Output wires needed. Insulate any

unused Output wires!

10. After wire connections and testing are complete, secure the

CP1-S module and reinstall the console panels.

1 2 3 4 5 6 7 8

FIG A

FIG B

FIG C

NOTE! Before and during installation, ensure the vehicle is in the Power Off status (Controls > Safety > Power Off).

Do not press the brake pedal, touchscreen or wake-up the vehicle until installation is complete. If the radio display turns

back on prior to unplugging the 26pin data harness, repeat the Controls>Safety>Power Off cycle prior to unplugging.
