Side 1/4

Multi Camera Input Interface

for select General Motors Vehicles

PAC-audio.com

Page 1

Rev. V2

Date: 072419

MCI-GM53

The MCI-GM53 will allow the addition of a reverse, blind spot, and one more additional camera in vehicles equipped

with the 7” screen.

Introduction and Features

Important Notes

1. Compatible build code: IOB. Incompatible build codes: IOA, IO4, IO5, and IO6 . Build codes can be found on a silver sticker either in

the glove box or by scanning the QR code in the driver door frame.

2. If you change the DIP switch settings, you must disconnect and reconnect power for the change to take e󰀨ect.

3. It is very important that you make all connections with the key in the o󰀨 position. Failure to do so will result in the factory

touchscreen becoming unresponsive. If you do make the connections with the key on, you must turn the vehicle o󰀨, shut all doors, and

leave it alone for 5 minutes. After 5 minutes, turn the key back on, and the interface should operate as intended.

4. If you are installing this interface strictly to add a reverse camera, please note that the blind spot inputs will need to be disabled by

entering the menu and manually disabling the inputs (see page 3, step 3 for details).

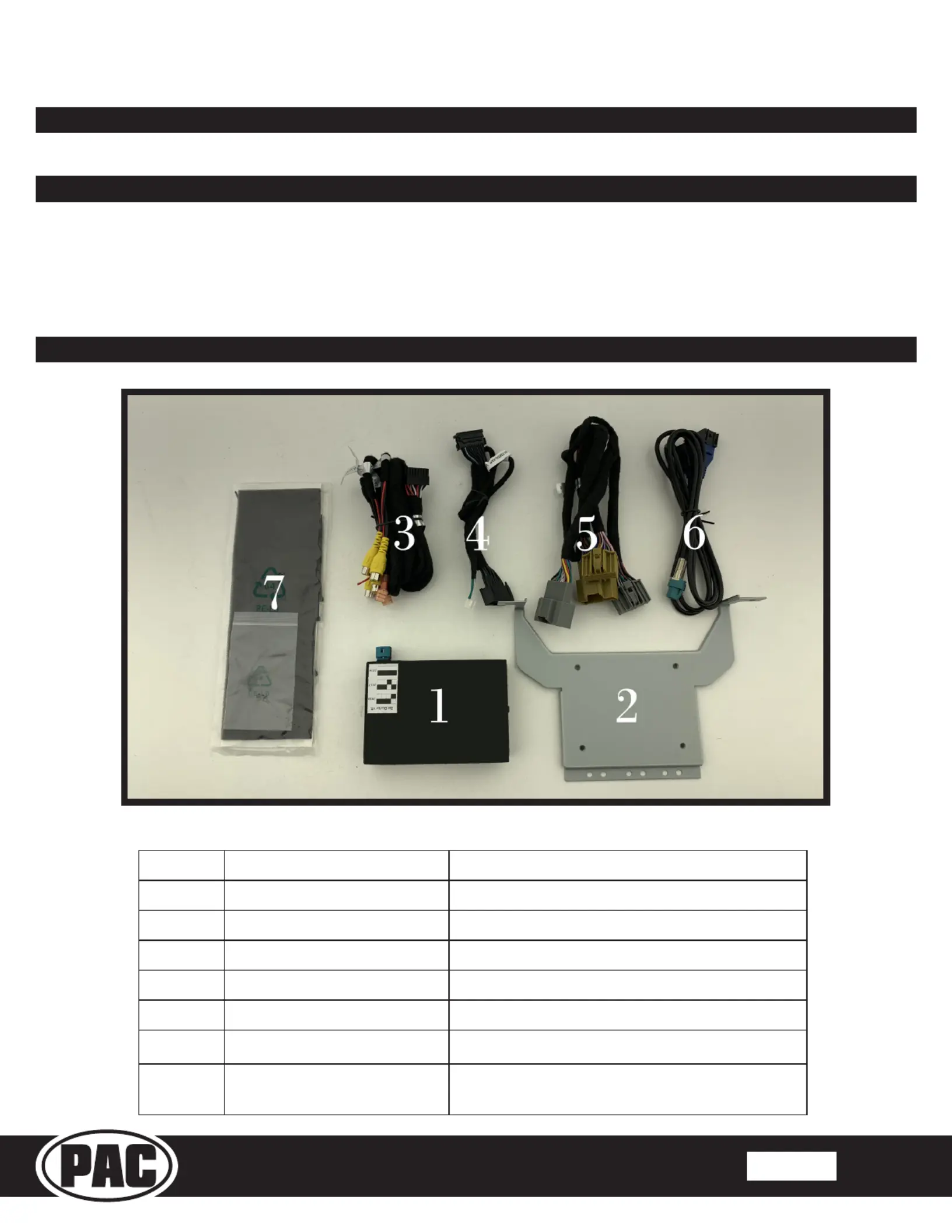

What’s Included

Number Description Replacement Part Number

1 Module MCI-GM53

2 Mounting Bracket GMSWRBRKT

3 Video Input Harness BSM2-CEH

4 VBM Harness BSM1-TMON-HAR V2

5 Power Harness BSM2-PTH

6 LVDS Harness BSM1-LVDS

Foam Padding/

Mounting Screws

Miscellaneous

Multi Camera Input Interface

for select General Motors Vehicles

PAC-audio.com

Page 2

Rev. V2

Date: 072419

MCI-GM53

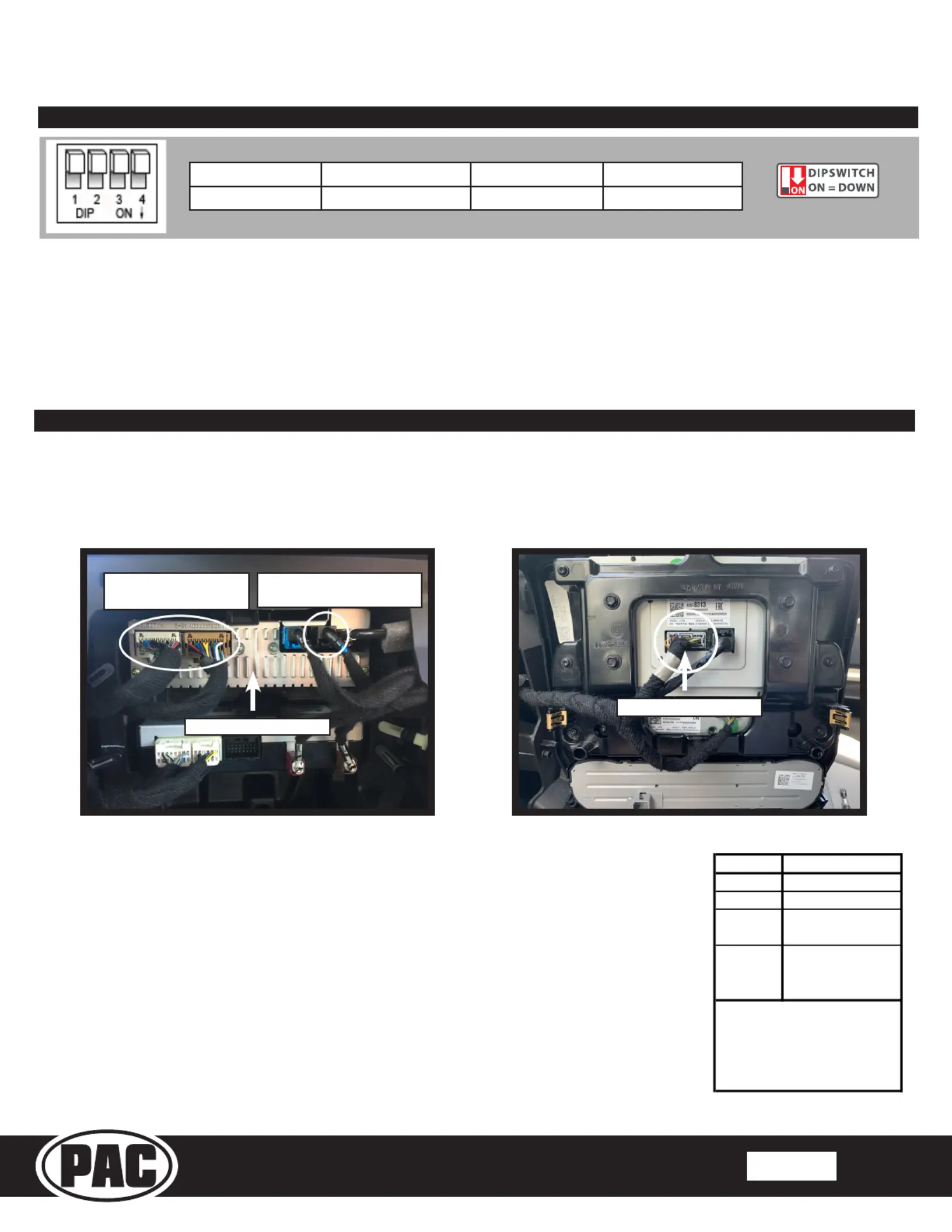

DIP switches

Vehicle Year Vehicle Year Not Used Not Used

1 2 3 4

Set DIP switches according to the descriptions below

DIP switch Functions:

1. Vehicle Year 2018-2019

• Set ONLY this DIP switch on (down) when installing into 2018-

2019 model year vehicles

2. Vehicle year 2017

• Set ONLY this DIP switch on (down) when installing into a

2017 model year vehicle

Installation Steps

1. Set the DIP switches for your vehicle based on the table above. These DIP switches must be set to the proper conguration before

connecting the interface to power.

2. Remove the factory screen assembly and disconnect the factory harnesses pictured below (Fig. A). Please note that you will be

disconnecting the LVDS harness on the right in Fig. A. It is the black plug with the blue cable, NOT the blue plug with the black

cable.

3. 2018-2019 Vehicles ONLY: Please note the the 20-pin VBM connector on the back of the screen assembly

as you will be interrupting this harness with one that connects to the module. (Fig. B)

4. Connect the MCI-GM53’s gray and gold male plugs on the power harness to the factory tuner unit (Fig. A).

5. Connect the factory gray and gold plugs into the female connectors on the MCI-GM53 power harness.

6. Connect the MCI-GM53’s male LVDS harness to the factory tuner unit (Fig. A).

7. Connect the factory LVDS harness into the female LVDS connector on the MCI-GM53.

8. 2018-2019 Vehicles ONLY:

• Connect the MCI-GM53 male VBM connector to the rear of the screen assembly (Fig. B).

• Connect the MCI-GM53 female VBM connector to the vehicles VBM harness.

9. Connect the power harness to the MCI-GM53 module.

10. Connect the LVDS harness to the MCI-GM53.

11. 2018-2019 Vehicles ONLY: Connect the 4-pin VBM harness to the MCI-GM53 module.

12. Connect the video harness to the MCI-GM53 module.

13. Connect cameras and corresponding camera power wire outputs according to the chart on the right. If the

vehicle is equipped with a factory reverse camera, then Input 4 can be used for a bed camera or not at all.

Secure and insulate any camera inputs and power wires not being used to prevent any contact with metal.

Input Function

Camera 1 Left Camera

Camera 2 Right Camera

Camera 3

Trailer/Front

Camera

*Camera 4

Other/Aftermarket

Reverse Camera

*This camera input is

automatically activated if

"Enable Aftermarket Backup

Camera" is on in the Installer

Setup menu.

3. Not Used (Leave in the up position)

4. Not Used (Leave in the up position)

**2016 Model Year vehicles: All DIP switches must be in the o󰀨 (up) position**

Fig. A Fig. B

Use the gray and gold

connectors

Use the black LVDS plug

with the blue cable

Factory Tuner Unit

VBM Connector
