RP3-GM12
Radio Replacement Interface for General Motors Vehicles
Pacifi c Accessory Corporation® | Santa Ana, California 92705 | Ph. 866-931-8021 | support@pac-audio.com
©2013 Pacifi c Accessory Corporation
www.pac-audio.com
Rev. 11-22-13
P ifi A C ti
3
3
3
Introduction & Features
Wiring Connection Chart

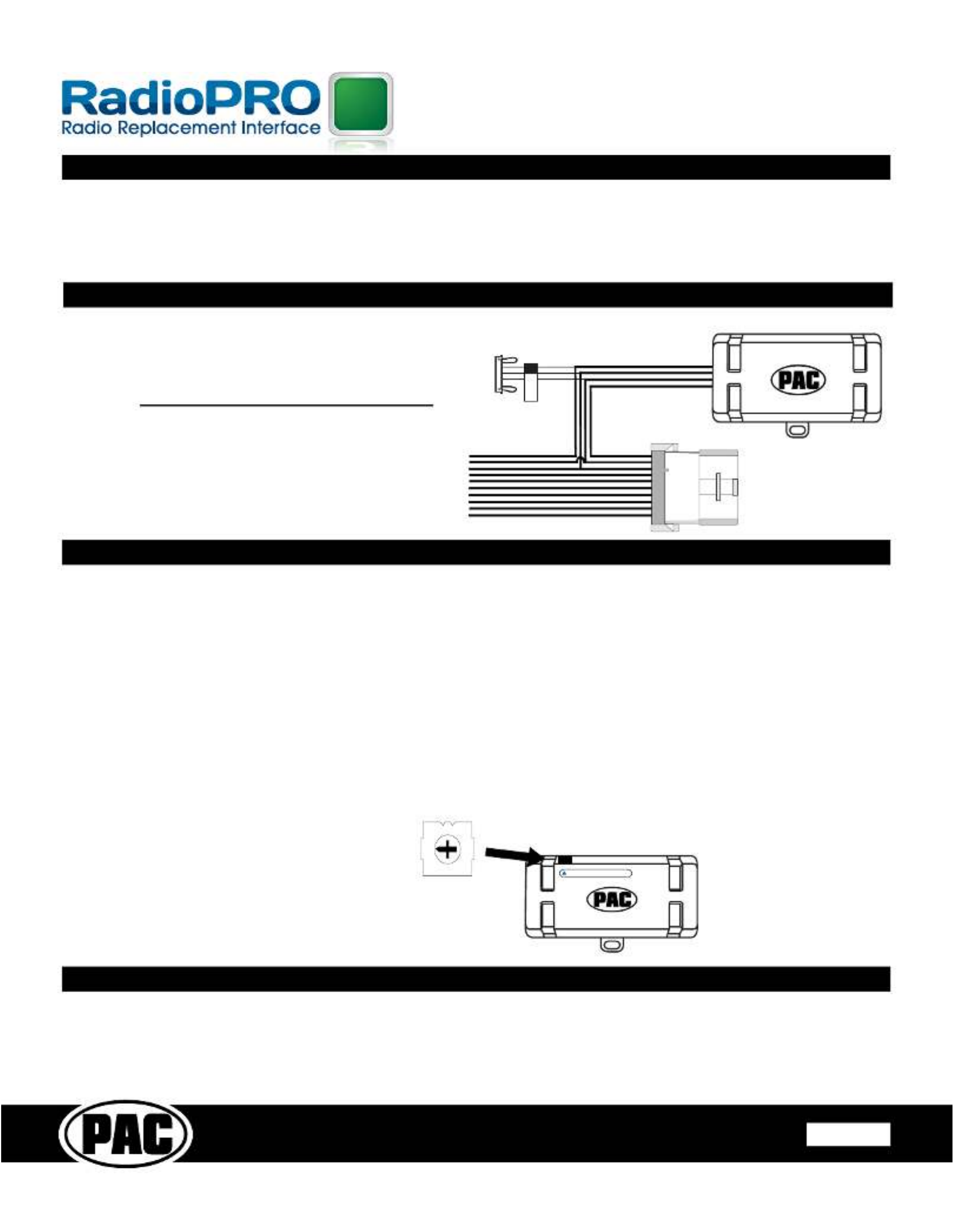

Illustration / Schematic
The RP3-GM12 interface allows the replacement of a factory radio in select General Motors vehicles with Class II radios. Using
this interface will retain factory features such as Warning Chimes when the original radio is removed. The RP3-GM12 provides
data bus driven outputs such as retained accessory power (RAP), vehicle speed sensor (VSS), illumination, reverse trigger and
parking brake. The RP3-GM12 also provides a secondary output for adding an optional PAC Steering Wheel Control (SWC)
retention interface (SWI-RC, SWI-PS, SWI-JACK, SWI-ECL2 or SWI-X).
Red / White Parking Brake
Output (-)*
Purple / White Vehicle Speed
Output*
Blue / White Amp Turn On Input
Red Accessory Output
(10 amp)
Orange / White Illumination Output
(+)*
Green Reverse Output (+)*
Interface Connector
Yellow Battery +12v
Black Ground
Blue Antenna On Input
White Front L + input
White / Black Front L - input
Grey Front R + input
Grey / Black Front R - input
Green Rear L + input
Green / Black Rear L - input
Purple Rear R + input
Purple / Black Rear R - input
Vehicle Connector
*Not all radios will have these
connections. Please insulate
these wires when not used.
Chime Volume Adjustment
Aftermarket Radio
Connections
Connect to SWC
Interface. Program
for Version 2.
To optional SWC interface
To Vehicle
Connector Acc On
LED
Important Notes
1. For BOSE systems, the recommended line level input is between 2-4 volts from the aftermarket radio.
2. To prevent over driven audio when installing into a vehicle with a BOSE system and the aftermarket radio does not have low
level outputs then an LOC (part # SOEM-4 or LP3-4) is recommended to match the input voltage.
3. Use the 4 position selector switch located on the side of the interface to select the best chime output for your specifi c installation.
