Radio Replacement Interface for
Select Toyota / Lexus / Scion Vehicles
RP3.2-TY11
© 2017 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
C
Page 1
Rev. 103117
Introduction & Features
Important Notes
The RP3.2-TY11 allows for replacement of the factory radio in select Toyota / Lexus / Scion vehicles and will retain the
factory amplier. The harness also provides connections for: vehicle speed signal (VSS), reverse trigger, parking brake,
and plug-n-play connection (SWI-DIRECT) for the addition of a steering wheel control interface (SWI-RC or SWI-CP2).
1. These instructions only apply to R.2.1.1.4 or later revisions of the product. The revision info can be found on a small white
sticker on the interface and packaging.
2. The VSS, Reverse, and Parking Brake wires will only provide signals if the vehicle’s harness is equipped with these wires.
3. Adjustment of the vehicle settings through the original radio’s vehicle settings menu will be disabled after installation of your
new radio. It is advised to make sure all settings are as you desire prior to removal of the original radio.
4. Does not retain the ability to fade through the aftermarket radio. The fade setting is only controlled by a dial on the interface.
5. Does not retain Rear Seat Entertainment.
6. The CAM-TY11 or CAM-TY12 must be purchased in order to retain the factory reverse camera. Please refer to www.pac-
audio.com to see which harness you will need. If the required harness is not available, it is possible to hardwire the reverse
camera using the information provided in Appendix A on Page 2.
Vehicle Connectors
Module Layout
Vehicle Connector
Interface Port
USB Port
Factory Amplier
Gain Adjustment
Factory Amplier
Fade Adjustment
Status LED
The RP3.2-TY11 requires connections of 2 of the 4 vehicle connectors. The additional connectors will remain unused on the
harness. Any additional radio harnesses in the vehicle that do not plug into one of the vehicle connectors shown above, will
not be used. Below you will nd the typical combinations needed for most vehicles.
Combination 1
Typical 2004 to 2013
Vehicle Connector 1 Vehicle Connector 3
Combination 2
Typical 2014 to 2017
Vehicle Connector 2 Vehicle Connector 4
Vehicle Connector 4
Vehicle Connector 1 Vehicle Connector 2 Vehicle Connector 3
Radio Replacement Interface for
Select Toyota / Lexus / Scion Vehicles
RP3.2-TY11
© 2017 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
C

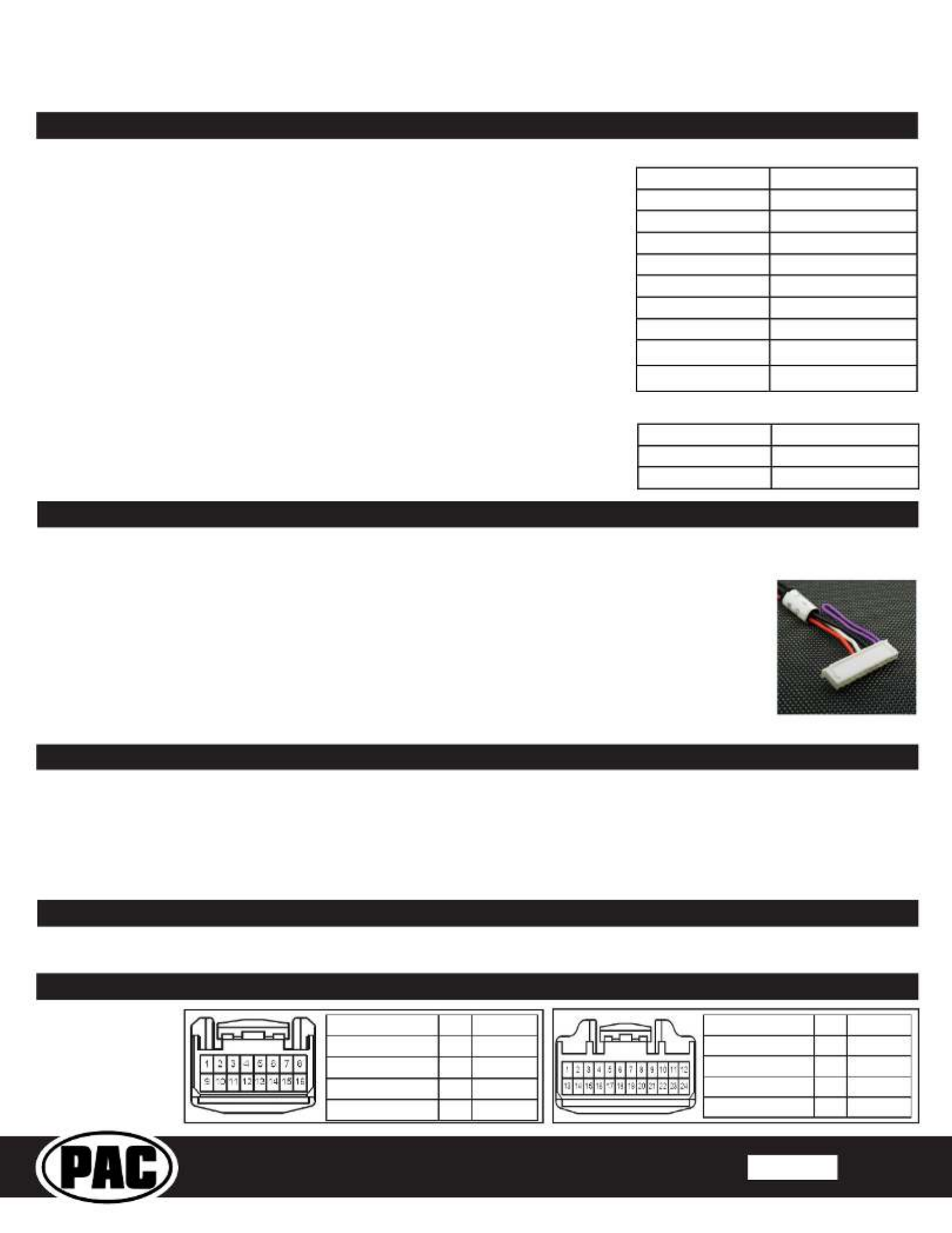

Page 2
Rev. 103117
Installation Steps
1. Wire the aftermarket radio harness per the tables to the right and the information
below. If the aftermarket radio does not require connections for Vehicle Speed
Sense, Parking Brake, or Reverse Signal, proceed to step “2”.
a. Navigation Outputs: Plug the 28 pin connector (Vehicle Connector 4) from the
RP3.2-TY11 into the vehicle harness. Find the Pink (pin 17), Light Green (pin
15) and Purple / White (pin 2) wires in the RP4.2-TY11 harness and check for
wires populating these positions on the factory side of the connector. If the wires
are present, you can use the analog navigation outputs coming from the Vehicle
Connector in the PAC harness.
2. Connect the RP3.2 module to the 4-pin interface connector.
3. Wire the Red, Black, Yellow, Orange / White, Blue / White and the White and Gray
speaker wires to the aftermarket radio and plug the interface into the vehicle.
4. Turn the ignition on and set the gain on the side of the interface to the desired level.
See “Testing & Verication” section below for further details on how to set the gain.
5. If you wish to permanently fade the sound more to the front or rear, adjust the fader
on the side of the interface to the desired setting. Clockwise fades to the front,
counter-clockwise fades to the rear.
6. Follow the steps in the next section if you wish to add an optional SWC retention
interface.
SWI-DIRECT Steering Wheel Control Output Connector
1. The RP3.2 provides a SWC output connector labeled “Connect to PAC Steering Wheel Control Interface” (Fig. A) attached
to the harness. For ease of installation, all necessary connections have been made for you.
2. You can use either an SWI-RC or an SWI-CP2 (sold separately).
Fig. A
Testing & Verication
1. Turn the ignition on. The LED on the interface will turn on and the 12v+ accessory wire will turn on.
2. Turn on the radio and check volume and balance (fader can only be set by using the dial on the side of the RP3.2 interface).
3. If the overall volume is too low, use the gain adjustment on the side of the RP3.2 interface to set the gain of the factory
JBL amplier. The best way to do this is to turn the volume on the radio to 3/4 volume, then turn the gain adjustment on the
RP3.2 clockwise until some distortion is heard, then counter-clockwise a little.
4. The LED and radio will turn off when the ignition is turned off.
Product Updates (Firmware)
The RP3.2-TY11 can be updated with new rmware as it becomes available using the RadioPRO app. Please visit www.pac-
audio.com/rmware for available updates.
*Violet / White Reverse Signal
*Green Parking Brake Signal
*Pink Vehicle Speed Signal
Labeled “Analog Navigation Outputs”
Yellow Battery 12v+
Red Accessory 12v+
Black Ground
Orange / White Illumination
Blue / White Remote Input
White Front L + input
White / Black Front L - input
Grey Front R + input
Grey / Black Front R - input
White / Red RCA Factory Auxiliary Audio
Labeled “Connect to Aftermarket Radio”
Appendix A (Reverse Camera Retention)
Connectors Viewed
From Pin Side
Function Pin Wire Color
Camera Power 6V + 7 Black
Video + 8 Red
Camera Ground 15 Shield
Video - 16 White
Function Pin Wire Color
Camera Power 6V + 11 Red
Video + 12 White
Camera Ground 23 Shield
Video - 24 Black
a. When using an SWI-RC, the loop on the output connector should remain intact. Please refer to
SWI-RC instructions for radio switch setting, version assignment, and exact button programming
sequence.
b. When using an SWI-CP2, use the DIP switch settings provided for the RP3.2-TY11 in the Control
PRO application. The steering wheel controls will be precongured for the vehicle and radio but
can be customized using the Control PRO application. The The loop on the output connector
should remain intact.
