Radio Replacement Interface for General Motors Vehicles

with 29-bit V2 and with or W/O BOSE and OnStar

Rev. 2/2/24

PAC-audio.com

RP5-GM61

Page 3

Introduction and Features

Important Notes

The RP5-GM61 interface allows the replacement of a factory radio in select General Motors vehicles with 29-bit LAN v2, 20-pin and

16-pin connector radios. Using this interface will retain factory features such as BOSE, OnStar, vehicle settings, steering wheel

controls (SWC), front and rear park assist and warning chimes when the original radio is removed. The RP5-GM61 also provides data

bus driven outputs such as retained accessory power (RAP), vehicle speed (VSS), illumination, reverse trigger and parking brake.

1. Please make your vehicle settings selections before removing the factory radio for optimal installation time. Once the radio has been removed,

the vehicle settings which are normally selected through the factory radio can be accessed and changed by downloading and installing the

PAC RadioPRO PC Application from http://www.pac-audio.com/rmware.

2. Before removing your factory radio, please review the following settings as these will not be retained once the factory radio is removed:

• Ambient Lighting Control

• Teen Driver Feature

• Valet Mode

• Rear Park Assist Symbols displayed on Reverse Camera Image

• OnStar Text

• Performance Data Recorder

• Custom Launch Control (Line Lock, Launch Control)

3. When you plug in the module for the rst time, it must go through an initialization process that takes up to 12 seconds. Make sure you have

the vehicle running diring this process.

4. The radio select dip-switchs on the side of the interface must be adjusted to the proper radio setting before plugging the interface into the

vehicle (see page 2 for setting chart).

5. The Voice button can be set to activate the factory OnStar function by using the RadioPRO PC Application. By default, this button is

re-programed to control the aftermarket radios voice function.

6. For retaining OnStar, you must add on an additional RPA-SPK Chime speaker if you are using an aftermarket amplier on Mids & Highs that

can be purchased seperatly.

7. The interface comes pre-programmed for all of the vehicles factory SWC functions and does not require programming unless you wish to

re-assign the SWC functions, utilize the buttons that have no initial programming or utilize short press long press dual command functionality.

The SWC can always be restored to default settings by pressing and releasing the program button on the side of the interface once and

waiting 7 seconds for the LED to ash 4 times.

• Chevrolet Malibu will require SWC re-mapping. By default volume up / down and track up / down are reversed.

8. Language: In some vehicles the Lauguage setting is controled over MOST. Please make sure that you adjust this accordlingly before removing

the radio as this will not show up in most cases after your install.

9. Please reference the vehicles RPO CODE sticker normally located in the vehicles glove box or the underside of the spare tire cover.

Module Layout

LED 1

LED 2

Interface Connector 1

Expansion Port

Interface Connector 2

Amplied Audio Output

Non-Amplied Audio Output

Programming Button

USB Port

Radio Select DIP switches

Interface Connector 4

Adjustment Dial

Radio Replacement Interface for General Motors Vehicles

with 29-bit V2 and with or W/O BOSE and OnStar

Rev. 2/2/24

PAC-audio.com

RP5-GM61

Page 4

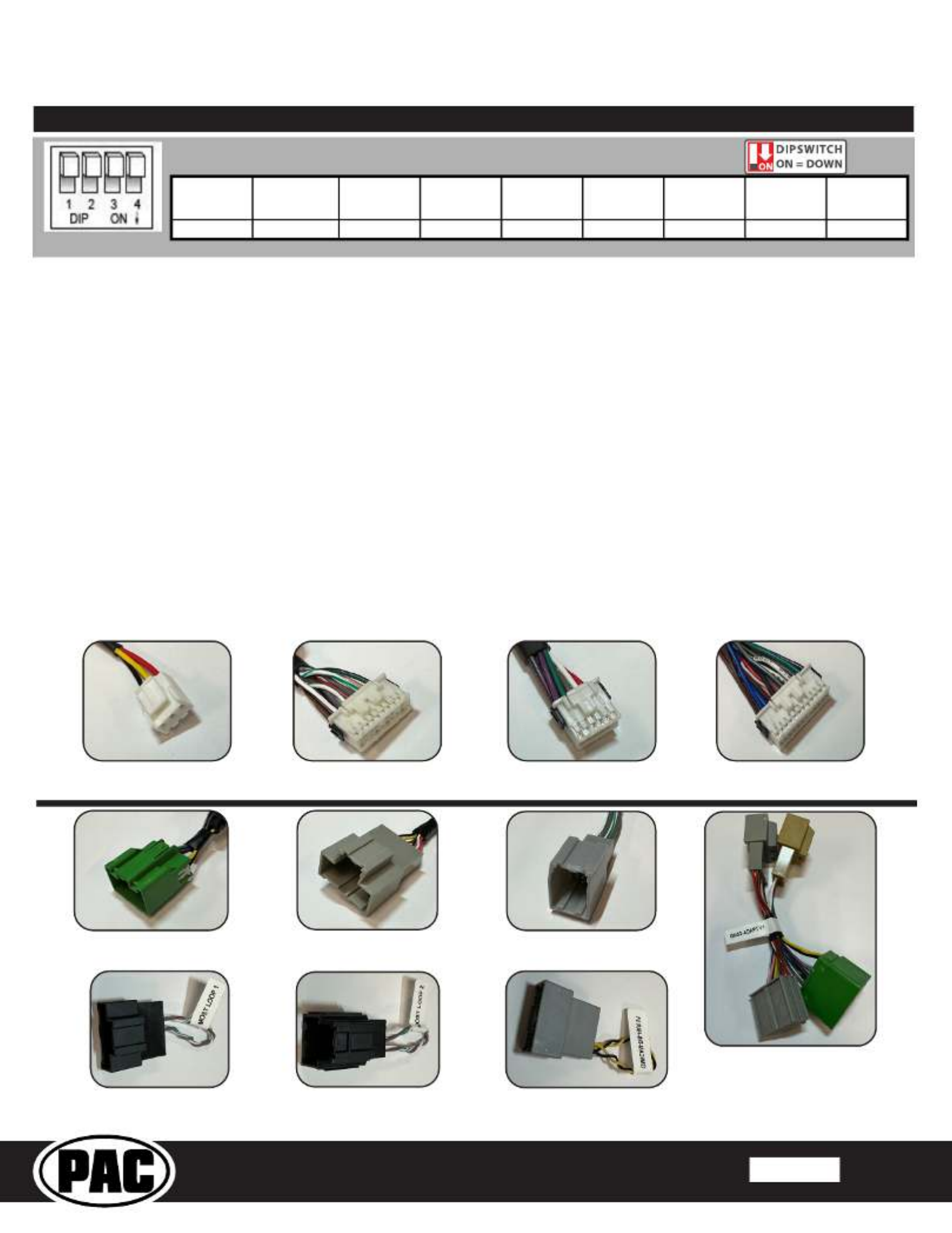

Installation Steps

Set DIP switches that correspond with your radio to the ON position.

Set all other DIP switches to the OFF position.

If your brand is not listed above, please use “ALL OTHER BRANDS.”

Alpine JVC

Kenwood /

Lightning

Audio

Stinger Clarion /

Nakamichi

All Other

Brands Pioneer Sony Fusion

1 2 1 & 2 3 3 1, 2, & 3 1, 2, & 3 4 1 & 4

1. Set the Radio Select DIP switches according to the radio you are installing.

2. Wire your aftermarket radio to the RP5-GM61’s harness according to the wiring connections chart on Page.3.

3. If your aftermarket radio has a mute wire, cut the Brown mute loop in Interface Connector 4. After cutting the loop, you will

want to use the side that is next to the orange wire in pin 24. This will be used to wire to the Mute wire on your aftermarket

radio if available.

4. Plug into the appropriate ports on the RP5-GM61 interface (using the diagram on page 1 or Interface Connectors 1 & 2

the label on the bottom of the interface).

5. The Interface Connector 3 connection port will be dependent upon whether or not the vehicle has a factory amplied

system. Plug this connector into the appropriate port on the RP5-GM61 (using the diagram on page 1 or the label on the

bottom of the interface).

6. Remove the factory radio and plug in the RP5-GM61’s Vehicle Connector 1, 2, & 3 into the factory vehicle harness. Vehicle

Connector 3 might . In vehicles with IOA / IOB use not be present in all vehicles Vehicle Connector 7 to adapt your main

harness to your vehicle.

7. Vehicle Connectors 4 & 5 are used when removing the factory CD player in the dash and are mandatory that they are

plugged in to keep the MOST loop Intact. Failing to plug these in will result in no sound. Not all connectors may be present.

8. Vehicle Connector 6 (GM5CAM-DIS-HAR) will only be used in vehicle with an IOB Build Code and will be connected to the

harness that was plugged in to the factory display in the vehicle once removed. This is used to maintain the camera signal in

IOB build code vehicles.

Interface Connector 1

(3-pin)

Interface Connector 2

(20-pin)

Interface Connector 4

(24-pin)

Interface Connector 3

(12-pin)

Vehicle Connector 1

(20-pin)

Vehicle Connector 2

(16-pin)

Vehicle Connector 3

(8-pin)

Vehicle Connector 7

(Adapter)

Vehicle Connector 4

(10-pin)

Vehicle Connector 5

(12-pin)

Vehicle Connector 6

(20-pin)
