SWI-JACK

Universal Steering Wheel Control Interface

Before You Start

A. Is this product compatible with the vehicle?

• See application guide (separate sheet) for listing of vehicles and connection information. If not, please visit

http://www.pac-audio.com/swixprogramming/swixprogramming.asp for the most current list of compatible

vehicles.

B. Prepare for the installation.

• If possible, install the SWI-JACK while you are installing the new head unit. Keep in mind you may need to plug in

the factory stereo to locate certain wires; therefore do not complete the head unit installation until the SWI-JACK is

working properly.

• Plan a general installation location for both the SWI-JACK plug and the control body. Keep in mind that the sup-

plied wire harness is , and the 1/8" plug harness is . two feet long three feet long

• Use a multimeter or approved measuring device for checking vehicle circuits.

Pacific Accessory Corporation

SEEK

PRESET AM F M

VOLUME

PLAY MU TE

Power

Jack for the SWI-JACK

Steering wheel

audio control wire

To Kenwood or

OEM wired

remote control input

Installation Instructions

For Alpine, JVC, Clarion, Kenwood,

Valor, OEM & Blaupunkt OEM

Steering Remote Ready Radios

For Alpine, Clarion JVC, or Valor radios, connect the SWI-JACK 1/8" plug into the radio's Steering Wheel input

jack on back of radio or wire harness. For Kenwood, or OEM radios, connect the blue/yel wire to the Remote Input wire

(blue/yel for Kenwood, gray for OEM) of radio.

Blaupunkt radios with optional wireless remote inputs are supported by the SWI-JACK, however we do not

supply any connectors or support for Blaupunkt. It is up to the consumer or installer to supply this connector. Use

vehicle Connector Chart and use VW connector as reference. Connect the SWI-JACK's blue/yel wire to pin #11 of VW

connector. The connector you obtain may come with two of three pieces, however the connector (usually green) should

show pin #11 on it.

SWI-JACK

Wiring Connections

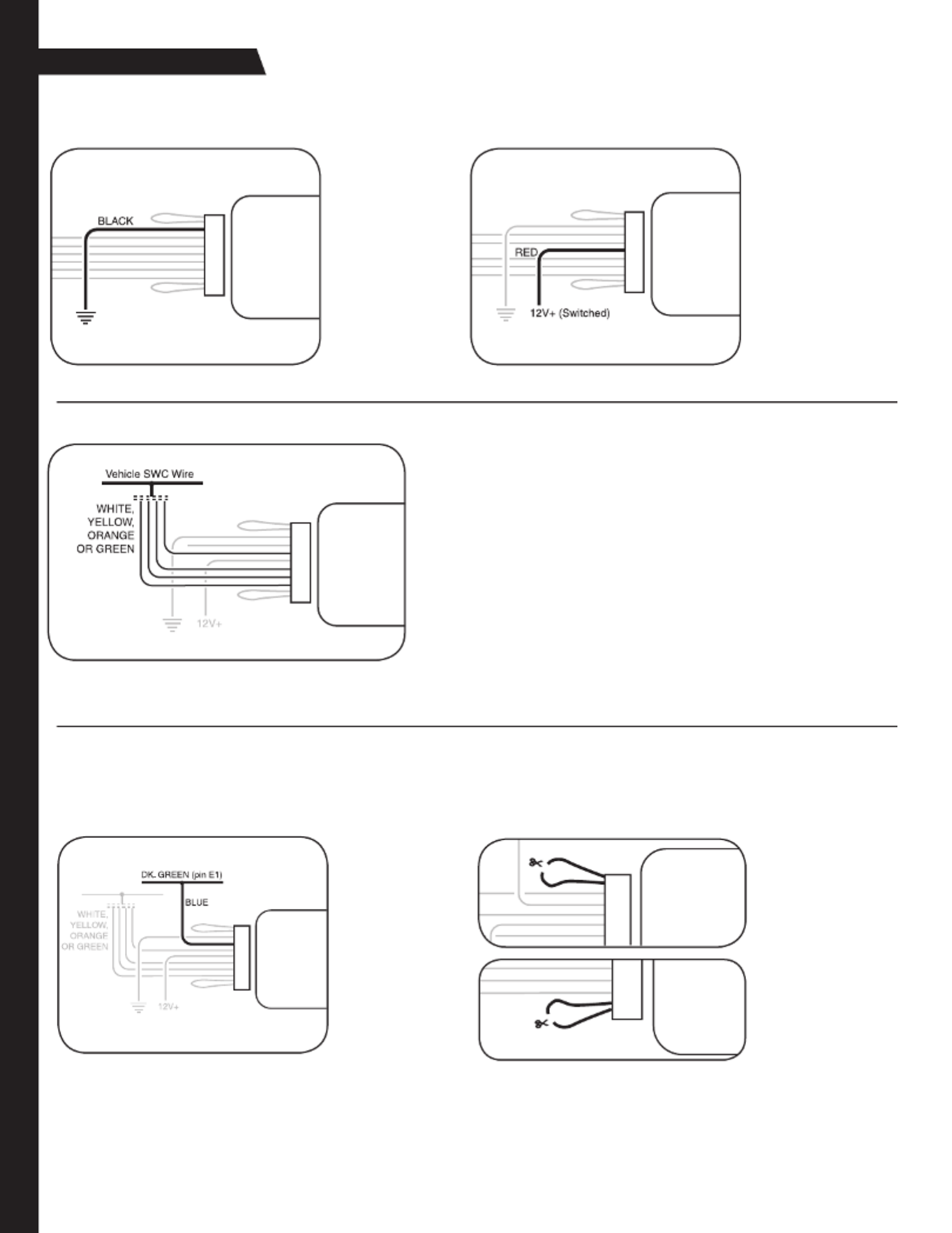

Step 1.

Connect the BLACK

wire to ground (-).

Verication: Wire

or location registers

a constant (-) when

probed.

Step 2.

Connect the RED wire

to switched +12V.

Verication: Wire reg-

isters +12V when the

ignition key is turned

to the ACC or ON posi-

tions.

Step 3.

Connect the appropriate interface wire (WHITE, YELLOW, ORANGE or

GREEN).

• Refer to the . Locate the vehicle and Identication and Connection Chart

note the SWC wire color in the “Interface Wire Color” column.

• Note the vehicle wire color and location information in the “Identication”

column.

Note: You will only connect ONE of these wires. The other 3 wires will not

be used. Cut and insulate the unused wires.

• Connect the wire as indicated in the chart.

• If your vehicle is not listed on the , Identification and Connection Chart

Visit www.pac-audio.com/swixprogramming/swixprogramming.asp

Note: Only 3 wires from the SWI-JACK will be used during installation. GM vehicles programmed for version #4, will

use 4 wires.

Step 4a.

Connect the BLUE

serial data wire.

Connect this wire

ONLY on GM

passenger vehicles (no

trucks or SUVs) with

airbags AND steering

wheel heater controls.

For all other vehicles,

cut and insulate the

BLUE wire.

Step 4b.

If instructed by the

Vehicle Application

Guide, cut the

BROWN wire loop and

insulate both halves.

Step 4c.

If instructed by the

Vehicle Application

Guide, cut the VIOLET

wire loop and insulate

both halves, or place a

resistor in-line of wires.

Note: is for vehicles made by Step 4a

General Motors that are programmed

for version #4 only. If no connections is

necessary, proceed to Step 4b.

Step 4

If necessary, perform the following operations as indicated by the notes in .Identication and Connection Chart

SWI-JACK SWI-JACK
