WRI-P

Wired Remote Input Control Interface

Before You Start

A. Prepare for the installation.

• If possible, install the WRI-P while you are installing the new head unit.

• Plan a general installation location for both the WRI-P infrared eye and the control body.

• If you are installing the WRI-P in conjunction with a SWI-PS, please refer to the SWI-PS instructions for all wiring

and programming information.

Pacific Accessory Corporation

IP-BUS input

Antenna jack

Power

To Infrared Eye

Fuse Jack for the SWI-PS

IP-BUS cable

Installation Instructions

Compatible with Pioneer in-dash

navigation units that lack an IR receiver

but have a wired remote input.

Wiring Connections

Step 1.

Connect the BLACK

wire to ground (-).

Verication: Wire

or location registers

a constant (-) when

probed.

Step 2.

Connect the RED wire

to switched +12V.

Verication: Wire reg-

isters +12V when the

ignition key is turned

to the ACC or ON posi-

tions.

Black

Red

Black

Red 12V+ (Switched)

Step 3.

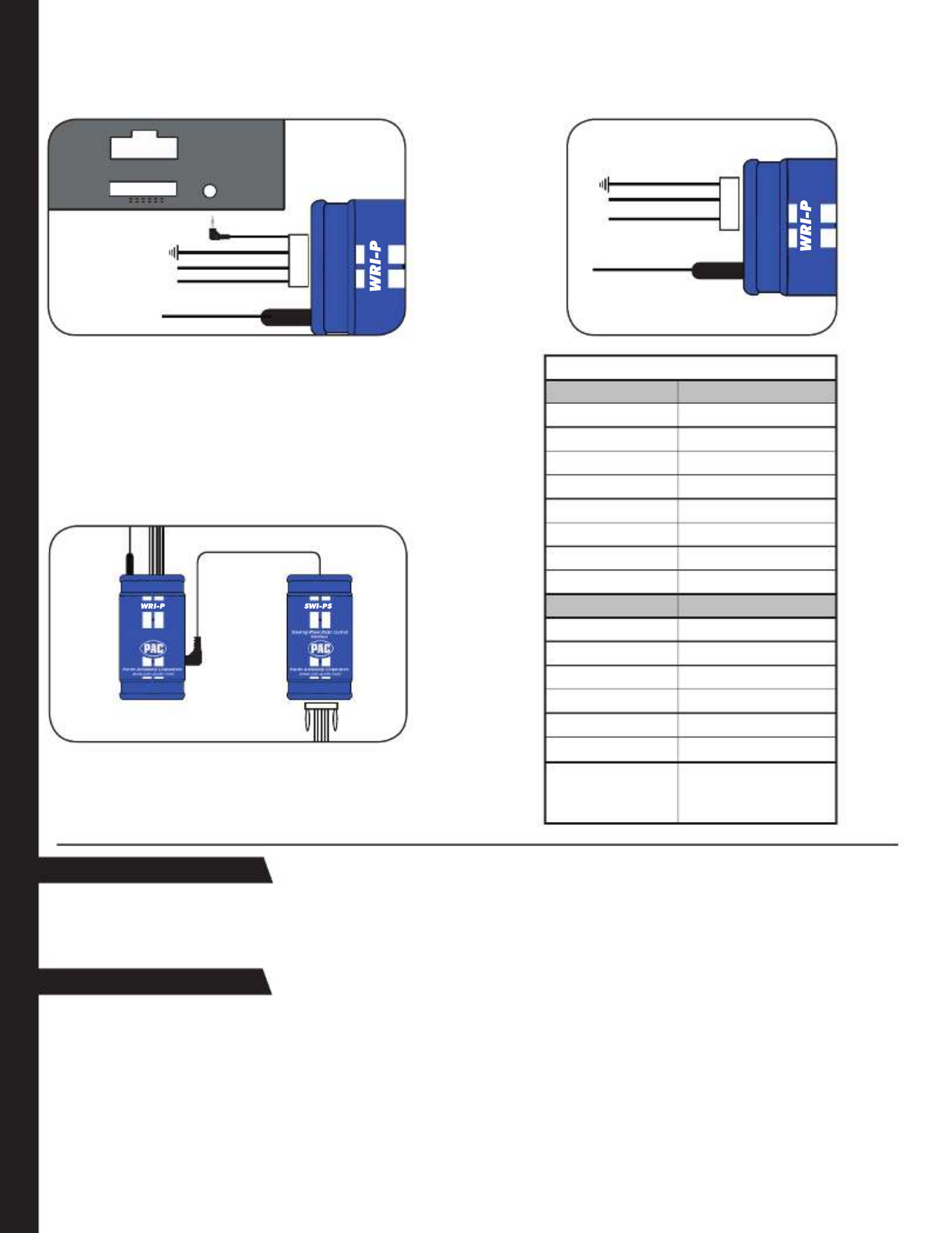

Connect the 3.5mm stereo plug on 5 pin Molex to the wired remote input on

the back of the radio..

Black

Red 12V+ (Switched)

Back of Radio

Wired Remote In

Step 4

Mount the infrared eye in a suitable location

Compatibility Notes

1. The voice recognition command via wireless remote is not supported on the following models: AVIC-F700BT, AVIC-F900BT,

AVIC-U310BT, AVIC-X710BT, and AVIC-X910BT.

2. PAC recommends the use of the Pioneer CD-R510 or CXC9115 remote for maximum compatibility with the WRI-P. Other

Pioneer remotes may work, but some functions / buttons may not be supported.

Step 5

If applicable, install the SWI-PS and connect

the 3.5mm plug to the SWI-PS input on the

side of the WRI-P

WRI-P Functions

CD-R510 Function

VOLUME + Volume up

VOLUME - Volume down

BAND Band

SRC Source

ATT Mute/Attenuate

PGM Phone Status

OFF/H Answer Call

ON/H End Call

Joystick Function

UP Preset +

DOWN Preset -

RIGHT Seek >>

LEFT Seek <<

Center Voice Activation

Note: CLEAR

button is for self

testing of WRI-P.

Black

Red 12V+ (Switched)

To Suitable

Location

Troubleshooting

The WRI-P has a self test mode which can determine if it is sending and receiving the proper signals. Follow the steps below to

engage the self test mode:

1. Connect the module to a 12v source (do not apply power yet).

2. Connect the 3.5mm output plug on 5 pin Molex to the 3.5mm input on the side of the module.

3. Connect the IR receiver to the WRI-P.

4. Power up the WRI-P

5. Using the CD-R510 remote, point the remote at the IR receiver and press the CLEAR button on the remote to start the test.

The LED will blink 9 times while testing the analog outputs and inputs then pause for a second. It will blink 3 times to conrm it

passed the test.

See

troubleshooting

section below

Pacic Accessory Corporation - Santa Ana, CA 92705

866-931-8021• www.pac-audio.com
