DVI-D, RS232, USB 1.1 and Audio Extender

up to 275 feet over 3 STP Cables

DVX-Multi

www.smartavi.com

Installation

Manual

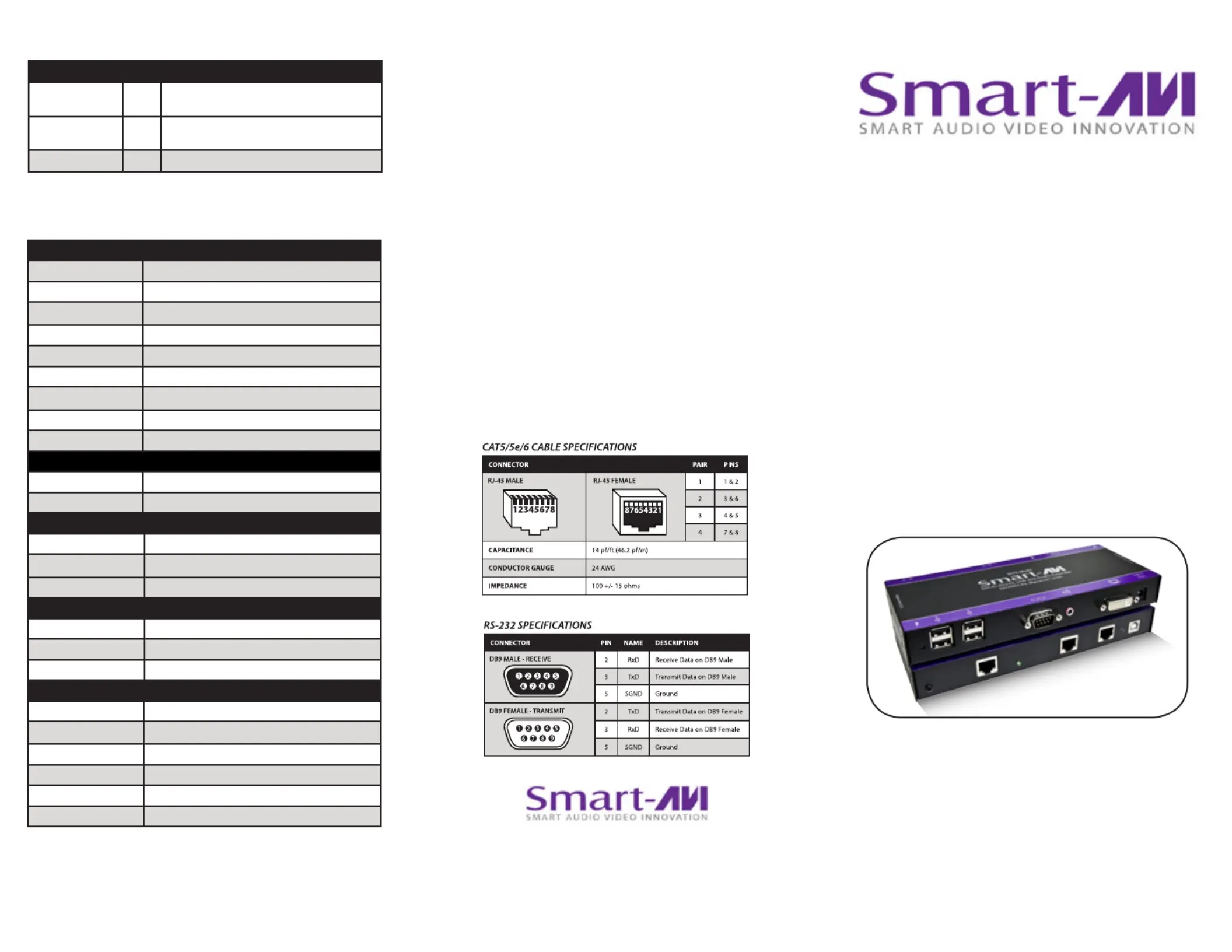

Technical Specications

What’s in the Box?

PART NO. QTY DESCRIPTION

DVX-MUTXS 1 DVI-D, RS232, USB, Audio over CAT6 STP Ex-

tender Transmitter

DVX-MURXS 1 DVI-D, RS232, USB, Audio over CAT6 STP Ex-

tender Extender Receiver

Power Supply 2 PS5VDC4A

VIDEO

Format DVI-D Single Line

Maximum Pixel Clock 165 MHz

Input Interface (TX) DVI-D 29-pin female

Output Interface (RX) DVI-D 29-pin female

Resolution Up to 1920 x 1200 @60Hz

DDC 5 volts p-p(TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

OTHER

Power External 100-240 VAC/5VDC4A @20W

Dimensions 7.5 in W x 1 in H x 3.5 in D

Weight 1 lb

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

NOTICE

T h e i n f o r m a t i o n c o nt ai n e d i n t h i s d o c u m e n t

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

For more information, visit www.smartavi.com.

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St., North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 503-6208

http://www.SmartAVI.com

USB

Signal Type OHCI/UHCI (USB 1.1)

Input Interface (TX) (1) USB Type B (Female)

Output Interface (RX) (4) USB Type A (Female)

AUDIO

Signal Type Stereo Unbalanced

Input Interface (TX) 3.5 mm Jack Socket (Female)

Output Interface (RX) 3.5 mm Jack Socket (Female)

RS232

Interface DB9 Male

Control Via Software @ 19,200 bps

up to 275 ft over STP

DVX-Multi-TX DVX-Multi-RX RS232

USB KEYBOARD USB MOUSE

DVI-D DISPLAY

STEREO SPEAKERS

COMPUTER

Introduction

The DVX-Multi extends DVI-D, RS232, USB 1.1 and Audio

up to 275 feet over 3 STP Cables.

Connecting the DVX-Multi

1. Power o all devices.

2. Connect a DVI-D source (computer) to the DVX-

Multi-TX.

3. Connect an audio source to the DVX-Multi-TX.

4. Connect a USB source to the USB port of the the

DVX-Multi-TX.

5. Connect RS232 devices to the DVX-Multi-TX.

6. Connect the DVX-Multi-TX to the the DVX-Multi-

RX with three STP (Sheilded Twisted Pair) cables.

7. Connect a DVI display to the DVX-Multi-RX.

8. Connect speakers to the DVX-Multi-RX.

9. Connect up to 4 USB 1.1 devices to the DVX-Multi-

RX.

10. Connect RS232 devices to the DVX-Multi-RX.

11. Connect the power supply the DVX-Multi-TX and

DVX-Multi-RX.

12. Power on the computer, displays, speakers, RS232

devices and USB 1.1 devices.

Applications

• Medical Applications

• Industrial Work Areas

• Home Theater Integration

• Digital Signage Deployment

• Information Kiosks/Displays

• Film/Recording Studios

Features

• Top image quality at all resolutions

• Resolutions up to 1920 x 1200 at 60Hz (1280 x

1024 at 75Hz)

• Distance: 275 feet with 3 CAT6 STP cables

• Compatible with all operating systems

• Compatible with all major KVM switches

• Rack mount options (19)

• Supports USB 1.1 keyboard and mouse

• Uses easy-to-install, inexpensive pair cable

• Data recovery for digital video

• Fully-compliant with USB 1.1 specications

• Supports 1.5 and 12Mbps data rates

• External power adaptors for transmitter and

receiver units

• Fully-transparent (does not use any emulation)

• Plug-and-play

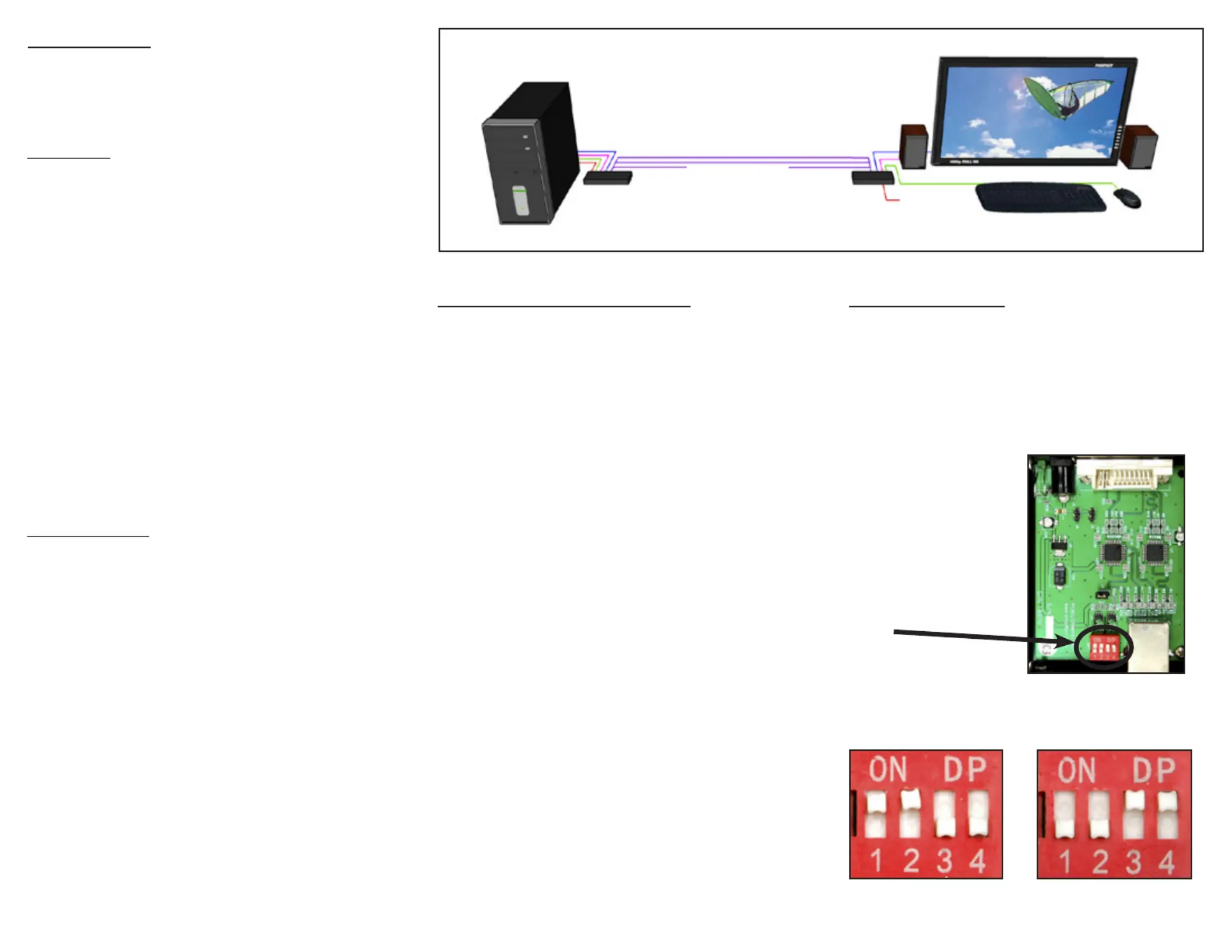

Product - Installation Diagram

Setting the DDC

DDC provides plug-and-play capability to your

displays. When you plug a display into your computer,

the DDC table in the display tells the computer the

optimal resolution to use. The DVX-Multi is capable of

supporting two primary types of displays: PC and Mac.

The default setting is PC.

For Mac, congure the

switches as shown below:

For PC, congure the

switches as shown below:

1&2 ON, 3&4 OFF 1&2 OFF, 3&4 ON

To change this setting,

rst remove the top cover

from the DVX-Multi

TRANSMITTER

by removing the four side

screws. Next, locate the

DIP switches near the rear

of the device next to the

Data Port (RJ45 Ethernet

Port).
