8-Port HDMI/IR Extender Rack
Over LAN
CONSOLIDATE UP TO EIGHT
HDMI EXTENDERS WITH ONE
RACK-MOUNTED TRANSMITTER
UNIT THAT SENDS 1080P
FULL HD SIGNALS
UP TO 500 FEET OVER LAN
Quick Start Guide
Format HDMI 1.3 (HDCP compliant)
Resolution Up to 1080p (1920x1080 @ 60Hz)
Inputs (8) HDMI Type A 19-pin (female)
Outputs (8) RJ-45 for CAT5/5e/6
Input Cable Length Up to 40 ft
Output Cable Length Up to 500 ft
AUDIO
Format HDMI (Dolby TrueHD, DTS-HD MA)
Input Interface HDMI (Integrated)
Output Interface CAT5/5e/6 via RJ-45
IR
Signal Type 38 KHz
Interface 3.5 mm Jack Socket (Female)
OTHER
Power Internal 100-240 VAC (CCPWR06)
Dimensions 17” W x 1.7” H x 4.357” D
Weight 3.6 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 32 - 122°F (0 - 50°C)
Storage Temp. -4 - 149°F (-20 - 65°C)
Humidity Up to 90% (no condensation)
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
RK8-HLX-500
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
RK8-HLX-500 1
HDMI & IR 8-Port
Rackmount Extender
Transmitter
Power Cord 1 CCPWR06
Quick Start Guide 1
OVEVIEW
The RK8-HLX-500 is the perfect solution for extending
HDMI signals to a remote location up to 500 feet away. It
is the ideal way to consolidate up to eight HDMI signal
sources in central one location.
The RK8-HLX-500 is rack-mountable, meaning it can t into
mounting shelves without the need for additional mounting
equipment. It is capable of sending 1080p
(1920x1080 @ 60Hz) Full HD HDMI signals to end-point
displays in a variety of ranges and applications. One
unit can extend to up to eight displays easily without the
additional expense & power-costs of multiple extenders
systems, making it the best choice for boosting the range of
multiple HDMI source devices.
FEATURES
• Extends HDMI signals up to 500 feet via LAN
(Cat5e/6 cables)
• Chainable for thousands of feet of extension
• Supports up to 8 HDMI sources on single rack
• Supports high resoluon 1080p HD video,
1920x1080 at 60Hz
• Supports stereo audio
• IR (Infrared) remote enabled
• Rack mountable
• No soware or driver required
• Plug-and-Play ready
• Distance can be increased if using ethernet
GigaSwitch
1. Power off the HDMI source and display.
2. Connect an HDMI cable from the HDMI source to the HDMI IN port of the RK8-HLX-500 transmitter.
3. Connect the RK8-HLX-500 transmitter to the HLX-RX500 receiver using a CAT5e/6 cable (up to 150ft).
4. Connect an HDMI cable from the HDMI OUT port on the HLX-RX500 receiver to the HDMI display
5. Connect the power on the RK8-HLX-500 transmitter plugging in their power adapters (12VDC2A) or provide 12VDC input
from the rear DC input port.
NOTE: If the RX side has connected DC adapter, TX can get the DC power over the CAT5e/CAT6 cable, so leave DC input
port empty. Only 1 power supply is required for both units. (In certain cases, if the receiver has too much drop off power,
we recommend to connect a 12V DC power supply to each receiver
6. Power on the HDMI source, displays and speakers. The RX will read the EDID from the monitor, and then pass the data
into the TX automatically.
INTALLATION NOTE: Do not stack receiver units. Stacking inhibits heat distribution.

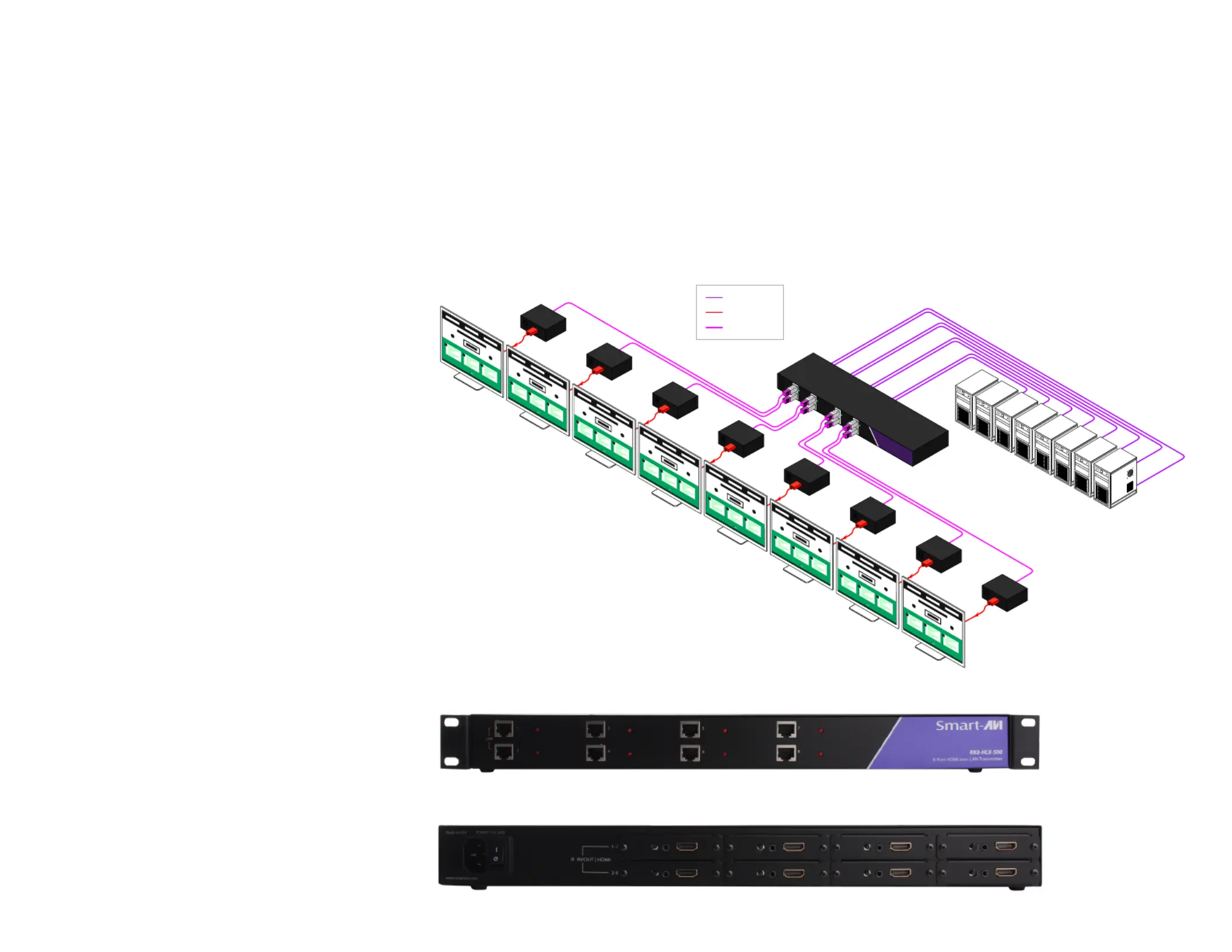

HARDWARE INSTALLATION
RK8-HLX-500 FRONT
RK8-HLX-500 BACK
HDMI IN
HDMI OUT
CAT5/6
RK8-HLX-500
HLX-RX500
HLX-RX500
HLX-RX500
HLX-RX500
HLX-RX500
HLX-RX500
HLX-RX500
HLX-RX500
