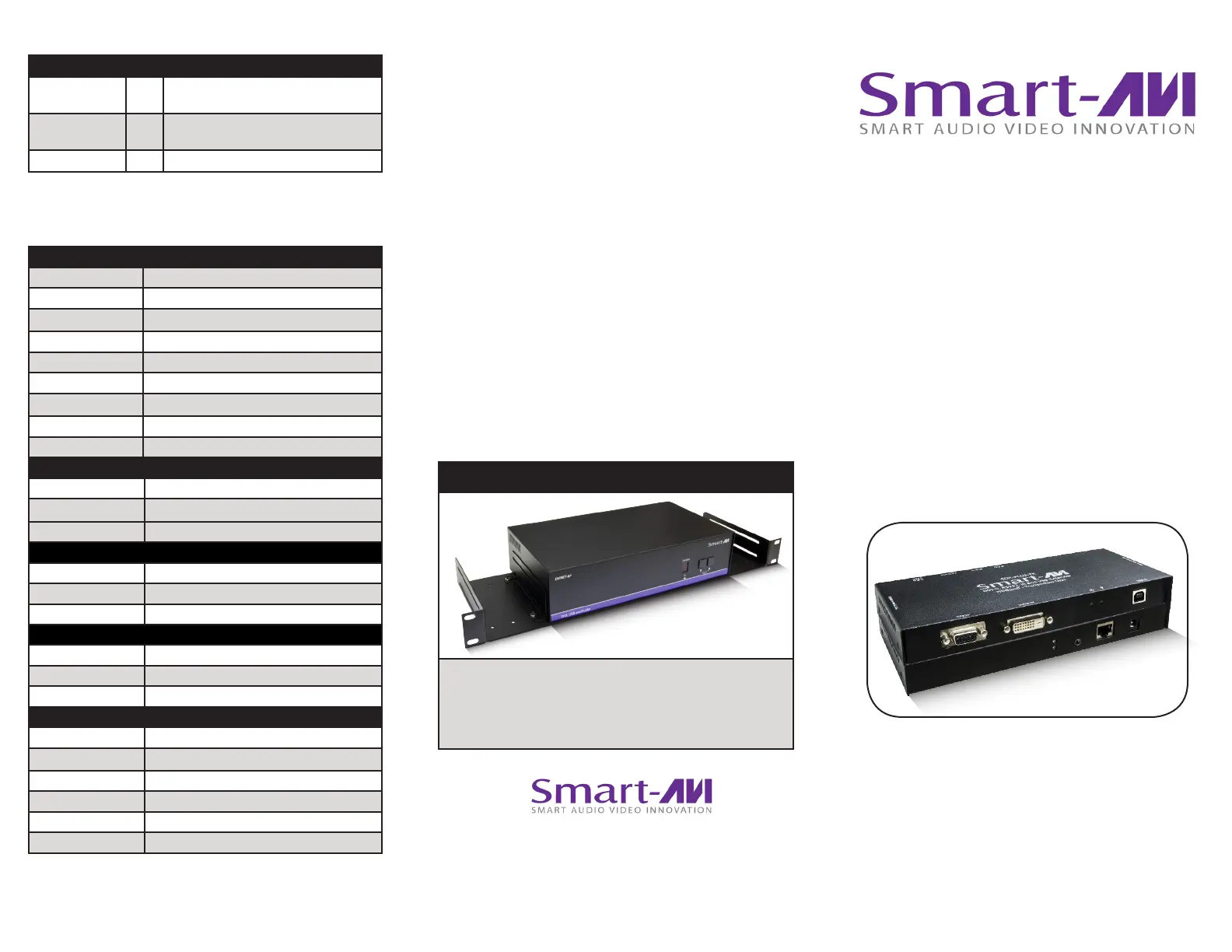

SDX-Plus
Superior Range DVI-D, USB Keyboard
and Mouse, RS-232 and IR Extender
www.smartavi.com
Installation
Manual
What’s in the Box?
PART NO. QTY DESCRIPTION
SDX-Plus-RX 1 SDX-Plus Receiver. DVI-D + USB + RS-
232 + IR Receiver over CAT5/5e/6
SDX-Plus-TX 1 SDX-Plus Transmitter. DVI-D + USB + RS-
232 + IR Transmitter over CAT5/5e/6
Power Supply 2 PS5VDC4A
© Copyright 2016 SmartAVI, All Rights Reserved
NOTICE
T h e i n f o r ma t i o n c o n t a i n e d i n t h i s d oc u m e nt
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
Extend DVI-D video, USB Key-
board and Mouse, RS-232 and IR
up to 400 feet over a single
CAT5/5e/6 UTP cable
Rack Mountable Option
Our SmartRack is the perfect solution to allow
virtually all SmartAVI devices to be custom mounted
in a standard 19” server rack. The SmartRack is fully
adjustable and can secure/organize several devices.
Technical Specications
VIDEO
Format DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (TX) (1) DVI-D 29-pin female
Output Interface (RX) (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
OTHER
Power External 100-240 VAC/5VDC4A @20W
Dimensions 8.25 in W x 1 in H x 3.625 in D
Weight 1 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
USB
Signal Type OHCI/UHCI (USB 1.1)
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (2) USB Type A (Female)
RS-232
Input Interface DB9 (Female)
Output Interface DB9 (Female)
Control @ 115 Kbps
IR
Frequency Response 30KHz to 80KHz
Input Interface (RX) (1) 3.5 mm (Female)
Output Interface (TX) (1) 3.5 mm (Female)
Introduction
Using HDBaseT technology, the SDX-Plus DVI extender
is capable of sending a DVI-D signal up to 400 feet over
a single conventional and inexpensive CAT5 UTP cable.
HDBaseT technology is superior to older DVI extenders
that require special CAT6 sheilded cable to go a short
distance. The SDX-Plus also has USB keyboard and
mouse, RS232 and IR extension, giving you the ability to
control your displays or devices remotely.
Features
• Extends DVI-D up to 400 feet from the
source
• Data recovery for digital video
• Supports up to 1920x1200 digital video
resolution
• Automatic DDC Learning
• USB Keyboard and Mouse
• Uncompressed Video HDBaseT
• IR and RS-232 extension allows for remote
control of displays
• External power adapter for transmitter and
receiver unit
• Plug and play
Product - Installation Diagram
Connecting the SDX-Plus
1. Power o all devices.
2. Connect a DVI-D source (computer) to the DVI-D
port on the SDX-Plus-TX.
3. Connect a USB source (computer) to the USB port
on the SDX-Plus-TX.
4. Optionally connect RS-232 and IR for control
functions.
5. Connect the SDX-Plus-TX to the the SDX-Plus-RX
with one CAT5 UTP (Unsheilded Twisted Pair)
cable.
6. Connect a DVI-D compatible display to the DVI-D
port on the rear of the SDX-Plus-RX.
7. Connect USB keyboard and mouse to the USB
ports on the SDX-Plus-RX.
8. Optionally connect RS-232 and IR for control
functions.
9. Connect the power to the SDX-Plus-RX and the
SDX-Plus-TX.
10. Power on the display and then the computer.
The DDC of your display will be learned
automatically.
The following is the wiring standard for terminating UTP/STP
cable using RJ-45 connector:
Connectors: RJ-45
Capacitance: 14 pf/ft (46.2 pf/m)
Conductor Gauge: 24 AWG
Impedance: 100 +/- 15 ohms
Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8
SDX-TX Front
SDX-RX Front
SDX-TX Rear
SDX-RX Rear
SDX-Plus-TX SDX-Plus-RX
DVI
COMPUTER
DISPLAY
KEYBOARD MOUSE
APPLICATIONS
• Security
• PC Networking
• Conference Center Systems
• Point of Sale
• Camera Surveillance
• Video Phone
• Control Room Systems
• Recording Studio
• PC KVM Extension
400 ft over CAT5/5e/6 UTP
To reach maximum distances with HDBaseT technology,
it is recommended to use the best possible quality
cable available. CAT5e/6 shielded cabling is ideal for
best performance.
