Side 1/2

Winegard Company • 3000 Kirkwood Street • Burlington, IA 52601-2000

WARNING

INSTALLATION OF THIS ANTENNA NEAR POWER LINES

IS DANGEROUS. FOR YOUR SAFETY, FOLLOW THE INSTAL-

LATION INSTRUCTIONS.

High Definition (HD)

Platinum Antennas

90 DAY LIMITED WARRANTY

Winegard Company warrants this Winegard product against any defects in materials or workmanship

within 90 (ninety) days from date of purchase. No warranty claim will be honored unless at the time the claim

is made, you present proof of purchase to an authorized Winegard dealer (if unknown, please contact

Winegard Company, 3000 Kirkwood Street, Burlington, IA 52601-2000, Telephone 319-754-0600).

Winegard Company (at its option) will either repair or replace the defective product at no charge to you.

This warranty covers parts, but does not cover any costs incurred in removal, shipping or reinstallation of

the product. This limited warranty does not apply if the product is damaged, deteriorates, malfunctions or fails

from: misuse, improper installation, abuse, neglect, accident, tampering, modification of the product as

originally manufactured by Winegard, usage not in accordance with product instructions or acts of nature such

as damage caused by wind, lightning, ice or corrosive environments such as salt spray and acid rain.

The 90 Day Warranty is provided on the condition that the equipment is properly delivered with all

handling and freight charges prepaid to your Winegard dealer for return to our factory for repair or

replacement. Winegard dealers will arrange for the replacement or repair and return to you without charge

the product which failed due to defective material or workmanship.

WINEGARD COMPANY WILL NOT ASSUME ANY LIABILITIES FOR ANY OTHER WARRANTIES,

EXPRESS OR IMPLIED, MADE BY ANY OTHER PERSON.

ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED OR STATUTORY INCLUDING WAR-

RANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY ARE LIMITED TO

THE 90-DAY PERIOD OF THIS WARRANTY.

The foregoing shall be the sole and exclusive remedy of any person, whether in contract, tort or

otherwise, and Winegard shall not be liable for incidental or consequential damage or commercial loss, or

from any other loss or damage except as set forth above.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion of limitation

of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state

to state.

Printed in U.S.A. © Winegard Company 2003 1450172 Rev. 7/04

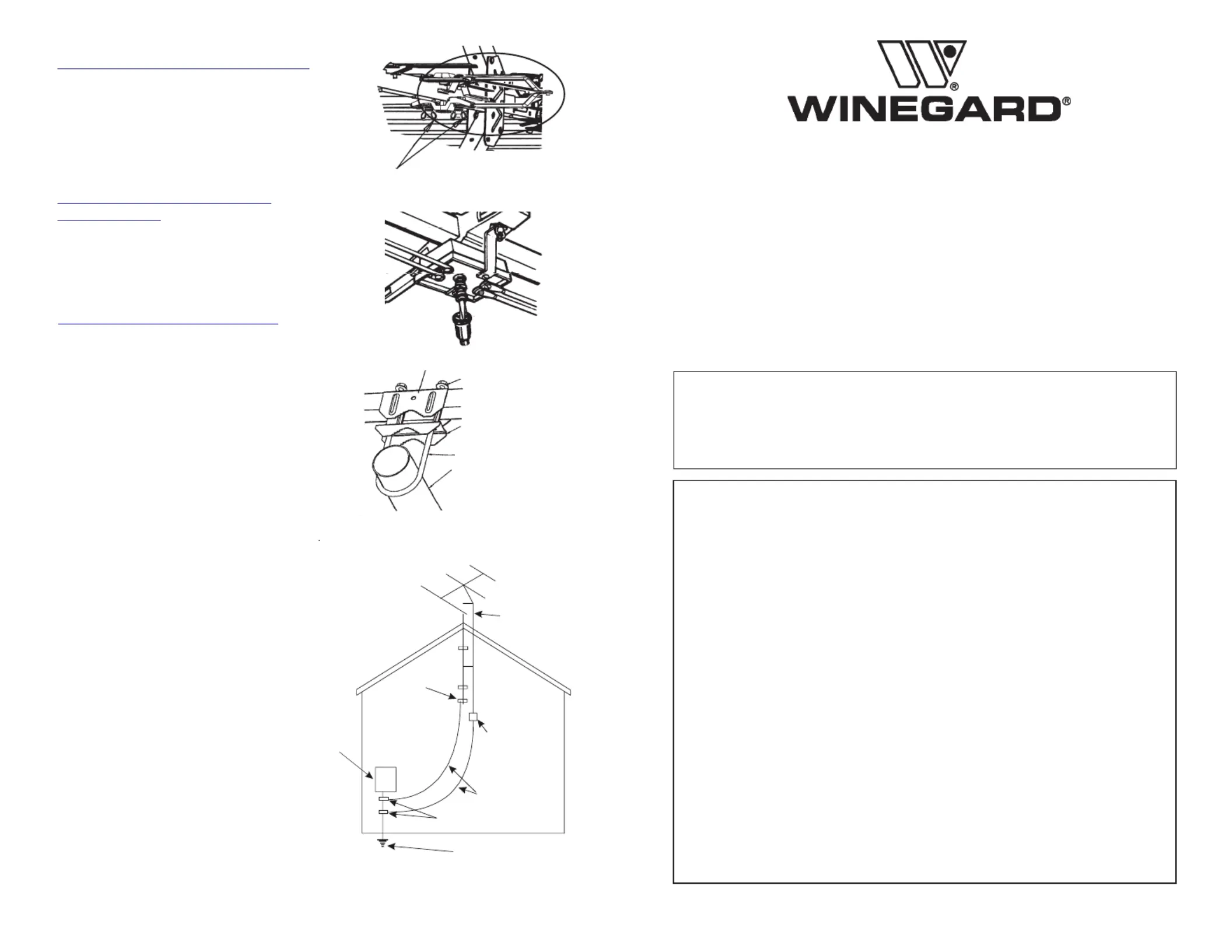

INSTRUCTIONS

VHF/UHF MODELS

HD7210P, PR-5646, PR-7000, PR-7005, PR-7010, PR-7013,

PR-7015, PR-7032, PR-7037, PR-7042 & PR-7052

VHF ONLY

PR-5030, YA-1026, YA-1713, YA-6260 & YA-6713

Antenna Lead

In Wire

Ground

Clamp

Electric

Service

Equipment

Antenna

Discharge Unit

(NEC Section 810-20)

Power Service Groundin

Electrode System

(NEC Art 250, Part H)

Ground

Clamps

Groundin

Conductors

(NEC Section 810-21)

NEC - National Electrical Code

Example of antenna grounding as per

National Electrical Code, ANSI/NFPA 70

HOW TO PROVIDE

LIGHTNING PROTECTION

FOR TV ANTENNA AND SET

Step 1. Mount the grounding block as

close as possible to where the 75 ohm

coaxial cable downlead enters the house.

See Figure 11.

Step 2. The ground wires for both the mast

and the downlead should be copper or

aluminum wire, number eight (8) or larger.

See Figure 11.

Step 3. The downlead wire from the

antenna to the grounding block and the

mast ground wire should be secured to

the house spaced from four (4) to six (6)

feet apart. See Figure 11.

NOTE: In the case of a “ground up” an-

tenna installation, it may not be neces-

sary to ground the mast if the mast ex-

tends four or more feet into the earth.

Consult a TV serviceman for the proper

depth in your location.

Fig. 11

Fig. 8

ATTACH DOWNLEAD/

MATCHING TRANSFORMER HERE

ATTACHING ANTENNA TO MAST

Loosen U-bolt nuts. Slide U-bolt over mast.

Point small end of antenna toward stations

and tighten securely. See Figure 10.

Install a second U-bolt for antennas with

multiple booms. The 75 ohm coaxial cable

downlead may be secured to mast by tap-

ing or by using plastic wire ties.

MASTING

MAST CLAMP

INSERT

HEX NUT

U-BOLT

ATTACHING COAX FOR PR- MODELS

STEP 4. Be sure to unfold tetrapole ele-

ments away from boom. Loosen wing nuts

on downlead connections. Attach match-

ing transformer ends to the studs between

the washers and tighten wing nuts. See Fig-

ure 8.

ATTACHING COAX FOR MODEL

HD7210P ONLY

STEP 4. Attach the 75 ohm coaxial down-

lead to the housing. Slide weather boot over

the boot collar. See Figure 9.

Fig. 10

Fig. 9

Fig. 5

Fig. 2

Fig. 1

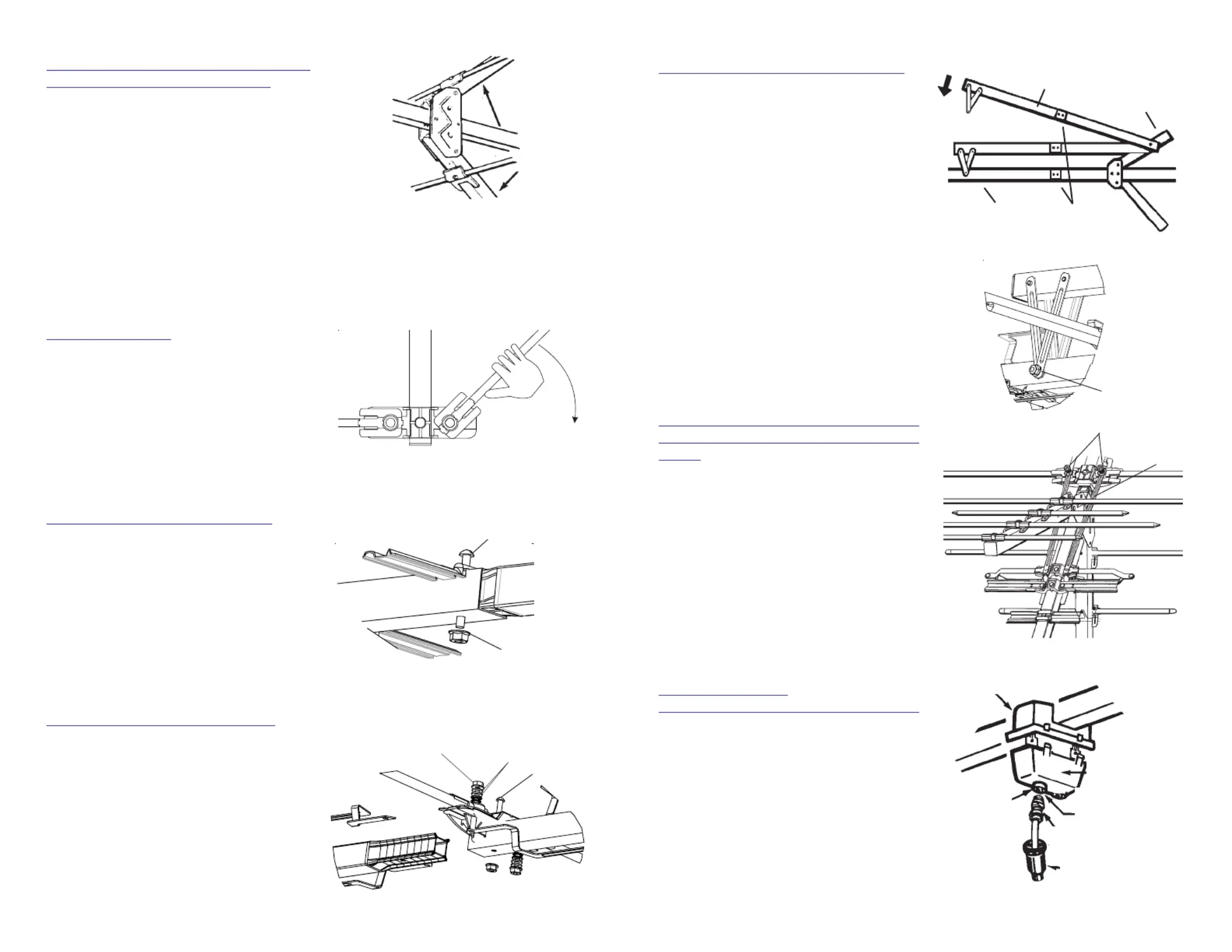

FOR MODELS WITH REFLECTOR

BOOMS INSTALLED IN FACTORY

STEP 1. Remove antenna from carton and

unfold elements on reflector booms until

they lock into place. See Figure 1.

STEP 2. Unfold reflector booms until they

lock into place. See Figure 1.

FOR ALL MODELS

STEP 3. Unfold all other elements until they

lock into place. Be sure the elements are

locked into position and are flat and paral-

lel to each other. See Figure 2.

FOR TWO-PIECE BOOM MODELS

Remove nut and bolt from boom and slide

narrow end of boom into end of larger sec-

tion aligning bolt holes. See Figure 3. Re-

install bolt and nut, being sure to tighten

securely.

FOR MODELS PR-7042 & PR-7052

Repeat the step above for attaching front

and middle sections. Repeat the same pro-

cedure for attaching the rear section to the

middle. Then, remove the hex nuts and

washers from the top and bottom of the first

element holder studs on middle section.

See Figure 4. Place the phasing lines from

the rear section over the studs, one on top

and the other on bottom, and re-attach the

washers and hex nuts.

REFLECTOR

BOOM

MAST

CLAMPS

Fig. 4

FOR MODELS WITH BOOM BRACES

STEP 1. Assemble antenna using previ-

ous steps. Lay boom brace on top of an-

tenna with U-bolts on same side. Find the

bolt hole in the corner reflector and attach

brace with the bolt and nut provided. Swing

boom brace down toward the rear. Form a

"V" with the metal straps. Bolt the “V” to

each side of boom. See Figures 5 and 5A.

FOR MODELS PR-7032, PR-7037, PR-

7042, AND PR-7052 WITH PHASING

LINES

Remove hex nuts and washers from top

of first element holder studs. See Figure

6. Place phasing lines from front section

over studs, attach washers and hex nuts,

tighten securely.

YA- MODELS ONLY

ATTACHING COAX FOR YAGI MODELS

STEP 4. Attach cartridge housing bottom

to cartridge housing top already attached

to antenna by aligning tabs and snapping

into place. See Figure 7.

STEP 5. Slide weatherproof boot onto co-

axial cable and install connector. Attach

cable to downlead connection. Slide boot

over connector and boot collar.

CARTRIDGE HOUSING

TOP

CARTRIDGE

HOUSING BOTTOM

BOOT

COLLAR

75 OHM COAXIAL

CABLE (DOWNLEAD)

WEATHER BOOT

BOLT

Fig. 5A

Fig. 6

Fig. 7

MAIN

BOOM

BRACE

PHASING

LINE

Fig. 3

STUD HOLDER

WASHER

NUT

REMOVE

FIRST

NUT

BOLT

REAR SECTION

MIDDLE SECTION

FRONT

DOWNLEAD JACK
