WARNING

Installation of this antenna near power lines is

dangerous. For your safety, follow these instal-

lation instructions!

The directional antenna by Winegard is

designed for high definition (high resolution) digital TV. HDTV (High

Definition TV) has 10 times more picture detail than analog signals!

And the receives these HDTV signals at

greater distances! For example — Analog range is 45 miles; Digital

range is 50 miles.

With HDTV, advantages include more detailed pictures, high quality

sound, plus there’s no “snow” or weak signal area with this technology.

You receive a perfect picture on your TV, or no picture at all.

The has exceptional reception character-

istics for High-band VHF and UHF channels 7-69. It is tunable for

increased Low-band VHF performance by rotating the antenna from the

horizontal plane to the vertical plane (usually 5-15 degrees) (rotation

bracket included). See Figure 6. This makes the antenna more

resonate in the Low-band VHF channels 2-6 with excellent reception

characteristics in the 0-15 mile range. This rotation of the antenna

element may also assist in mitigating any co-channel interference

issues (meter recommended for this application).

Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000 • 319/754-0600

Fax 319/754-0787 • www.winegard.com 2452031 Rev. 7/04

Model SS-2000 AMPLIFIED DIRECTIONAL ANTENNA

Patent Pending

Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000

319/754-0600 • Fax 319/754-0787 • www.winegard.com 2452031

Rev. 7/04

90 DAY LIMITED WARRANTY

Winegard Company warrants this Winegard product against any defects in materials or

workmanship within 90 (ninety) days from date of purchase. No warranty claim will be

honored unless at the time the claim is made, you present proof of purchase to an authorized

Winegard dealer (if unknown, please contact Winegard Company, 3000 Kirkwood Street,

Burlington, IA 52601-2000, Telephone 319-754-0600).

Winegard Company (at its option) will either repair or replace the defective product at no

charge to you. This warranty covers parts, but does not cover any costs incurred in removal,

shipping or reinstallation of the product. This limited warranty does not apply if the product

is damaged, deteriorates, malfunctions or fails from: misuse, improper installation, abuse,

neglect, accident, tampering, modification of the product as originally manufactured by

Winegard, usage not in accordance with product instructions or acts of nature such as damage

caused by wind, lightning, ice or corrosive environments such as salt spray and acid rain.

The 90 Day Warranty is provided on the condition that the equipment is properly delivered

with all handling and freight charges prepaid to your Winegard dealer for return to our factory

for repair or replacement. Winegard dealers will arrange for the replacement or repair and

return to you without charge the product which failed due to defective material or

workmanship.

WINEGARD COMPANY WILL NOT ASSUME ANY LIABILITIES FOR ANY OTHER

WARRANTIES, EXPRESS OR IMPLIED, MADE BY ANY OTHER PERSON.

ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED OR STATUTORY IN-

CLUDING WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND

MERCHANTABILITY ARE LIMITED TO THE 90-DAY PERIOD OF THIS WARRANTY.

The foregoing shall be the sole and exclusive remedy of any person, whether in contract,

tort or otherwise, and Winegard shall not be liable for incidental or consequential damage

or commercial loss, or from any other loss or damage except as set forth above.

Some states do not allow limitations on how long an implied warranty lasts, or the

exclusion of limitation of incidental or consequential damages, so the above limitations or

exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary

from state to state.

GENERAL RECEPTION GUIDELINES

ANALOG DIGITAL

VHF Ch. 2-6 0-10 miles 0-15 miles

VHF Ch. 7-13 0-35 miles 0-40 mile

UHF Ch. 14-69 0-45 miles 0-50 miles

Choose Amplified Model SS-2000 with built-in

amplifier when 25 miles or further from station

or Non-amplified Model SS-1000 for close-in.

Model SS-1000 NON-AMPLIFIED DIRECTIONAL ANTENNA

Made in USA

2 7

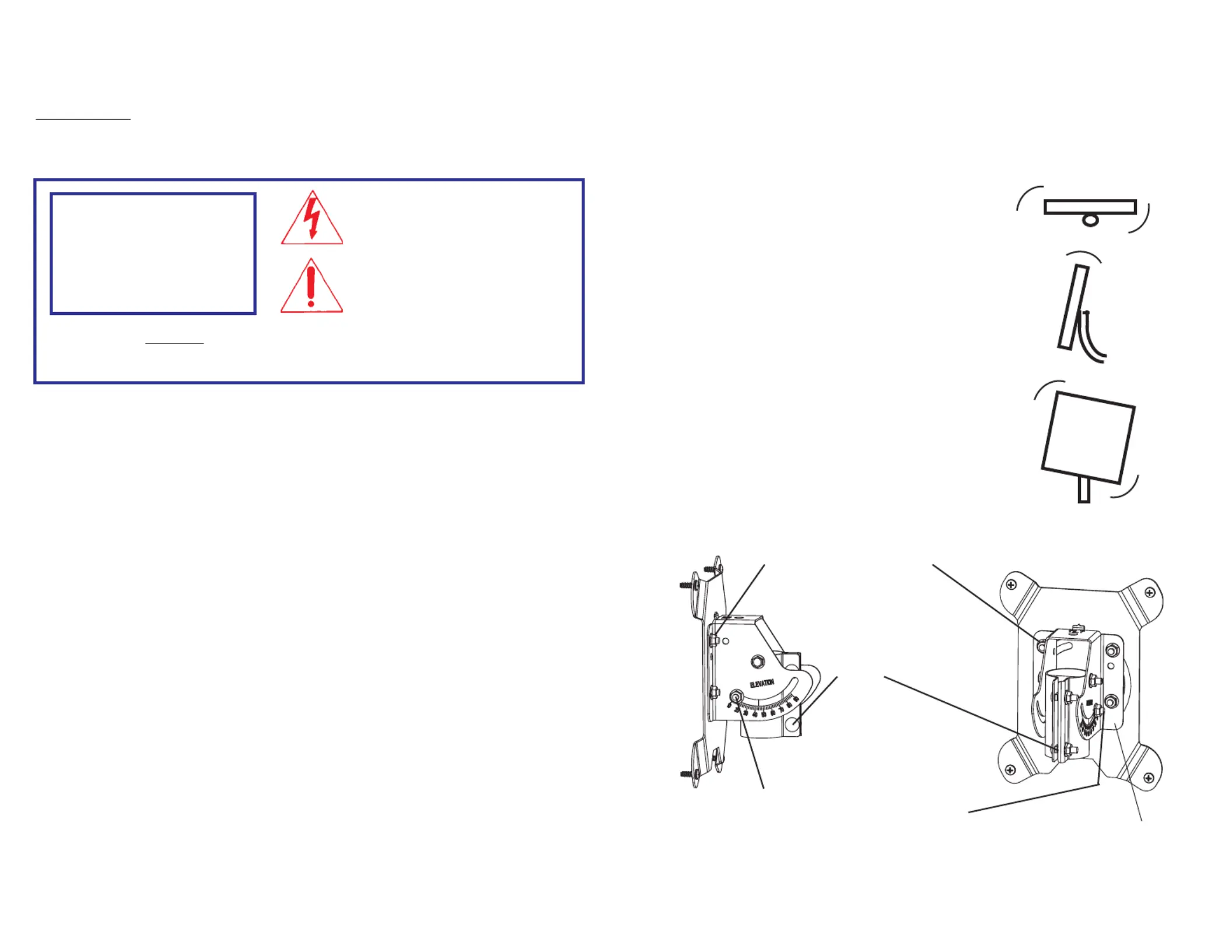

Adjusting your Square Shooter for best reception

For the best reception, we suggest you have someone watching the

TV while you adjust the antenna.

NOTE: See Figure 6 for bolt locations covered in the following steps.

Skew bracket bolts.

Loosen to adjust tilt, Step 3.

Pipe clamp bolts.

Loosen to adjust azimuth,

Step 1.

Elevation angle bracket bolt.

Loosen to adjust elevation angle,

Step 2.

Figure 6

STEP 1. To adjust azimuth, loosen the 2 bolts on

the pipe clamp and rotate the pipe. Rotation can

be up to 90°.

Step 2 elevation angle. To adjust the , loosen

the bolt and nut at the bottom of the curved slot.

Adjust the angle of the antenna.

STEP 3. To adjust the skew, loosen the 4 bolts

holding the elevation bracket. Now tilt the an-

tenna for the best picture.

CAUTION!

RISK OF

ELECTRIC SHOCK.

DO NOT OPEN!

RISK OF ELECTRIC SHOCK

DO NOT OPEN

10A. If the appliance is equipped with a polarized

alternating-current line plug (a plug having one

blade wider than the other) this plug will fit into the

power outlet only one way. This is a safety feature.

If you are unable to insert the plug fully into the

outlet, try reversing the plug. If the plug should still

fail to fit, contact an electrician to replace your

obsolete outlet. Do not defeat the safety purpose of

the polarized plug.

10B. If the appliance is equipped with a 3-wire

grounding-type plug, a plug having a third (ground-

ing) pin, this plug will only fit into a grounding-type

power outlet. This is a safety feature. If you are

unable to insert the plug into the outlet, contact an

electrician to replace your obsolete outlet. Do not

defeat the purpose of the grounding-type plug.

11. Power-supply cord should be routed so that it is

not likely to be walked on or pinched by items

placed upon or against it, paying particular

attention to cord at plug, convenience receptacle

and the point where cord exits from the appliance.

12. If an outside antenna or cable system is con-

nected to this video product, be sure system is

grounded so as to provide some protection against

voltage surges and built-up static charges. Proper

method is shown at the top of the next page.

13. An outside antenna system should not be

located in the vicinity of overhead power lines or

other electric light or power circuits, or where it can

fall into such power lines or circuits. When installing

an outside antenna system, extreme care should

be taken to keep from touching such power lines or

circuits as contact with them might be fatal.

14. For added protection for this video product

during a lightning storm, or when it is left unat-

tended and unused for long periods of time, unplug

it from the wall outlet and disconnect the antenna

or cable system.

WARNING TO REDUCE RISK OF FIRE OR ELECTRICAL SHOCK,

DO NOT EXPOSE TO RAIN OR MOISTURE.

Not applicable to mount and antenna)

Dangerous voltage

inside enclosure

Refer to operating, mainte-

nance and safeguard

literature accompanying unit.

IMPORTANT SAFEGUARDS

1. All the safety and operating instructions should

be read before the appliance is operated.

2. The safety and operating instructions should

be retained for future reference.

3. All warnings on the appliance and in the

operating instructions should be adhered to.

4. All operating and use instructions should be

followed.

5. Unplug this video or audio product from the wall

outlet before cleaning. Do not use liquid cleaners

or aerosol cleaners. Use a damp cloth for clean-

ing.

6. Do not use attachments not recommended by

the video product manufacturer as they may cause

hazards.

7. Do not use this video product near water - for

example, near a bath tub, wash bowl, kitchen

sink, or laundry tub, in a wet basement, or near a

swimming pool, and the like.

8. If slots, holes and openings are located in the

housing, they are provided for ventilation and to

ensure reliable operation of the video product

and to protect it from overheating. These open-

ings should never be covered. The openings

should never be blocked by placing the video

product on a bed, sofa, rug, or other similar

surface. This video product should never be placed

near or over a radiator or heat register. This video

product should not be placed in a built-in installa-

tion such as a bookcase or rack unless proper

ventilation is provided or the manufacturer's in-

structions have been adhered to.

9. This video product should be operated only

from the type of power source indicated in electri-

cal rating printed on the appliance or power sup-

ply.

CAUTION: TO REDUCE RISK OF ELECTRICAL SHOCK,

DO NOT REMOVE COVER, NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED PERSONNEL

Rotation bracket.
