RXV-70-4K Quickstart Guide | 180917

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the

installation process.

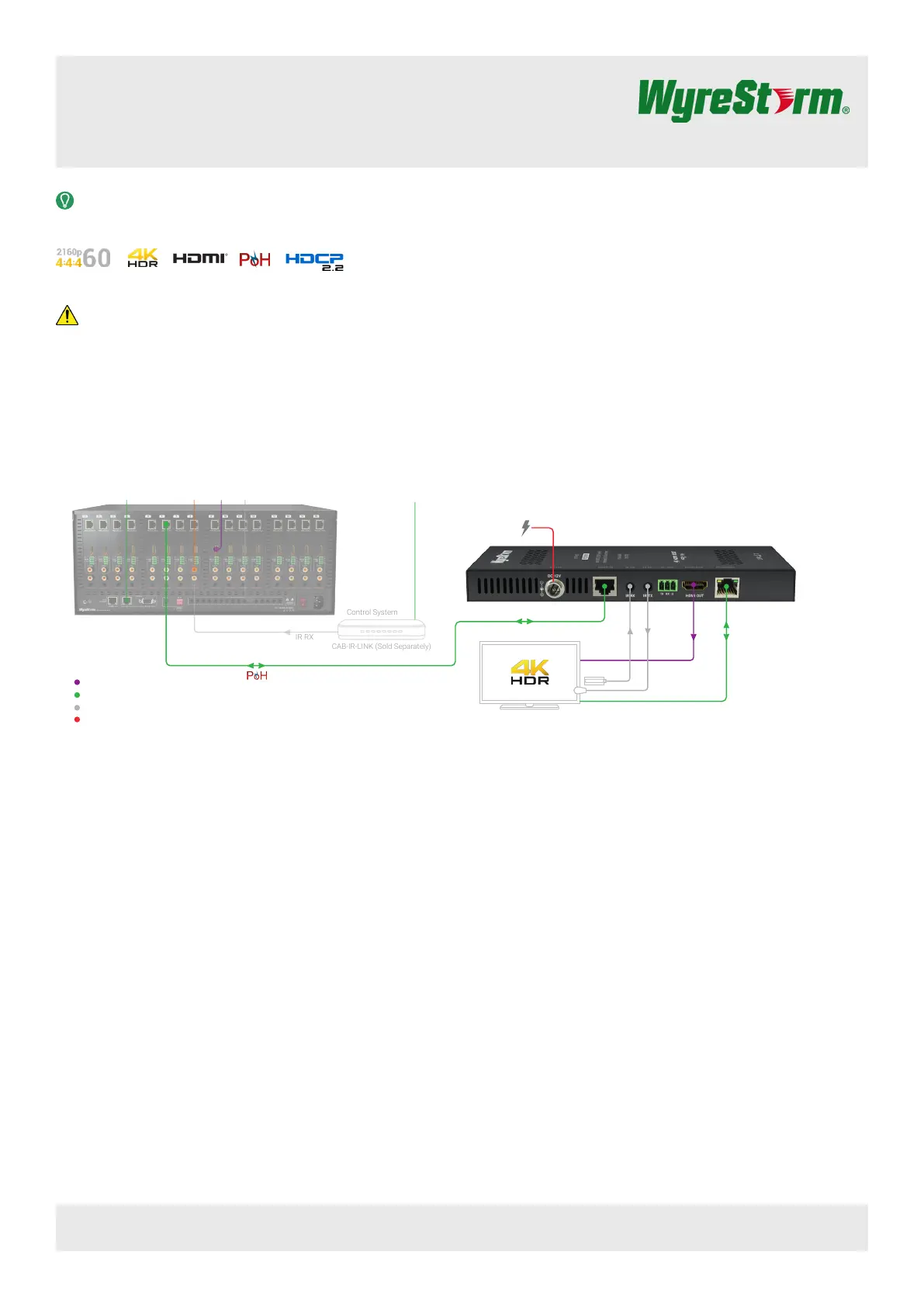

Basic Wiring Diagram

Quickstart Guide

RXV-70-4K

4K HDR HDMI-Over-HDBaseT Receiver

with HDCP 2.2 and PoH

HDBaseT Cat6/6a/7

Control

Power

Key

HDMI/Digital Video

HDBaseT/Ethernet

MX-1616-H2XC

with TX-H2X-VLC

Modular Card

Control System

IR RX

CAB-IR-LINK (Sold Separately)

RXV-70-4K

HDR Display

HDMI

Ethernet

IR RX IR TX

Note: Not required if powering

the receiver via PoH.

12V DC 2A

Power Supply

IMPORTANT! Installation Requirements

• Visit the product page to download the latest rmware, document version,

additional documentation, and conguration tools.

• Read through the section for important wiring Wiring and Connections

guidelines before creating or choosing premade cables.

• While this product supports CEC, WyreStorm cannot guarantee

compatibility with all forms of CEC communication.

In the Box

1x RXV-70-4K Receiver

1x IR Emitter

1x IR Receiver

2x Mounting Brackets

1x 3-pin Phoenix Connector

1x Quickstart Guide (this document)

RXV-70-4K Quickstart Guide | 180917

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on

signal transmission which may limit performance. Steps should be taken

to minimize or remove these factors completely during installation for best

results

• WyreStorm recommends using pre-terminated HDMI and DP cables due to

the complexity of these connector types. Using pre-terminated cables will

ensure that these connections are accurate and will not interfere with the

performance of the product.

IR TX/RX Guidelines

• Using WyreStorm infrared emitters and receivers is the best way to ensure

that most IR coding formats are transmitted and received Other 3rd party

emitters and receivers can be used; however, these devices must operate in

the same manner as the WyreStorm devices.

• Due to differences in IR across 3rd party control systems their IR ports

should never be connected directly to a NetworkHD system as an

incompatibility may exist. WyreStorm offers a cable that compensates for

voltage differences as well adjusts for differences in the pins used within

the port. Refer to the product page for more information.CAB-IR-LINK

IR TX Port Pinout

Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.

IR RX Port Pinout

Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs

+5V DC to power the included IR receiver.

RS-232 Wiring

The RXV-70-4K uses a 3-pin RS-232 with no hardware ow control. Most

control systems and computers are DTE where pin 2 is RX, this can vary

from device to device. Refer to the documentation for the connected device

for pin functionally to ensure that the correct connections can be made.

3rd Party Device

Pin 1 TX (Transmit) > To > RX (Receive)--- ---

Pin 2 RX (Receive) > To > TX (Transmit)--- ---

Pin 3 G (Gro d) > To > G (Gro d)un --- --- un

WyreStorm Co ectornn
