Side 1/3

Step 2. Position Central Connector

Select the position of the Central

Connector before mounting the

Wall Plate to the wall.

TH-PS-D

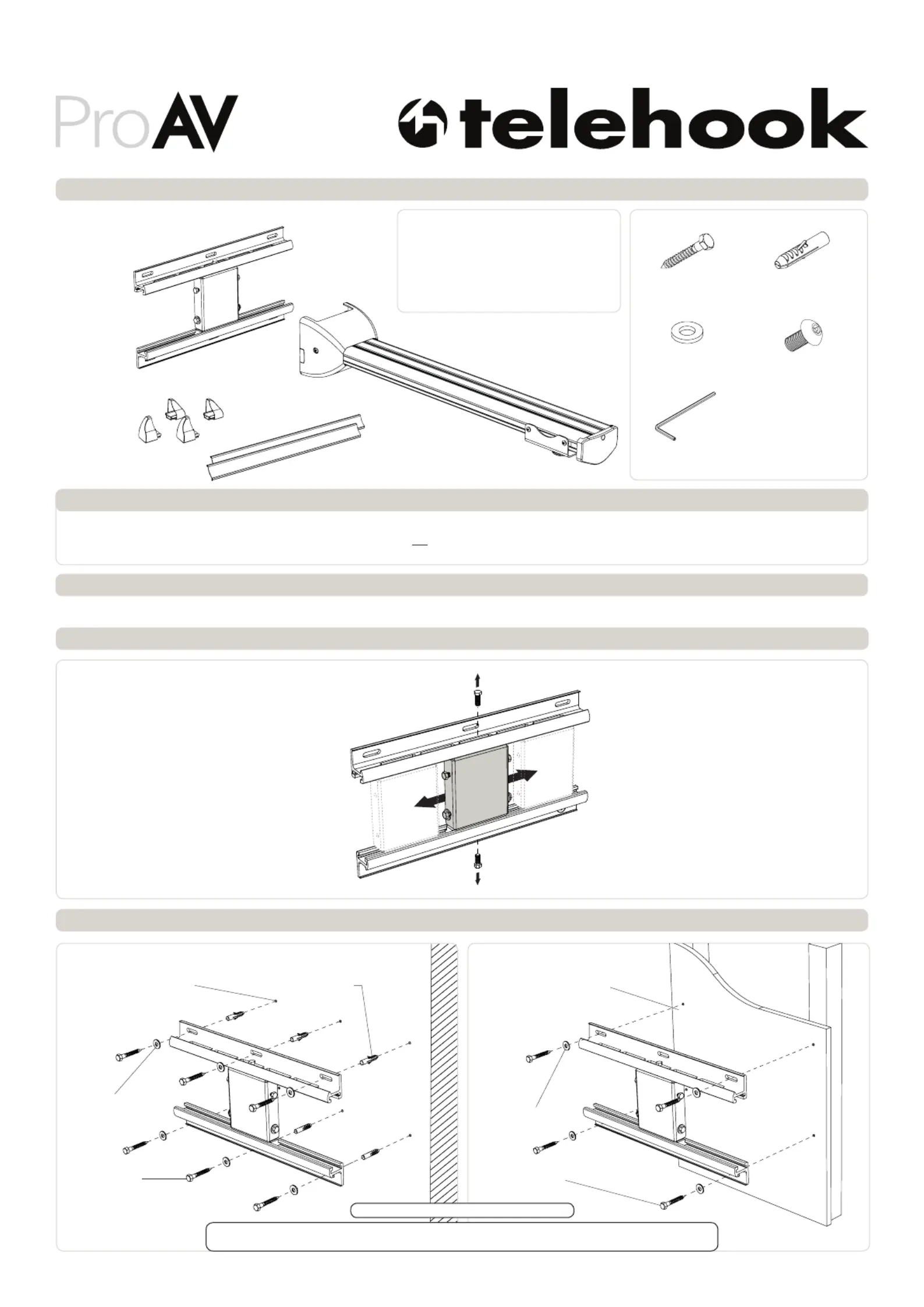

Component Checklist

Short Throw Projector Wall Mount | Dual Stud

Support Arm

! IMPORTANT - Install Telehook Short Throw Projector Mount as per installation instruction.

! This product supports a maximum load of 25kg (55lbs.).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received against the component checklist and hardware above.

Wall Plate

End Covers

Extrusions

HARDWARE

Coach Screw

(x6)

Nylon

Anchor (x6)

Washer (x6)

3mm Security

Allen Key

Security Screw (x2)

Tools Required:

• Power Drill

• 6mm(0.23”) Drill Bit

• 12mm(0.47”) Masonry Drill Bit

• 13mm (0.5”) Socket Wrench Shifter

• Phillips Head Screwdriver

Step 3. Mounting Wall Plate

Masonary Timber Stud

Coach Screw

Washer

Ø12mm x 65mm deep

Drilled Hole

Ø6mm x 65mm deep

Drilled Hole

Nylon Anchor

IMPORTANT! Any structural elements must be capable of supporting the combined weight of

all the equipment and devices being mounted. If in doubt, consult a structural engineer.

TIP: Use Mount as a drilling template.

Installation Instructions

Slide the hook on the Support

Arm over the top bolts on the

Wall Plate.

Swing the Support Arm down so

the bottom slots slide over the

bottom bolts.

The Support Arm can be

adjusted by +/- 5° to account

for wall slope or individual

projector characteristics.

Adjust the stop bolt as

shown to maintain the

desired angle.

Secure the position of the Support

Arm by tightening the two bolts on

each side of the Wall Plate.

5.1. Remove screw from End Cap and slide End Cap off

5.2. Loosen screws on Sliding Pole Mount and slide the entire assembly off

5.3. Slide off Base Cover

5.4. Slide the Cable Cover out

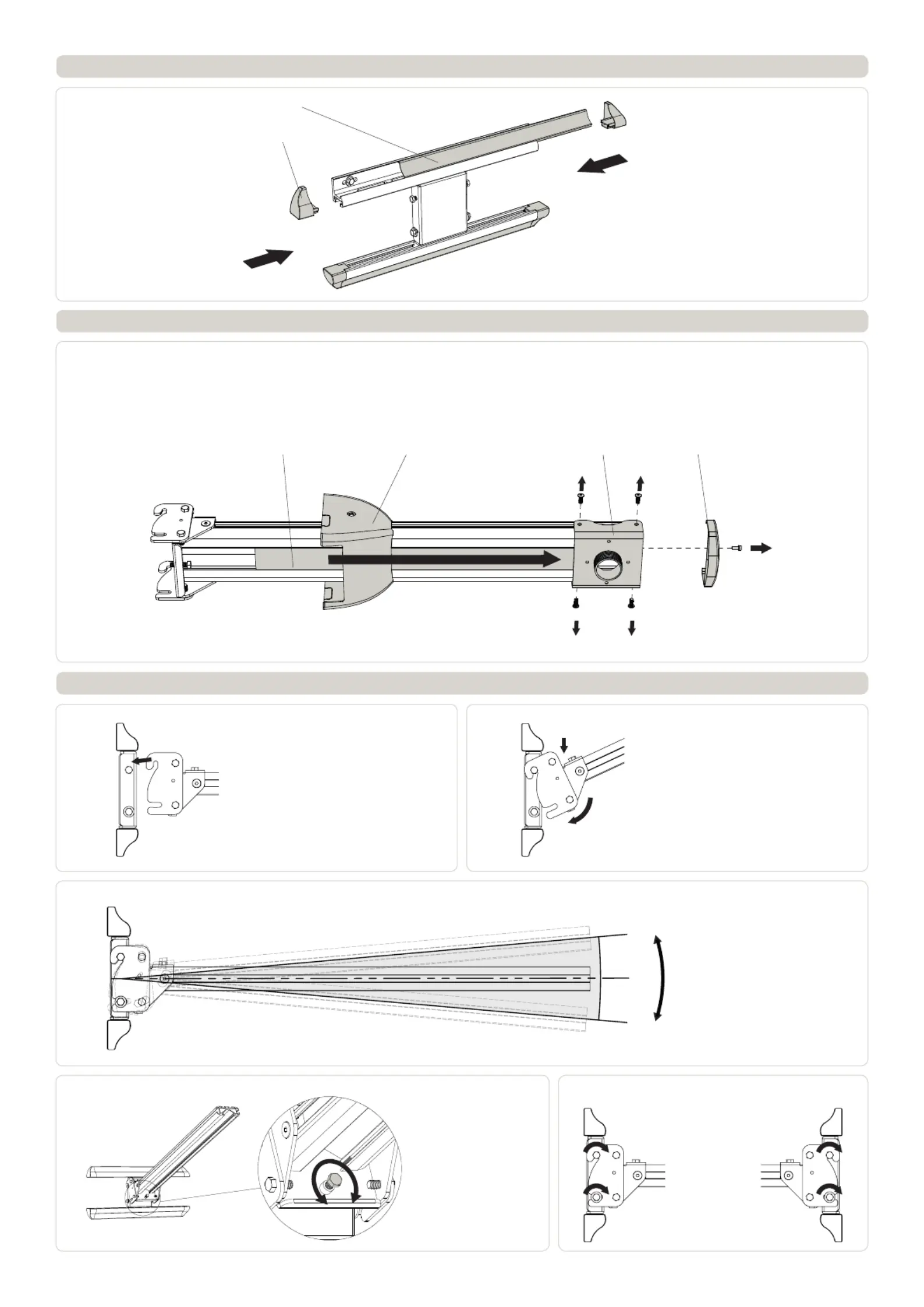

Step 4. Insert Covers and Extrusion onto Wall Plate

Step 5. Remove End Cap, Sliding Pole Mount, Base Cover and Cable Cover from Support Arm

Step 6. Attach Support Arm to Wall Mount

Cable Cover Base Cover Sliding Pole Mount End Cap

+5°

-5°

6.1.

6.3.

6.4.

6.5.

6.2.

Extrusion

Cover

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Flad panel støtte
Model:	TH-PS-D
Velegnet til:	Short throw projectors
Produktfarve:	Sølv
Monteringstype:	Væg
Hældningsvinkelområde:	-20 - 20 °
Rotationsvinkel:	360 °
Maksimal vægtkapacitet:	25 kg
Drejelig vinkel:	5 °
Justerbar:	Ja
Afstand til væggen (min.):	189 mm
Afstand til væggen (maks.):	1397 mm
Justerbar arm:	Ja
