Side 1/2

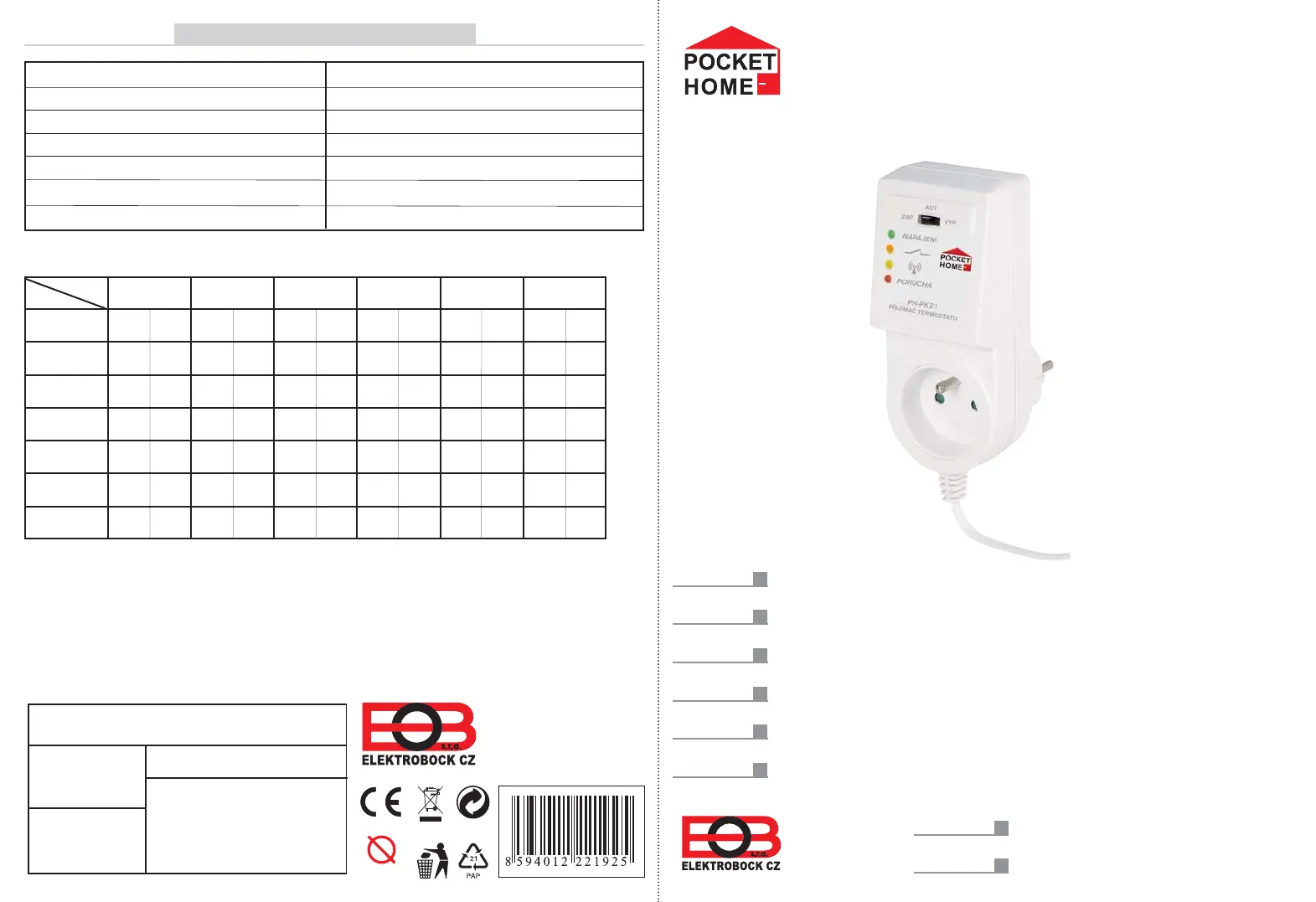

PH-PK21
WIRELESS RECEIVER FOR BOILER
Wireless receiver for boiler control
PocketHome
®
system component
Two-way radio communication on 433.92 MHz
Indication of state by coloured LED
Superior component is the central unit PH-CJ37
Simple plug-in connection 230 V/ 50 Hz
Operating instructions PH-PK21
version 10.01
SOCKET-MOUNTED
MADE IN CZECH REPUBLIC
Send PH-PK21 for guarantee and after-guarantee service
to manufacturer’s address.
ELEKTROBOCK CZ s.r.o.
Blanenská 1763
Kuřim 664 34
Tel./fax: +420 541 230 216
www.elbock.cz
in compliance with RoHS
Pb
LEAD FREE
ES CONFORMITY DECLARATION
We, ELEKTROBOCK CZ s.r.o., herewith declare that the PH-PK21 product is in compliance with principal
requirements and further respective stipulations of the directive 1999/5/ES.
Issued: 1.09.2007
CERTIFICATE OF GUARANTEE
(guarantee period for the product amounts to 2 years)
product No.:
date of sale:
stamp of shop:
examined by:
CHART FOR YOUR RECORDS
1
Sun
days
interval
Sat
Fri
Thu
Wed
Tue
Mon
23456
SET TEMPERATURES/HOURS
TECHNICAL CHARACTERISTICS
Power supply 230 V/ 50 Hz
Communication type two-way
Frequency 433,92 MHz
Range 300 m
(in open space),
35 m
(in built-up area)
Protection IP20
Output relay, max.8 A/ 250 VAC
Working temperature 0 to 40°C
ph_pk21_en:Layout 1 18.5.2011 21:23 Page 1

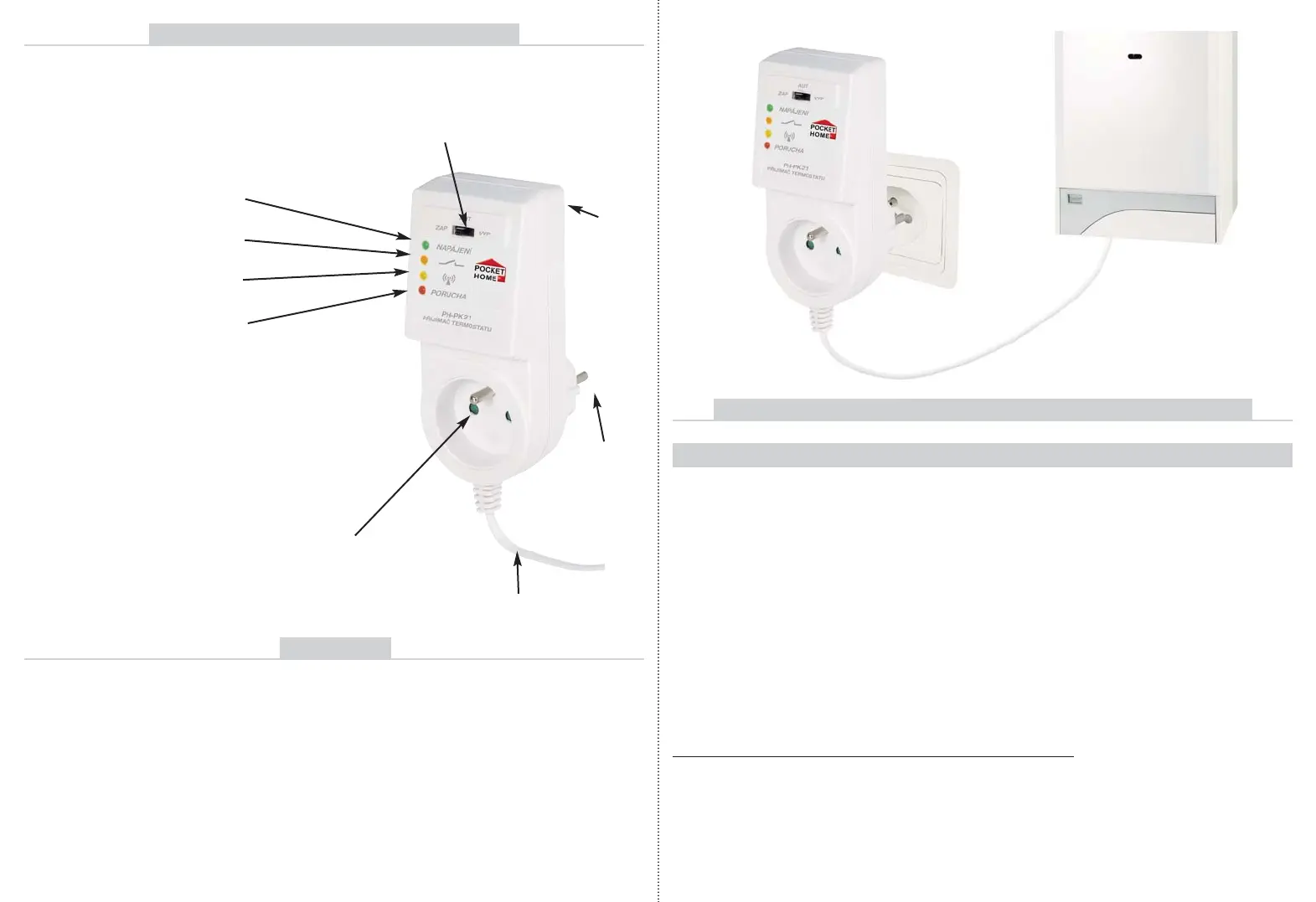

DESCRIPTION OF CONTROL ELEMENTS
START UP PROCEDURE IN THE PocketHome
®
SYSTEM
- check correct of receiver connection to boiler and el. network
- push briefly FUNCTION SWITCH for ca 1s (yellow and red LED blinking
intermittently)
- press” Test ” in ACTIVE regime for receiver on the central unit
(see instructions for PH-CJ37)
- for correct code learning yellow and red LED blink simultaneously
- during 1min. the receiver is activated in the PocketHome
®
system and
is priority-controlled from the PH-CJ37 central unit!
output
for boiler
el. supply
230 V/50 Hz
FUNCTION
SWITCH
Indication LED's:
GREEN LIT UP
- correct connection to el. network
ORANGE LIT UP
- relay switched on
YELLOW
YELLOW BLINKING
- sending or receiving signal
RED BLINKING
- empty E-EPROM memory
RED LIT UP
- FAILURE (if no signal is received in ca 6 hours
from the transmitter, will witch to 2 min. ON and
8 min. OFF regime)
YELLOW
YELLOW+RED BLINKING ALTERNATELY
- code determination regime
YELLOW
YELLOW+RED BLINKING CONCURRENTLY
- code was learnt
MOUNTING
We recommend that the installation should be carried out by person with
a relevant electro-technician's qualification!
- turn off main switch
- connect according to chart (use clips for room thermostat -
2 wires)
- connect receiver to 230V/50Hz el. network
- turn on main switch and green LED will light up – receiver ready
for further setting
Before receiver activation it is necessary to have the central unit set and ready
according to instructions for PH-CJ37!
1. RECEIVER ACTIVATION - ESTABLISHING COMMUNICATION WITH THE CENTRAL UNIT
If communication is not successfully established:
- press FUNCTION BUTTON for 5s to delete E-EPROM memory
(RESET) (all LED's are lit up and after 2s only red light start to blink =
empty memory)
- repeat the whole code-learning procedure
Switch function:
AUT - works according to programme
ZAP - switched on permanently
VYP - switched off permanently
through-socket for
another el.
consumer connection
BOILER
ph_pk21_en:Layout 1 18.5.2011 21:24 Page 2
