Side 1/5

Rotary dimmer with 2-way push switch

Light Management

Rotary dimmer with 2-way push switch

Art.-No.: 266 GDE

Rotary dimmer with 2-way push switch

Art.-No.: 864 GDW

Operationsmanual

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Failure to observe the instructions may cause damage to the device and result in fire and

other hazards.

Always disconnect before carrying out work on the devise or load. At the same time, take

into account all circuit breakers that supply dangerous voltage to the device or load.

The device is not suitable for disconnection from supply voltage.

Do not connect electronic lamps, e.g. switchable or dimmable energy-saving lamps or

LED lamps. Otherwise the possibility of a device defect cannot be ruled out.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

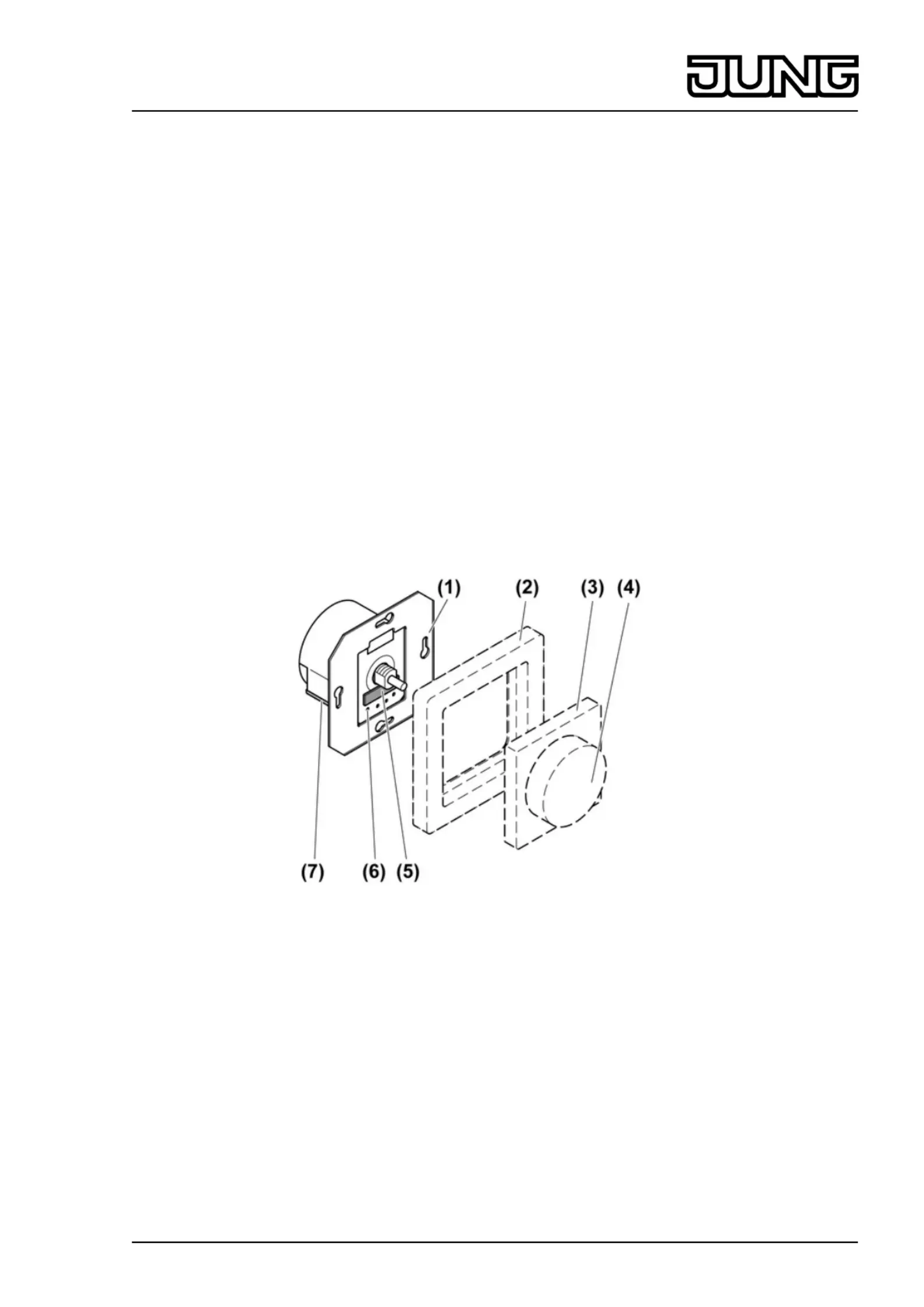

picture 1: Device components

(1) Dimmer

(2) Frame

(3) Central plate

(4) Control button

(5) Fuse holder

(6) Measuring points for voltage test

(7) Release lever for plug terminal

1/5

32534413

J:0082534413

19.08.2010

3 Function

Intended use

- Switching and dimming incandescent lamps and HV halogen lamps

- Suitable for mixed operation up to the specified output (see chapter 6.1. Technical data)

- Installation in appliance box to DIN 49073

i No operation with transformers.

Product characteristics

- Phase cut-on dimming principle.

- Soft locking on operation

- Short-circuit protection through fine-wire fuse

- Electronic over-temperature protection

- Changeover switching possible in combination with changeover switch

i Flickering of the connected lamps due to undershoot of the specified minimum load or

through centralised pulses from the power stations. Soft humming of the device due to the

radio interference suppressor. These are not device faults.

4 Operation

Switch light

o Press the control button.

Adjust the brightness

Light is switched on.

o Turn the control button in the clockwise direction.

The light gets brighter up to maximum brightness.

o Turn the control button in the anti-clockwise direction.

Light gets darker to minimum brightness.

5 Information for electrically skilled persons

5.1 Fitting and electrical connection

DANGER!

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

Before carrying out work on the device or load, disengage all the

corresponding circuit breakers. Cover up live parts in the working environment.

2/5

32534413

J:0082534413

19.08.2010

Light Management

Rotary dimmer with 2-way push switch

Produkt Specifikationer

Mærke:	JUNG
Kategori:	Lysdæmper
Model:	864GDW
Kode for international beskyttelse (IP):	IP44
Type:	Lysdæmper & kontakt
Vekselstrømsindgangsspænding:	230 V
Vekselstrømsindgangsfrekvens:	50 Hz
Bredde:	70 mm
Dybde:	90 mm
Højde:	58 mm
Produktfarve:	Hvid
Kontroltype:	Dreje
RF-transmissionsfrekvens:	- MHz
Dæmpbar:	Ja
Boks design:	Monterbar
Resistiv belastning (maks.):	450 W
Sendereffekt:	- mW
Resistiv belastning (min.):	60 W
Strømbrudshukommelse:	Ingen
