675R/T Quick Start
P/N:
2 9 0 0 - 3 0 1 3 8 9 QS
Rev:
1

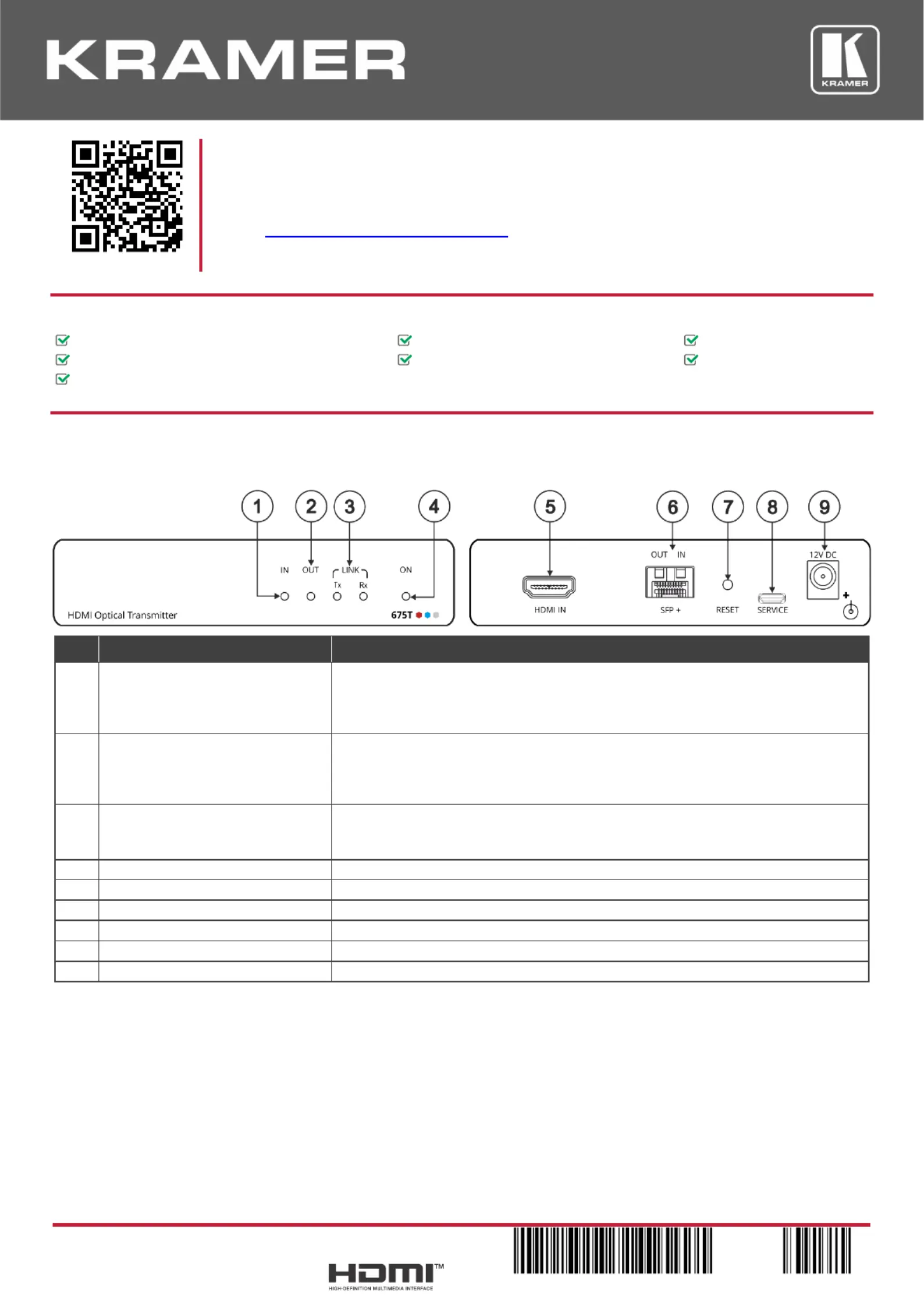

675R/T Kit Quick Start Guide
This guide helps you install and use your 675R/T for the rst time.
Go to www.kramerav.com/downloads/675R/T to download the latest user manual and check if rmware
upgrades are available.
Step 1: Check what’s in the box
675T HDMI Optical Transmitter
2 Power adapters and cords
1 Quick start guide
675R HDMI Optical Receiver
8 Rubber feet
2 Bracket sets
2 OSP-MM1 Fiber Optic SFP+ Transceivers
Step 2: Get to know your 675R/T
675T
#
Feature
Function
1
IN LED
Lights green when a connected source device (with an active HDMI signal) is
detected.
Flashes 4 times green when resetting the device.
O when a connected source device with an active signal is not detected.
2
OUT LED
Lights green when both a connected HDMI source (with an active HDMI signal) and
a connected far-end HDMI acceptor are detected.
O if either the source or the acceptor is not connected, or an active signal is not
present.
3
LINK Tx and Rx LEDs
Light green when OUT IN SFP+ is connected and an active optical link is detected.
Light red when OUT IN SFP+ is connected, an active optical link is not detected. but
O when OUT IN SFP+ is disconnected.
4
ON LED
Lights green when the device receives power.
5
HDMI™ IN Connector
Connect to an HDMI source.
6
OUT IN SFP+ Connector
Connect the ber optic cable to the plugged- SFP+ optical module connect . in or
7
RESET Recessed Button
Press and hold to reset settings to factory default values.
8
SERVICE Micro USB Port
Connect to a PC to perform rmware upgrade (via K-Upload).
9
12V DC Power Connector
12V DC connector for powering the unit.

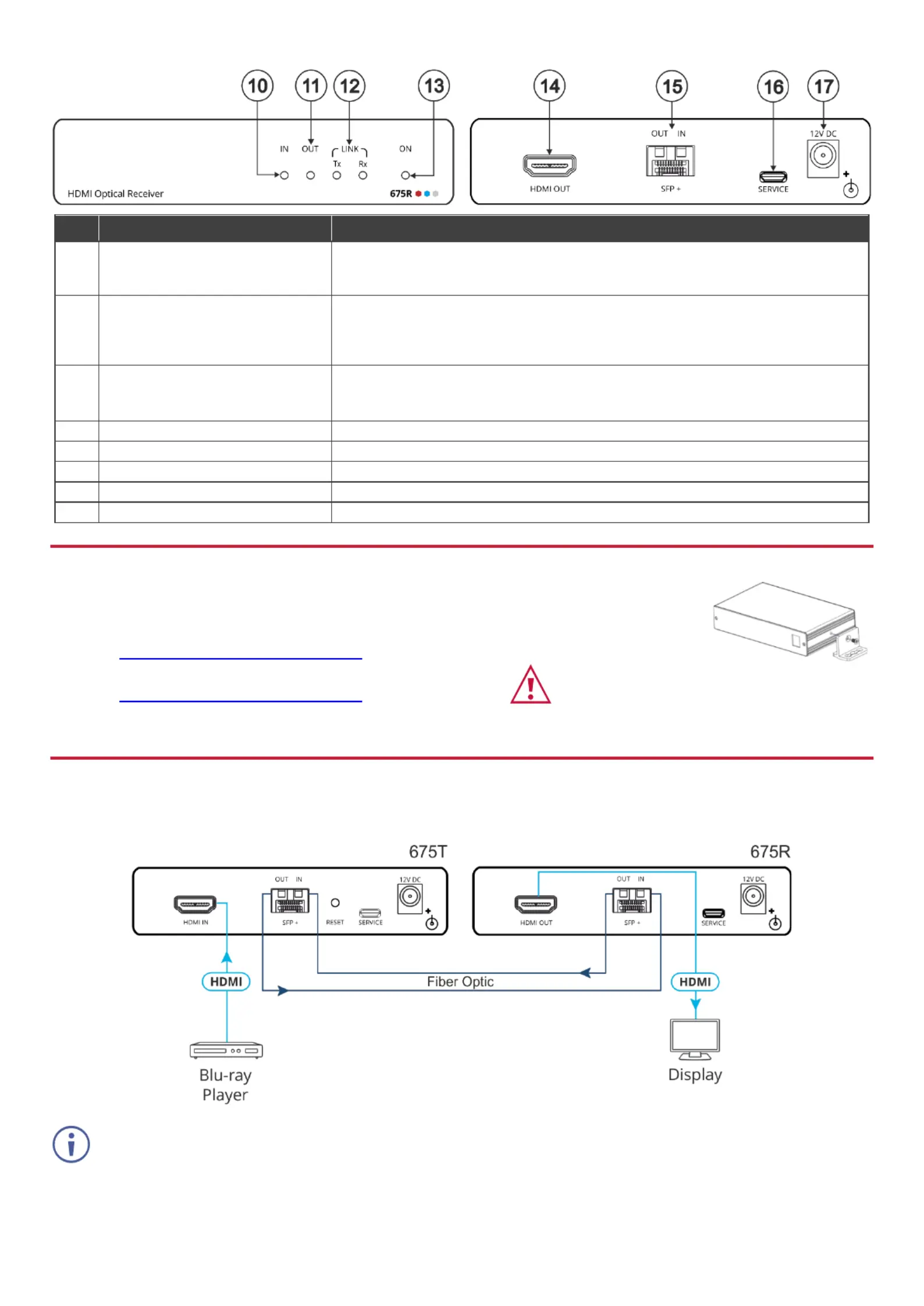

675R
#
Feature
Function
10
IN LED
Lights green when a connected far-end source device (with an active HDMI signal)
is detected.
O when a connected source device with an active signal is not detected.
11
OUT LED
Lights green when both a connected HDMI source (with an active HDMI signal) and
a connected HDMI acceptor are detected.
O if either the source or the acceptor is not connected, or an active signal is not
present.
12
LINK Tx and Rx LEDs
Light green when OUT IN SFP+ is connected, and an active optical link is detected.
Light red when OUT IN SFP+ is connected but an active optical link is not detected.
O when OUT IN SFP+ is disconnected.
13
ON LED
Lights green when the device receives power.
14
HDMI OUT Connector ™
Connect to an HDMI acceptor.
15
OUT IN SFP+ Connector opening
Connect the ber optic cable to the plugged- SFP+ optical module connect . in or
16
SERVICE Micro USB Port
Connect to a PC to perform rmware upgrade (via K-Upload).
17
12V DC Power Connector
12V DC connector for powering the unit.
Step 3: Install 675R/T
Install 675R/T using one of the following methods:
• Attach the rubber feet and place the unit on a at surface.
• Fasten a bracket (included) on each side of the unit and attach it to a at surface
(see www.kramerav.com/downloads/675R/T).
• Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/downloads/675R/T).
• Ensure that the environment (e.g., maximum ambient temperature &
air ow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.
Step 4: Connect the inputs and outputs
Always switch OFF the power on each device before connecting it to your 675R/T. For best results, p2-we recommend that you
always use Kramer high-performance cables to connect AV equipment to 675R/T.
Make sure that you always cross-connect the ber connections, Rx OUT to Tx IN and Rx IN to Tx OUT, as unidirectional optical
transmission is carried on simplex ber strands.
