LPH Harness Instruction Guide

Wiring Connection Chart (All Models)

All LPH harnesses are designed to work on OEM Non-Amplied systems.

All LPH harnesses are designed to be modular and used in various applications. (Listed Below)

-Adding Multi-Channel Ampliers Front -LPH-SPK(A) / (C)

-Adding Multi-Channel Ampliers Rear -LPH-SPK(B) / (D)

-Adding Multi-Channel Ampliers Front / Rear -LPH-SPK(A) / (B) / (C) / (D)

-Adding Mono Amplier Standalone Subwoofer -LPH-SPK(E)

-Provides Power/Ground/ACC -LPH-SPK(F)

-Provides speaker inputs / outputs on all channels

If no powered accessories are going to be installed behind your radio you will not need to use the pigtail. If you are

LPH-SPK(F)

using this harness make sure your loose ends are connected prior to plugging in to the main LPH harness. If not connected to a

device or insulated this could cause a short circuit.

LPH-SPK (A) LPH-SPK (B) LPH-SPK (C)

Front - Signal from AMP Rear - Signal from AMP Front - Signal to AMP

Wire Color Wire Color Wire ColorFuncon Funcon Funcon

White Front Le (+) Rear Le (+) Front Le (+)

Green White

White/Black Front Le (-) Rear Le (-) Front Le (-)Green/Black White/Black

Gray Front Right (+) Rear Right (+) Front Right (+)Violet Gray

Gray/Black Front Right (-) Rear Right (-)Violet/Black Gray/Black Front Right (-)

LPH-SPK (D) LPH-SPK (E) LPH-SPK (F)

Rear - Signal to AMP Signal to AMP (SUB-T) Power Extension

Wire Color Wire Color Wire ColorFuncon Funcon Funcon

Green Rear Le (+) Le (+)Blue Yellow Constant 12V

Green/Black Rear Le (-) Le (-)Blue/Black Red Accessory

Violet Rear Right (+) Right (+)Red Black Ground

Violet/Black Rear Right (-) Right (-)Red/Black

LPH-SPK (E) Can be use in both front or rear conguraons based on user preference.

LPH-SPK (F) Not all vehicles will provide accessory signal (Red Wire).

Important Notes

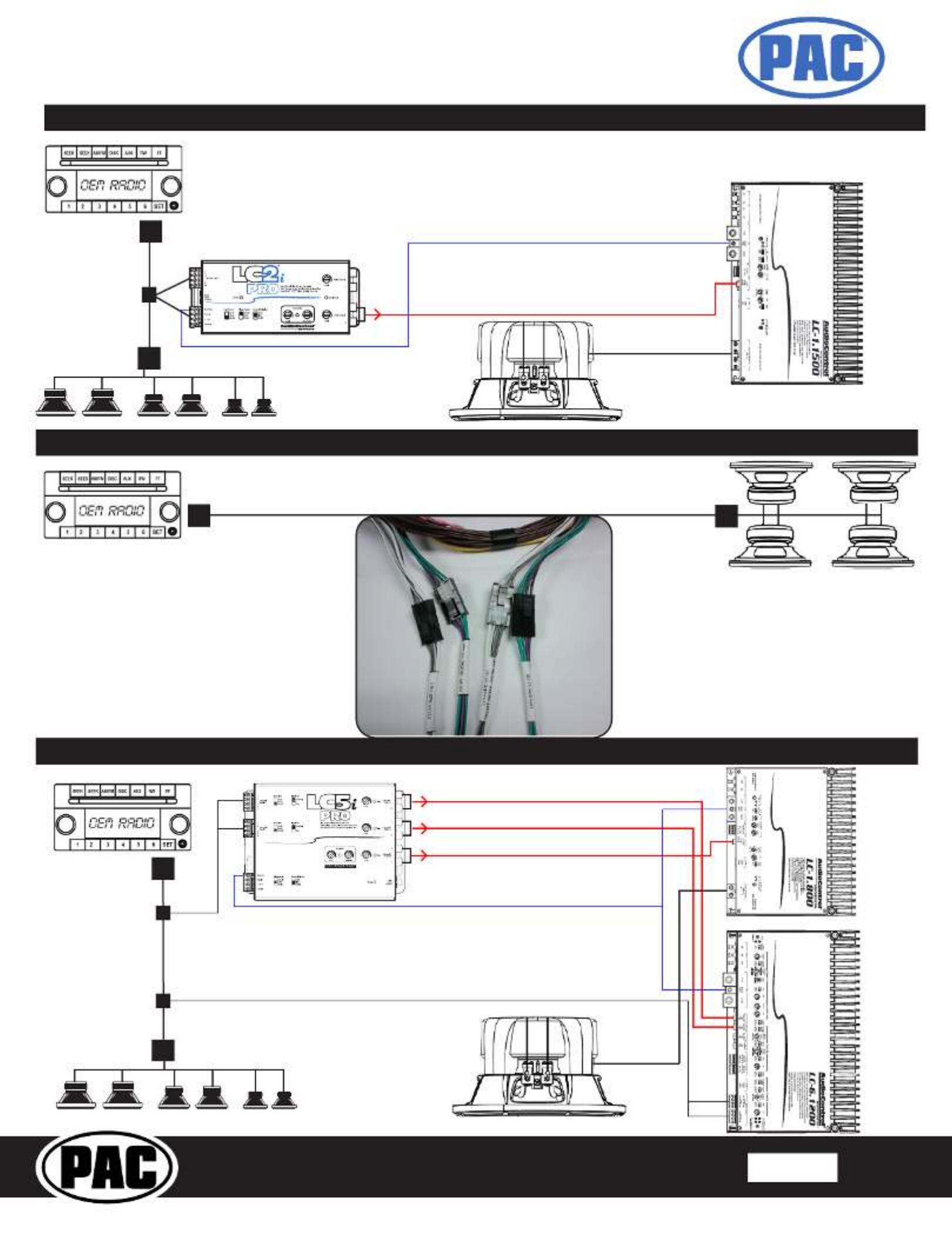

Example Installation - Mono Amplier - LPH-SPK(E)

OEM RADIO HARNESS

LPH TO RADIO CONNECTION

For this application you will want to split

either the front or rear channels on the

main LPH harness and insert (LPH-SPK(E))

in between. (See Photo).

This will provide a High-Level output for

various devices such as an Amplier, DSP,

or LOC that can accept a high-level input

signal.

LPH-SPK(F) can be used to provide Power,

Ground, and in some cases Acc for your

audio adapter (See Photo Bottom Right).

You will want to test your vehicles factory

speaker signal to verify that low level

frequencies are present.

This example will also maintain your

factory speaker connection as it is

bypassed though the harness.

LPH-SPK(F)

PAC-audio.com

Rev.8

8/19/2022

LPH Harness Instruction Guide

Example Installation - Multi-Channel Amplier - LPH-SPK(A/B/C/D)

LPH TO OEM HARNESSLPH TO RADIO CONNECTION

For this application you will want to split

either the front and / or rear channels on the

main LPH harness and insert LPH-SPK(A-D)

in between. (See Photo).

Example Installation - Multi-Channel Amplier - LPH-SPK(A/B/C/D) Continued

Example Installation - Mono Amplier - LPH-SPK(E) Continued

Harnesses LPH-SPK(C) and LPH-SPK (D)

will provide a High-Level output for various

devices such as an Amplier, DSP, or LOC

that can accept a high-level input signal.

Harnesses LPH-SPK(A) and LPH-SPK(B)

will allow you to run the output of your new

aftermarket amplier back through you

factory wiring.

LPH TO RADIO

CONNECTION

LPH TO OEM

HARNESS

LPH-SPK(C)

LPH-SPK(D)

LPH-SPK(A)

LPH-SPK(B)

LPH TO OEM

HARNESS

LPH TO RADIO

CONNECTION

LPH-SPK(E)

LPH-SPK(F)
