© Copyright 2004 Smart-AVI, All Rights Reserved
Notice
The information contained in this document is
subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular
purpose.
Smart-AVI will not be liable for errors contained herein
or for incidental or consequential damages in
connection with the furnishing, performance or use
of this material.
No part of this document may be photocopied,
reproduced or translated into another language with
out prior written consent from Smart-AVI.
For the complete manual, visit www.smartavi.com.

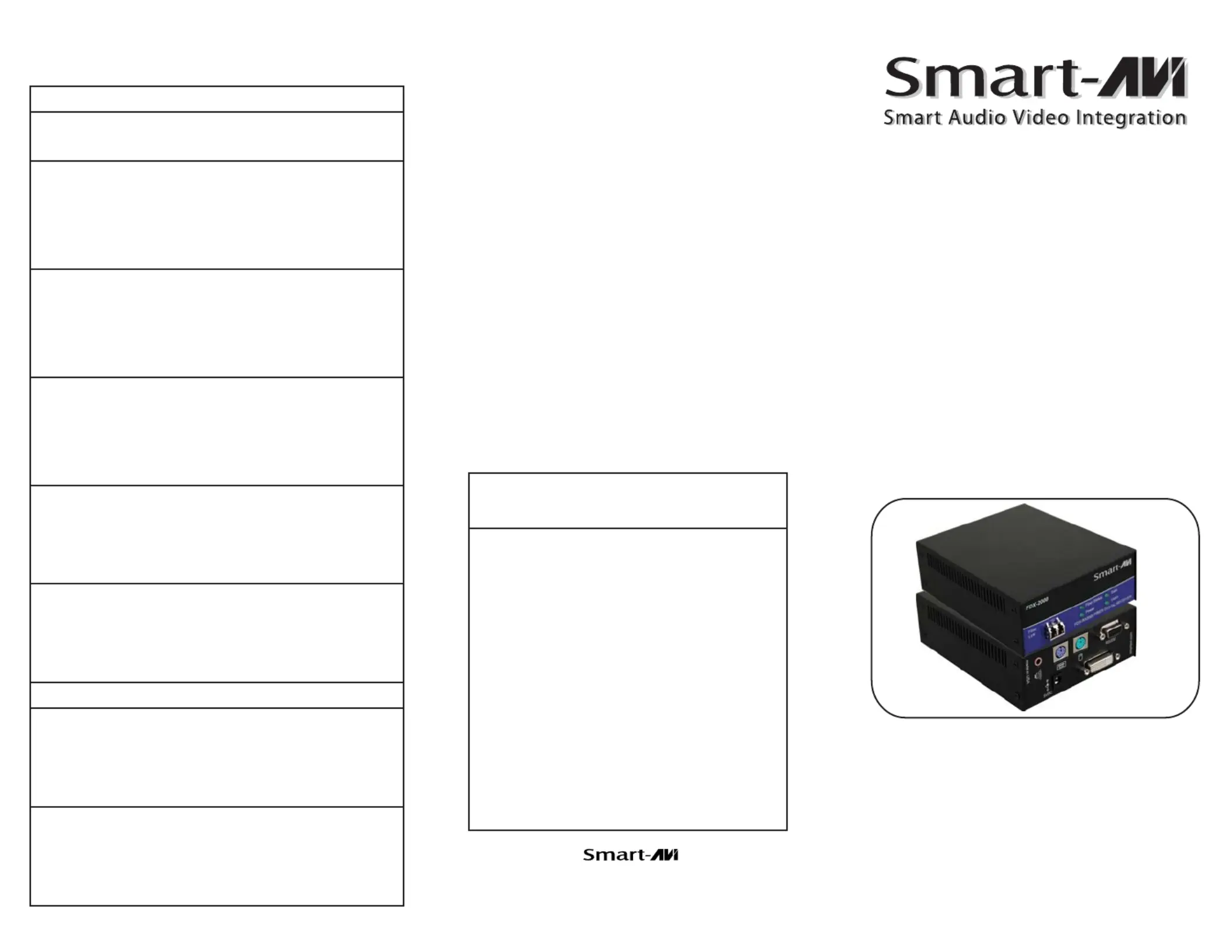

The FDX-2000 extends any single-link
DVI-D signal, PS2 keyboard, mouse, and
audio up to 1400 feet using
multimode fiber optics.
www.smartavi.com
User Manual
2840 N. Naomi Ave.
Burbank, California 91504
Phone: (818) 565-0011
Facsimile: (818) 565-0020
Technical Specifications
m_fdx2000-101909
FDX-2000
SPECIFICATIONS FDX-2000
Systems:
Windows 2000, XP and 2003 and Linux
Video Interface
DVI-D female
Single link
Resolution 1920 x 1200 @ 60 Hz
DDC internal table can be reprogrammed
Keyboard/mouse
Keyboard Mini din color coded, supports
PS2 compatible.
Mouse Mini din color coded, PS/2, wheel
mouse, 5-button mouse
Audio
Signal Type Stereo Audio
Bandwidth 15MHz, 0dB
Impedance 100 Ohm
Connector 3.5mm mini jack, Female
RS232
RS232 Data up to 57,600
DB9
Support TXD, RXD, GND
Dimensions (Inches)
Power Supply 110/240 -5VDC-3A
Fiber
tGU!.VMUJNPEF
tGU!.VMUJNPEF
Fibre-Plug type SC
Compatible with all operating systems
Compatible with all major KVM Switches
Rack Mount options (19”): available
ORDER INFO
Model Description
FDX-2000 Point to point DVI-D,
keyboard, mouse,
Audio and RS232
ber extender.
Includes:
[FDX-TX2000,
FDX-RX2000,
2 x (PS5V3A)]
Introduction
The FDX-2000 extends any DVI-D signal, keyboard,
mouse and audio up to 1400 feet with fiber
cable.
Features
Top image quality at all resolutions.
Video resolutions up to 1920 x 1200 @ 60Hz
(1280 x 1024 @ 75Hz) on all distances up to the
maximum distance.
User selectable: DCC-Information used from the
remotely located monitor, from the locally located
monitor or from an internal DDC table.
Basic device to remotely locate monitor, keyboard/
mouse and audio.
Supports PS2-keyboard/mouse.
Compatible with all operating systems.
Compatible with all major KVM switches.
Rack mount options (19”): mount up to 4 devices
in a 19”/1U rack mount kit. This saves expensive
rack space.
Supports stereo sound.
Applications
Sharing: Sharing: Sharing: Sharing: Sharing: Enables easy access to one server from
remote location.
Security: Security: Security: Security: Security: Safeguards the servers by storing
them in a secure and climate controlled
environment.
Saving:Saving:
Saving:Saving:
Saving: Saves equipment costs, physical space
and utilities expense.
Productivity:Productivity:
Productivity:Productivity:
Productivity: Increases productivity by
facilitating testing and performance evaluation of
software and equipment, on multiple servers.
Multimedia:Multimedia:Multimedia:Multimedia:Multimedia: Can be used in multimedia
presentations where the presentation information
is broadcasted to various KVMs.
Installation
11
11
1 .Before installing any SmartAvi products, verify that
the computer’s DVI, mouse, keyboard, and sound
all work properly when connected directly.
22
222. Power off computer and monitor.
33
33
3. Using compatible cables, connect the DVI, mouse,
keyboard , and sound from the PC to the FDX-TX2000.
44
444. Connect and run 2 SC fiber from the FDX-TX2000
to the FDX-RX2000’s location.
55555. Plug in the DVI monitor, mouse, keyboard, and
sound to the FDX-RX2000.
66
66
6. Connect the power supplies to the transmitter and
receiver.
77
777. Turn on the computer and monitor.

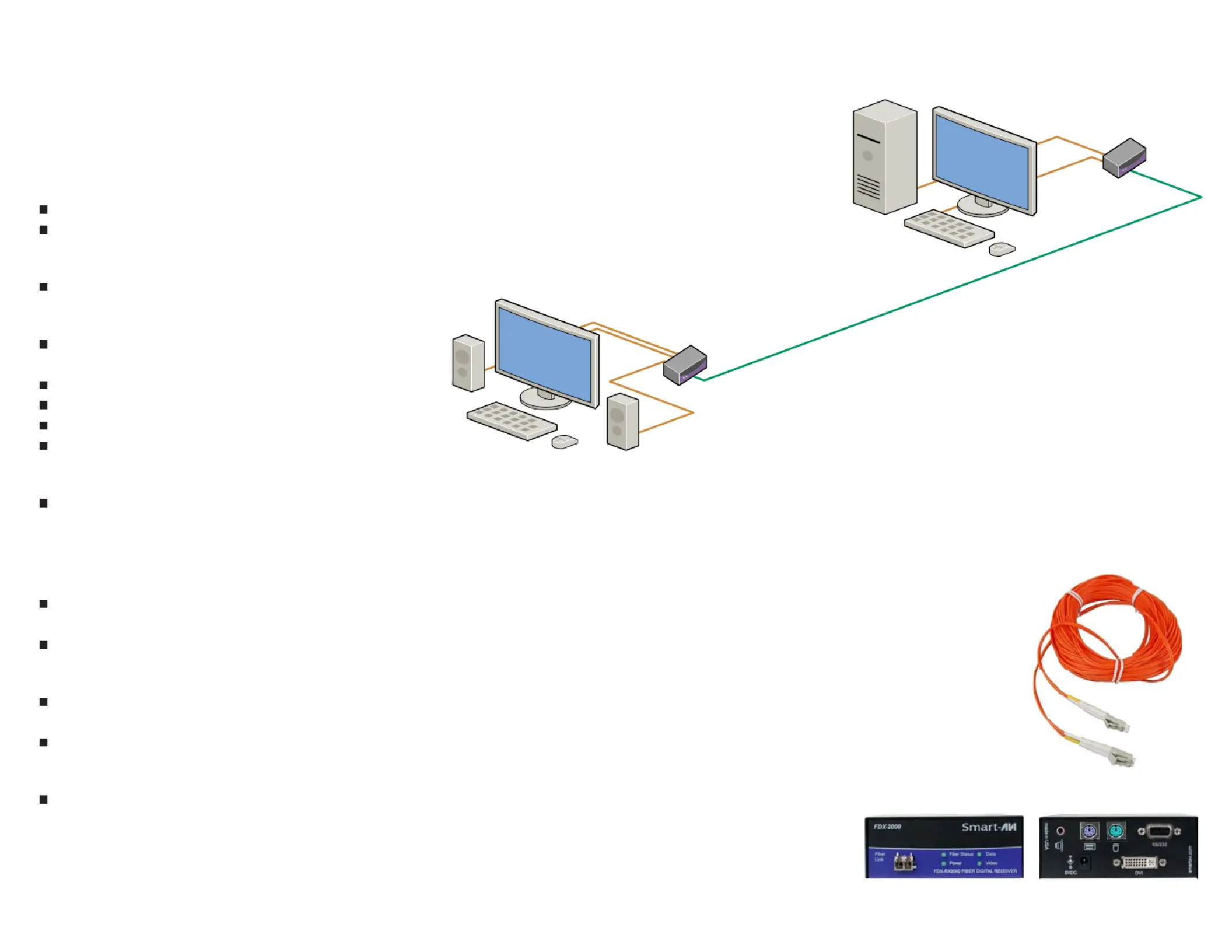

Installation Diagram
FDX-2000-TX
DVI Receiver Fiber 1,400ft. max
FDX-2000-RX
DVI Transmitter
Installing and preparing the
Fiber
1. Fiber used, SC type
2. 62.5μ fiber optic cable , 800 ft.
3. 1400μ fiber optic cable, 1,400 ft
SC Fiber
,400
ft
