USER MANUAL

LDX-2P

Dual Head DVI-D, USB Keyboard, Mouse

and Audio Extender Over Cat5e/6

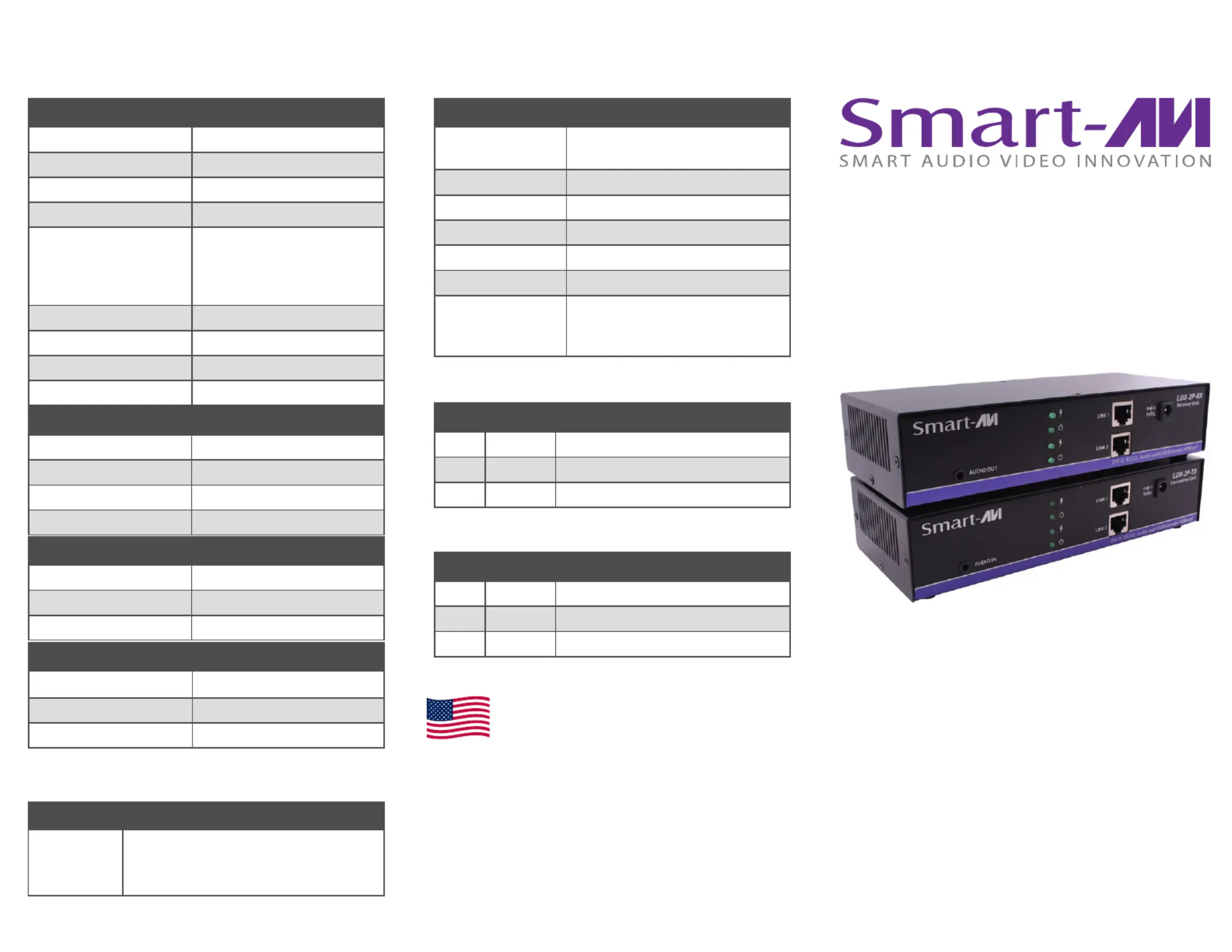

TECHNICAL SPECIFICATIONS

800.AVI.2131

Tel: (818) 503-6200 Fax: (818) 503-6208

11651 Vanowen St. North Hollywood, CA 91605

SmartAVI.com

Designed and Manufactured in the USA

EXTEND DUAL DVI-D, DUAL RS232, USB KEY-

BOARD, MOUSE AND AUDIO UP TO 245 FEET OVER

DUAL CAT5/5E/6 CABLE

VIDEO

Format (2) DVI-D Single Link

Maximum Pixel Clock 165 MHz

Input Interface (TX) (2) DVI-D 29-pin (Female)

Output Interface (RX) (2) DVI-D 29-pin (Female)

Resolution Up to 1920 x 1200 @ 60Hz

and

Up to 4K/2K (3840x2160)

@ 30Hz

DDC 5 volts p-p(TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

RS232

Input Interface DB9 (Female)

Output Interface DB9 (Male)

Control @ 115 Kbps

OTHER

Power External 100-240 VAC/5VDC3A

@15W

Dimensions 5.125 in W x 1 in H x 3.625 in D

Weight 1 lb.

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

Max Resolution

Video Extension

Distance

245 ft. w/ CAT6 STP

USB

Signal Type USB 1.1

Input Interface (TX) (1) USB Type B (Female)

Output Interface (RX) (2) USB Type A (Female)

Signal Type Stereo Audio

Bandwidth 15MHz, 0dB

Impedance 100 Ohm

Connector 3.5 mini jack, Female

AUDIO

PIN Name

TxD

RxD

GND

Description

Transmit Data on DB9 Female

Receive Data on DB9 Female

Ground

PIN Name

RxD

TxD

GND

Description

Receive Data on DB9 Female

Transmit Data on DB9 Female

Ground

RECEIVE ON DB9 FEMALE

TRANSMIT ON DB9 FEMALE

WHAT’S IN THE BOX?

PART NO. DESCRIPTION

LDX-2PS Dual DVI-D, USB, Dual RS-232, and

Audio Extender. Includes: [LDX-2P-TX,

LDX-2P-RX, 2x (PS5VDC3A)]

INTRODUCTION

Using HDBaseT technology, the LDX-2P DVI extender

is capable of sending dual DVI-D signals up to 245

feet over two conventional and inexpensive

CAT5/5e/6 cable. HDBaseT technology is superior to

older DVI extenders that require special CAT6

shielded cable to go a short distance. The SDX-2P

also has USB keyboard and mouse, audio and

RS232 extension, giving you the ability to control

your displays or devices remotely.

CONNECTING THE LDX-2P

1. Power off all devices.

2. Connect two DVI-D sources (computer) to the

two DVI-D ports on the back of the SDX-2P-TX.

3. Connect a USB source (computer) to the USB

port on the SDX-2P-TX.

4. Optionally connect RS232 for control functions.

5. Connect the SDX-2P-TX to the SDX-2P-RX with

two CAT5 UTP (Unshielded Twisted Pair) cables.

6. Connect a DVI-D compatible display to each of

the two DVI-D ports on the back of the SDX-

2PRX.

7. Connect USB keyboard and mouse to the USB

ports on the SDX-2P-RX.

8. Optionally connect RS232 for control functions.

9. Connect the power to the SDX-2P-RX and the

SDX-2P-TX.

10. Power on the display and then the computer.

The EDID of your display will be learned

automatically.

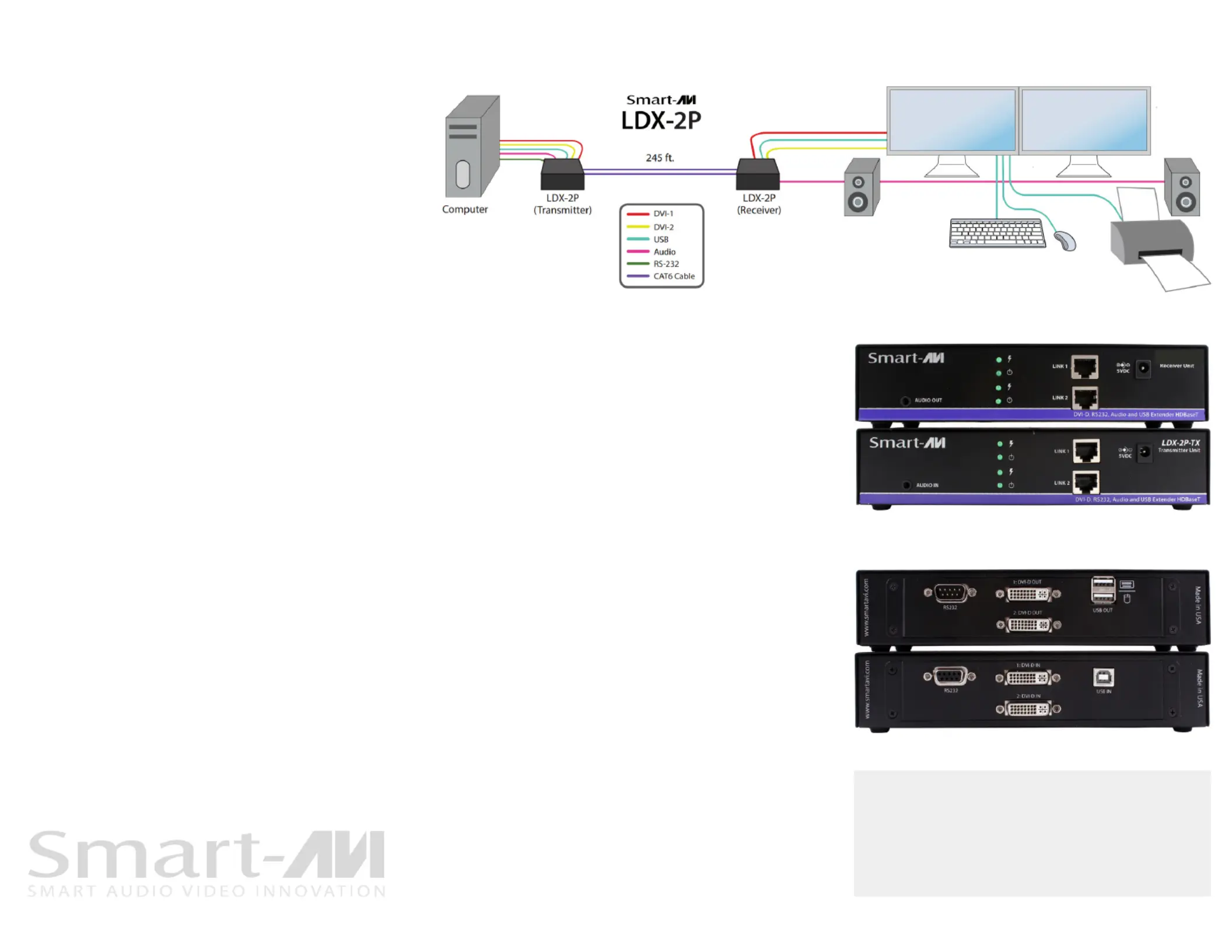

APPLICATION DIAGRAM

LDX-2P (RX/TX) FRONT

LDX-2P (RX/TX) REAR

FEATURES

• Extends dual DVI-D up to 245 feet (75m) from

the source

• HDCP Support

• Supports up to 1920x1200 digital video

resolution @ 60 Hz

• Supports 4K/2K (3840x2160) video resolution

@ 30Hz

• Automatic DDC Learning

• USB Keyboard and Mouse extension

• Uncompressed Video HDBaseT

• RS232 extension allows for remote control of

displays

• External power adapter for transmitter and

receiver unit

• Supports Stereo Sound

• Compatible with Windows, Mac and Linux

Operating Systems

To reach maximum distances with HDBaseT

technology, it is recommended to use the

best possible quality cable available.

CAT5e/6 shielded cabling is ideal for best

performance.

SDX-2P-RX
