USER MANUAL
LDX-2P
Dual Head DVI-D, USB Keyboard, Mouse
and Audio Extender Over Cat5e/6

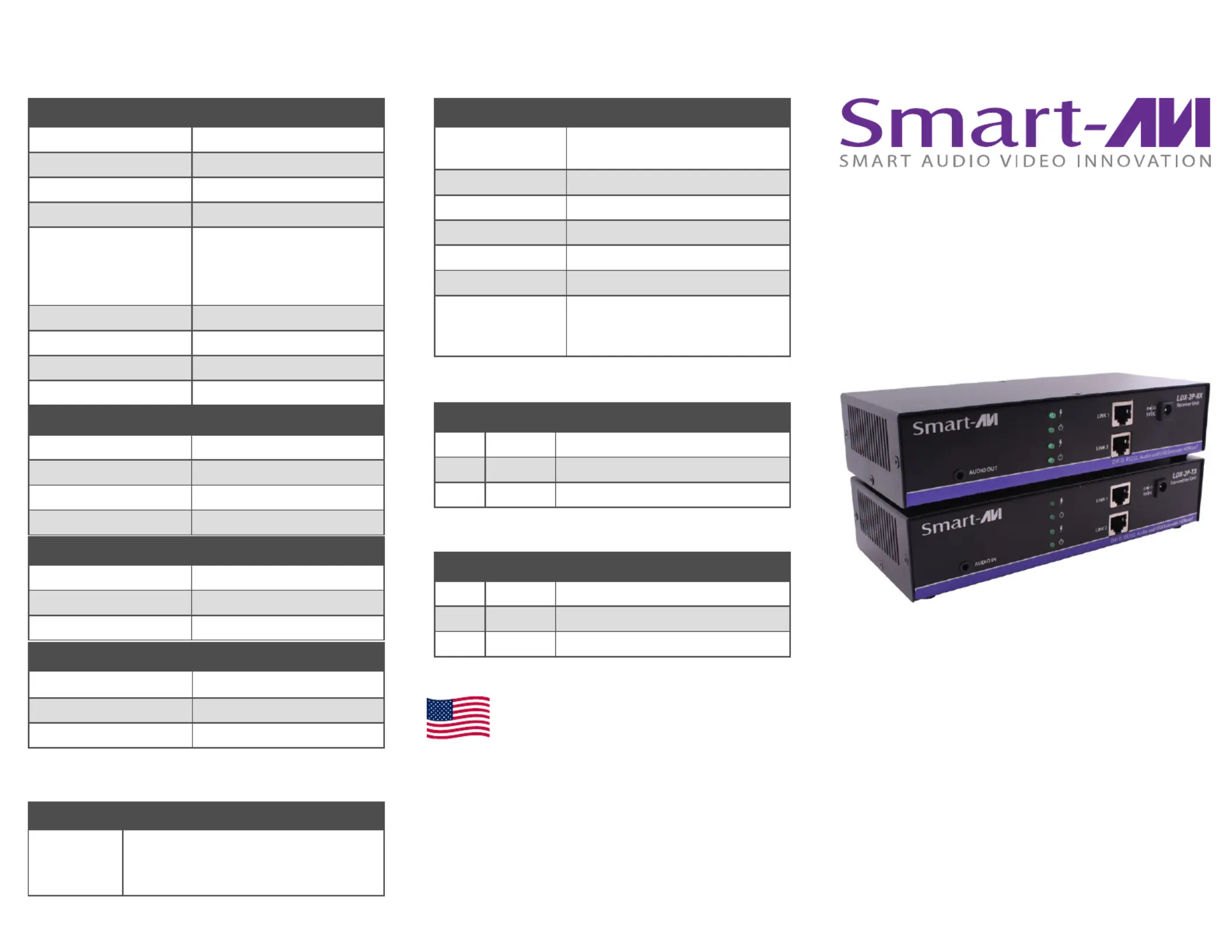

TECHNICAL SPECIFICATIONS
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
Designed and Manufactured in the USA
EXTEND DUAL DVI-D, DUAL RS232, USB KEY-
BOARD, MOUSE AND AUDIO UP TO 245 FEET OVER
DUAL CAT5/5E/6 CABLE
VIDEO
Format (2) DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (TX) (2) DVI-D 29-pin (Female)
Output Interface (RX) (2) DVI-D 29-pin (Female)
Resolution Up to 1920 x 1200 @ 60Hz
and
Up to 4K/2K (3840x2160)
@ 30Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
RS232
Input Interface DB9 (Female)
Output Interface DB9 (Male)
Control @ 115 Kbps
OTHER
Power External 100-240 VAC/5VDC3A
@15W
Dimensions 5.125 in W x 1 in H x 3.625 in D
Weight 1 lb.
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
Max Resolution
Video Extension
Distance
245 ft. w/ CAT6 STP
USB
Signal Type USB 1.1
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (2) USB Type A (Female)
Signal Type Stereo Audio
Bandwidth 15MHz, 0dB
Impedance 100 Ohm
Connector 3.5 mini jack, Female
AUDIO PIN Name
2 TxD
3 RxD
5 GND
Description
Transmit Data on DB9 Female
Receive Data on DB9 Female
Ground
PIN Name
2 RxD
3 TxD
5 GND
Description
Receive Data on DB9 Female
Transmit Data on DB9 Female
Ground
RECEIVE ON DB9 FEMALE
TRANSMIT ON DB9 FEMALE
WHAT’S IN THE BOX?
PART NO. DESCRIPTION
LDX-2PS Dual DVI-D, USB, Dual RS-232, and
Audio Extender. Includes: [LDX-2P-TX,
LDX-2P-RX, 2x (PS5VDC3A)]
INTRODUCTION
Using HDBaseT technology, the LDX-2P DVI extender
is capable of sending dual DVI-D signals up to 245
feet over two conventional and inexpensive
CAT5/5e/6 cable. HDBaseT technology is superior to
older DVI extenders that require special CAT6
shielded cable to go a short distance. The SDX-2P
also has USB keyboard and mouse, audio and
RS232 extension, giving you the ability to control
your displays or devices remotely.
CONNECTING THE LDX-2P
1. Power off all devices.
2. Connect two DVI-D sources (computer) to the
two DVI-D ports on the back of the SDX-2P-TX.
3. Connect a USB source (computer) to the USB
port on the SDX-2P-TX.
4. Optionally connect RS232 for control functions.
5. Connect the SDX-2P-TX to the SDX-2P-RX with
two CAT5 UTP (Unshielded Twisted Pair) cables.
6. Connect a DVI-D compatible display to each of
the two DVI-D ports on the back of the SDX-
2PRX.
7. Connect USB keyboard and mouse to the USB
ports on the SDX-2P-RX.
8. Optionally connect RS232 for control functions.
9. Connect the power to the SDX-2P-RX and the
SDX-2P-TX.
10. Power on the display and then the computer.
The EDID of your display will be learned
automatically.

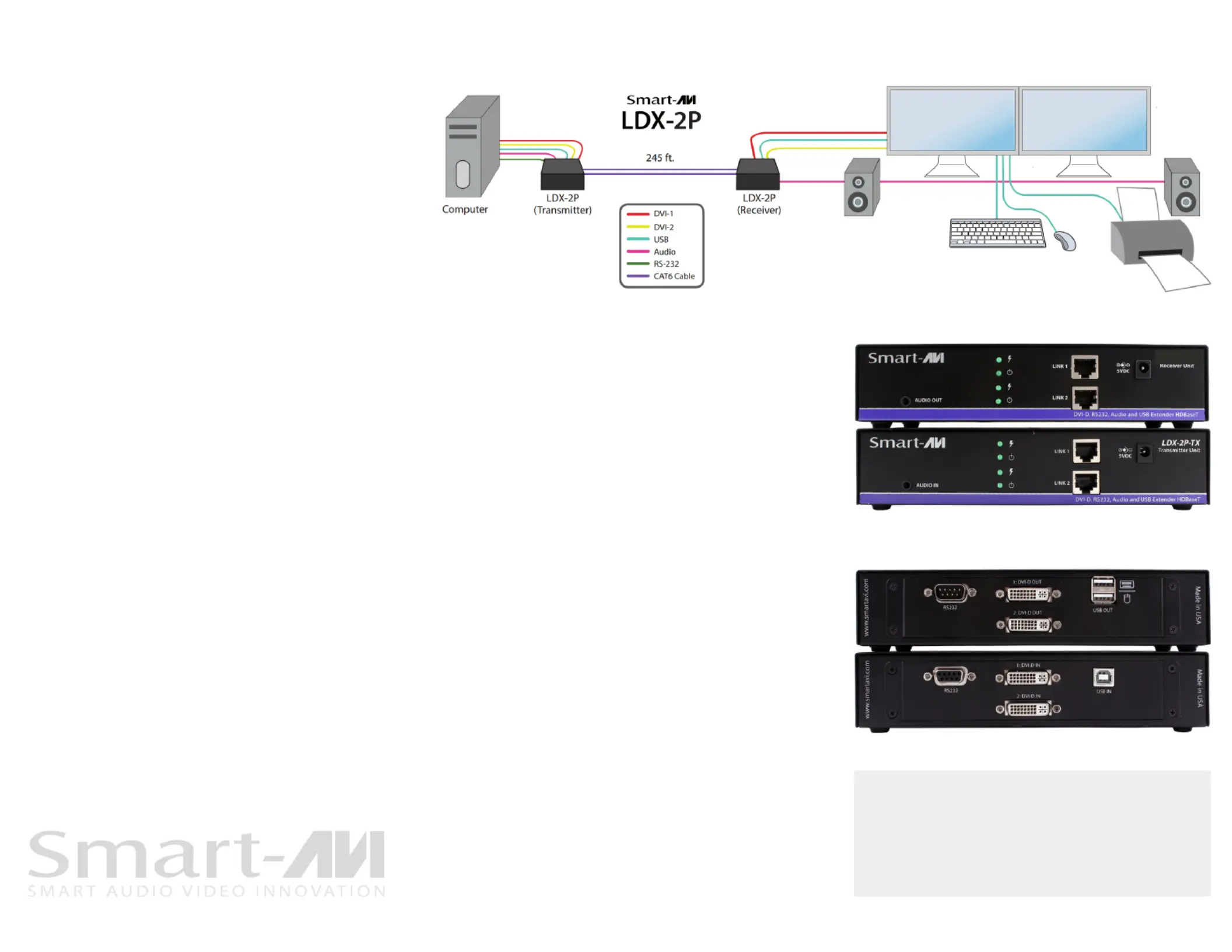

APPLICATION DIAGRAM
LDX-2P (RX/TX) FRONT
LDX-2P (RX/TX) REAR
FEATURES
• Extends dual DVI-D up to 245 feet (75m) from
the source
• HDCP Support
• Supports up to 1920x1200 digital video
resolution @ 60 Hz
• Supports 4K/2K (3840x2160) video resolution
@ 30Hz
• Automatic DDC Learning
• USB Keyboard and Mouse extension
• Uncompressed Video HDBaseT
• RS232 extension allows for remote control of
displays
• External power adapter for transmitter and
receiver unit
• Supports Stereo Sound
• Compatible with Windows, Mac and Linux
Operating Systems
To reach maximum distances with HDBaseT
technology, it is recommended to use the
best possible quality cable available.
CAT5e/6 shielded cabling is ideal for best
performance.
SDX-2P-RX
