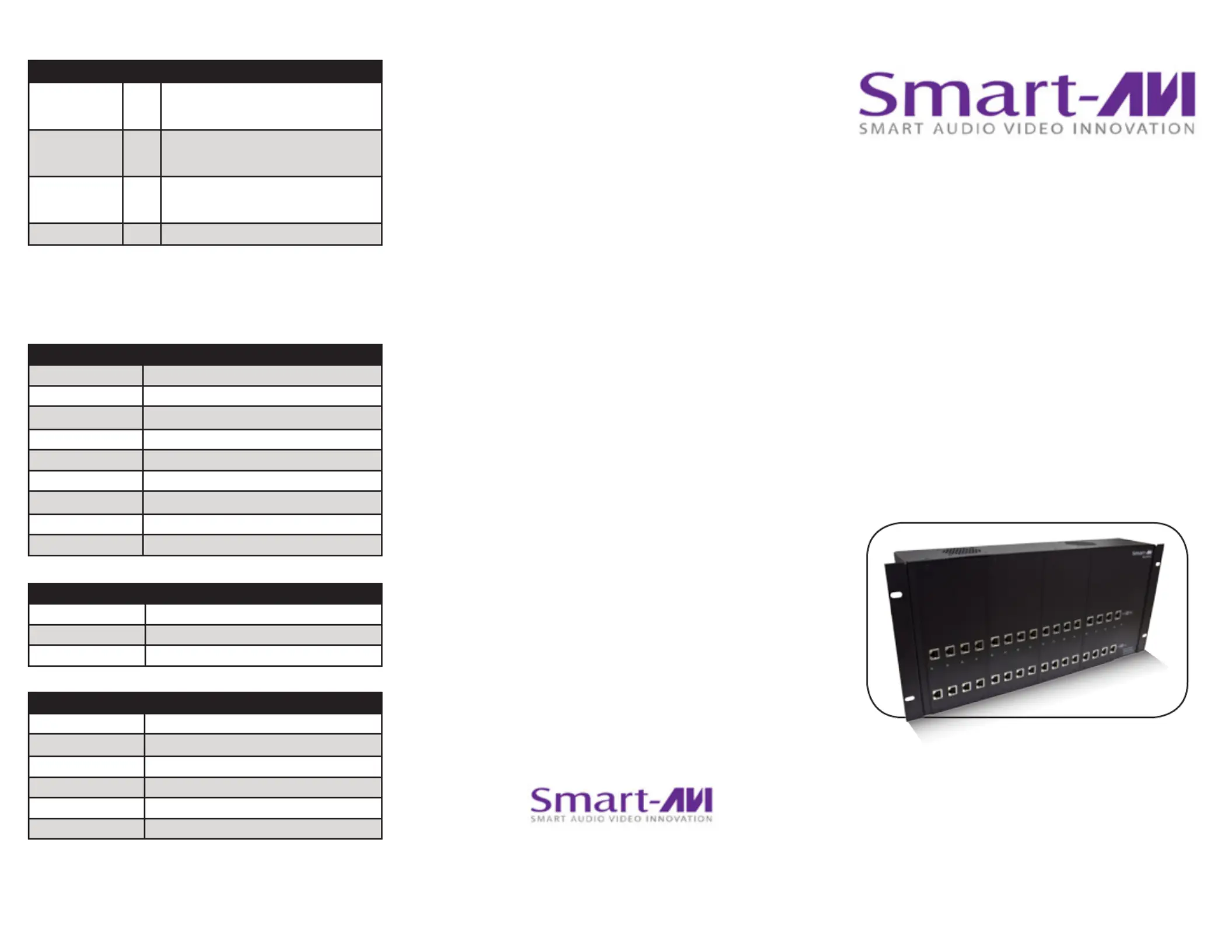

16-Port Dual DVI-D and USB 1.1

Extender up to 275 feet

over STP Cable

RK-DVX2U

16-Port Dual DVI-D and USB 1.1

Extender over STP

www.smartavi.com

Installation

Manual

Technical Specications

What’s in the Box?

PART NO. QTY DESCRIPTION

RK-DVX2U-TX4S Powered Rack/Chassis with DVI/USB CAT6

Transmitter, 4 Card Package. Includes: [RK-

DVX2U-TX4 and CCPWR06]

RK-DVX2U-TX8S Powered Rack/Chassis with DVI/USB CAT6

Transmitter, 8 Card Package. Includes: [RK-

DVX2U-TX8 and CCPWR06]

RK-DVX2U-TX16S Powered Rack/Chassis with DVI/USB CAT6

Transmitter, 16 Card Package. Includes: [RK-

DVX2U-TX16 and CCPWR06]

User Manual 1

VIDEO

Format DVI-D Single Line

Maximum Pixel Clock 165 MHz

Input Interface (TX) 16 x (2) DVI-D 29-pin female

Output Interface (RX) (2) DVI-D 29-pin female

Resolution Up to 1920 x 1200 @60Hz

DDC 5 volts p-p(TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

USB

Signal Type USB 1.1 (Fully Transparent)

Input Interface (TX) 16 x (1) USB Type B (Female)

Output Interface (RX) (4) USB Type A (Female)

OTHER

Power Internal 110-240 VAC

Dimensions 17 in W x 8.5 in H x 3.25 in D

Weight 10 lb

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

*specications shown are for 16-Port option

NOTICE

T h e i n f o r m a t i o n c o nt a i n e d i n t h i s d o c u m e n t

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

For more information, visit www.smartavi.com.

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St. North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 503-6208

http://www.SmartAVI.com

up to 275 ft

over 3 STP cables

RK-DVX2U-TX

DVX2U-RX

USB FLASH DRIVE

USB KEYBOARD

USB MOUSE

DVI-D MONITORS

COMPUTERS

Introduction

The RK-DVX2U is the perfect solution for extending dual

DVI-D displays and USB 1.1 devices to a remote location

up to 275 feet away. It is the ideal way to consolidate

up to 16 workstation computers into one location. The

RK-DVX2U features dual DVI-D extension up to 275 feet

over STP. It is fully compatible with MAC, PC and LINUX

DVI standards.

The RK-DVX2U also features transparent USB 1.1 signal

extension, with full support for all USB 1.1 devices and

an integrated 4-port hub in the receiver. Flash Drives,

Printers, Cameras, Scanners, etc. may all be used with the

RK-DVX2U.

Applications

• Medical Applications

• Industrial Work Areas

• Home Theater Integration

• Digital Signage Deployment

• Information Kiosks/Displays

• Film/Recording Studios

Features

• Supports up to 2 DVI-D single-link sources

• Supports Mac, PC, and Linux DVI

• Supports High Resolution 1920x1200 60Hz

WUXGA

• Distance: 275 feet with three CAT6 STP cables

• Uses universal DVI Single Link connectors

• Zero pixel loss with TMDS signal correction

• DDC from internal table for Mac/PC

• Supports all USB 1.1 Devices Transparently

(Flash Drives, Printers, etc.)

• Supports USB 1.1 keyboard and mouse

• Compatible with all operating systems

• Compatible with all major KVM switches

• Rack Mountable Solution

• Data recovery for digital video

• Supports 1.5 and 12Mbps data rates

• Plug-and-play

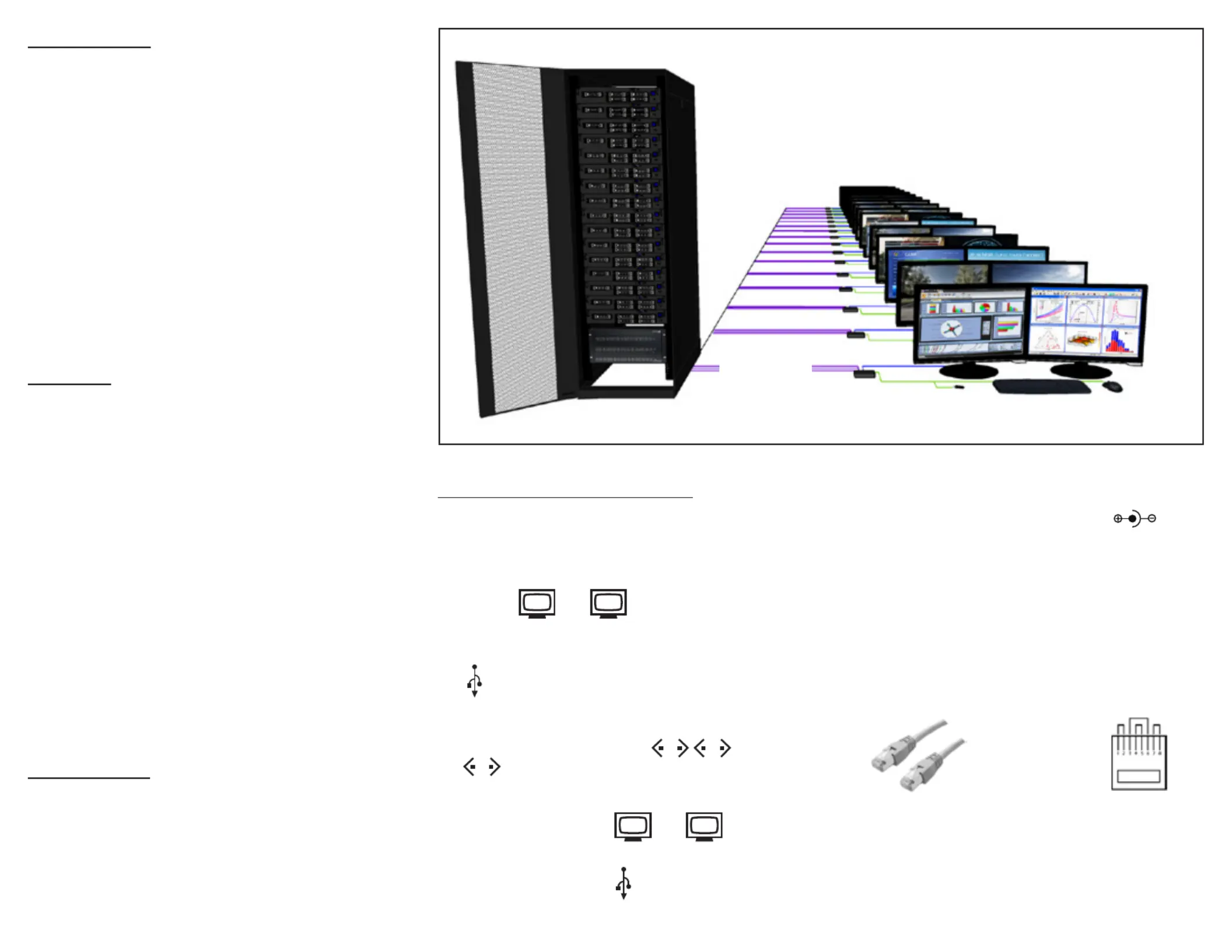

Product - Installation Diagram

The following is the wiring standard for terminating UTP/STP

cable using RJ-45 connector:

Connectors: RJ-45

Capacitance: 14 pf/ft (46.2 pf/m)

Conductor Gauge: 24 AWG

Impedance: 100 +/- 15 ohms

Pair 1 Pins 1 & 2

Pair 2 Pins 3 & 6

Pair 3 Pins 4 & 5

Pair 4 Pins 7 & 8

Connecting the RK-DVX2U

1. Power o all devices.

2. Connect two DVI-D sources (computer) to each of

the 16 DVI-D ports on the rear of the RK-DVX2U-TX

labeled and .

3. Connect two USB sources to each of the 16 USB

ports on the rear of the the RK-DVX2U-TX labeled

4. Connect the RK-DVX2U-TX to the the DVX2U-RX

with three STP (Sheilded Twisted Pair) cables using

each the front ports labeled and

5. Connect a DVI monitor to the ports on the rear of

the DVX2U-RX labeled and .

6. Connect up to 4 USB 1.1 devices to the ports on

the DVX2U-RX labeled .

1 2

7. Connect the power to the ports labeled POWER

110-240V on the RK-DVX2U-TX and on

the DVX2U-RX.

8. Power on the computers, displays and USB 1.1

devices.
