8-Port HDMI, IR, RS232 and
Power Extender Rack
Over Cat5e/6
CONSOLIDATE UP TO EIGHT
4K HDMI EXTENDERS IN ONE
POWERED RACK UNIT
TO TRANSMIT HD SIGNALS
UP TO 450 FEET AWAY
USING CAT5E/6 CABLES
Quick Start Guide
VIDEO
Format HDMI 1.3 (HDCP Compliant)
Resolutions
800x600, 1024x768, 1280x1024,
1366x768, 1920x1200, 480i,
720p, 1080i,1080p,
4K x 2K @30Hz @24bit
Transmission Distance 450 feet (135 meters)
Color Depth Deep Color 36/30/24 Bit at 1080p
and 3D
Audio Format Up to PCM 8 channel, Dolby Digital
TrueHD, and DTS-HD Master Audio
IR Range 38kHz, 56kHz
Video Bandwith 10.2Gbps
Input Video Signal 1.2 Volts P-P
Input DDC Signal 5 Volts (TTL)
I/O CONNECTOR (Transmitter)
Input (8) HDMI-A 19-pin (female)
Output (8) RJ45 Jack
I/O CONNECTOR (RECEIVER)
Input (1) RJ45 Jack
Interface (1) 3.5mm Jack for IR Emitter
(1) HDMI-A 19-pin (female)
OTHER
Power Internal 110/220V
Dimensions 17”W x 3.6”H x 3”D
Weight 4.3 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 0 to 40° C (32° to 104° F)
Storage Temp. -20° to 60°C (-4° to 140° F)
Humidity 10% to 85% (Non-condensing)
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
RK8-HDX-ULT
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
RK8- HDX-ULT-TX 1
HDMI, RS232 and IR 8-Port
Rackmount Transmitter over
a Single Cat5e/6 Cable
Power Cord 1 CCWPWR
Quick Start Guide 1
OVEVIEW
The RK8-HDX-ULT is the perfect solution for extending 4K
HDMI signals to 8 remote locations 300 feet via PoE or up
to 450 feet when both sides are powered, ensuring peak
performance when transmitting ultra-high quality picture
resolutions. The RK8-HDX-ULT is the perfect extender
solution for any system, and works in tandem with SmartAVI
matrixes for robust routing congurations. Plus, with
RS-232 and IR remote control, taking command is
convenient and easy every time!
It is the ideal way to consolidate up to eight workstation
computers into one location. It is fully compatible with MAC,
PC and LINUX HDMI standards. Up to eight displays can be
extended easily from a rack without the mess or expense
of multiple extenders. Rather than buy multiple extenders
for rack components, and having to nd power strips or
numerous power outlets for the adapters, the SmartAVI
rack series of extenders allows for up to eight transmitters
and eight receivers with only one power supply.
Whether it’s for a home entertainment system or a
commercial installation, the RK8-HDX-ULT delivers exibility
and control. Don’t let the distance bring your system down:
let the RK8-HDX-ULT extend your reach today!
FEATURES
• Extends HDMI, IR, and Power Output over Cat5e/6
• Extends IR Control Signals for Remote Control
• Supports 1080p/60fps and 4K/30Hz resoluon
• Supports Power over Ethernet (PoE) up to 300
• Transmits up to 450 feet when both sides are
powered
• Data Signals up to 3.4Gbps
• HDCP compliant; EDID learning
• Bi-direconal IR and RS-232 control
• LED status indicators
• Rack mountable
• Up to 8 units on single rack
1. Before connecting, make sure all sources are powered down.
2. Connect an HDMI cable from the HDMI source to the HDMI IN port of the RK8-HDX-ULT transmitter.
3. Connect an IR emitter (optional) to the IR OUT port on the transmitter.
4. Connect the RK8-HDX-ULT transmitter to the HDX-ULT receiver using a CAT5e/6 cable (up to 450ft).
5. Connect an IR receiver (optional) to the IR IN port on the receiver.
6. Connect an HDMI cable from the HDMI OUT port on the RK8-HDX-ULT receiver to the HDMI display.
7. Connect the power on the HDX-ULT transmitters by plugging in their power adapters (12VDC2A) or provide 12VDC input
from the rear DC input port.
NOTE: If the RX side has a connected DC adapter, the TX can get the DC power over the CAT5e/CAT6 cable, so leave the
DC input port empty. Only 1 power supply is required for both units. (In certain cases, if the receiver has too much drop off
power, we recommend to connect a 12V DC power supply to each receiver.
8. Power on the HDMI source, displays and speakers. The RX will read the EDID from the monitor, and then pass the data
into the TX automatically
INTALLATION NOTE: Do not stack receiver units. Stacking inhibits heat distribution.

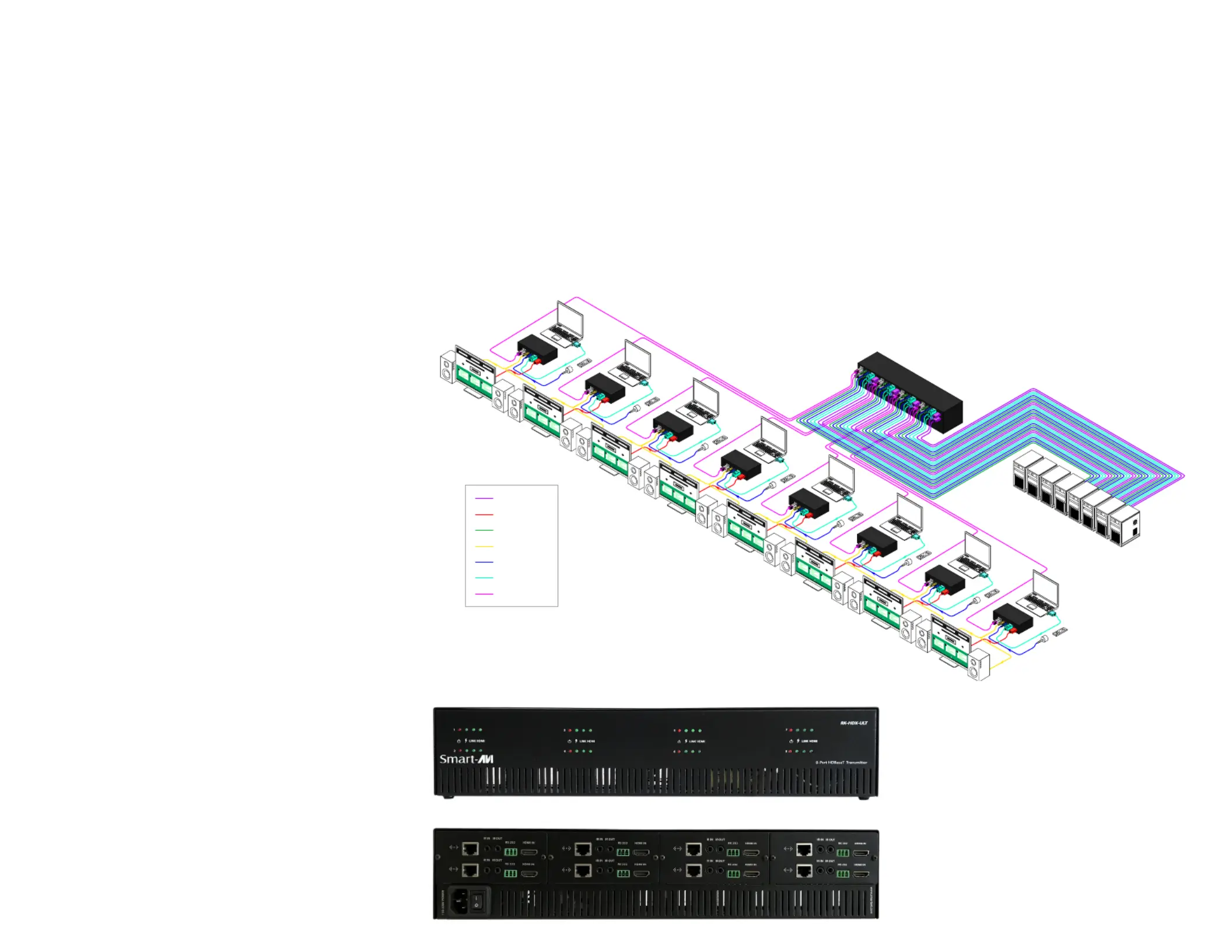

HARDWARE INSTALLATION
RK8-HDX-ULT FRONT
RK8-HDX-ULT BACK
HDMI IN
HDMI OUT
AUDIO IN
AUDIO OUT
IR
RS232
CAT5/6
HDX-ULT-RX HDX-ULT-RX HDX-ULT-RX HDX-ULT-RX HDX-ULT-RX HDX-ULT-RX HDX-ULT-RX HDX-ULT-RX
RK8-HDX-ULT
SmartAVI WEB
Co ntroller
SmartAVI WEB
Co ntroller
SmartAVI WEB
Co ntroller
SmartAVI WEB
Co ntroller
SmartAVI WEB
Co ntroller
SmartAVI WEB
Co ntroller
SmartAVI WEB
Co ntroller
SmartAVI WEB
Co ntroller
