Side 1/2
Rack 8-Port HDMI Extender
CONSOLIDATE EIGHT HDMI
EXTENDERS IN ONE RACK UNIT
TO TRANSMITHD SIGNALS
UP TO 150 FEET USING
INEXPENSIVE CAT5E/6 (STP)
Quick Start Guide
VIDEO
Format HDMI
Inputs (8) HDMI
Local Outputs (8) HDMI
Remote Outputs (8) RJ-45
Resolution
Up to 1920 x 1200 @60Hz or
480p/720i/720p/1080i/1080p
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Cable Length Up to 20 ft
OTHER
Power Internal 110-240 VAC
Dimensions 17” W x 1.6” H x 3.25” D
Weight 5 lbs
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
RKT8-HDX100
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
RKT8-HDX100 1
8-port HDMI Rack
Mountable Transmitter
Power Cord 1 CCPWR06
Quick Start Guide 1
OVEVIEW
The RKT8-HDX100 is the perfect solution for extending
HDMI signals to a remote location up to 150 feet away.
It is the ideal way to consolidate up to eight workstation
computers into one location. It is fully compatible with MAC,
PC and LINUX HDMI standards. Up to eight displays can be
extended easily from a rack without the mess or expense
of multiple extenders. Rather than buy multiple extenders
for rack components, and having to nd power strips or
numerous power outlets for the adapters, the SmartAVI
rack series of extenders allows for up to eight inputs and
eight outputs and one power supply.
FEATURES
• Supports up to 8 HDMI sources
• Supports High Resoluon 1920x1200 60Hz
WUXGA
• Extends up to 150 feet with Cat5e/6 STP cables
• Zero pixel loss with TMDS signal correcon
• DDC from internal table
• Compable with all operang systems
• Local HDMI output for each port
• HDMI 1.3 and HDCP compliance
• Compable with all major DVD players
• Rack Mountable Soluon
• Data recovery for digital video
• Plug-and-play ready
• Uncompressed Video
1. Power off the HDMI source and display.
2. Connect an HDMI cable from the HDMI source to the HDMI IN port of the RKT8-HDX100 transmitter.
3. Optionally connect an HDMI cable from the HDMI OUT port of the RKT8-HDX100 transmitter to the local HDMI display.
4. Connect the RKT8-HDX100 transmitter to the HDX-RX100 receiver using a CAT5e/6 cable (up to 150ft).
5. Connect an HDMI cable from the HDMI OUT port on the HDX-RX100 receiver to the HDMI display
6. Connect the power on the RKT8-HDX100 transmitter plugging in their power adapters (12VDC2A) or provide 12VDC input
from the rear DC input port.
NOTE: If the RX side has connected DC adapter, TX can get the DC power over the CAT5e/CAT6 cable, so leave DC input
port empty. Only 1 power supply is required for both units. (In certain cases, if the receiver has too much drop off power,
we recommend to connect a 12V DC power supply to each receiver
7. Power on the HDMI source, displays and speakers. The RX will read the EDID from the monitor, and then pass the data
into the TX automatically.
INTALLATION NOTE: Do not stack receiver units. Stacking inhibits heat distribution.

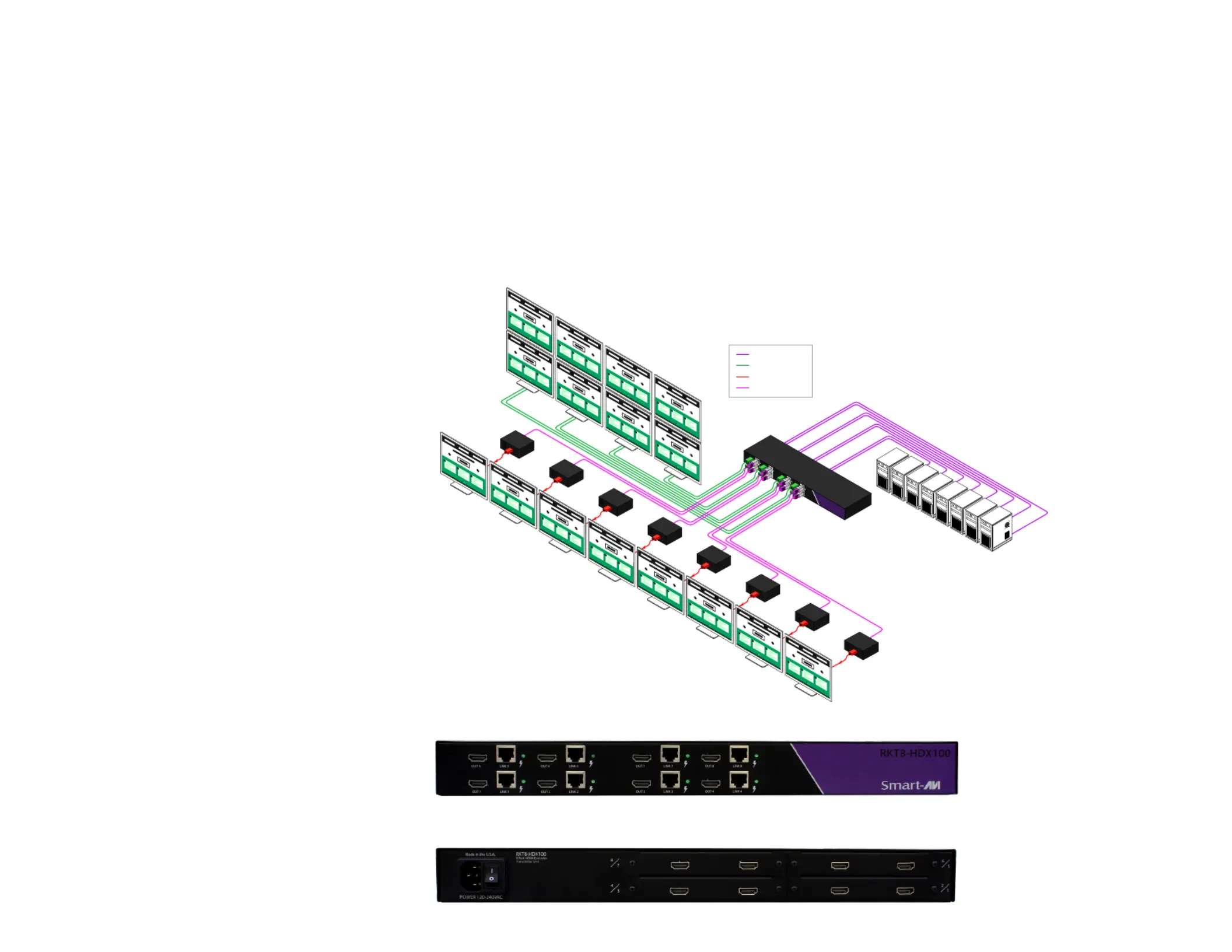

HARDWARE INSTALLATION
RKT8-HDX100 FRONT
RKT8-HDX100 BACK
HDMI IN
HDMI OUT (Local)
HDMI OUT
CAT5/6
RKT8-HDX100
HDX-100-RX
HDX-100-RX
HDX-100-RX
HDX-100-RX
HDX-100-RX
HDX-100-RX
HDX-100-RX
HDX-100-RX
