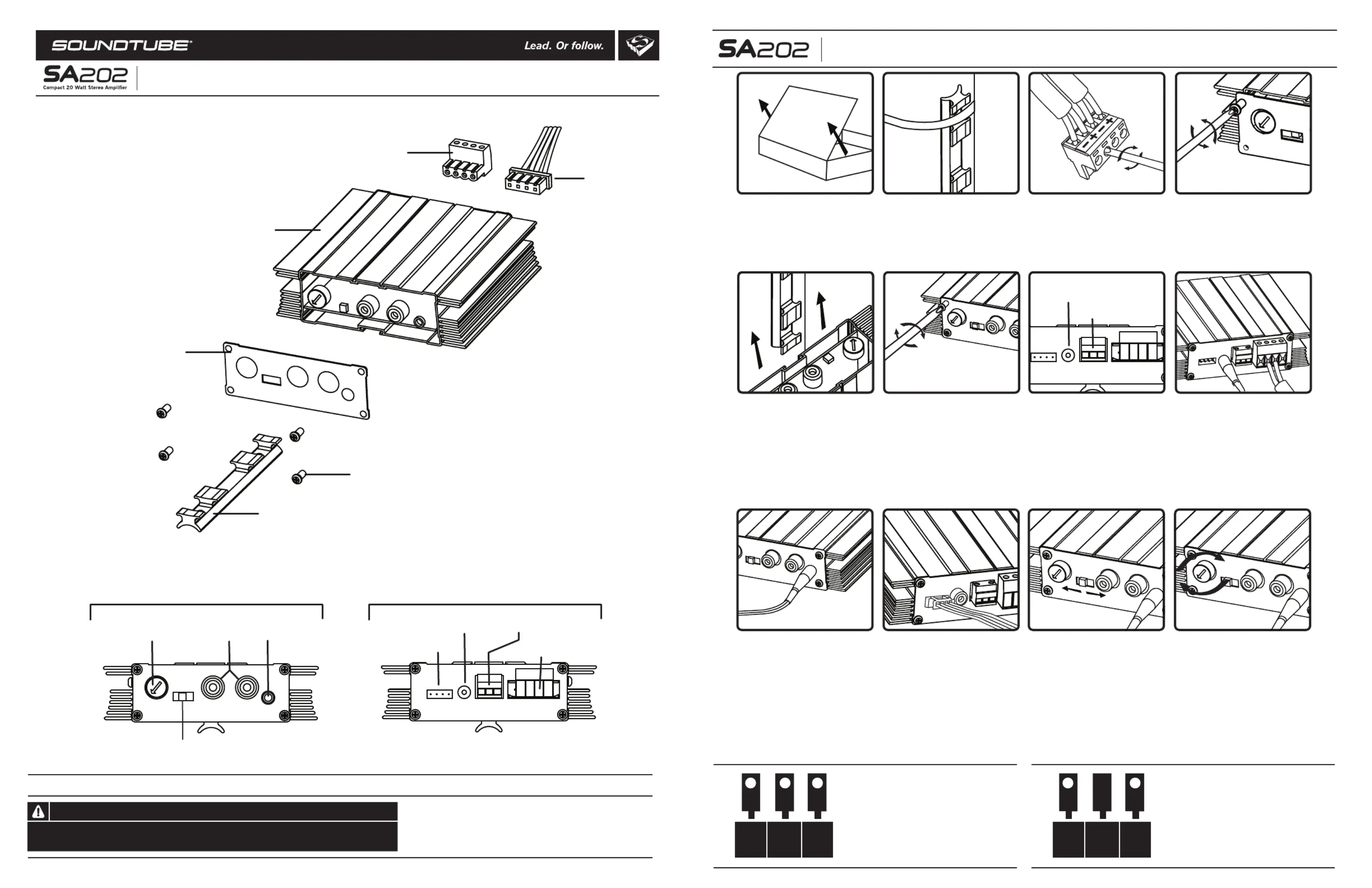

Install Instructions For:

SA202 and SA202-RDT

1. Unpack amplifier. Attach mounting bracket 2.

to secure mount point using

screws or metal strapping.

3. Connect speaker wires

to 4-pin Euroblock

connector using polarity

shown above (or refer to

diagram on amplifier).

9a. The SA202 accepts

audio sources via RCA

jacks, mini jack or the

high-level input located on

the rear of the unit.

Connect audio source to

one of the three inputs

(mini jack shown).

8. Connect power and

speakers.

1.435.647.9555

800.647.TUBE

www.soundtube.com

Warning

SoundTube products must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

Install Instructions For:

Euroblock power connections

Without external trigger With external trigger (12-15 V)

SA202 and SA202-RDT

Amplifier enclosure

Euroblock connector

Faceplate

Faceplate screws (4)

Mounting bracket

High-level input

wiring harness

Volume control

High-level

(amplified) audio input

12 - 15 VDC

Euroblock power input

Euroblock speaker output

12 - 15 VDC

Barrel connection

Mini jack

RCA jack

Front Rear

High-pass filter

7. The SA202 can be

powered either by the

hard-wired Euroblock

connector (see diagram below)

or via barrel connector. The

SA202-RDT includes a power

supply which attaches to the

barrel connector.

12 - 15 VDC

Euroblock power input

12 - 15 VDC

Barrel connection

GND REM + V

If the amp is being run without

using the external trigger, simply

connect the positive lead from the

power supply to the + V both

input and the remote (REM) input.

If the amp is being run using the

external trigger, connect the

power to the ground and + V

input, and run the trigger wire

from the outside source into the

remote (REM) input.

GND

4. To attach mounting

bracket, remove all

faceplate screws. Lift

faceplate and set aside.

6. Replace faceplate and

screws.

5. Slide mounting bracket

into groove on bottom of

amplifer enclosure.

11. Adjust volume with dial

on front of amplifier.

12. Done!

10. Use high-pass filter to

remove low-end frequencies

and increase intelligibility

when using small speakers.

REM + V

Box Contents

1 Amplifier

1 Four-pin Euroblock connector

1 Three-pin Euroblock connector

1 High-level input wiring harness

1 Mounting bracket

2 Mounting screws

Trigger

9b. If using the high-level

(amplified) inputs, wire the

source leads to the high-level

input wiring harness as

shown and insert the terminal

block into the high-power

input on the back of the

amplifier.
