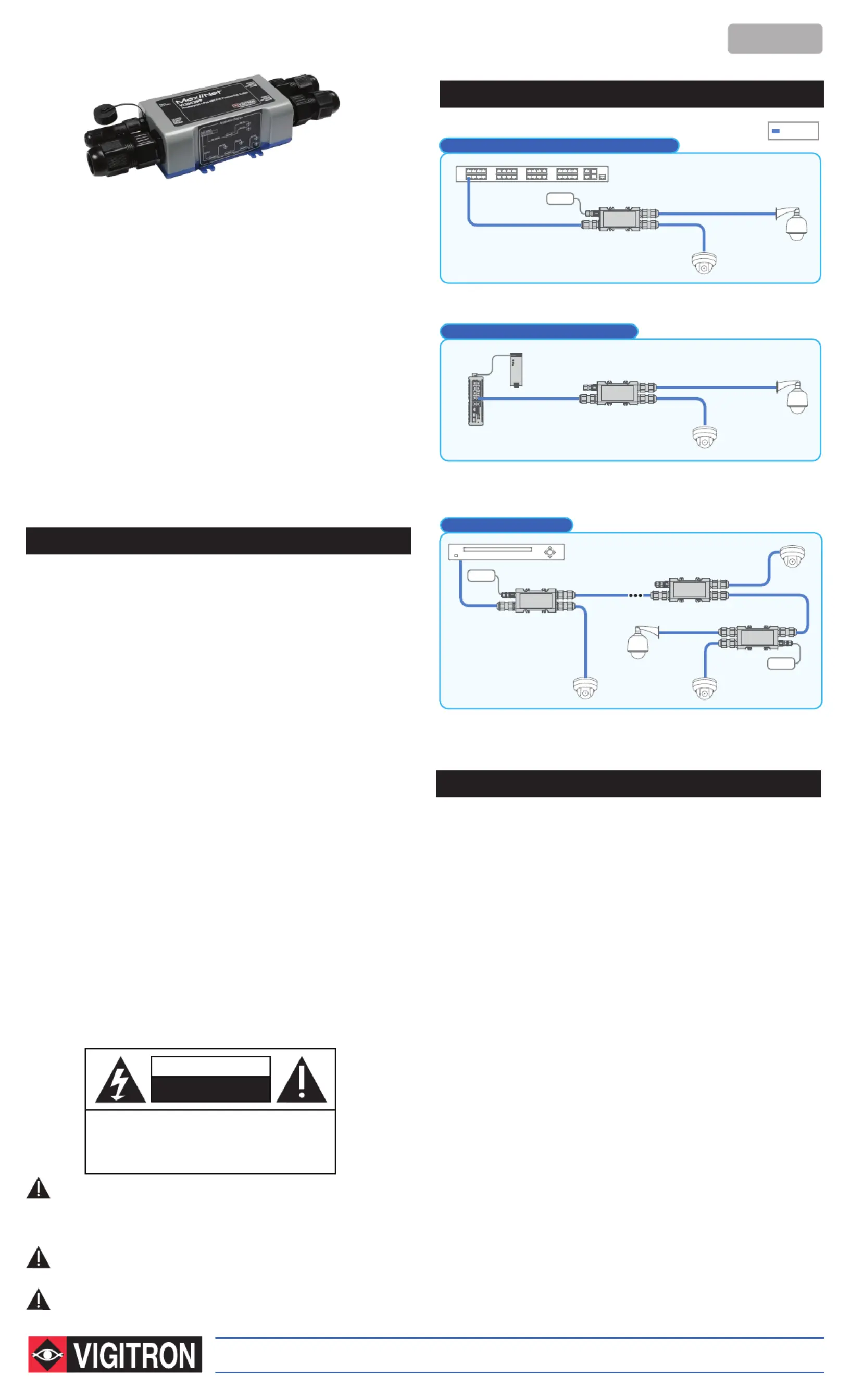

Application Drawings
Vi3003WP L2 Drop & Insert 1G 60W PoE 3-Port Switch User’s Manual
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
Installation (Vi3003WP Powered by PoE)
The Smart Choice for Transmission Solutions www.vigitron.com
Important Safety Warning
a) Port-3 (Tap, PoE-Out)) Connection:
Use a standard Cat5/6 cable of maximum 100m in length to connect the camera to
the Vi3003WP.
- Connect the RJ45 connector of the Cat5/6 cable IP camera’s RJ45 connector
- Connect the other end of the Cat5/6 cable to the waterproof connector of Port3 of
Vi3003WP’s. This port can provide up to 30W PoE power depending on the input
PoE and the total load on the unit.
b) Port-2 (PoE-Out) Connection:
This port can be used to connect to another Vi3003WP or a 60W camera.
- If you want to daisy-chain this unit with another Vi3003WP, connect waterproof
connector of Port-2 of Vi3003WP to the Port-1 of the next Vi3003WP using a
standard Cat5/6 cable of maximum 100m in length. Port-2 will provide 1G Ethernet.
- If you want to connect this unit to a PoE++ camera, connect waterproof connector
of Port-2 of Vi3003WP to the RJ45 connector of the IP camera using a standard
Cat5/6 cable of maximum 100m in length. This port can provide up to 60W PoE
power depending on the input PoE and the total load on the unit.
Caution
Do not connect a non-PoE device to the Port-2 of the Vi3003WP. Doing so may
damage the non-PoE device.
If it is necessary to connect a non-PoE device to Port-2, use a Vi0025 between
Port-2 and RJ45 connector of the non-PoE device.
c) Port-1 (PoE-In) Connection:
- Connect waterproof connector of Port-1 of Vi3003WP to the PoE switch or a high
power PoE source using a standard Cat5/6 cable of maximum 100m in length. This
port can receive up to 74W PoE and 1Gbps Ethernet data.
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP or coax signals in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 75°C.
- Make sure that the external power supply output voltage is in the recom
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The power plug and the PoE input cable are used as the disconnect
device and shall remain readily
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a main socket outlet through an AC to DC Power supply.
WARNING! - The main plug is used as the disconnect device and
shall remain readily operable.
Vi3003WP_UM
The Vi3003WP is a 3-port Layer 2 weatherproof Ethernet and PoE switch
providing drop and insert capability for connecting several IP devices along
a single cable run. The Vi3003WP provides a cost effective method for
increasing distances beyond the standard Ethernet limit of 328 feet (100m)
for 10/100/1G Mbps Ethernet. Multiple units can be cascaded to provide up
to nine IP cameras to be connected to a single network switch port over
distances of up 3,000 feet (909m).
For small systems, the Vi3003WP's Layer 2 network capability can
eliminate the need for network switches saving costs and rack space. It
also can significantly decrease network switch costs by increasing the
capacity of a 24-port switch to handle up to 216 cameras and an 8-port
switch up to 72 cameras. As a mini network switch, the Vi3003WP avoids
the potentials for transmission collisions by complying with IEEE standards.
Its ability to automatically sense the data rate up to 1000Mbps (1Gbps) also
makes it the perfect solution for cost effectively extending network to
network communications or between network switches requiring high
speeds transmission.
The Vi3003WP can be powered from a single PoE source or a local power
supply. Additional power up to 60W can be added at any point along the
cable run where power outlets are available providing the ability to power IP
cameras up to 60W.
Providing PoE to 2 Cameras using a Local Power Supply
Cat 5/6
Power
Supply
Vi3003WP allows for the transmission of two cameras over a single cable run or adding a
new camera close to an existing camera.
Vi3003WP allows for the transmission of two cameras over a single cable run or adding a
new camera close to an existing camera. The PoE Midspan provides power to the
Vi3003WP and both cameras.
PTZ Camera
Vi3003WP
Network Switch
Data + 30W PoE
328 ft. (100m)
Data + 60W PoE
328 ft. (100m)
PoE
Camera
Data + 90W PoE
328 ft. (100m)
Providing PoE to 2 Cameras using input PoE
PTZ Camera
Vi3003WP
Data + 30W PoE
328 ft. (100m)
Data + 60W PoE
328 ft. (100m)
PoE
Camera
Data + 90W PoE
328 ft. (100m)
Vi30210
56VDC
Vi10240
NVR
A total of 9 IP addresses can be accessed on a single cable run. eliminating the need for
network switches.
Vi3003WP#1
Vi3003WP#8
Power
Supply
Vi3003WP#9
Power
Supply
Data
328 ft. (100m)
Data + 60W PoE
328 ft. (100m)
PTZ Camera
Data + 30W PoE
328 ft. (100m)
PoE
Camera
PoE
Camera
PoE Camera
Data + 30W PoE
328 ft. (100m)
Data + 30W PoE
328 ft. (100m)
Data PoE
328 ft. (100m)
Drop and Insert Application
Maxii
Net
TM

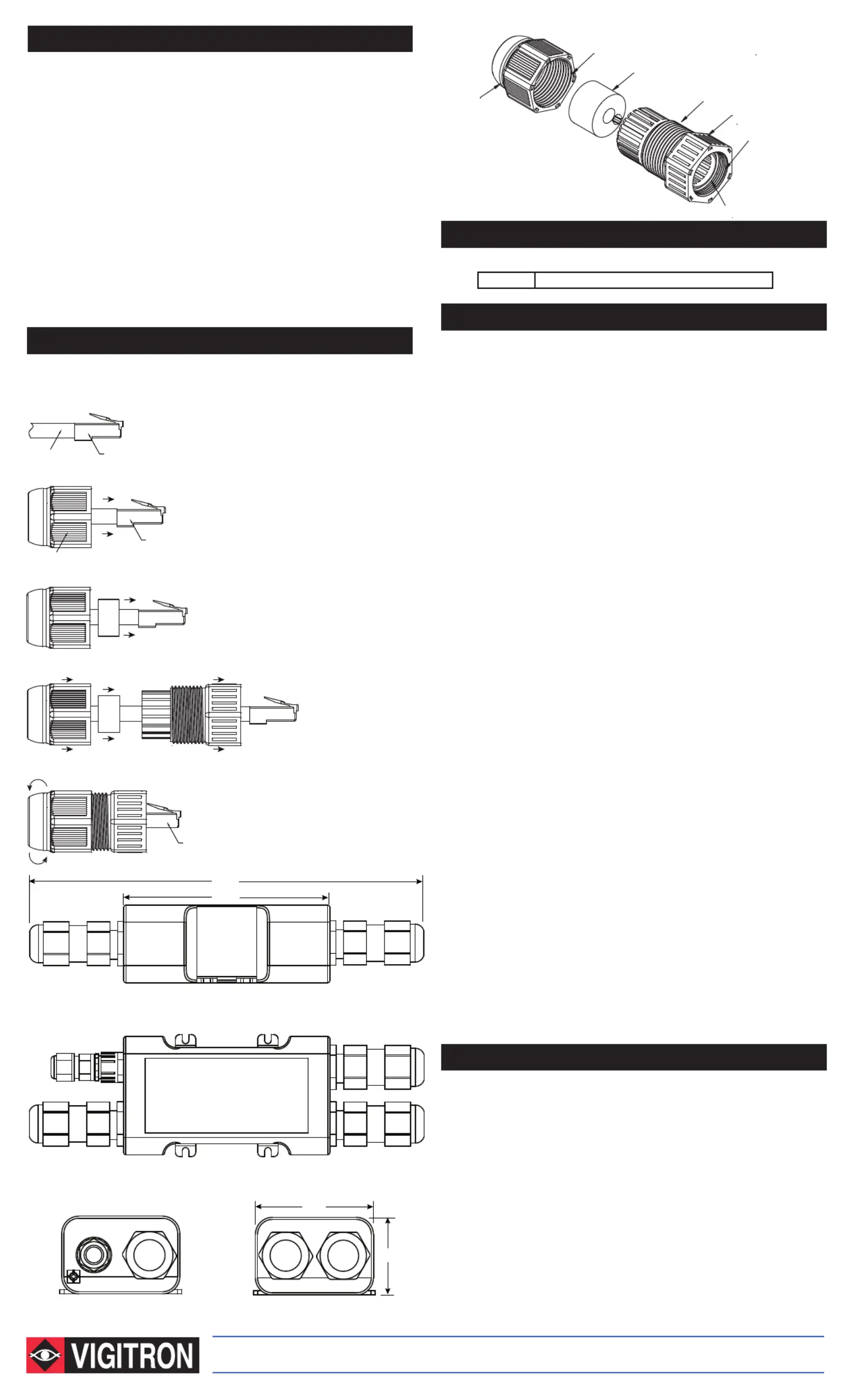

RJ-45 Installation Instruction
Installing cable and connector is critical for maintaining the IP 67
performance of this product. Please follow instructions carefully.
RJ45 PLUG
Nut
RJ45 PLUG
RJ45 PLUG
Cat5 Cable
1. Terminate the Cat5 cable with RJ45 plug.
2. Insert the cable through the nut.
3. Split open the seal and insert the cable through the seal.
4. Insert the cable through the gasket.
5. Tighten the nut to seal the cable.
NUT
M24*1.5
SEAL
NOTE 2
BODY
13/16"-UNEF28
GASKET(INSIDE)
M24*1.5
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announced.
After which, Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferrable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circum-
stances be liable to any person for any incidental, indirect or consequential
damages, including damages resulting from use or malfunction of the product, loss
of profits or revenues or costs of replacement goods. The maximum liability of
Vigitron, Inc. under this warranty is limited to the original purchase price of the
Product only.
© Copyright 2022 Vigitron, Inc.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite 100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com
Technical Specifications*
a) Port-3 (Tap) Connection:
- As “a” in previous section.
b) Port-2 (PoE-Out) Connection:
- As “b” in previous section.
c) Port-1 (PoE-In) Connection:
- Connect power connector the of Port-1 of Vi3003WP to the waterproof
network switch using a standard Cat5/6 cable of maximum 100m in length.
d) Power Connection:
- Connect power connector to Vi1120, 120W desktop power waterproof
supply for using full PoE capacity of Vi3003WP.
If the unit connected to Port-1 does not require PoE, a Vi0012 can be used
for just powering the Vi3003WP.
Installation (Vi3003WP Powered by Local Power Supply)
Ordering Information
Part No.
Description
Vi3003WP
IP67 1G Drop and Insert 3-Port 60W PoE Switch
Electrical
PoE Rating Port 1 (PoE In): 60W
Port 2 (PoE Out): 60W
Port 3 (Tap, PoE Out): 802.3af (15.4W), 802.3at
(30W)
Network Connection (3) RJ-45 IEC 60603-7
Wiring Support Cat 5/5e/6
Power Consumption 3W
Supported Distance 328ft (100m) per link
Data Rate Auto Configuring
Port 1: 10/100/1000Base-TX
Port 2: 10/100/1000Base-TX
Port 3 (Tap): 10/100/1000Base-TX
Data Interfaces and RFC 768 UDP, RFC 2068 HTTP
Compliances RFC 793 TCP, RFC 791 IP
RFC 1783 TFTP, RFC 894 IP over Ethernet
RFC 2544 TCP/IP Packet Transmission
IEEE802.3af, 8IEEE02.3at
IEEE Compliances 802.3ab, 802.3z, 802.3af, 802.3at, 802.1p,
802.1Q, 802.1D, 802.1s, 802.3u, 802.3x,
802.3w
Service Compliance IPv4 Type of Service (TOS) and
Differentiated
Services (Diff-Serv)
IPv6 Traffic Class
VLAN Support 4,096 Addresses
Jumbo Frame Up to 10,000 bytes
Regulatory
Safety CE, FCC
Environmental RoHS, WEEE
Environmental
Humidity 0 to 95%, non-condensing
Temperature Operating: -40°C to +75°C per NEMA-TS2 testing
Storage: -40°C to +85°C
Mechanical
Dimensions 1.82x2.75x5.84 in., 4.6x6.99x14.8 cm (HxWxL)
Weight 1.38 lb, 626 g
Material ABS plastic, UL rating of 94V-0
*Specifications subject to change without notice.
Left ViewRight View
Side View
5.84"
14.8cm
10.34"
26.3cm
2.75"
6.99cm
1.82"
4.6cm
Top View

Produkt Specifikationer

Mærke: Vigitron
Kategori: Netværkskort/adapter
Model: MaxiiNet Vi3003WP

Har du brug for hjælp?

Hvis du har brug for hjælp til Vigitron MaxiiNet Vi3003WP stil et spørgsmål nedenfor, og andre brugere vil svare dig


Netværkskort/adapter Vigitron Manualer

Vigitron

Vigitron Vi30001 Manual

17 Juli 2025
Vigitron

Vigitron MaxiiNet Vi3003WP Manual

17 Juli 2025
Vigitron

Vigitron Vi3105 Manual

17 Juli 2025
Vigitron

Vigitron Vi30005 Manual

17 Juli 2025
Vigitron

Vigitron Vi22401 Manual

17 Juli 2025
Vigitron

Vigitron MaxiiNet Vi32026 Manual

6 Juli 2025
Vigitron

Vigitron MaxiiView Vi00023 Manual

3 April 2025
Vigitron

Vigitron Vi22601 Manual

14 Marts 2025
Vigitron

Vigitron Vi22201 Manual

14 Marts 2025
Vigitron

Vigitron Vi00024 Manual

10 December 2024

Netværkskort/adapter Manualer

Nyeste Netværkskort/adapter Manualer

Billion

Billion BIPAC P104 Manual

13 September 2025
Mercusys

Mercusys MA30N Manual

12 September 2025
Intellinet

Intellinet 561952 Manual

11 September 2025
Moxa

Moxa OnCell 5004-HSDPA Manual

3 September 2025
TRENDnet

TRENDnet TBW-107UB Manual

28 August 2025
Netgear

Netgear GSM4210PD Manual

23 August 2025
Advantech

Advantech FWA-1320 Manual

23 August 2025
Advantech

Advantech WISE-4050-AE Manual

23 August 2025
Advantech

Advantech NMC-4009-04CSA1 Manual

22 August 2025
Cudy

Cudy PE25 Manual

22 August 2025
