Side 1/2

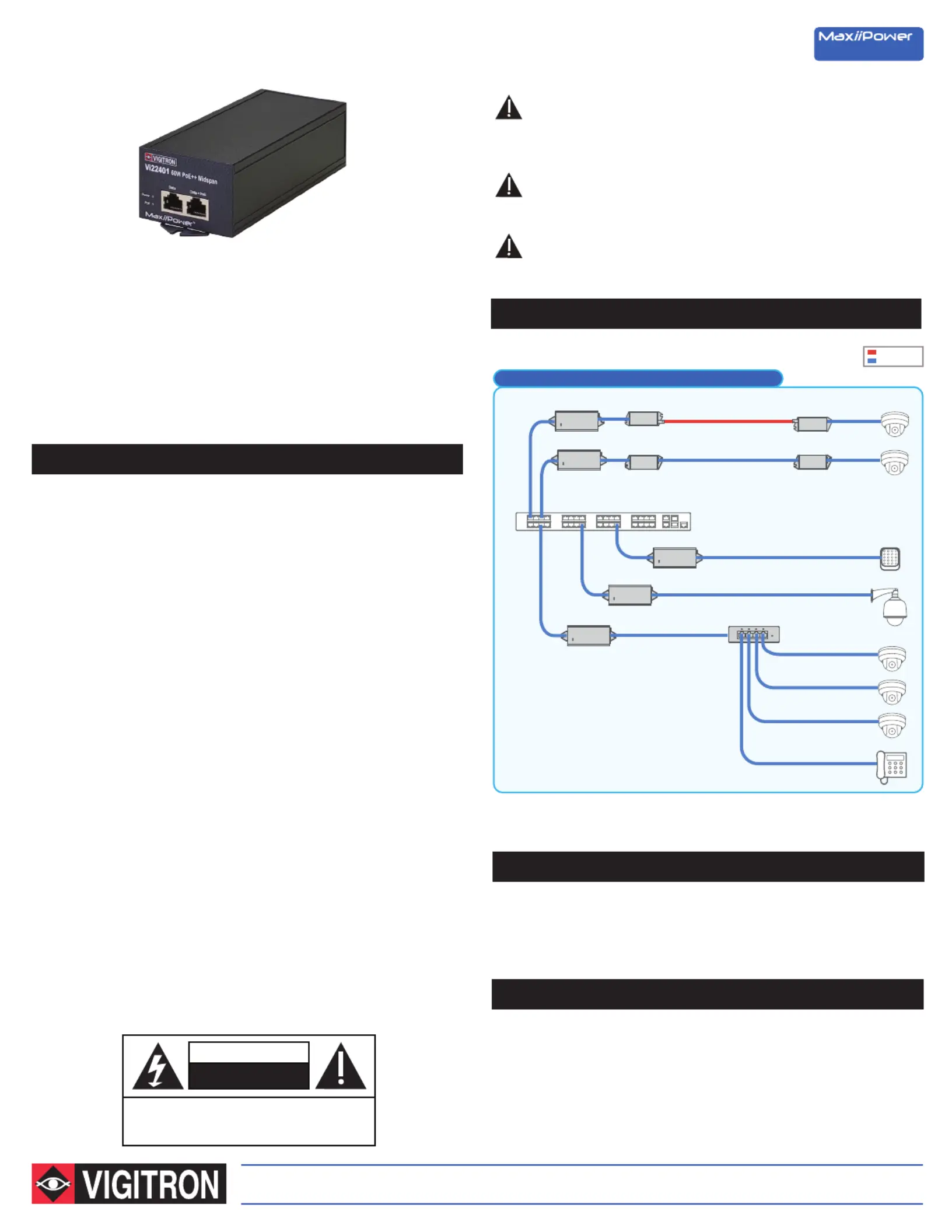

Application Drawing
Vi22401 Single Port 60W PoE Midspan Installation Manual
IP Camera-end Installation
The Smart Choice for Transmission Solutions www.vigitron.com
Important Safety Warning
- Connect the UTP Cables (cat5/6) from the IP camera or other PoE
powered device to the Data + PoE RJ45 connector of Vi22401. The cable
must be a cat5/6 with a maximum length of 100m (328 feet).
Ethernet Switch/NVR-end Installation
connector of Vi22401. The total length of UTP cable from network switch to
the powered PoE device should not exceed 100m (328 feet).
- Plug the AC power cord provided with the unit to the mains.
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP signal wires in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient
temperature exceeds 75°C.
- Make sure that the external power supply output voltage is in the
recommended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The mains plug is used as the disconnect device and shall remain readily
operable.
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet through an AC to DC Power supply
when using DC input.
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.
The MaxiiPower Model Vi22401 is a unique Single port PoE Midspan
designed for the most demanding power applications of 10/100/1000
Base-T networks. With the ability to provide up to 60W PoE power, it is the
most cost effective method for powering PTZ domes cameras with heaters
and blowers. The Midspan is compliant IEEE 802.3af, IEEE 802.3at
standards and 60W PoE application. Its unique control system enables it to
handle both single PD and dual PD PoE devices.
This Midspan is equipped with LEDs to provide power status. No IP setting
or configurations are required and it can completely transparent to the
Ethernet network and higher layer protocols.
e et ExtendersEth rn
TM
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
Coax
Cat 5/6
Powering PoE devices at standard and extended distances
The Vi22401 can power a wide range of PoE devices at standard and extended
distances up to 60W.
Data + 60W PoE
Extended UTP
DataData Data
Data
Data
Data + 60W PoE
Extended Coax
Data + PoE
328 ft. (100m)
Vi2401A
Vi2401A
Vi2301A
Vi2301A
LED Light
60W PTZ Dome
IP Phone
Data + PoE
328 ft. (100m)
Data + 60W PoE
328 ft. (100m)
Data + 60W PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
IP Cameras
IP Cameras
Vi22401
Vi22401
Vi22401
Vi30005
Vi22401
Data + 60W PoE
328 ft. (100m)
Vi22401
Network Switch
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announce-
ment. After which Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circum-
stances be liable to any person for any incidental, indirect or consequential
damages, including damages resulting from use or malfunction of the product, loss
of profits or revenues or costs of replacement goods. The maximum liability of
Vigitron, Inc. under this warranty is limited to the original purchase price of the
Product only.

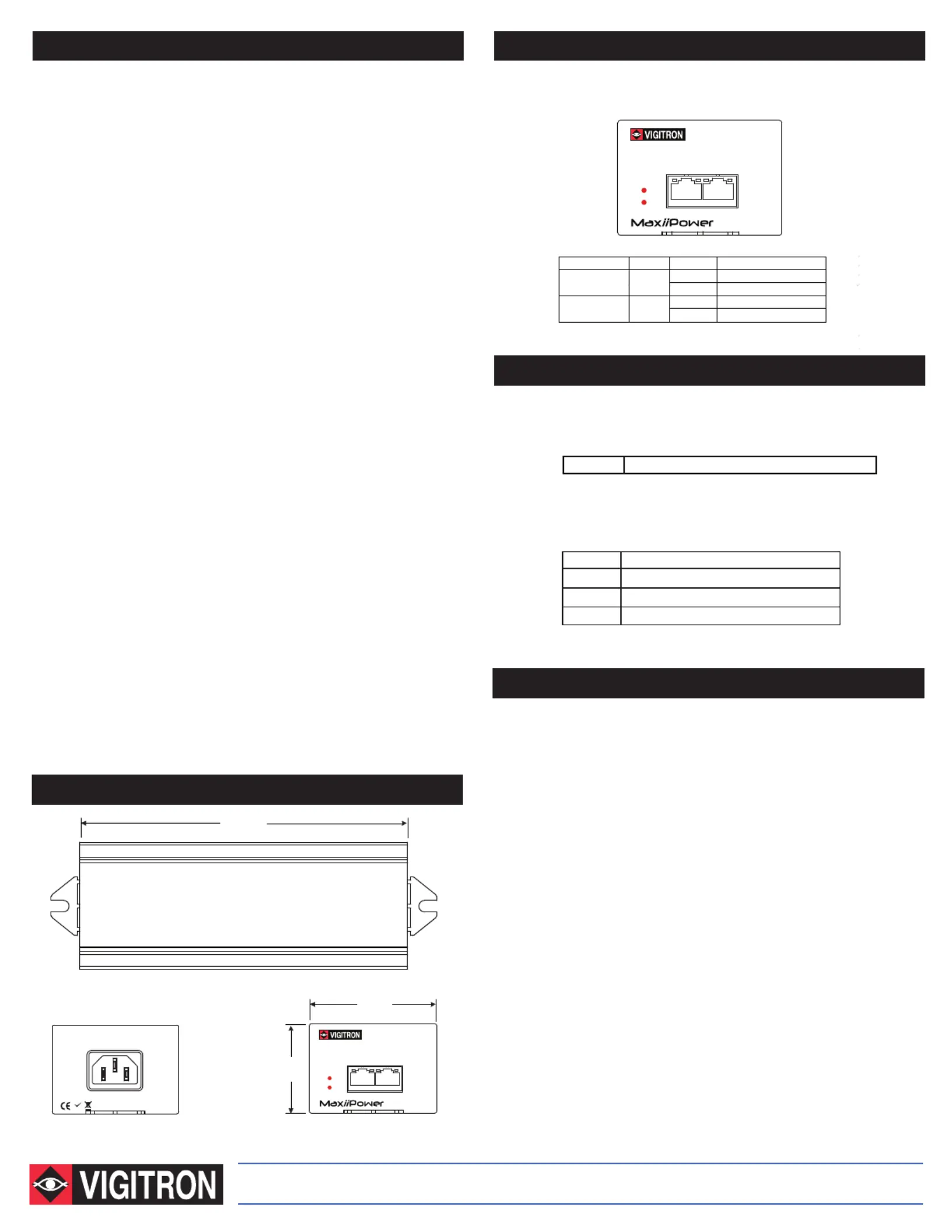

Technical Specifications*
Drawings
Ordering Information
Right View Left View
Status LEDs
© Copyright 2022 Vigitron, Inc.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com
Vi22401_UM
2.56"
6.5 cm
Ordering Information
P No.art
Vi22401
Single Port 60W PoE ++ Midspan
Top View
6.17"
15.3 cm
MODEL Vi 401: 22
POWER INPUT: 90-240VAC 50-60 Hz 0.8A Max., ,
1.87"
4.7 cm
LED Name Color Status Function
OFF Power is OFF
ON Power is ON
OFF PoE output is OFF
Power
PoE
GREEN
GREEN
ON PoE output is ON
Electrical
Ethernet Interface Standard 10/100/1000 BaseTX
UTP Category-5 (or higher)
Output Power W60 @ 54 VDC
AC Input Power 90-264VAC, 50-60 Hz
PoE Standards 802.3af
802.3at
UPoE up to 60W
Status LEDs Power: Green
PoE r On: G een
Connectors Input Interface: Shielded RJ-45
Output Interface: Shielded RJ-45
Main Power: IEC 320-C14 inlet
Regulatory
Safety CE
Environmental RoHS, WEEE
Environmental
Humidity 0 to 90%, non-condensing
Temperature Operating: -20°C to +50°C
Storage: -30°C to +70°C
Mechanical
Dimensions 1.87x2.56x6.17 in., 4.7x6.5x15.3 cm (HxWxL)
Weight 0.95 lb (430 g)
Material Extruded Aluminum
Included Accessories
Molded IEC 7 ft. (200 cm) power cord
*Specifications subject to change ithout noticew .
Data PoE +
Data
TM
Vi22401 60W PoE++ Midspan
Power
PoE
Ro H S
Data + PoE
Data
TM
Vi22401
60W PoE++ Midspan
Power
PoE
Vi22601
60W PoE Midspan with DC Input
Vi2201
30W PoE Midspan
Vi22001
90W PoE Midspan with DC Input
P No.art
Related Products
Description
Vi22501
30W PoE Midspan with DC Input
