Side 1/2

WARNING! - To reduce the risk of fire or electric shock, do not expose this apparatus to

rain or moisture. This apparatus shall not be exposed to dripping or splashing and no

objects filled with liquids, such as vases shall be placed on the apparatus.

WARNING! - This apparatus is a Class I product. This product must be connected to a

mains socket outlet thru an AC to DC Power supply.

WARNING! - The mains plug is used as the disconnect device and shall remain readily

operable.

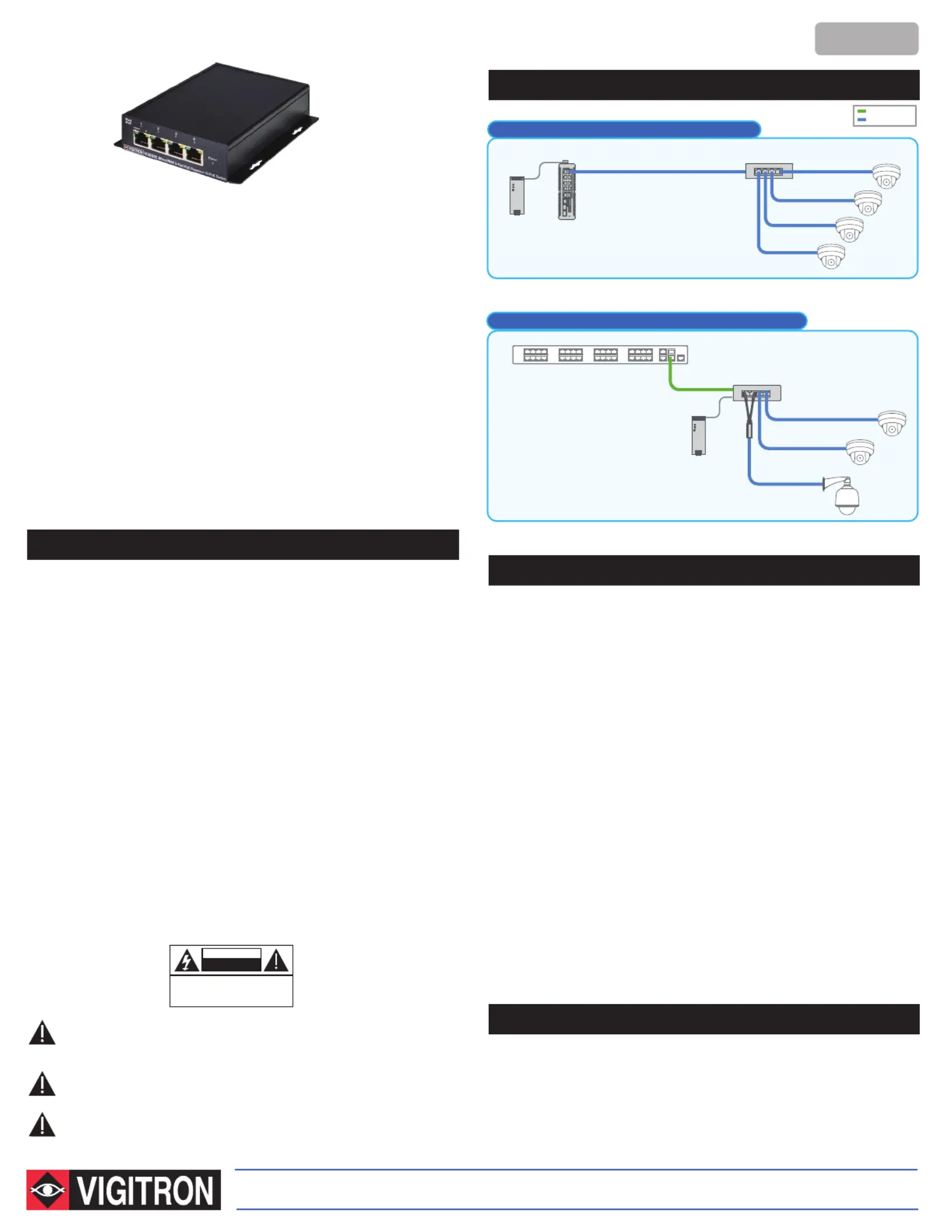

Application Drawing

Vi30005 5-Port 1G PoE Powered PoE Switch Installation Manual

DO NOT OPEN

RISK OF ELECTRIC SHOCK

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,

DO NOT REMOVE COVER. NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

IP Camera-end Installation

The Smart Choice for Transmission Solutions www.vigitron.com

Important Safety Warning

PoE Switch/PoE Midspan end Installation

- Read and keep these instructions.

- Heed all warnings.

- Follow all instructions.

- Do not use this apparatus near water.

- Clean only with a dry cloth.

- Install in accordance with the manufacturer’s instructions.

- This installation should be made by a qualified service person and should conform to all local

codes.

- DO NOT bundle UTP or Coax signals in the same conduit as high-voltage wiring.

- To reduce the risk of fire or electrical shock, do not expose these products to rain, moisture,

dripping or splashing.

- No objects filled with liquids, such as vases, shall be placed on Vigitron equipment.

- DO NOT install the unit in a place where the operating ambient temperature exceeds 75°C or

is below - 40°C.

- Make sure that the external power supply output voltage is in the recommended range.

- Do not install near any heat sources such as radiators, heat registers, stoves or other

apparatus (including DVRs) that produce heat.

- Protect the power cord from being walked on or pinched particularly at power source,

convenience receptacles, and the point where they exit from the apparatus.

- Only use attachments/accessories specified by the manufacturer.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as when a power supply cord or plug is damaged, liquid

has been spilled, objects have fallen inside the apparatus, the apparatus has been exposed

to rain or moisture, does not operate normally, or has been dropped.

- The main plug is used as the disconnect device and shall remain readily operable.

UTP Uplink w/ Remote PoE:

- Connect the network cable coming from the PoE switch or PoE Midspan

to the uplink Ethernet port at rear of Vi30005.

- Plug in the IP/PoE devices to the four ports one the Vi30005's front panel.

- Set 30W/60W based on the type of the remote PoE source

PoE Power is allocated based on the required port power up to 36W starting with

Port 1 having the highest priority. Once the total sum of the PoE power is allocated

no more power will be available to remaining ports.

UTP Uplink w/ Local Power Supply:

- Connect the network cable coming from the PoE switch or PoE Midspan

to the fifth Ethernet port at rear of Vi30005.

- Plug in the IP/PoE devices to the four ports one the Vi30005's front panel.

- Connect the approved local power supply to the power connector of Vi30005.

Fiber SFP Uplink:

Note: The SFP (small format pluggables) must be the same types at both ends of

the fiber cable and must match the fiber cable requirements.

- Plugin the SFP to the SFP socket of Vi30005.

- Connect the fiber cable to the SFP.

- Connect the Vi1120 power supply to the Vi30005 power connector.

Individual ports will be able to provide up to 36W. If more power needed for

approved IP devices use the Vi00016 combination cable to combine two ports.

Starting with ports 1 and 2, connect the IP device to the Ethernet ports of the Vi00016 cable.

UTP link:

- Connect the network cable coming from the Vi30005 Uplink port to one of the

Ethernet ports of the PoE switch or PoE Midspan.

Fiber SFP Link:

- Connect the fiber cable to the SFP port of the network switch.

The SFP must be the same types at both ends of the fiber cable and must match

the fiber cable requirements.

The MaxiCollector Vi30005 is a revolutionary five port 1G Powered PoE

switch. The Vi30005 can accept PoE power from an external source and

provide PoE to all four ports. This eliminates the need for local power

supplies and outlets, and lowers installation costs.

The Vi30005’s plug-and-play eliminates the need for IP addressing. The four

Ethernet port can be directly connected to any IP address and will pass that

device's IP address. Network pre-programmed switching features include

802.1p QoS priority queuing, port based VLAN, MAC addressing up to 2K

full and half duplex operation compliant to 802.3x standards and automatic

address learning and aging.

The Vi30005 takes full advantage of high bandwidth maintaining

10/100/1000Mbps transmission with minimum transmission error and

latency by employing full layer 2 network switching technology. The Vi30005

can be used to connect to multiple remote network devices such as

Megapixel IP cameras, VoIP telephone systems, or wireless transmitters.

Using the Vi1120, 120 watt 57 volt power supply, and any MSA compliant

fiber SFP, the Vi30005 can transmit four cameras over distance of 80Km

while providing 30 watts per port and up to 60 watts for two port using the

Vi0015 combining cable.

Maxii

Net

Fiber Optic

Cat 5/6

PoE Cameras

Vi30005

The Vi30005 is a PoE powered PoE switch that can be used to power up to four cameras

using PoE.

Powering the Vi30005 and 4 remote cameras using PoE

Connecting the Vi30005 and 4 remote cameras over Fiber Optics

Vi30210

56VDC

Vi10240

Data + 72W PoE

328 ft. (100m)

Data + PoE

328 ft. (100m)

Data

up to 80km

Non-PoE Switch

Vi30005

PoE Camera

60W PTZ Dome

Vi00016

Data + PoE

328 ft. (100m)

Data + PoE

328 ft. (100m)

Data + 60W PoE

328 ft. (100m)

Vi10120

The Vi30005 can be used to connect to up to 4 cameras at distances up to 80Km over fiber

optics.

Vi30005 MaxiiNet 5-Port PoE Powered 1G PoE Switch

Power

Link/Act

Port

PoE

Limited Lifetime Warranty

Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance

with these instructions, will be free of defects in material and workmanship for

lifetime defined as the duration period of time until product end of life is announce-

ment. After which Vigitron will continue to provide warranty services for a period of 3

years. Period covering valid warranty will be determined by proof of purchase in the

form of an invoice from an authorized Vigitron dealer.

Warranty will only be provided for as long as the original end user purchaser owns

the product. Warranty is not transferrable. At Vigitron's option, defective product will

be repaired, replaced or substituted with a product of equal value. This warranty

does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage

from shipment, handling, storage, accident, abuse or misuse, or if it has been used

or maintained not conforming to Product manual instructions, has been modified, or

serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an

approved agent will void this warranty. Vigitron, Inc. shall not under any circumstanc-

es be liable to any person for any incidental, indirect or consequential damages,

including damages resulting from use or malfunction of the product, loss of profits or

revenues or costs of replacement goods. The maximum liability of Vigitron, Inc.

under this warranty is limited to the original purchase price of the Product only.

Prior to returning any defective Product, the end customer or the reseller from whom

the end customer originally purchased the Product must obtain a Return Materials

Authorization (RMA) number from Vigitron, Inc. All defective Products should be

returned to Vigitron, Inc. with shipping charges prepaid. No collect shipments will be

accepted.

Technical Specifications*

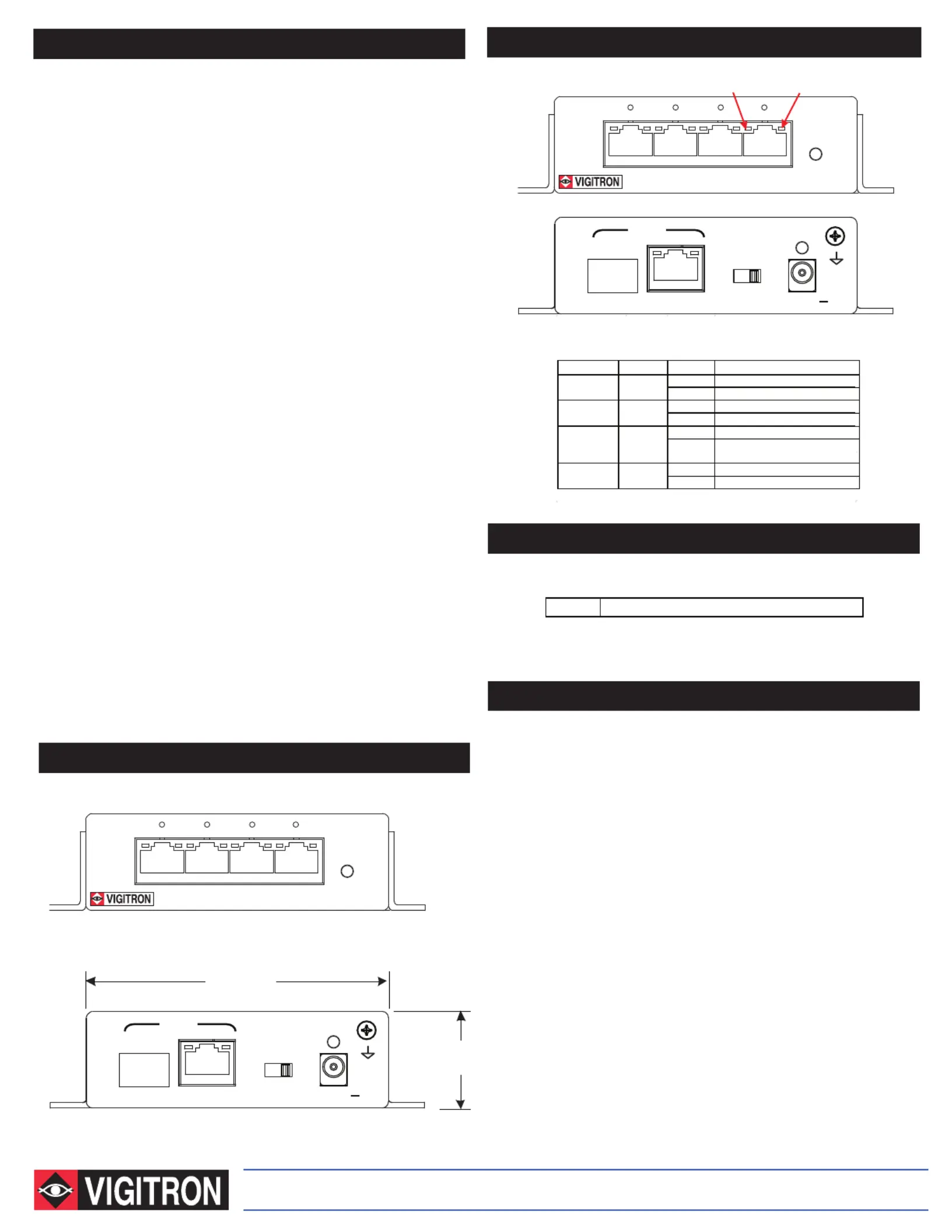

Drawings

Status LEDs

TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205

7810 Trade Street, Suite 100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com

Electrical

Ethernet Interface Standard 10/100/1000BaseT

Fiber Optics 1G, SFP socket, depends on the SFP & fiber type

Power Supply

48-57VDC @ 2A min. for 802.3 at 30W / port

Connectors Ethernet Interface: 5 x RJ-45 Connector

Fiber Optics: SFP Socket

Power: Round 2.5mm cpower onnector

RFC 2544 TCP/IP Packet Transmission

768 UDP, 2068 HTTP, 793 TCP

791 IP, 1783 TFTP, 894 IP over Ethernet

Compatible with IEEE 802.3af PoE, IEEE 802.3at PoE

Environmental

Humidity 0 to 95%, non-condensing

Temperature Operating: -40°C to +75°C

Storage: -40°C to +85°C

Mechanical

Dimensions 1.2x3.75x5.1 in., 3.0x9.53x13 cm (HxWxL)

Weight 0.70 lb (317.5 g)

Material Aluminum

Accessories

56VDC, 120W External power supply (optional)

*Specifications subject to change without notice.

Front View

Rear View

3.75"

9.53cm

1.2"

3.0cm

Link/Act 1G

LED Name Color Status Function

OFF Power is OFF

ON Power is ON

OFF PoE is OFF

PoE is ON

GREEN

ON /

FLASHING

Connection is OK, Traffic

OFF

No connection

Power GREEN

PoE

GREEN

Link/Ac�vity

Ordering Information

Uplink

Power Input

12/57VDC ---

Link/Act 1G

PoE Input

30W 60W

SFP

Vi30005 5-Port PoE Powered 1G PoE Switch

Power

Link/Act

Port

PoE

Uplink

Power Input

12/57VDC ---

Link/Act 1G

PoE Input

30W 60W

SFP

OFF 10/100

ORANGE

Vi3005

5-port PoE Layer 2 Network Switch

Part No. Description
