Side 1/2

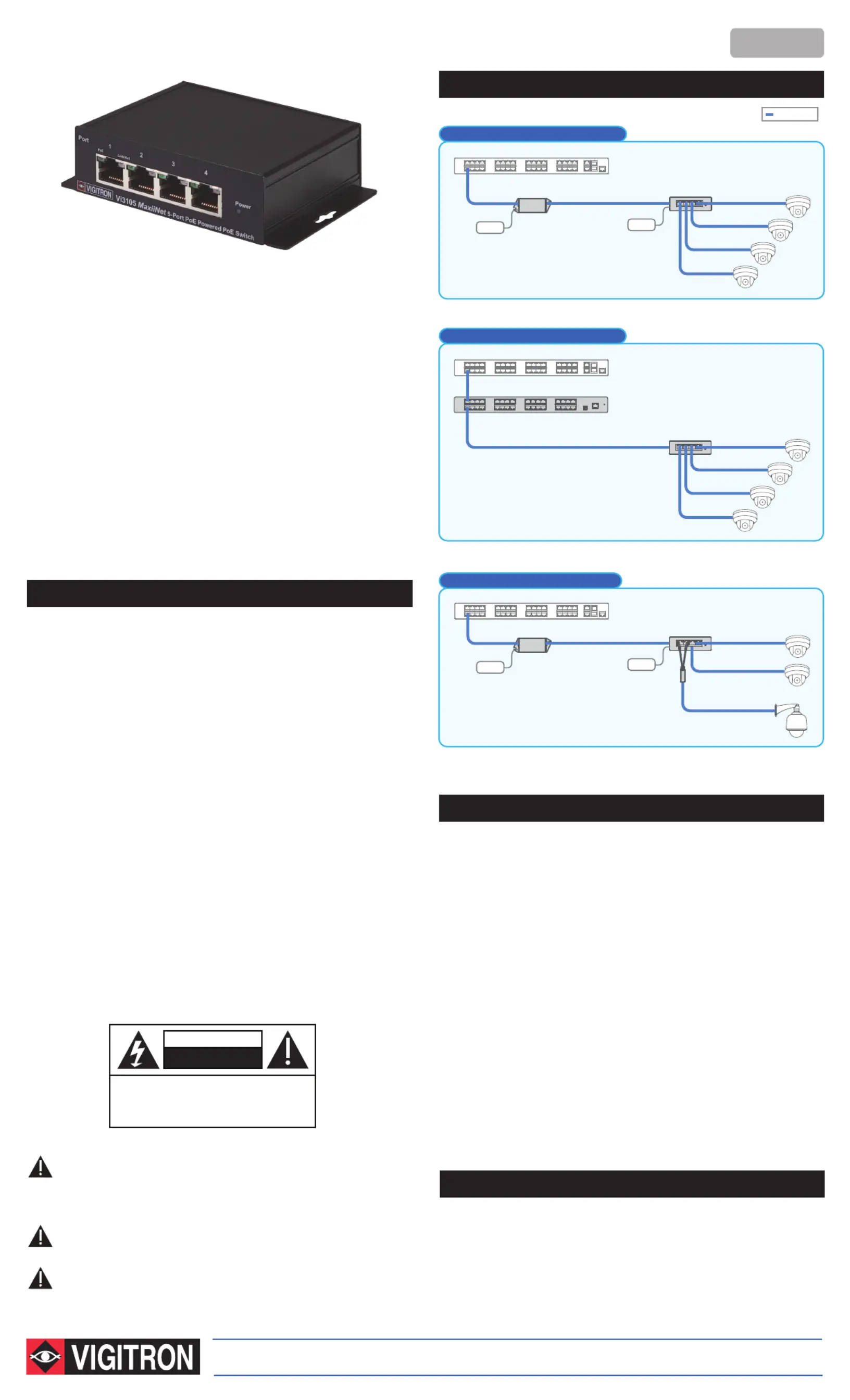

Application Drawings
Vi3105 5-port 60W PoE Powered PoE Switch Installation Manual
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Important Safety Warning
PoE Switch/PoE Midspan-end Installation
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet thru an AC to DC Power supply.
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.
Vigitron’s MaxiiNet™ Vi3105 fixed managed 5-port PoE switch brings new
performance standards to the growing need for high speed transmission of
high speed Ethernet.
The Vi3105 can be powered by PoE sources up to 74W over extended UTP
uplink or locally by the Vi1120 120W power supply to provide up to 37W to
each port or up to 74W form two combined ports.
With an operating temperature range of -30°C to 75°C, the Vi3105 is the
perfect solution for data and power transmission for aplications such as
warehouses, parking lots, campuses, casinos. The Vi3105 is MegaPixel
Certified (MPC™), type tested to network packet performance standards to
assure you an error free and quality operation. Fixed managed L2 functions
includes 802.1p QoS, support of 2k MAC addressing, learning, aging, and a
non-blocking switch fabric.
Installation cost savings, proven performance, and major camera manufac-
turer compatibility all go into making Vigitron’s MaxiiNet™ Vi3105 an ideal
solution for IP video and PoE transmission.
The Vi3105 can be powered either by a local power supply or High power PoE
provided from the headend.
Extended UTP Uplink w/ Remote PoE:
- Connect the extended Cat5/6 cable coming from the PoE switch or PoE midspan
to the RJ45 connector at rear of Vi3105.
- Set 30W/60W based on the type of the remote PoE source.
Extended UTP Uplink w/ Local Power Supply:
- Connect the extended Cat5/6 cable coming from the PoE switch or PoE midspan
to the RJ45 connector at rear of Vi3105.
- Connect the Vi1120 power supply to the power connector of the Vi3105.
Connect IP/PoE devices to the four ports of the Vi3105's front RJ45 connectors
using
a standard Cat5/6 cable of maximum 100m in length.
PoE power is allocated based on the required port power up to 37W starting with
Port 1 having the highest priority. Once the total sum of the PoE power is allocated
no more power will be available to remaining ports.
Each port will be able to provide up to 37W. If more power needed for approved IP
devices use the Vi0015 combination cable to combine two ports. Starting with ports 1
and 2, connect the IP device to the Ethernet port of the Vi0015 cable.
IP Camera-end Installation
The high power PoE to the Vi3105 can be provided either by a Vi25xx extended PoE
Midspan or a High-power PoE midspan.
Using Vi25xx Exteded High-power Midspans:
- Connect the extended cable coming from the Vi3105 Uplink port to one of
the 60W extended ports of the Vi25xx.
- Connect the standard corresponding port of the Vi25xx to the network switch using
a standard Cat5/6 cable of maximum 100m in length.
Connecting Cameras over Extended UTP
Vi3105
Cat 5/6
Network Switch
Vi2301A
Power
Supply
PoE Cameras
Data + PoE
328 ft. (100m)
Data
328 ft. (100m)
Data
Extended UTP
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Power
Supply
Connecting Cameras over Extended UTP
Vi3105
Network Switch
PoE Cameras
Data + PoE
328 ft. (100m)
Data
Data + 60W PoE
Extended UTP
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Vi2516
The Vi2516, Extended UTP Midspan,can provide PoE to power the Vi3105 over extended distance UTP up
to 2,000 ft. at 100Mbps and power up to 4 cameras.
The Vi3105 can receive data over extended distance UTP up to 2,000 ft. at 100Mbps and power 60W PoE
cameras using the Vi00016 combiner cable and a local power supply.
Connecting Cameras over Extended UTP
60W PTZ Dome
Vi3105
Network Switch
Vi2301A
Power
Supply
PoE Cameras
Data + PoE
328 ft. (100m)
Data
328 ft. (100m)
Data
Extended UTP
Data + PoE
328 ft. (100m)
Data + 60W PoE
328 ft. (100m)
Power
Supply
Vi00016
The Vi3105 can receive data over extended distance UTP up to 2,000 ft. at 100Mbps and power 4 PoE
cameras using local power supplies.
Maxii
Net
TM
- Read and keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should conform
to all local codes.
- DO NOT bundle UTP or Coax signals in the same conduit as high-voltage wiring.
- To reduce the risk of fire or electrical shock, do not expose these products to rain,
moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron equipment.
- DO NOT install the unit in a place where the operating ambient temperature
exceeds 75°C or is below - 40°C.
- Make sure that the external power supply output voltage is in the recommended
range.
- Do not install near any heat sources such as radiators, heat registers, stoves or
other apparatus (including DVRs) that produce heat.
- Protect the power cord from being walked on or pinched particularly at power
source, convenience receptacles, and the point where they exit from the apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long periods of
time.
- Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as when a power supply cord or
plug is damaged, liquid has been spilled, objects have fallen inside the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
- The main plug is used as the disconnect device and shall remain readily operable.
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announce-
ment. After which Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferrable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circumstanc-
es be liable to any person for any incidental, indirect or consequential damages,
including damages resulting from use or malfunction of the product, loss of profits or
revenues or costs of replacement goods. The maximum liability of Vigitron, Inc.
under this warranty is limited to the original purchase price of the Product only.
Prior to returning any defective Product, the end customer or the reseller from whom
the end customer originally purchased the Product must obtain a Return Materials
Authorization (RMA) number from Vigitron, Inc. All defective Products should be
returned to Vigitron, Inc. with shipping charges prepaid. No collect shipments will be
accepted.
Technical Specifications*

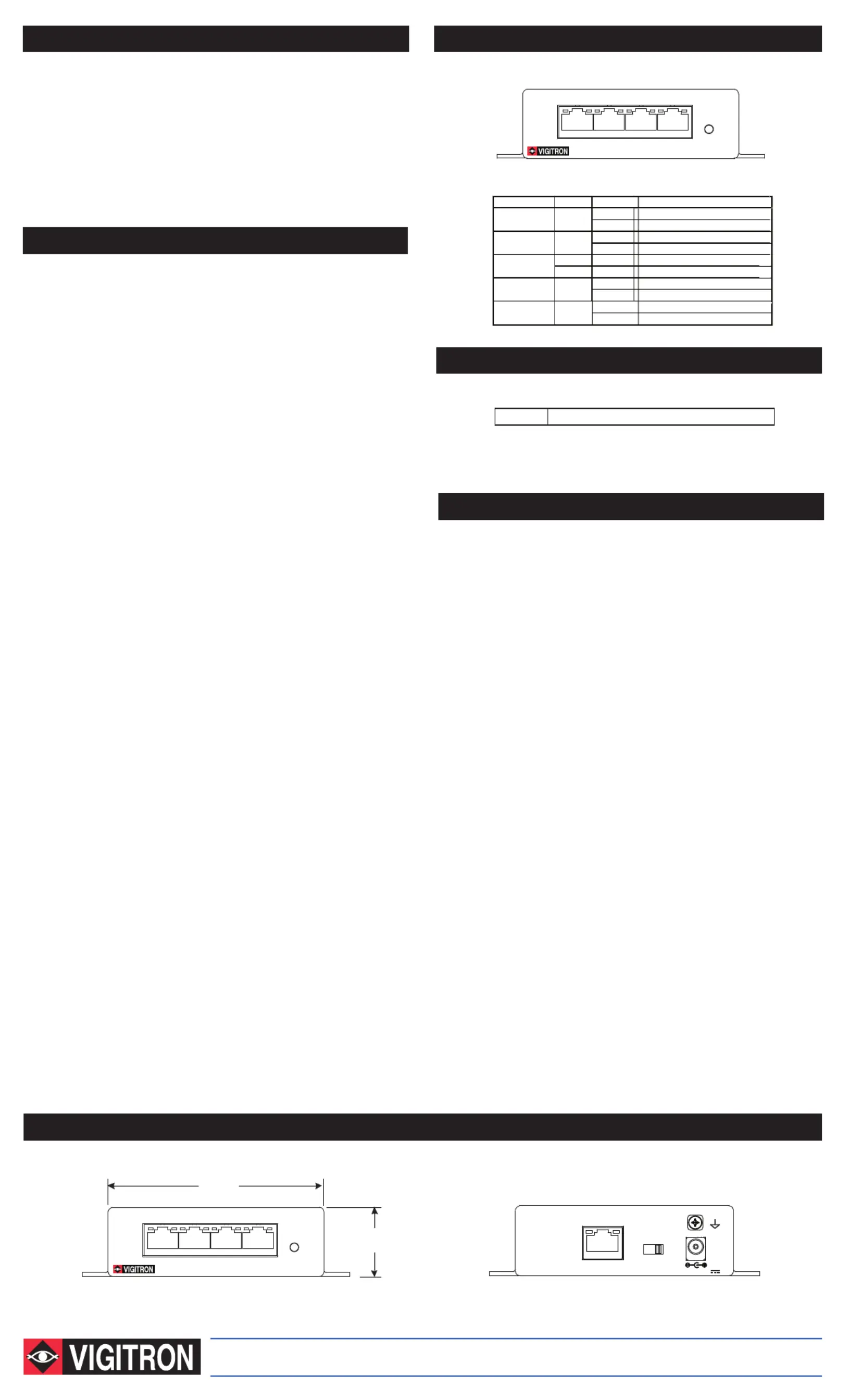

Drawings
Status LEDs
© Copyright 2022 Vigitron, Inc.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite 100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com
Vi3105_UM
LED Name Color Status Function
OFF Power is OFF
ON Power is ON
OFF No Traffic
FLASHING Traffic
GREEN ON Connection is OK, 10BaseT Mode
ORANGE ON Connection is OK, 100BaseT Mode
OFF No connection
FLASHING Connection is OK with Traffic
Link/Act
(Standard Side)
Power GREEN
Traffic
(Extended Side)
YELLOW
10/100 BaseT
(Extended Side)
OFF PoE is OFF
ON PoE is ON
PoE GREEN
Ordering Information
YELLOW
PoE Switch/PoE Midspan-end Installation (continued)
Electrical
Ethernet Interface Standard 10/100BaseT
UTP 100 Ohm +/- 20%, up to 3,000 ft. (914m)
Power Source PoE: 802.3af (15.4W), 802.3at (30W), 60W
External Power Supply: 57VDC @ up to 120W or
12VDC @ 0.3A for non-PoE operation
Status LEDs Power: Power On
Ethernet: Traffic, Link
PoE: PoE Present
Connectors Ethernet Interface: 5 x RJ45
Power: Circular power connector
RFC 2544 TCP/IP Packet Transmission
RFC 768 UDP, 2068 HTTP, 793 TCP
791 IP, 1783 TFTP, 894 IP over Ethernet
PoE Compatibility IEEE 802.3af, IEEE 802.3at,60W High power PoE++
Regulatory
Safety CE
Environmental RoHS, WEEE
FCC Part 15, Subpart B, Class B 2010
Emissions EN5502:2006+A1:2007
EN 61000-3-2:2006+A1:2009+A2:2009
EN 55024: 1998+A1:2001+A2:2003
Environmental
Humidity 0 to 95%, non-condensing
Temperature Operating: -30°C to +75°C
Storage: -40°C to +85°C
Mechanical
Dimensions 1.2x3.75x4.97 in., 3.0x9.5x12.6 cm (HxWxL)
Weight 0.64 lb (290 g)
Housing Aluminum
Optional Accessories
Vi1120: 57VDC, 120W Power Supply
Vi0017: 48VDC, 40W Power Supply
Vi0012: 12VDC, 12W Power Supply for non-PoE Applications
Vi00016: Combiner Cable for 72W Operation
*Specifications subject to change without notice.
Vi3105 MaxiiNet 5-Port PoE Switch
3.75"
9.5cm
1.2"
3.0cm
Power
Rear View
Front View
Vi3105 5-port 60W PoE Powered PoE Switch
Part No. Description
Vi3105 MaxiiNet 5-Port PoE Switch
Power
Using Vi22xx High-power PoE Midspans:
- Connect the extended cable coming from the Vi3105 Uplink port to the extended
port of a Vigitron Ethernet and PoE “Extender” Vi23xxA series such as Vi2301A or
Vi2300A.
- Use a Vigitron high power Vi22xx Midspan and connect it to the 60W data and PoE
port of the Midspan.
- Connect the corresponding port of the Midspan to to the network switch using a
standard Cat5/6 cable of maximum 100m in length.
Link/Act
1 2
3
4Port
PoE
Link/Act
1 2
3
4Port
PoE
PoE Input
30W 60W
Link/Activity
12/52-57VDC
UPLINK
Extended Ethernet

Produkt Specifikationer

Mærke: Vigitron
Kategori: Netværkskort/adapter
Model: Vi3105

Har du brug for hjælp?

Hvis du har brug for hjælp til Vigitron Vi3105 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Netværkskort/adapter Vigitron Manualer

Vigitron

Vigitron Vi30001 Manual

17 Juli 2025
Vigitron

Vigitron MaxiiNet Vi3003WP Manual

17 Juli 2025
Vigitron

Vigitron Vi3105 Manual

17 Juli 2025
Vigitron

Vigitron Vi30005 Manual

17 Juli 2025
Vigitron

Vigitron Vi22401 Manual

17 Juli 2025
Vigitron

Vigitron MaxiiNet Vi32026 Manual

6 Juli 2025
Vigitron

Vigitron MaxiiView Vi00023 Manual

3 April 2025
Vigitron

Vigitron Vi22601 Manual

14 Marts 2025
Vigitron

Vigitron Vi22201 Manual

14 Marts 2025
Vigitron

Vigitron Vi00024 Manual

10 December 2024

Netværkskort/adapter Manualer

Nyeste Netværkskort/adapter Manualer

Billion

Billion BIPAC P104 Manual

13 September 2025
Mercusys

Mercusys MA30N Manual

12 September 2025
Intellinet

Intellinet 561952 Manual

11 September 2025
Moxa

Moxa OnCell 5004-HSDPA Manual

3 September 2025
TRENDnet

TRENDnet TBW-107UB Manual

28 August 2025
Netgear

Netgear GSM4210PD Manual

23 August 2025
Advantech

Advantech FWA-1320 Manual

23 August 2025
Advantech

Advantech WISE-4050-AE Manual

23 August 2025
Advantech

Advantech NMC-4009-04CSA1 Manual

22 August 2025
Cudy

Cudy PE25 Manual

22 August 2025
