HDMI KVM Extender Set
with USB 2.0 Extension
EXP-EX-80-KVM Quickstart Guide
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
EXP-EX-80-KVM Quickstart Guide | 200330
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.

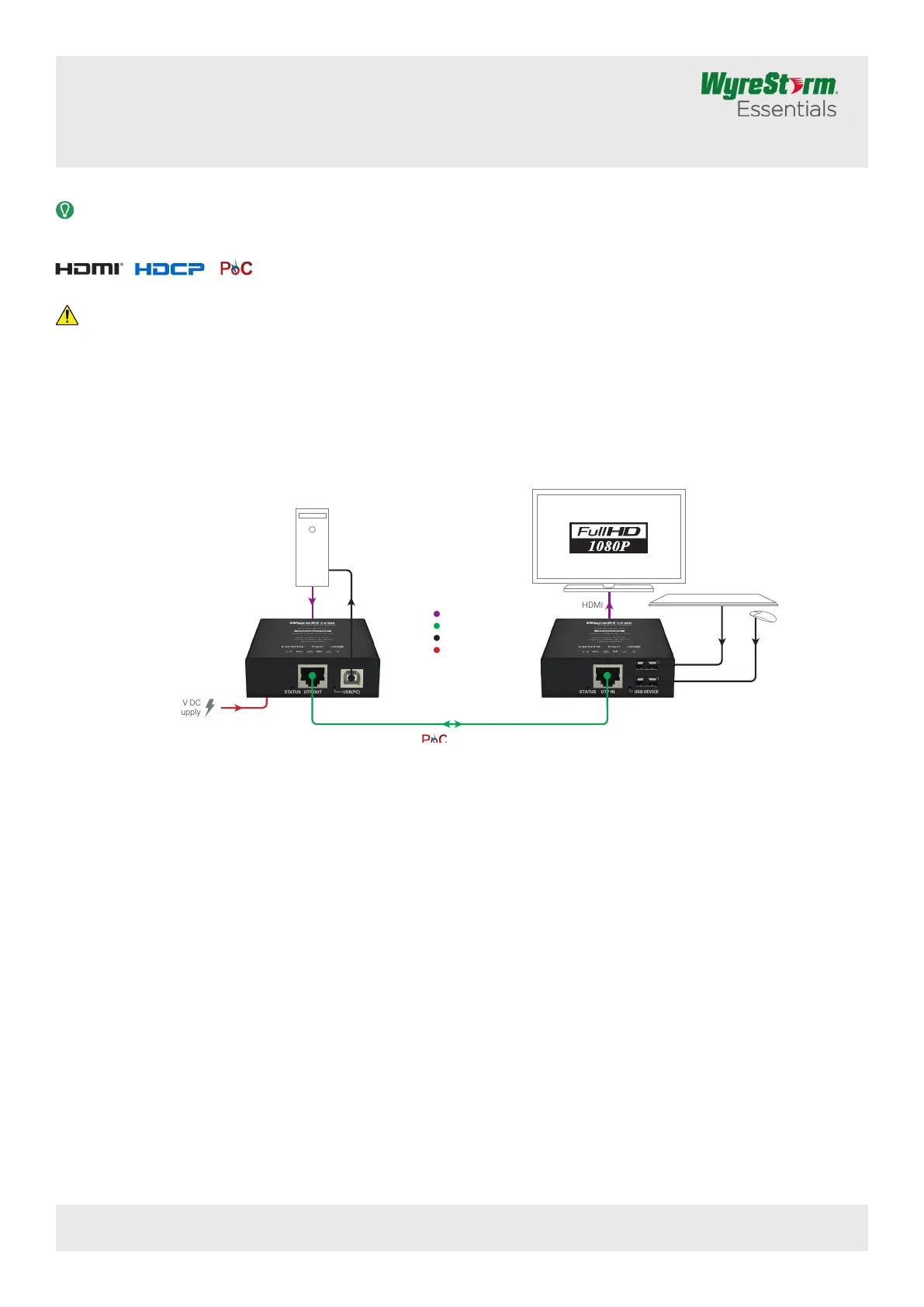

Basic Wiring Diagram
IMPORTANT! Installation Requirements
• Visit the product page to download the latest rmware, document version,
additional documentation, and conguration tools.
• Read through the section for important wiring Wiring and Connections
guidelines before creating or choosing premade cables.
In the Box
1x EXP-EX-80-KVM Transmitter
1x EXP-EX-80-KVM Receiver
1x 12V DC 2A Power Supply (US/UK/EU/AU)
1x USB Type B to Type A Cable
4x Mounting Brackets
HDMI
HDMI Monitor/Display
Keyboard and Mouse
12V DC
Power Supply
Cat5e/6/6a/7
HDMI USB
USB
EXP-EX-80-KVM Transmitter (TX) EXP-EX-80-KVM Receiver (RX)
KEY
HDMI
Cat5e/6/6a/7
USB
Power
Personal Computer
Transmitter (Front/Rear) Receiver (Front/Rear)
HDMI In 19-pin type A HDMI female
Supports HDMI and DVI/D with adapter
Power LED Solid: The unit is powered On
Off: The unit is powered Off
Power In
5.5mm Screw Down Barrel Jack
Connect to the included 12V DC 2A power
supply to the transmitter. A power supply
is not required on the other end as it will be
powered using PoC.
Status LED Flashing: The receiver is operating normally.
Off: The receiver is Not operating normally.
EUTP Out
8-pin RJ-45 female
Connect the transmitters UTP OUT to
receivers UTP IN.
FUSB LED
Solid: USB linked
Flashing: USB data transmitting
Off: No USB device connected
GUSB (PC) Host USB Type B female
Connection of USB Host device
HDMI Out 19-pin type A HDMI female
Supports HDMI and DVI/D with adapter
Power LED Solid: The unit is powered On
Off: The unit is powered Off
Power In
5.5mm Screw Down Barrel Jack
Connect to the included 12V DC 2A power
supply to the transmitter. A power supply
is not required on the other end as it will be
powered using PoC.
Status LED Flashing: The receiver is operating normally.
Off: The receiver is Not operating normally.
EUTP In
8-pin RJ-45 female
Connect the transmitters UTP OUT to
receivers UTP IN.
FUSB LED
Solid: USB linked
Flashing: USB data transmitting
Off: No USB device connected
GUSB Device
2x USB Type A female
Connection of USB devices such as
keyboards and mice.
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
EXP-EX-80-KVM Quickstart Guide | 200330
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
2 of 4
A B C D E F G A B C D E F G
