MODEL

29185D

Hidden Link™ Shelf Top

CFL/LCD Proof IR Receiver

INSTALLATION INSTRUCTIONS

DESCRIPTION

The Hidden Link IR Receiver is a small shelf-top infrared repeater assembly.

It includes an IR receiver and a CB12 Connecting Block. The Hidden Link IR

Receiver is equipped with a 7-foot cable and a 3.5mm stereo mini plug,

which is plugged directly into the “IR RCVR” jack on the CB12. It can also be

plugged into the “AUX” or “IR RCVR” jack of other Xantech connecting

blocks, such as the models 789-44, CB60, and 791-44. The Hidden Link IR

Receiver is primarily intended for use in installations where the connecting

block is within reach of its 7-foot cable – as when installing the Hidden Link

IR Receiver in a cabinet where the controlled equipment is behind closed

doors.

FEATURES

• Very small package, only 2.00”L x 3.15”W x 0.70”H.

• System testing red-talk-back LED.

• Includes CB12 Connecting Block for easy system installation.

SPECIFICATIONS

• Infrared carrier input frequency bandwidth: 30 - 60kHz.

• Reception range: Up to 50 feet, depending on conditions.

• Nominal reception angle: 55 degrees off axis.

• Cable requirements: See “INSTALLATION” below.

• Max. transmission length: 1 mile using 18 gauge wire.

• Maximum current output: 100mA

• Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.

• Dimensions: 2.00”x3.15”x0.70” (51mm x 80mm x 18mm)

• Power requirements: +12VDC, 20mA.

INSTALLATION

QUICK-START

A typical system will use an IR receiver, several emitters, and a power supply

all connected to a connecting block.

1. Connect the IR receiver to the “IR RCVR” port on the connecting

block. The ‘red’ connector is installed to the ‘red’ plug.

Note: In some extended distances, additional 3-conductor may be required and can

be connected to the terminals on the connecting block.

2. Connect the Emitters to the connecting block. The ‘yellow’ connector

is installed to the ‘yellow’ plug.

3. Connect the power supply to the connecting block.

4. Installation complete

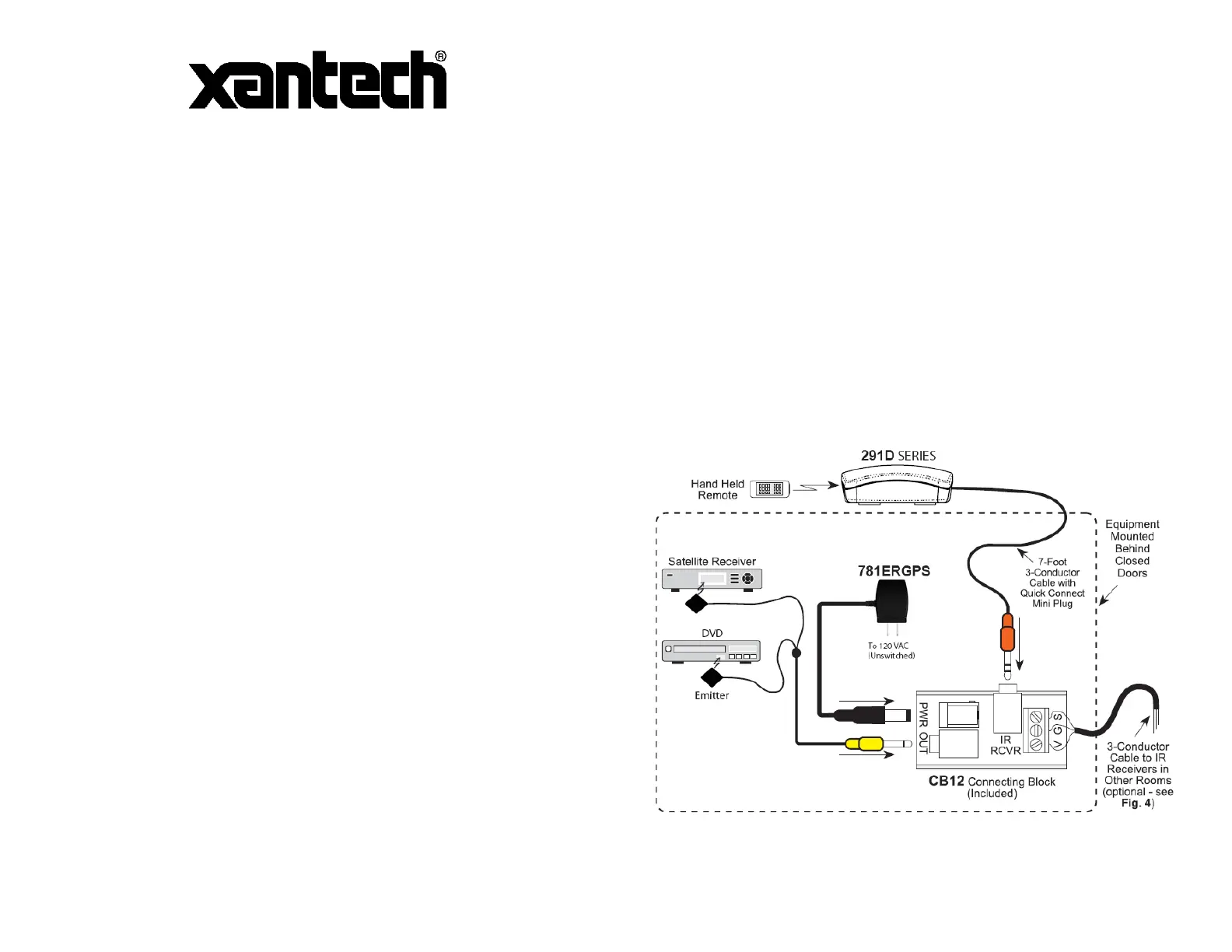

LOCAL SYSTEM APPLICATION

In this system a 286D Dual Blink-IR Designer Emitter is shown connected to

the “OUT” jack. A single emitter could also be used, such as the model 282D

or 283D. If expansion beyond two emitters is required, use a Xantech 789-

44, CB60, or 791-44 Connecting Block in place of the CB12. Do not use the

CB12 in this case.

CABLE CONNECTIONS

291’s may also be used where the 7-foot cable is not long enough. Simply

cut off the mini plug, strip the leads and splice them to a 3-conductor

extension cable with a terminal block or other means. Then connect the

extension cable to the 3-terminal block on the CB12 as shown in the figure

below.

3.5mm mini plug Signal Name

TIP SIGNAL

RING GROUND

SLEEVE +12VDC

The 3-conductor inter-room cable (24 gauge up to 200’, 22 gauge up to 600’,

20 gauge up to 2000’, 18 gauge up to 5000’), is run to the main room.

While it is possible to make wired connections without the connecting block,

it is not recommended. The connecting block reduces installation time, helps

to eliminate errors, allows easy troubleshooting and permits easy system

upgrades later, if needed.

REMOTE ROOM APPLICATION

The CB12 Connecting Block, supplied with the Hidden Link IR Receiver, has

a three terminal input strip for connection of external infrared receivers

should you wish to control your equipment from other rooms.

• The terminals are marked V G S. (V = +12V, G = Ground, and S = IR

Signal).

• Make connections as shown in the figure below. Run a 3-conductor

cable (24 to 18 gauge wire, stranded or solid) from each remote

room to the VGS terminals of the CB12.

• When you use a Hidden Link IR Receiver in a remote room, do not

plug in a power supply or use the “OUT” jack in the CB12, as shown

in the figure below.

• You may use more IR receivers, connected in the same manner, up

to a maximum of 12.

PLACEMENT

The IR receiver should be located so that it is not directly facing a light

source such as lamps or displays (standard, LCD, and Plasma). When

mounted near a display, it should be flush to the display and away from light

reflections that may occur.
