Model ACS-2020-6C-HW | Rev. 12.20.23 | pg. 1/3

POWER RATING: 120VAC, 60Hz, 20A (each circuit)

CHASSIS: 60” x 2” x 2” steel chassis with black powder epoxy finish

TERMINATION: Hardwired non-metallic flexible conduit with pigtail leads rotates in any

direction. It can be trimmed in the field if needed.

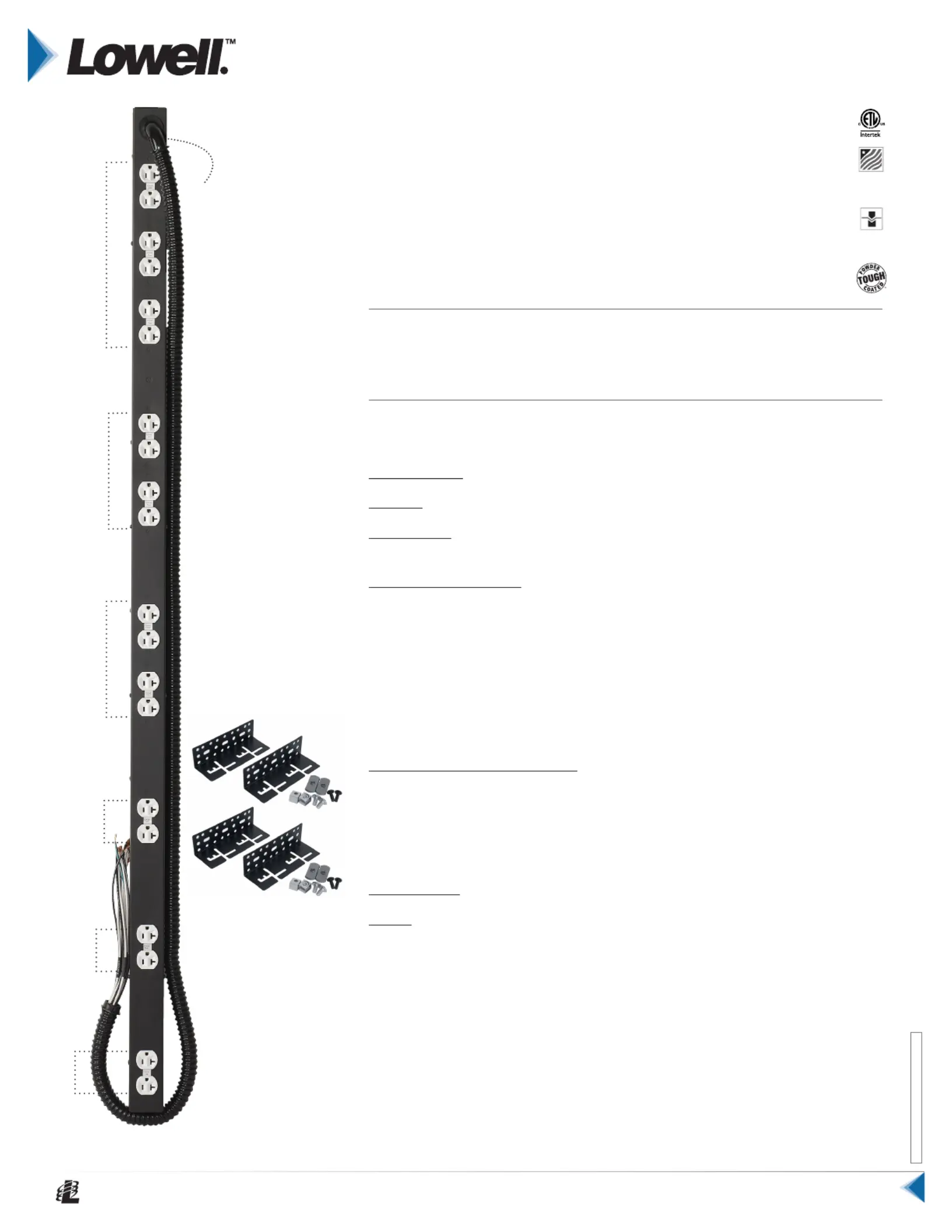

CIRCUITS & RECEPTACLEs: A total of 20 receptacles (10 duplex) are wired into six inde-

pendent cicuits and grouped as shown in photo. Connections are made via pigtail leads

that are tagged according to circuit.

• Circuit 1 powers three (3) NEMA 5-20R duplex receptacles

• Circuit 2 powers two (2) NEMA 5-20R duplex receptacles

• Circuit 3 powers two (2) NEMA 5-20R duplex receptacles

• Circuit 4 powers one (1) NEMA 5-20R duplex receptacle

• Circuit 5 powers one (1) NEMA 5-20R duplex receptacle

• Circuit 6 powers one (1) NEMA 5-20R duplex receptacle

UNIVERSAL MOUNTING BRACKETS: The universal brackets allow for power strip instal-

lation in a variety of applications with receptacles facing front, center or rear. Brackets are

engineered with multiple mounting points and include two types of hardware to facilitate

easy installation in a rack with adjustable or fixed rails, to a wall, or under a desk/counter.

The brackets can be mounted so they are exposed for easy access or concealed beneath

the power strip for an aesthetically cleaner installation.

CERTIFICATION: ETL Listed in U.S./Canada

ORIGIN: Assembled in U.S.A. with U.S. steel chassis and global components

Six-circuit power strip with 20 receptacles (10 duplex) is made to safely power equipment

in installations that require multiple AC power circuits. This power strip requires 35U panel

space (minimum).

ACS Series Model No.

ACS-2020-6C-HW

AC Power Strip w/Six Circuits

FEATURES

Certied

US Steel

Assembled

In USA

with Global

Components

A&E SPECIFICATIONS

The six-circuit power strip shall be Lowell model ACS-2020-6C-HW, which shall feature 20

NEMA 5-20R receptacles (10 duplex) wired into six independent circuits. Circuit one shall

have three grouped duplex receptacles; Circuits two and three shall each have two grouped

receptacles; Circuits four, five and six shall each have one duplex receptacle. Termination

shall be via a six-foot non-metallic flexible conduit with numbered pigtail leads. The steel

chassis with black powder epoxy finish shall measure 60” x 2” x 2”. It shall include universal

mounting brackets and hardware. The power strip shall be ETL Listed and shall be made in

the U.S.A. with global components.

The 6 ft. non-metallic

exible conduit rotates

in any direction.

Mounting

brackets

CIRCUIT 1:

Three duplex ( 20A )

CIRCUIT 2:

Two duplex ( 20A )

CIRCUIT 3:

Two duplex ( 20A )

CIRCUIT 4:

One duplex ( 20A )

CIRCUIT 5:

One duplex ( 20A )

CIRCUIT 6:

One duplex ( 20A )

Pigtail leads are tagged

according to circuit
