Complete Radio Replacement with
Integrated Climate Control Retention for Select
2013-2019 RAM Trucks
RPK4-CH4101
© 2019 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
C
Page 1
Rev: V1
Date:122019
Introduction and Features
The RPK4-CH4101 is a complete radio replacement kit with integrated climate control retention for the 2013-2019 RAM
trucks equipped with the 8” screen. All modules and cables are included to retain important features of the factory
system including: steering wheel mounted radio controls, factory reverse camera, and AM/FM reception.
A secondary 5.2” LCD screen is added for additional vehicle control including: Climate Controls user interface retention,
vehicle settings retention, factory amplier control, settings for control of the RPK4.2-CH4101 interface, forced camera
activation, ability to add additional cameras, tire pressure and vehicle gauges. Features provided by the LCD screen
will vary based on the vehicle features. See Important Notes (next section) for additional information.
Four hard buttons added to the radio dash bezel (below the 5.2” LCD screen) allow user to set presets to control
functions including: specic climate controls, forced camera activation, LCD screen controls. Options for hard
buttons will vary based on vehicle features and which cameras are installed.
Some advanced features require additional accessories, sold separately.
Important Notes
We recommend reading this manual thoroughly to familiarize yourself with the entire process
prior to beginning the installation.
1. Only compatible in vehicles equipped with the 8” screen.
2. 2019 RAM Trucks: Only compatible with Classic body style.
3. Does Not Retain:
• Cluster Display Features
• Compass
• Clock
• Phone pop-ups
• Navigation pop-ups
• uConnect Features
• WiFi-Hotspot
• SOS / Assist
• Factory Amplier Features
• Speed Controlled Volume
4. In trucks equipped with parking sensors you must use the included external speaker in order to continue hearing parking
sensor chimes. If the truck has a factory amplied system and parking sensors, the speaker is not necessary unless the
factory amplier is no longer being used.
5.  If you are adding additional cameras, or the truck has additional factory cameras beyond reverse cam, PAC part
number RPA-16P5V (sold separately) must be used to connect up to 5 total cameras.
Complete Radio Replacement with
Integrated Climate Control Retention for Select
2013-2019 RAM Trucks
RPK4-CH4101
© 2019 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
C
Page 2
Rev: V1
Date:122019

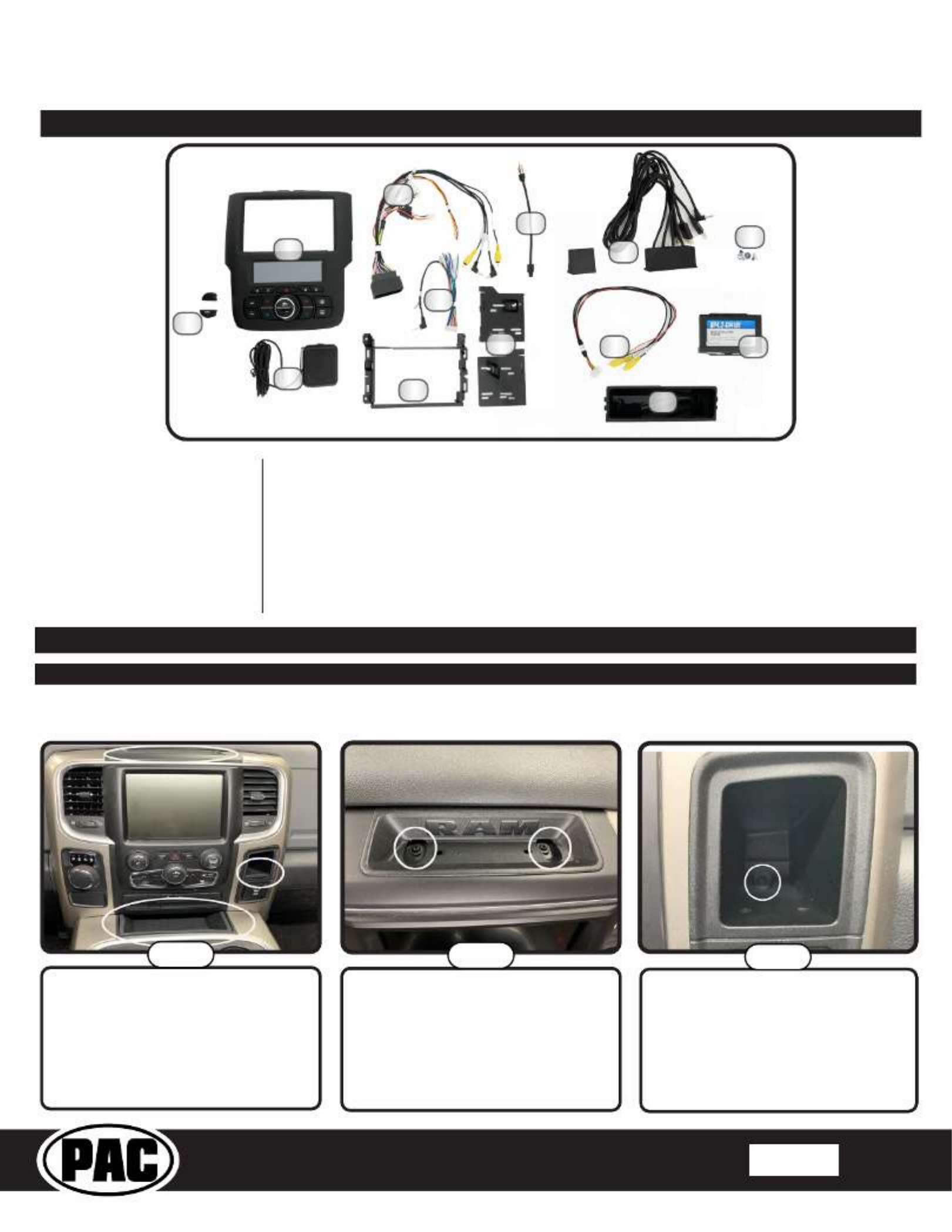

Part One: Disassembly of Factory Dash
Tools needed for installation:
Phillips head screwdriver,
7mm socket, ratchet, T20 torx
screwdriver, plastic panel removal
tool (example - PAC part number
TL-PRY2), airsaw or hacksaw with
metal cutting blade (unless you are
installing a shallow mount radio;
details on page 6).
1. Climate Control Button Inserts
2. Radio Dash Bezel with 5.2” LCD Display
3. External Chime Speaker
4. RP4.2-CH4101 Interface Harness
5. RP4.2-CH4101 Aftermarket Radio
Connection Harness
6. Radio Mounting Shroud
7. AM / FM Antenna Adapter (BAA22)
8. Radio Mounting Brackets
9. OEM USB Replacement Hub*
10. Reverse Camera Retention Harness
(RPA-16P1V)
11. Single DIN Mounting Pocket
12. Radio Mounting Screws
13. RP4.2-CH4101 Radio Replacement
Interface
Installation
Components
Remove the circled rubber inserts to
gain access to the screws securing
the dash and console in place.
Step 1
Remove the T-20 torx screw from the
back of the small pocket on the right
side of the dash.
Step 3
Remove the two T-20 torx screws
from the top of the dash.
Step 2
Trucks With a Center Console
If your truck has a center console, begin here. If not, skip ahead to page 4
*Some kits include a USBDMA6 and instructions for how to obtain a USB Hub Replacement.
9
4
10
8
6
7
5
11
3
1
2
13
12
