T501ML2

T501ML4

Pro1 Technologies

P.O. Box 3377

Toll Free : 888-776-1427

Web: www.pro1iaq.com

Hours of Operation: M-F 9AM - 6PM Eastern

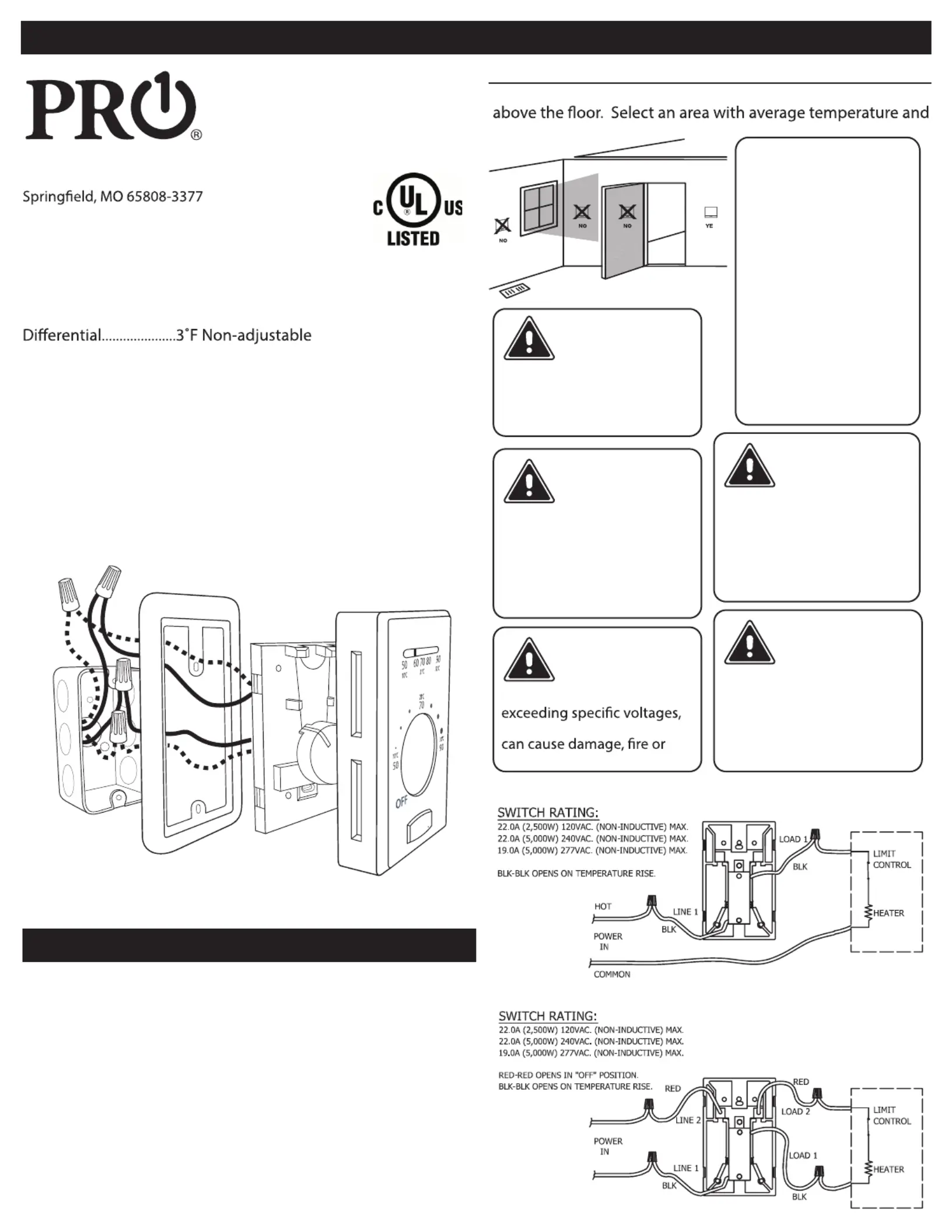

Installation Manual Installation Tips

Temperature Range....50˚F to 90˚F (10˚C to 32˚C)

Electric Rating............. 22A/120VAC Resistive (Non-Inductive)

22A/240VAC Resistive (Non-Inductive)

19A/277VAC Resistive (Non-Inductive)

Mou .............................Verticalnt

Color................................White

T501ML2........................SPST Switch - Singleline disconnect

Black - Black: Opens on tempe ture risera

T501ML4........................DPST Switch - Double line disconnect

Black - Black: Opens on tempe ture risera

Red - Red: Opens in OFF position for

double line disconnect

Wire..................................6 inch leads (12 AWG)

Dimensions...................W - 2.9”, L - 4.7”, D - 9” (from wall).1.6”(total)

Application...................Electric heat thermostat

Warranty........................2 year

Installation Steps

Disconnect electrical power at main fuse or circuit box.1.

Remove Thermostat Cover from the thermostat base.2.

Place the wall ver plate on back of the thermostat base, co

then connect wires to the thermostat as shown in wiring

dia am (Without pushing on knob or triangular bimetal gr

element).

Push lead wires into junction box, then secure wall ver co

plate and thermostat base to junction box with screws

provided.

Mount thermostat cover to the thermostat base and set to

desired setting.

Turn on electrical power.6.

The thermostat should be installed approximately 4 to 5 feet

good air circulation.

• Close to hot or cold

air ducts

• That are in direct

sunlight

• With an outside wall

behind the thermostat

• In areas that do not

require conditioning

• Where there are dead

spots or drafts (in

corners or behind doors)

• Where there might be

concealed chimneys or

pipes.

Wall Locations

Do not install

thermostat in

locations:

Do not install this thermostat

unless you are a trained and

experienced service

technician. Failure to follow

cautions and warnings can

cause injury or death.

Warning:

Failure to disconnect

electrical power before

beginning to install this

product can cause electrical

shock or equipment damage.

Electrical

Hazard:

No not use on circuits

or on inductive loads. This

shock.

Attention:

Use ONLY with copper

conductors and approved

wire connectors for 12 AWG.

Wiring must conform to local

and national electrical codes

and ordinances.

Caution:

Thermostat

Cover

Base

Thermostat

Wall Cover

Plate

Junction Box

T501ML4

T501ML2

NEMA type 1 enclosure, IP20

Attention:

Install only in a suitable

UL Listed outlet box or the

equivalent.

Rev. 1810
