Side 1/2

FAN

ON AUTO

SYSTEM

COOL OFF HEAT

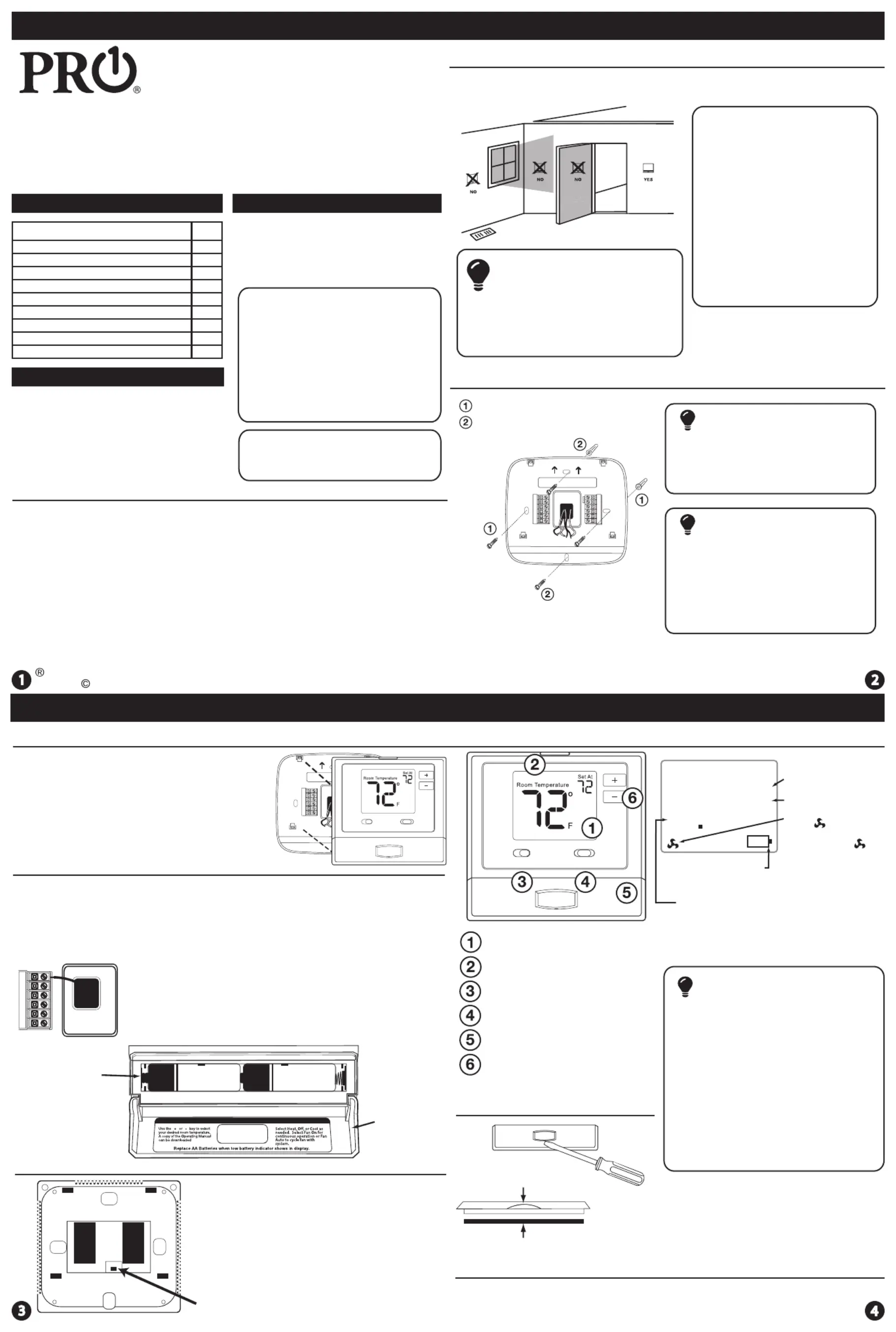

Installation Manual

Thermostat Application Guide

Description

Gas or Oil Heat

Electric Furnace

Heat Pump (No Aux. or Emergency Heat)

Heat Pump (With Aux. or Emergency Heat)

Multi-Stage Systems

Heat Only Systems

Heat Only Systems - Floor or Wall Furnace

Cool Only

Millivolt

Yes

Power Type

Battery Power

Hardwire (Common Wire)

Hardwire (Common Wire) with

Battery Backup

Table of Contents

Specications

Installation Tips

Thermostat Quick Reference

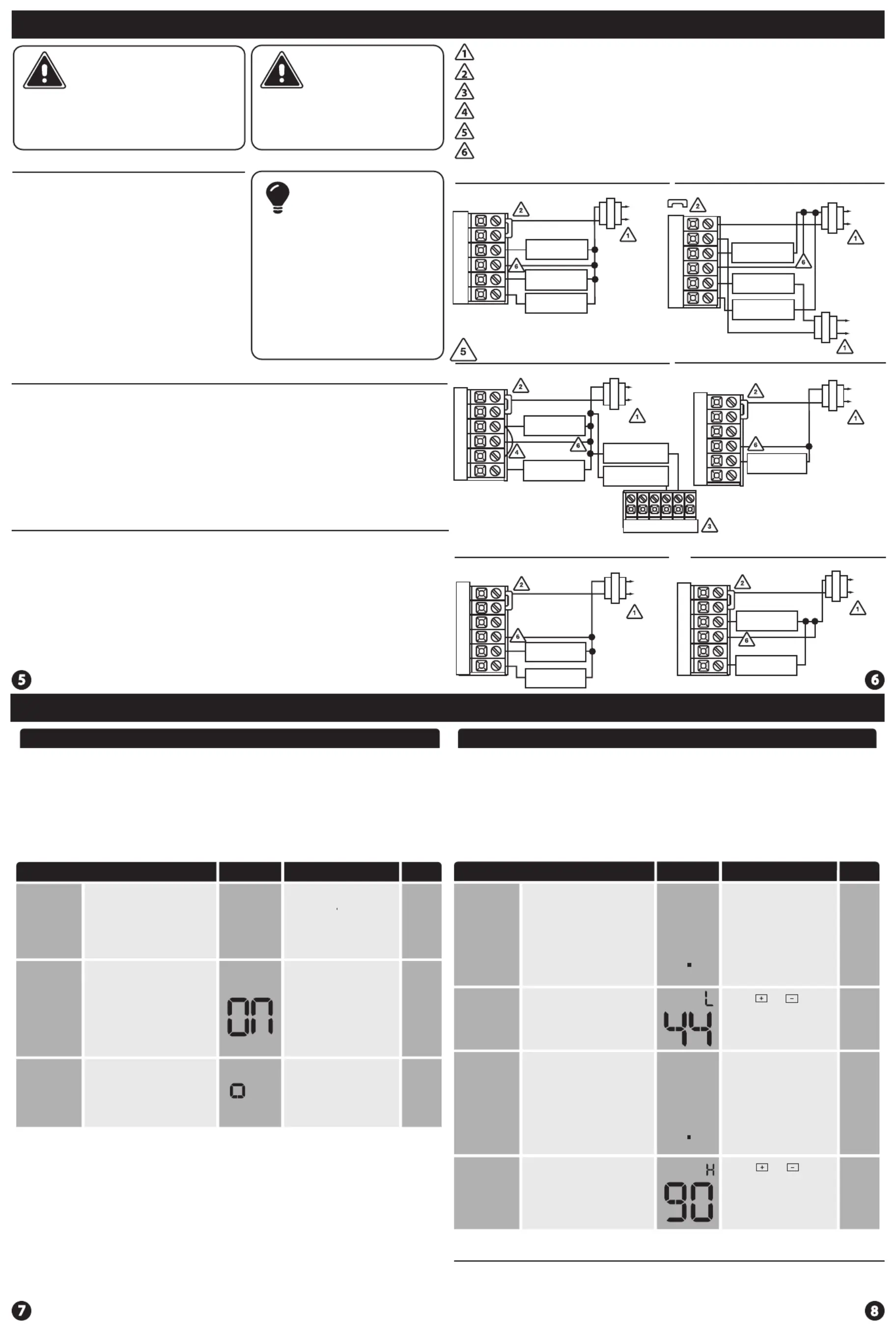

Wiring

Wiring Diagrams

Technician Setup

Page

A trained, experienced

technician must install this

product.

Carefully read these

instructions. You could damage

this product or cause a

hazardous condition if you fail

to follow these instructions.

Una version en español de este

manual se puede descargar en

la pagina web de la compañia.

Rev. 1809

U.S. Registered Trademark. Patents pending

Specications

The display range of temperature ... 41˚F to 95˚F (5˚C to 35˚C)

The control range of temperature.... 44˚F to 90˚F (7˚C to 32˚C)

Swing (cycle rate or dierential) ...... Heating is adjustable from 0.2˚ to 2.0˚

Cooling is adjustable from 0.2˚ to 2.0˚

Power source ...........................................18 to 30 VAC, NEC Class II, 50/60 Hz

for hardwire

Battery power from 2 AA Alkaline

batteries

Operating ambient ............................... 32˚F to +105˚F (0˚C to +41˚C)

Operating humidity .............................. 90% non-condensing maximum

Dimensions of thermostat ................. 4.7”W x 4.4”H x 0.8”D

Mount Thermostat

Align the 4 tabs on the subbase with

corresponding slots on the back of the

thermostat, then push gently until the

thermostat snaps in place.

Battery Installation

Battery installation is recommended even if thermostat is hardwired

(C terminal connected). When thermostat is hardwired and batteries

are installed, the thermostat will activate a compressor delay of 5

minutes when the thermostat detects a power outage from the

hardwired power supply.

Important:

High quality alkaline batteries are recommended.

Rechargeable batteries or low quality batteries

do not guarantee a 1-year life span.

Insert 2 AA

Alkaline batteries

(included). High

quality alkaline

batteries are

recommended.

Simple

operating

instructions

are found

on the back

of the

battery

door.

Gas or Electric Setup

Fan Operation Switch

Installation Tips

2-3

7-8

Installation Tips Thermostat Quick Reference

Getting to know your thermostat

Glow in the dark light button

Fan switch

System switch

Easy change battery door

Temperature setpoint buttons

LCD

The low battery indicator is displayed when the

AA battery power is low. If the user fails to

replace the battery within 21 days, the screen

will only show the low battery indicator but

maintain all functionality. If the user fails to

replace the batteries after an additional 21 days

(days 22-42 since rst “low battery” display) the

setpoints will change to 55˚F (Heating) and 85˚F

(Cooling). If the user adjusts the setpoint away

from either of these, it will hold for 4 hours

then return to either 55˚F or 85˚F. After day 63

the batteries must be replaced immediately to

avoid freezing or overheating because the

thermostat will shut the unit o until the

batteries are changed.

Important

Removing The Private

Label Badge

About The Badge

All of our thermostats use the same universal magnetic badge. Visit the

company website to learn more about our free private label program.

Room Temperature

Set At

COOL ON

HEAT ON

LOW

Displays the

selected setpoint

temperature.

System Operation

Indicators:

The COOL ON, HEAT

ON or icon will

display when the

COOL, HEAT, or

(fan) is on.

NOTE: The

compressor

delay feature is active

if these icons are

ashing. The

compressor will not

turn on until the 5

minute delay has

elapsed.

Low Battery Indicator:

Replace batteries when

indicator is shown.

Indicates the current

room temperature.

Magnet in door

Subbase Installation

The thermostat should be installed approximately 4 to 5 feet above the

oor. Select an area with average temperature and good air circulation.

• Close to hot or cold air ducts

• That are in direct sunlight

• With an outside wall behind

the thermostat

• In areas that do not require

conditioning

• Where there are dead spots

or drafts

(in corners or behind doors)

• Where there might be

concealed chimneys or

pipes

Wall Locations

Vertical Mount

Horizontal Mount

For vertical mount put one screw on the top

and one screw on the bottom.

For horizontal mount put one screw on the

left and one screw on the right.

All of our products are mercury free.

However, if the product you are

replacing contains mercury, dispose of

it properly. Your local waste

management authority can give you

instructions on recycling and proper

disposal.

Pick an installation location that is easy for

the user to access. The temperature of the

location should be representative of the

building.

Installation Tip

Mercury Notice

Do not install

thermostat in locations:

Failure to disconnect the power before

beginning to install this product can

cause electrical shock or equipment

damage.

Installation Tip:

Electrical Hazard

Use the bevel on lower ridge

Gas: For systems that control the fan

during a call for heat, put the fan

operation switch to the GAS position.

Electric: For systems that do not

control the fan during a call for heat,

put the fan operation switch tothe

ELECTRIC position.

T701

Pro1 Technologies

Toll Free: 888-776-1427

Web: www.pro1iaq.com

Hours of Operation: M-F 9AM - 6PM Eastern

P.O. Box 3377

Springeld, MO 65808-3377

FAN

ON AUTO

SYSTEM

COOL OFF HEAT
