Dual DVI-D and USB 2.0 Extender up

to 250 feet over Twisted Pair Cable

UDX-2P

Dual DVI-D and USB 2.0 Extender

over Twisted Pair with Super Reclocking

www.smartavi.com

Installation

Manual

Technical Specications

What’s in the Box?

PART NO. QTY DESCRIPTION

UDX-2PS 1 2 DVI-D and USB 2.0 over CAT6 STP Extender.

Includes: [UDX-2P-TX, UDX-2P-RX and 2 x (PS-

5VD4A)]

Power Supply 1 PS5VDC4A

User Manual 1

VIDEO

Format DVI-D Single Line

Maximum Pixel Clock 165 MHz

Input Interface (TX) (2) DVI-D 29-pin female

Output Interface (RX) (2) DVI-D 29-pin female

Resolution Up to 1920 x 1200 @60Hz

DDC 5 volts p-p(TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

USB

Signal Type USB 2.0 480 Mbit/s (60 MB/s)

Input Interface (TX) (1) USB Type B (Female)

Output Interface (RX) (4) USB Type A (Female)

OTHER

Power External 100-240 VAC/5VDC4A @20W

Dimensions 10.5 in W x 1.75 in H x 3.375 in D (3 in RX)

Weight 4 lb

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

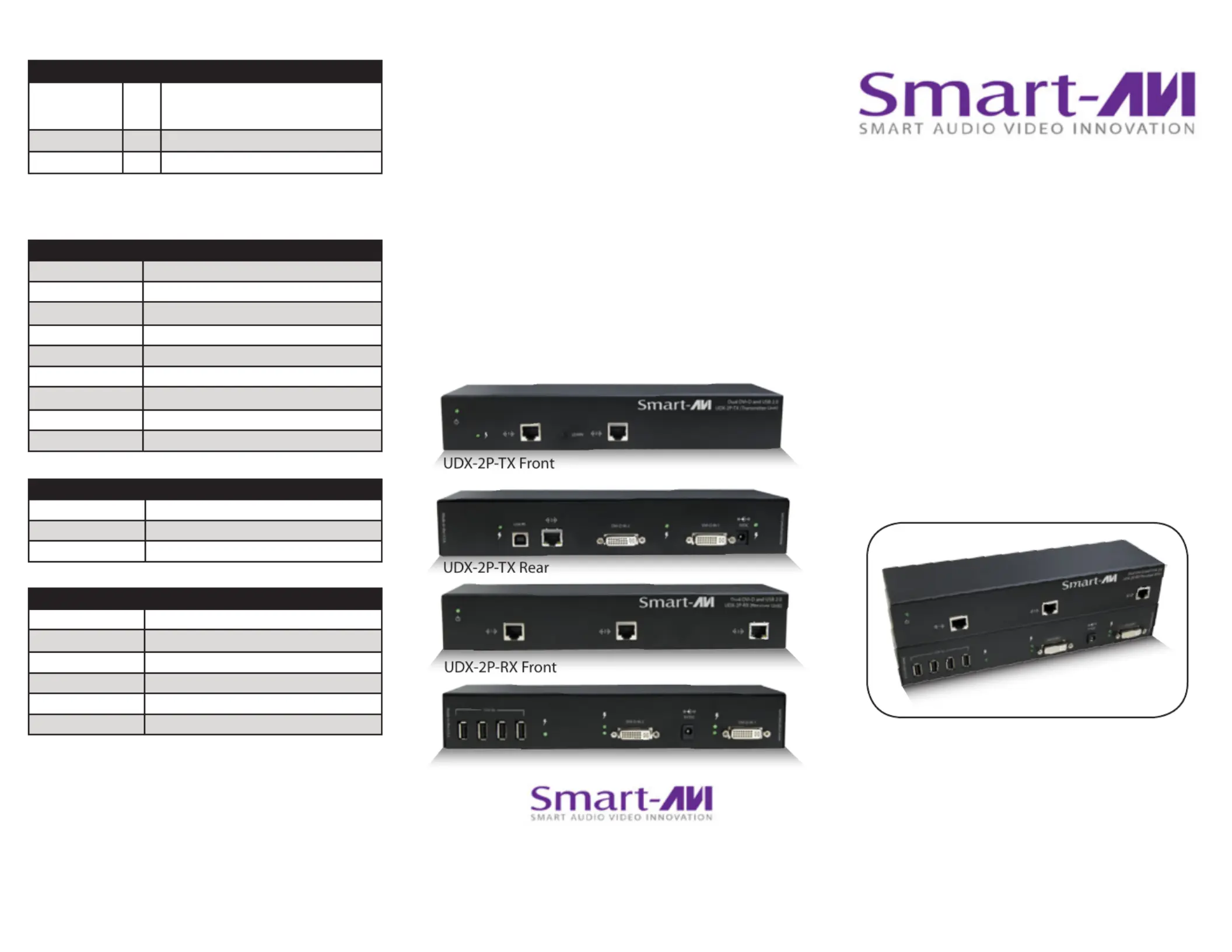

UDX-2P-RX Rear

up to 250 ft over STP

UDX-2P-TX

UDX-2P-RX

USB 2.0 FLASH

DRIVE

USB 2.0 KEYBOARD USB 2.0 MOUSE

DVI-D MONITORS

COMPUTER

Introduction

The UDX-2P is the perfect solution for extending dual

DVI-D displays and USB 2.0 devices to a remote location.

It extends DVI-D and USB 2.0 signals to a remote location

up to 250 feet away. The UDX-2P features pixel accurate

signal reclocking which regenerates the input signal into a

perfectly sharp and clear output signal. It is fully plug and

play with dynamic DDC learning.

Connecting the UDX-2P

1. Power o all devices.

2. Connect two DVI-D sources (computer) to the

DVI-D ports of the UDX-2P-TX

labeled and . DVI-D IN 1 DVI-D IN 2

3. Connect a USB source to the USB port of the the

UDX-2P-TX labeled

4. Connect the UDX-2P-TX to the the UDX-2P-RX with

three STP (Sheilded Twisted Pair) cables using the

ports labeled from TX to RX, TX

to RX, TX to RX.

5. Connect the DVI displays to the port on the rear of

the UDX-2P-RX labeled and . DVI-D IN 1 DVI-D IN 2

6. Connect up to 4 USB 2.0 devices to the ports on

the UDX-2P-RX labeled

7. Connect the power supply to the ports labeled

on the UDX-2P-TX and UDX-2P-RX.

8. Power on the computer, displays and USB 2.0

devices.

Applications

• Medical Applications

• Industrial Work Areas

• Home Theater Integration

• Digital Signage Deployment

• Information Kiosks/Displays

• Film/Recording Studios

Features

• DDC from internal table for Mac/PC

• Dedicated switch to learn any DDC

• Supports High Resolution 1920x1200 60Hz

WUXGA

• Supports Mac, PC, and Linux DVI

• Uses universal DVI Single Link connectors

• Zero pixel loss with TMDS signal correction

• Supports all USB 2.0 and 1.0 Devices

Transparently

(Disk Drives, Flash Drives, Printers, Cameras,

Scanners, etc.)

• Supports 4-port USB 2.0 in remote location

• Full reclocking for the receiver regenerates

digital signal producing top signal quality

• Extends up to 250ft (275ft with high quality

CAT6 STP)

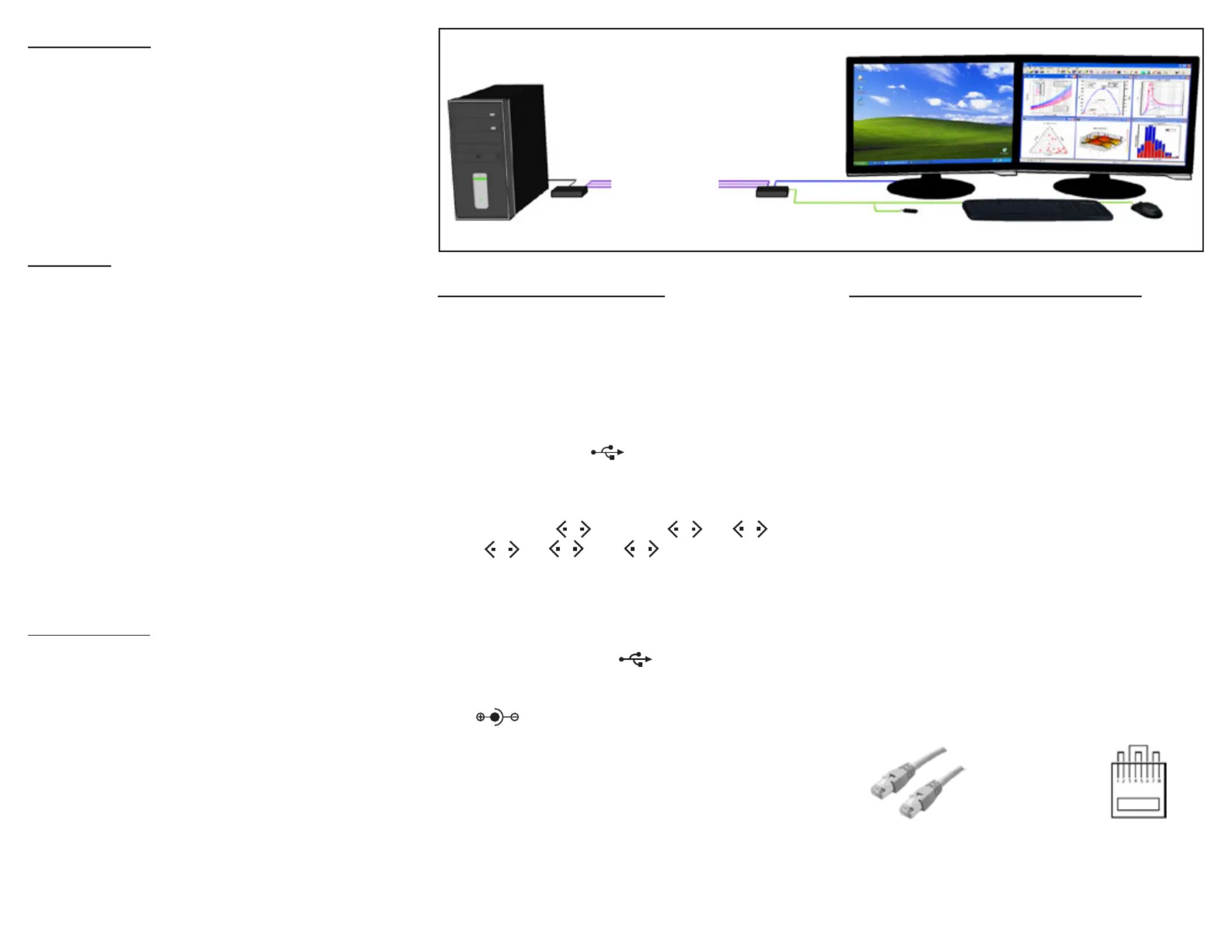

Product - Installation Diagram

1 1

3 3

The following is the wiring standard for terminating UTP/STP

cable using RJ-45-STP connector:

Connectors: RJ-45-STP

Capacitance: 14 pf/ft (46.2 pf/m)

Conductor Gauge: 24 AWG

Impedance: 100 +/- 15 ohms

Pair 1 Pins 1 & 2

Pair 2 Pins 3 & 6

Pair 3 Pins 4 & 5

Pair 4 Pins 7 & 8

Learning the EDID of a Display

1. Power o all devices.

2. Power on the UDX-2P Transmitter and the display

to be learned.

3. Connect a DVI-D display to the DVI-D port of the

UDX-2P transmitter labeled DVI-D IN .

4. Press the button LEARN

5. The light will blink quickly if the learning was

successful. If the learning is unsuccessful the light

will not illuminate.
