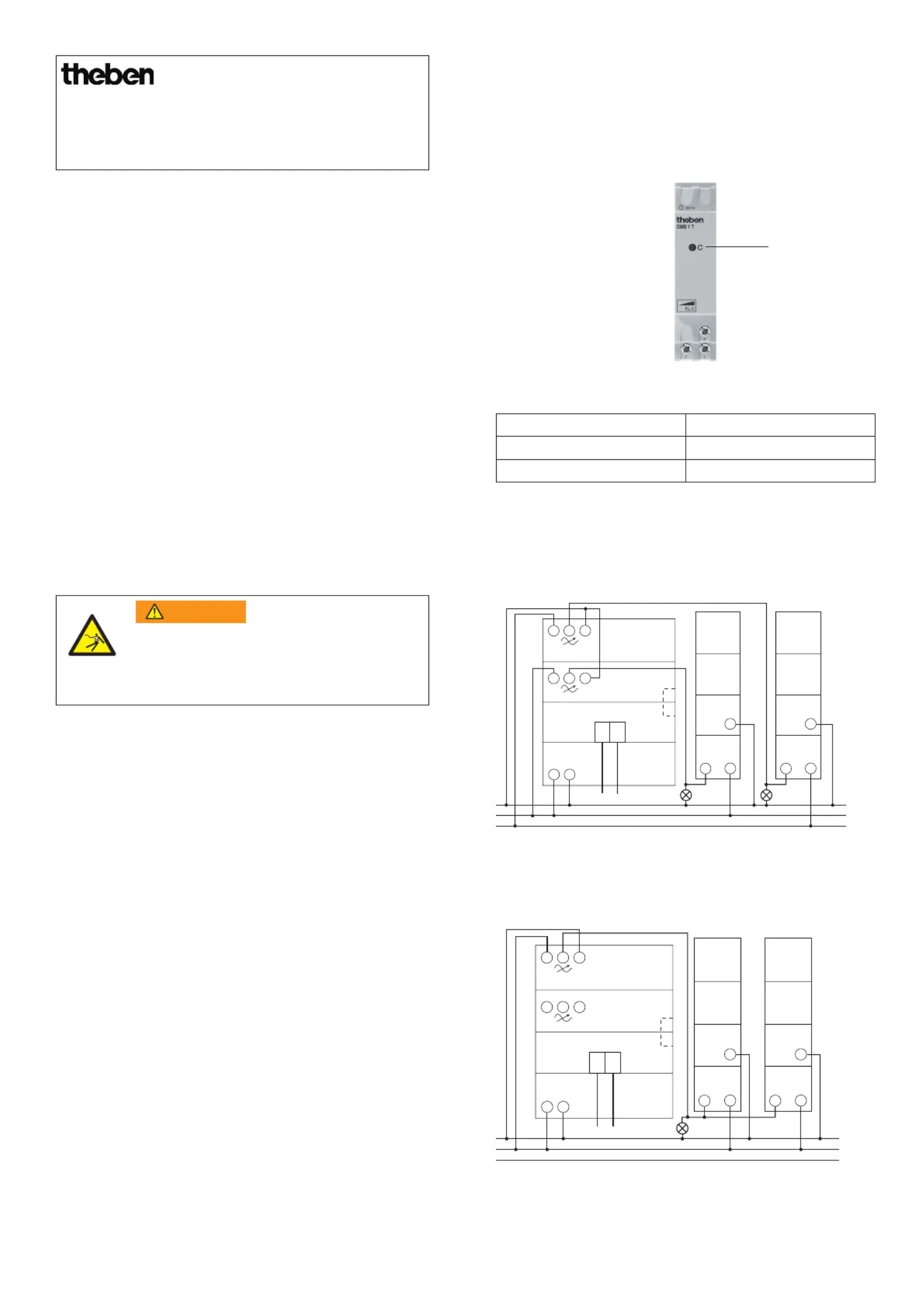

Booster for Dimming
DMB 1 T KNX (performance upgrade) 4930279
309570 02
1. Designated use
The DMB 1 T KNX booster serves to upgrade the performance
of universal dimming actuators of MIX 2 range up to 300 W per
channel.
The boosters switches and dims the brightness of different light
halogen lamps, (conventional or with electronic transformer) or
dimmable LED lamps for 230 V.
The device is designed for installation on DIN top hat rails (in
accordance with EN 60715) and conforms with EN 60669-2-1.
Only to be used in closed, dry rooms.
Tampering with, or making modifications to, the device will
invalidate the guarantee.
2. Safety instructions
3. Description
Danger of death through electric shock or
fire!
Installation should only be carried out by a
professional electrician!
WARNING
Always operate electronic and conventional transformers
with the minimum load designated by the manufacturer.
When replacing lamps, switch off the power supply (at the
appropriate circuit breaker)
Do not bypass or short-circuit the dimmer.
Do not install an isolation or adjustable transformer before
the dimmer.
Do not mix wound and electronic transformers in the in-
stallation.
Correct, automatic load detection is only possible with a
connected load.
Only use transformers approved by the manufacturer for
dimmer operation.
DMB 1 T KNX (performance upgrade)
• 1 channel for 5–300 W incandescent lamps
• For performance upgrade of DMG 2 T KNX and DME 2 T KNX
DMB 1 T KNX
(performance upgrade/
booster)
Maintain ventilation space of 8 mm right and left.
Maintain ventilation space of 8 mm right and left.
4. Electrical connection

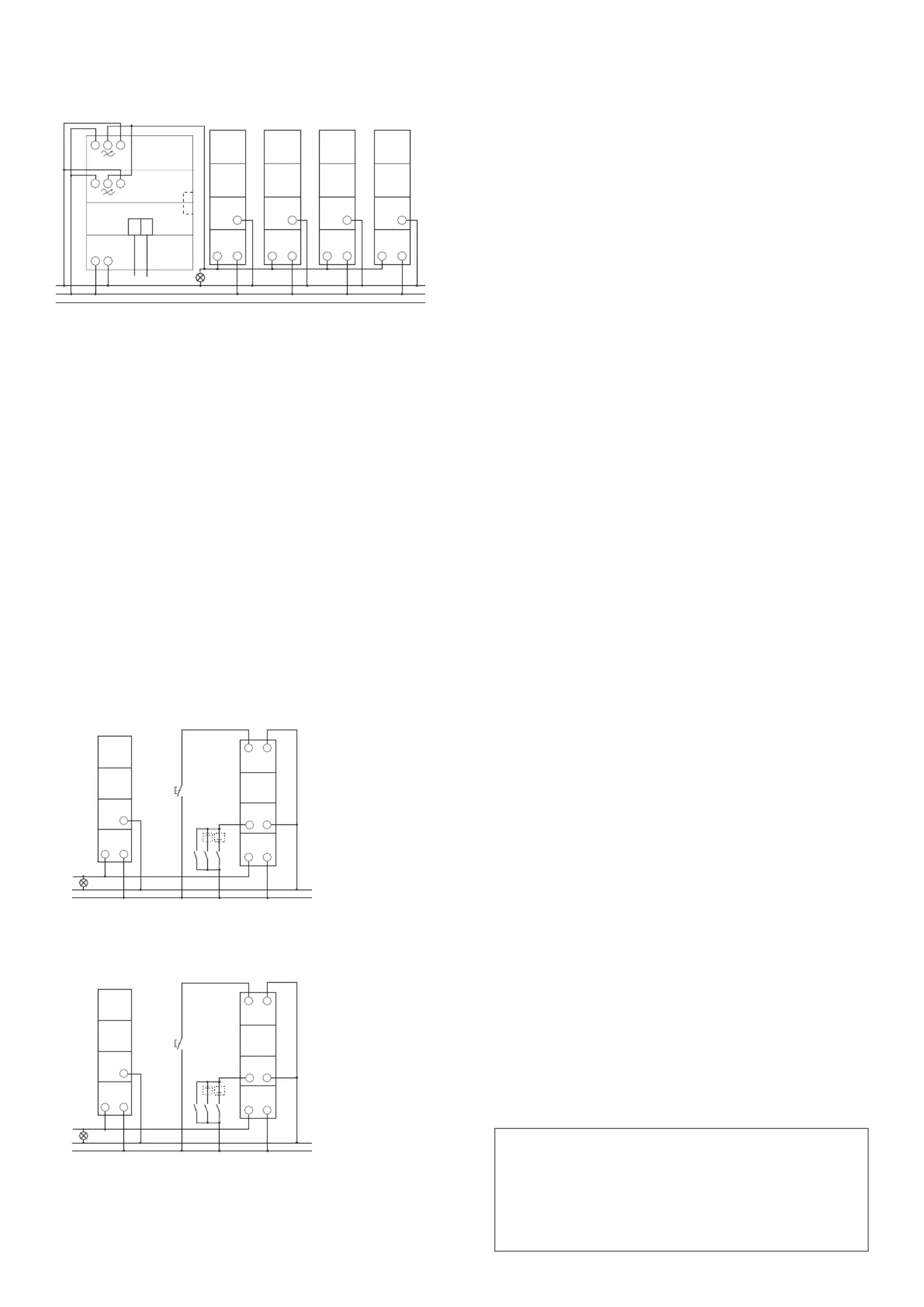

L N
KNX
DMG 2 T KNX DMB 1 T DMB 1 T
C1
3 4 5
L N
8
C2
6 7
L N
≤2x700 W
N
L
L´
N
L
L´
N
L1
L2
L N
KNX
C1
3 4 5
L N
8
C2
6 7
L N
≤1000 W
N
L
L´
N
L
L´
DMG 2 T KNX DMB 1 T DMB 1 T
N
L1
L2
Performance upgrade up to 2 x 700 W
Performance upgrade up to 1000 W
LED
Status LED
LED flashes mains on
LED flashes permanently dimming
LED flashes quickly error of excess temperature
*
*
* Incandescent lamp load
Service address
Theben AG
Hohenbergstr. 32
72401 Haigerloch
GERMANY
Phone +49 7474 692-0
Fax +49 7474 692-150
Hotline
Telephone +49 7474 692-369
Fax +49 7474 692-207
hotline@theben.de
Addresses, telephone numbers etc.
www.theben.de
Observe deviating technical data on the device rating plate!
Technical changes reserved.
The ETS database is available at www.theben.de
Please refer to the KNX Handbook for detailed functional
descriptions.
6. Technical data
• Operating voltage: 230 V AC +10 % –15 %
• Frequency: 50 Hz
• Standby min.: 0.2 W
• Permissible ambient
temperature: –5 °C to +45 °C
• Protection class: II subject to correct installation
• Protection rating: IP 20 in accordance with EN 60529
• Load types: R/L/C
• Incandescent lamp load: 300 W
• Halogen lamp load: 300 W
• Inductive load: 300 W
• Electronic transformers: 300 W
• Max. load with dimmable 230 V LED lamps: 45 W
• Min. switching capacity: 5 W
Dimming outputs > 1000W for professional use only
The performance upgrade must only be operated on the same
line conductor as the relevant channel of the dimmer
(DMG 2 T KNX/DME 2 T KNX).
Maintain ventilation space of 8 mm right and left.
Connect max. 2 boosters DMB 1 T KNX per dim channel.
Connect max. 4 boosters DMB 1 T KNX in parallel operation.
L N
KNX
C1
3 4 5
L N
8
C2
6 7
L N
≤2000 W
N
L
L´
N
L
L´
N
L
L´
N
L
L´
DMG 2 T KNX DMB 1 T DMB 1 T DMB 1 T DMB 1 T
N
L1
L2
Performance upgrade up to 2000 W
(parallel operation for dimmer)
*
* Incandescent lamp load
Dimming booster DMB 1 T KNX can also be used with univer-
sal dimmer DIMAX 532 (5320001) plus or DIMAX 534 plus
(5340001); the dimming output is then extended by 300 W.
Connect max. 1 dimming booster DMB 1 T KNX per
DIMAX 532/534.
Connection with DIMAX 532 plus (5320001)
DMB 1 T
N
L
L´
N
L
L´
N
L
A2A1
B1
LS 1
LS 2
LS 3
q
q
DMB 1 T
N
L
L´
N
L
L´
N
L
A2A1
B1
LS 1
LS 2
LS 3
q
q
Connection with DIMAX 534 plus (5340001)
