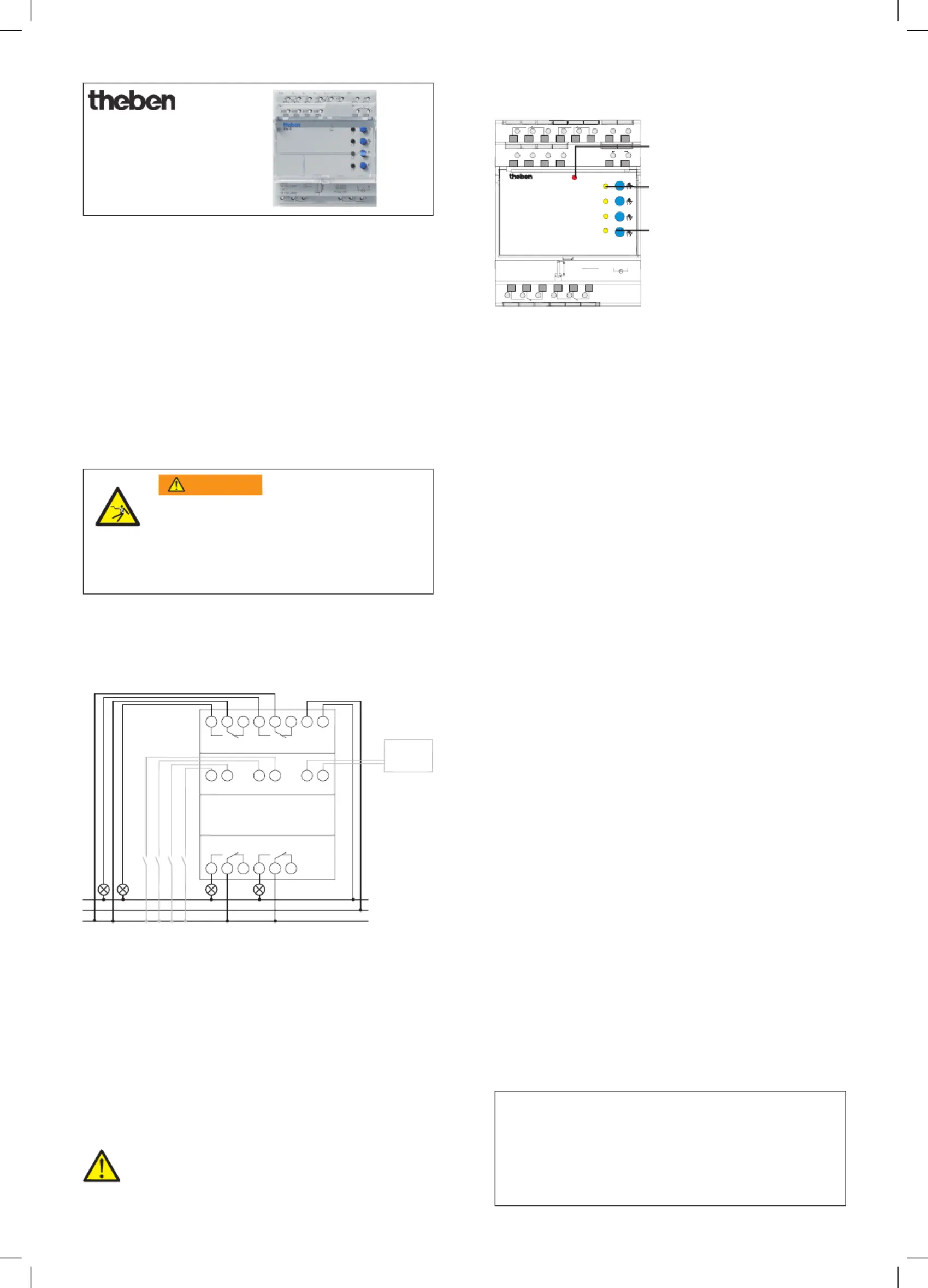

EM 4 top2

4-channel extension module

for TR top2 RC

6490104

309430 02

Designated use

The EM top2 module upgrades the 365-day time switch TR 641

top2 RC, TR642 top2 and TR 644 top2 to 4 channels (C5-C8).

The module is linked to the 365-day time switch via a DATA

interface. Corresponds to type 1 B in accordance with IEC/EN

60730-1.

Install EM 4 top2

• The EM top2 module is designed for installation on DIN top

hat rails (in accordance with EN 60715).

• Strong interference ﬁelds can have an effect on the clock.

 Do not install module near inductive consumers.

 Lay separate cable for power supply.

 Shield inductive consumer.

red LED set ﬂashes: a 365-day time

switch TR top2 sends requests "As-

sign module EM 4" ( teach-in)

yellow LEDs light up: Channels C5-C8

are on

4 blue manual buttons

Description

EM 4 top2 "teach-in"

 In the 365-day time switch in the menu under OPTIONS

select EXTENSION MODULE EM4 ASSIGN MODULE

EM4.

The LED set ﬂashes on EM 4 top2.

 Assign EM 4 top2 with the C5 button. The LED Set goes out.

EM 4 top2 "teach-out"

 Press all 4 EM 4 top2 manual button longer than 2 sec.

The LED ﬂashes quickly, the EM 4 module is taught-out

(no time switch is assigned); EM 4 top2 can now be

assigned by a new time switch.365-day

Manual control

 Quickly press channel keys C5-C8.

Permanent switching

 Press channel keys C5-C8 longer. (> 2 sec).

Connect EM 4 top2

Safety advice

Danger of death through electric shock or

fire!

 Installation should only be carried out by a

qualified electrician!

WARNING

Technical data

• Operating voltage: 110 –240 V~, +10 %/-15 %

• Frequency: 50-60 Hz

• Power consumption: typically 7,5 VA

• Standby: typ. 2.8 W

• DATA bus: Bus voltage: 18 V DC

• Switching capacity: 16 (10) A (C6+C8), 10 (10) A

(C5+C7)

• Permissible ambient

temperature: typical –30 °C... +45 °C,

temporary +55 °C

• Protection class: II in accordance with EN 60730-1

for designated installation

• Protection rating: IP 20 in accordance with EN 60529

• Pollution degree: 2

• Rated impulse withstand voltage: 4 kV

• Power supply on the DATA bus: 100 mA

(maximum current on the DATA bus:

500 mA)

Service address

Theben AG

Hohenbergstr. 32

72401 Haigerloch

GERMANY

Telephone +49 7474 692 0

Fax +49 7474 692-150

Hotline

Telephone +49 7474 692-369

Fax +49 7474 692-207

hotline@theben.de

Addresses, telephone numbers etc.

www.theben.de

C6 C8

1 2 3 7 8 9

4 5 6 10 11 12

L N

Ext5

max. 100 m

Ext6 Ext7 Ext8 Data

TR 64.

top2

EM 4 top2

DATA

Ext1

L N

Ext2 Ext3 Ext4

2,5mm

0,5mm -

110-240V~

50-60Hz

R8a - 30T

C6/C8

16(10)A 250V~

C5/C7

10(10)A 250V~

8mm

Set

The supply of L and N is the same as with the TR 64x top2 (RC)

basic device.
