Side 1/6
Hotline Theben:
J +49 7474 692-369
WARNUNG!
Lebensgefahr durch elektrischen Schlag oder
Brand!
Montage ausschließlich von Elektrofachkraft
durchführen lassen!
Vor Montage/Demontage Netzspannung
Weitere Funktionsbeschreibungen im
LUXORliving-Handbuch.
Allgemeine Infos
Der 4-fach und der 8-fach-Jalousieaktor der
LUXORliving-Serie entsprechen EN 60669-2-
1 bei bestimmungsgemäßer Montage
Die LUXORliving-Serie ist eine Reihe von Ge-
räten in kompakter Bauform, mit denen man
Schalten, Dimmen, Heizen und Steuern kann
Inbetriebnahme mit der Software LUXORplug
und einfache Bedienung mit der App
LUXORplay (für Android und iOS):
www.LUXORliving.de
Bei Verwendung in einem KNX-System erfolgt
die Programmierung mit der ETS
Technische Daten
Betriebsspannung: 110–240 V AC,
+10 % / –15 %
Frequenz: 50–60 Hz
Standby Leistung:
LUXORliving J4: 0,3 W; LUXORliving J8: 0,5 W
Kontaktart: μ-Kontakt; Schließer; das Schalten
beliebiger Außenleiter ist zulässig
Schaltleistung: 6 A (bei 240 V AC, cos = 1)ϕ
Mindestlast: 12 V/100 mA
Schalten von SELV: möglich, wenn alle Kanäle
eines Moduls SELV schalten
Schutzart: IP 20
Schutzklasse: II bei bestimmungsgemäßer
Montage
Betriebstemperatur: –5 °C … +45 °C
Busspannung KNX: 21–32 V DC
Stromaufnahme KNX-Bus: ≤ 4 mA
Verschmutzungsgrad: 2
Bemessungsstoßspannung: 4 kV
Weitere Informationen
DE
WARNING!
Danger of death through electric shock
or  re!
Installation should only be carried out by
professional electrician!
Disconnect the mains power supply prior to
installation and/or disassembly!
Further functional descriptions in the
LUXORliving handbook.
General information
The 4 and 8-way blind actuators of the
LUXORliving series conform with EN 60669-
2-1 if correctly installed
The LUXORliving series is a range of compact
devices for switching, dimming, heating and
controlling
Start-up using the LUXORplug software and
easy operation using the LUXORplay app (for
Android and iOS): www.LUXORliving.de
When used in a KNX system, programming is
completed with the ETS
Technical data
Operating voltage: 110240 V AC, +10 % / 15 %
Frequency: 50–60 Hz
Standby: 0,3 W
LUXORliving J4: 0,3 W; LUXORliving J8: 0,5 W
Type of contact: µ-contact; NO contact,
switching of choice of phase is permitted
Switching capacity: 6 A (at 240 V AC, cos = 1)ϕ
Minimum load: 12 V/100 mA
Switching of SELV voltages possible if all chan-
nels of a module switch protective low voltage
Protection rating: IP 20
Protection class: II subject to correct installation
Operating temperature: –5 °C … +45 °C
Bus voltage: 21–32 V DC
Power input KNX bus: ≤ 4 mA
Pollution degree: 2
Rated impulse voltage: 4 kV
Further information
EN
AVERTISSEMENT!
Danger de mort, risque d‘électrocution et
d‘incendie!
• Le montage doit être effectué exclusivement
par un électricien spécialisé !
Désactiver la tension réseau avant le monta-
ge/ le démontage !
Pour d‘autres descriptions de fonction, se
reporter au manuel LUXORliving.
Informations générales
Les actionneurs de store à 4 et 8 canaux de
la série LUXORliving répondent à la norme
EN 60669-2-1 si le montage est conforme
La série LUXORliving est une gamme
d‘appareils de petites dimensions permettant
de commuter, varier, chauffer et commander
Mise en service avec LUXORplug et comman-
de aisée par le biais de l‘appli LUXORplay
(pour Android et iOS) : www.LUXORliving.de
En cas d‘intégration dans un système KNX, la
programmation s‘opère via l‘ETS
Caractéristiques techniques
Tension de service : 110–240 V AC,
+10 % / –15 %
Fréquence : 50–60 Hz
Éco (veille) :
LUXORliving J4: 0,3 W; LUXORliving J8: 0,5 W
Type de contact : μ contact; contact à fermeture,
il est possible de commuter n’importe quel
conducteur externe
Puissance de commutation : 6 A (pour 240 V AC,
cos = 1)ϕ
Charge minimale : 12 V/100 mA
Commutation de TBTS possible, si tous les
canaux d‘un module commutent des TBTS
Degré de protection : IP 20
Classe de protection : II en cas de montage
conforme
Température de service : –5 °C … +45 °C
Tension de bus: 21–32 V DC
Courant absorbé à partir du bus KNX : ≤ 4 mA
Degré de pollution : 2
Tension assignée de tenue aux chocs : 4 kV
Informations supplémentaires
FR
AVVERTIMENTO!
Pericolo di morte per scosse elettriche o incendio!
Il montaggio deve essere eseguito esclusi-
vamente da parte di un elettroinstallatore
specializzato!
Prima del montaggio o dello smontaggio scol-
legare la tensione di rete!
Per maggiori descrizioni del funzionamento
fare riferimento al manuale LUXORliving.
Informazioni generali
Lattuatore di commutazione a 4 e 8 cana-
li della serie LUXORliving corrisponde alla
norma EN 60669-2-1 se montato in modo
conforme
La gamma LUXORliving è una serie di appa-
recchi di forma compatta idonei per commu-
tare, regolare, riscaldare e comandare
Messa in funzione con il software LUXORplug
e utilizzo semplice grazie all‘applicazione
LUXORplay (per Android e iOS):
www.LUXORliving.de
In caso di impiego in un sistema KNX, la
programmazione avviene tramite ETS
Dati tecnici
Tensione d‘esercizio: 110–240 V AC,
+10 % / –15 %
Frequenza: 50–60 Hz
Stand by:
LUXORliving J4: 0,3 W; LUXORliving J8: 0,5 W
Tipo di contatto: μ contatto; contatto di chius-
ura, è consentita la commutazione della fase a
piacere
Potenza di commutazione: 6 A (con 240 V AC,
cos = 1)ϕ
Carico minimo: 12 V/100 mA
Commutazione di SELV possibile, se tutti i canali
di un modulo commutano SELV
Tipo di protezione: IP 20
Classe di protezione: II con montaggio conforme
Temperatura d‘esercizio: –5 °C … +45 °C
Tensione bus: 21–32 V DC
assorbimento di potenza bus KNX: ≤ 4 mA
Grado di inquinamento: 2
Sovratensione transitoria nominale: 4 kV
Maggiori informazioni
IT
ADVERTENCIA!
¡Peligro de muerte por descarga elétrica o
incendio!
¡El montaje debe ser llevado a cabo exclusiva-
mente por un electricista profesional!
¡Desconecte la tensión de red, antes de proce-
der al montaje o desmontaje!
Descripciones de función adicionales en el
manual LUXORliving.
Información general
Los actuadores de persiana de 4 y 8 canales
de la serie LUXORliving se corresponden con
EN 60669-2-1 cuando el montaje se realiza
correctamente
La serie LUXORliving es una serie de aparatos
compactos que permiten conmutar, regular la
luz, controlar la calefacción y otros disposi-
tivos
Puesta en servicio con el software LUXORplug
y manejo sencillo con la App LUXORplay (para
Android e iOS): www.LUXORliving.de
Al utilizar un sistema KNX, la programación se
realiza con el ETS
Datos técnicos
Tensión de servicio: 110–240 V AC,
+10 % / –15 %
Frecuencia: 50–60 Hz
Standby:
LUXORliving J4: 0,3 W; LUXORliving J8: 0,5 W
Tipo de contacto: contacto μ, contacto de cierre
sin potencial; se permite la conmutación de
cualquier fase
Potencia de conexión: 6 A (con 240 V AC,
cos = 1)ϕ
Carga mín.: 12 V/100 mA
Conmutación de SELV posible, si todos los cana-
les conmutan un módulo SELV
Grado de protección: IP 20
Clase de protección: II en caso de montaje
conforme al uso adecuado
Temperatura de funcionamiento: –5 °C … +45 °C
Tensión del bus: 21–32 V DC
Consumo de corriente del bus KNX: ≤ 4 mA
Grado de polución: 2
Impulso de sobretensión admisible: 4 kV
Información adicional
ES
ATENÇÃO!
Perigo de morte por choque eléctrico ou
incêndio!
A montagem deve ser efectuada apenas por
um electricista especializado!
Antes da montagem/desmontagem activar a
tensão de rede!
Para outras descrições de funções, consulte o
manual LUXORliving.
Informações gerais
Os factores de comutação de 4 e 8 níveis da
série LUXORliving estão em conformidade
com a norma EN 60669-2-1, em caso de
montagem correcta
A série LUXORliving é uma série de aparelhos
de construção compacta, com os quais se
pode comutar, atenuar, aquecer e controlar
Colocação em funcionamento com o software
LUXORplug e operação fácil com a App LU-
XORplay (para Android e iOS): www.LUXORli-
ving.de
Em caso de utilização num sistema KNX, a
programação ocorre com o ETS
Dados técnicos
Tensão de servo: 110240 V AC, +10 % /15 %
Frequência: 50–60 Hz
Standby:
LUXORliving J4: 0,3 W; LUXORliving J8: 0,5 W
Tipo de contacto: contacto μ; contacto de fecho,
é permitida a comutação de qualquer um dos
condutores externos
Potência de comutação: 6 A (con 240 V AC,
cos = 1)ϕ
Carga mínima: 12 V/100 mA
Comutar o SELV: possível, se todos os canais de
um módulo SELV comutarem
Tipo de protecção: IP 20
Classe de protecção: II em caso de montagem
correcta
Temperatura operacional: –5 °C … +45 °C
Tensão de barramento: 21–32 V DC; consumo
de corrente do barramento KNX: ≤ 4 mA
Grau de poluição: 2
Tensão transitória de dimensionamento: 4 kV
Mais informações
PT
Theben AG | Hohenbergstraße 32 | 72401 Haigerloch | GERMANY | Telefon +49 7474 692-369 | info@theben.de | www.theben.de
307296 01 18.09.2017

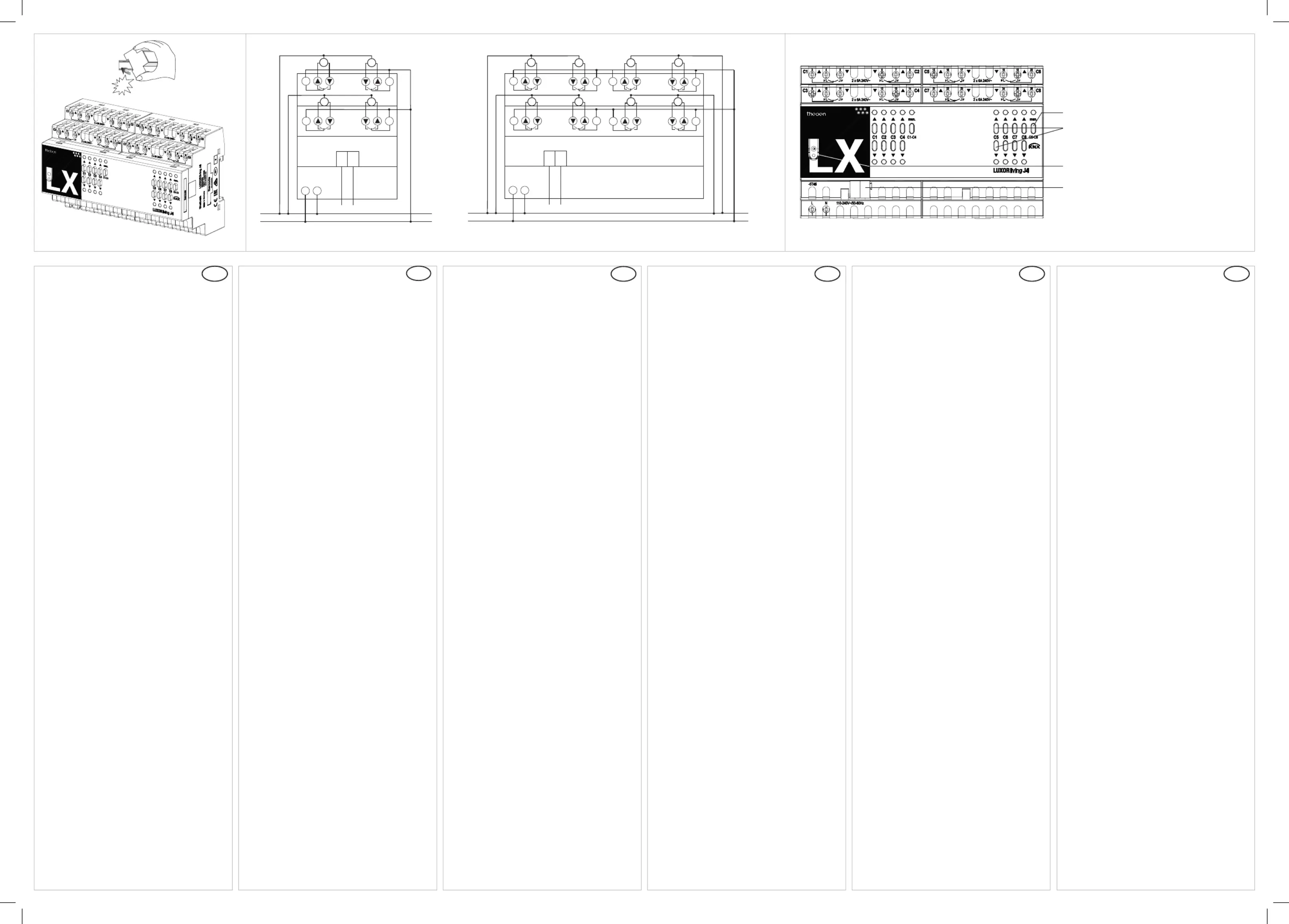

LUXORliving J4 4800450
LUXORliving J8 4800455
LUXORplayLUXORplug
LUXORliving
http://qr.theben.
de/p/4800450de
LUXORliving J4
http://qr.theben.
de/p/4800455de
LUXORliving J8
http://qr.theben.
de/p/4800450en
LUXORliving J4
http://qr.theben.
de/p/4800455en
LUXORliving J8
http://qr.theben.
de/p/4800450fr
LUXORliving J4
http://qr.theben.
de/p/4800455fr
LUXORliving J8
http://qr.theben.
de/p/4800450it
LUXORliving J4
http://qr.theben.
de/p/4800455it
LUXORliving J8
http://qr.theben.
de/p/4800450es
LUXORliving J4
http://qr.theben.
de/p/4800455es
LUXORliving J8
http://qr.theben.
de/p/4800450pt
LUXORliving J4
http://qr.theben.
de/p/4800455pt
LUXORliving J8
