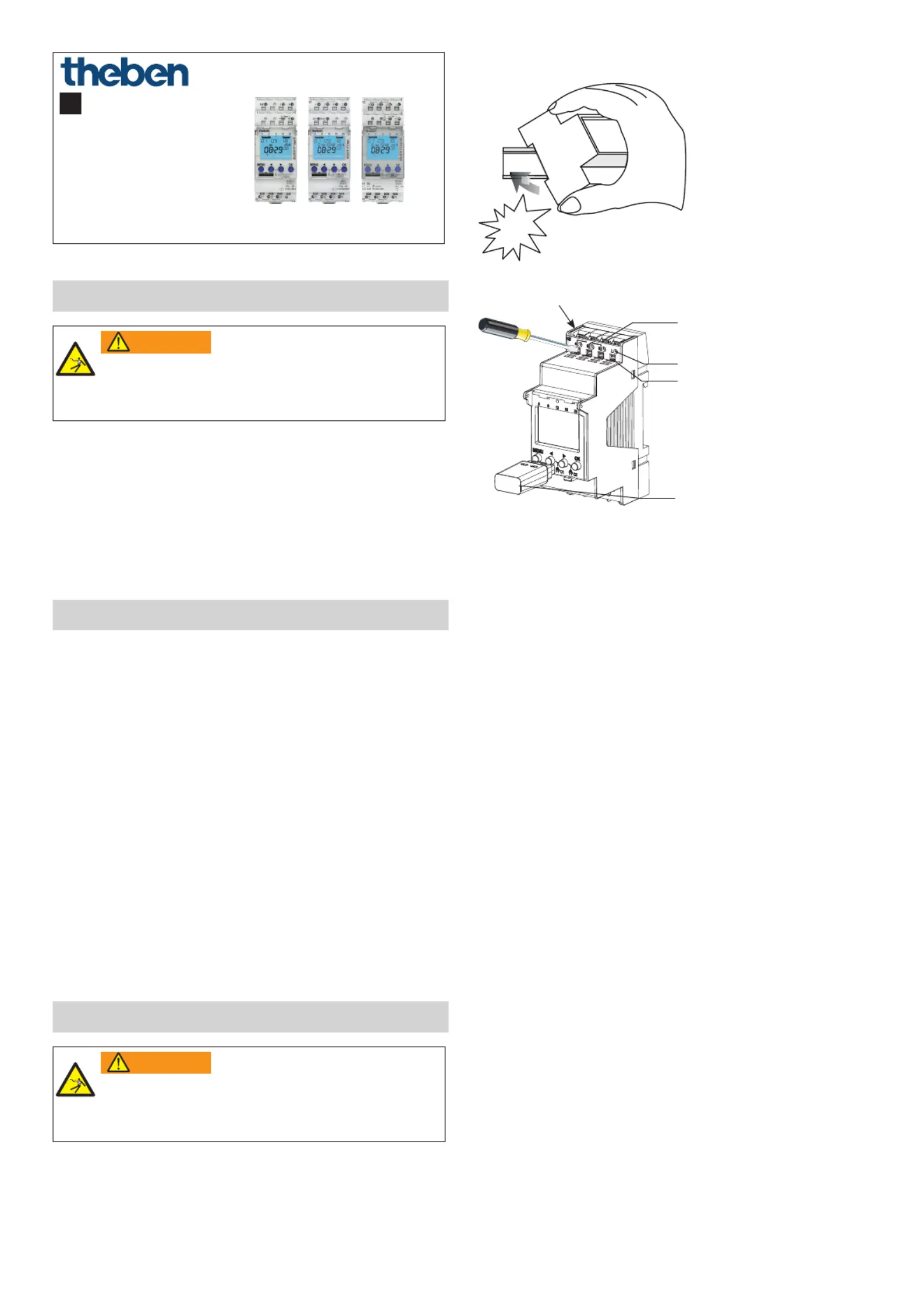

Side 1/10
1
307411 02
SELEKTA 171 top3 RC
1710330
SELEKTA 172 top3
1720130
SELEKTA 172 top3 RC
1720330
Astronomical time
switch
EN
Danger of death through electric shock or fire!
Installation should only be carried out by a
qualied electrician!
WARNING
•
The device is designed for installation on DIN top hat
rails (in accordance with EN 60715)
•
Power reserve (10 years) is reduced when Bluetooth
OBELISK top3 is connected (in battery mode)
•
The device corresponds to type 1 STU in accordance with
IEC/EN 60730-2-7
2. Proper use
•
Digital astronomical time switch with weekly program,
annual program
•
Interface for Bluetooth OBELISK top3 (app)
•
3 special programs with date function per channel
•
Time synchronisation via connection of an external DCF
or GPS antenna (1710330+1720330)
•
The astronomical time switch is used, for instance, for
lighting equipment (roads, external staircases, display
windows, entrances etc.).
•
Only for use in closed, dry rooms
!
Do not use on safety devices, e.g. escape route doors, re
safety equipment, etc.
Disposal
Dispose of device in environmentally sound manner
3. Installation and connection
Danger of death through electric shock or fire!
Installation should only be carried out by a
qualied electrician!
WARNING
Mounting the time switch
click
Test connection
45° cable
Spring plug-in
terminal opener
Bluetooth
OBELISK top3
(9070130)
DuoFix load line
connection
!
Check the depth of the control cabinet when OBELISK top3
is connected. The depth must be > 94 mm.
Mount on DIN top hat rail (as dened in EN 60715)
Disconnect power source
Ensure device cannot be switched on
Check absence of voltage
Earth and bypass
Cover or shield any adjacent live components
Connecting the time switch
LRefer to the operating instructions when connecting a GPS
antenna (9070610).
Minimum number of participants needed to operate the GPS
antenna:
•
2 x weekly timer TR 611 top3 RC, SELEKTA 171 top3 RC
LUNA 121–122 top3 RC each with 50 mA feed, or
•
1 x weekly timer with 50 mA feed plus 1 x top2 GPS
power unit (9070892) with 50 mA feed

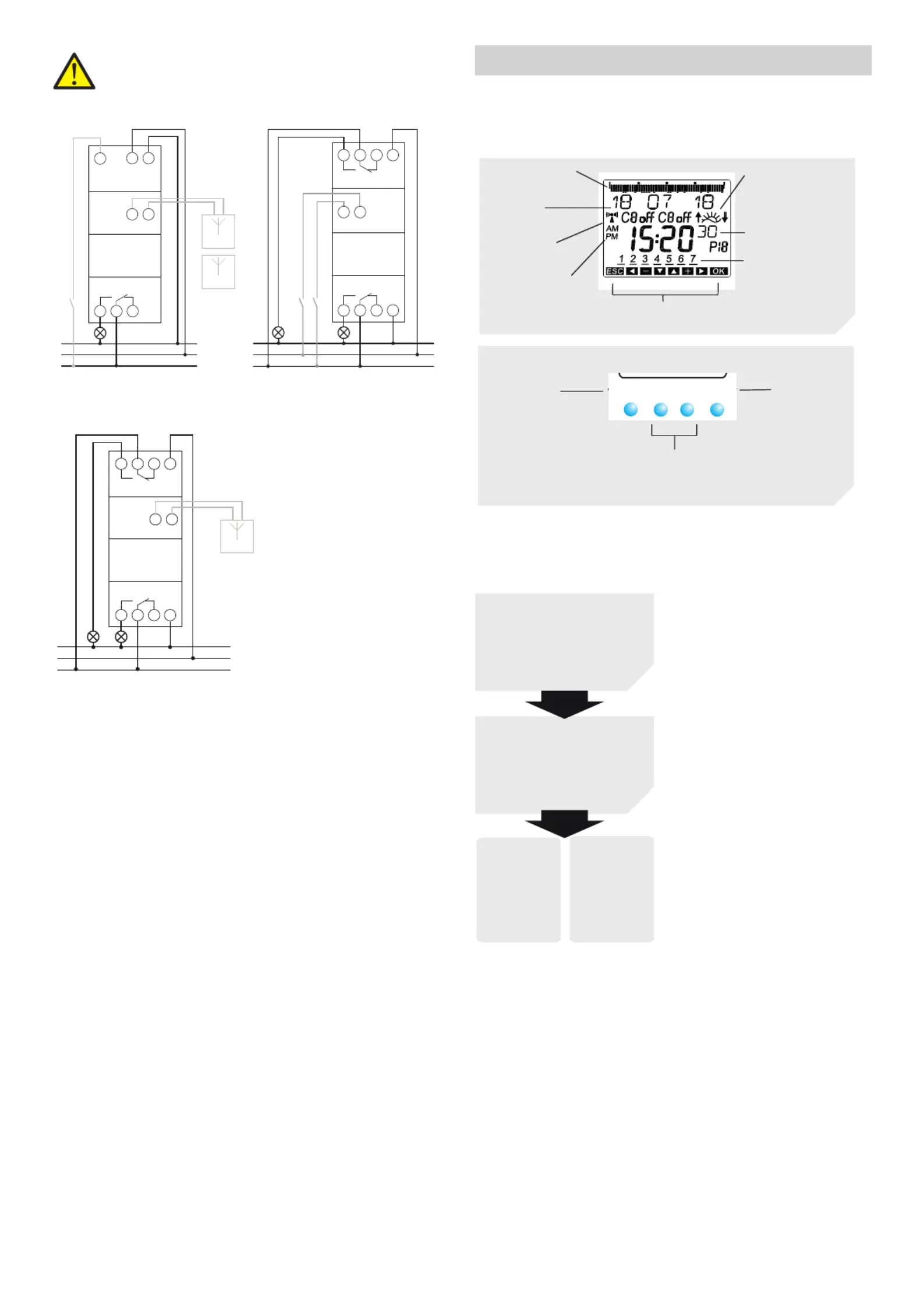

2
C2
C1
123
4 5 6 L
N
L
L
Ext1
max. 100 m
max. 100 m
Ext2
N
C1
123
N
L
L
L N
– +
Ext1
max. 100 m
Data
RC DCF
RC GPS
SELEKTA 172 top3SELEKTA 171 top3 RC
C2
C1
1 2 3
4 5 6
N
L
L
L
N
Data
–
+
RC DCF
max. 100 m
SELEKTA 172 top3 RC
Connecting the cable
Correct connection required for smooth function of the
zero-cross switching
Strip cable to 8 mm (max. 9)
Insert cable in the open DuoFix plug-in terminal at 45°
L2 cables per terminal position possible
To open the DuoFix plug-in terminal, press screwdriver
downwards
Disconnecting the cable
Use the screwdriver to push the spring plug-in terminal
downwards
4. Device description
Display and buttons
¾MENU
– Activate display
– Open menu
– Cancel menu
– ESC
(leave menu)
¾OK
–Save
selection
– Confirm
selection
¾
Options are
displayed
Time display
Display of
sunrise/
sunset
Date display
Channel status
C1, C2
ON
OFF
Weekday from
1–7
Display of active buttons
with the respective functions
Programmed ON
times
DCF antenna
display
MENU OK
Operating instructions
YES
Confirma-
tion
Press OK
NO
Modify/
Change
 u
Press
1. Read text line
Text/symbol represents
query
2. Make a decision
