1080p HDMI-over-UTP Extender with IR and PoC
EX-40-G3 Quickstart Guide
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
EX-40-G3 Quickstart Guide | 190121
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.

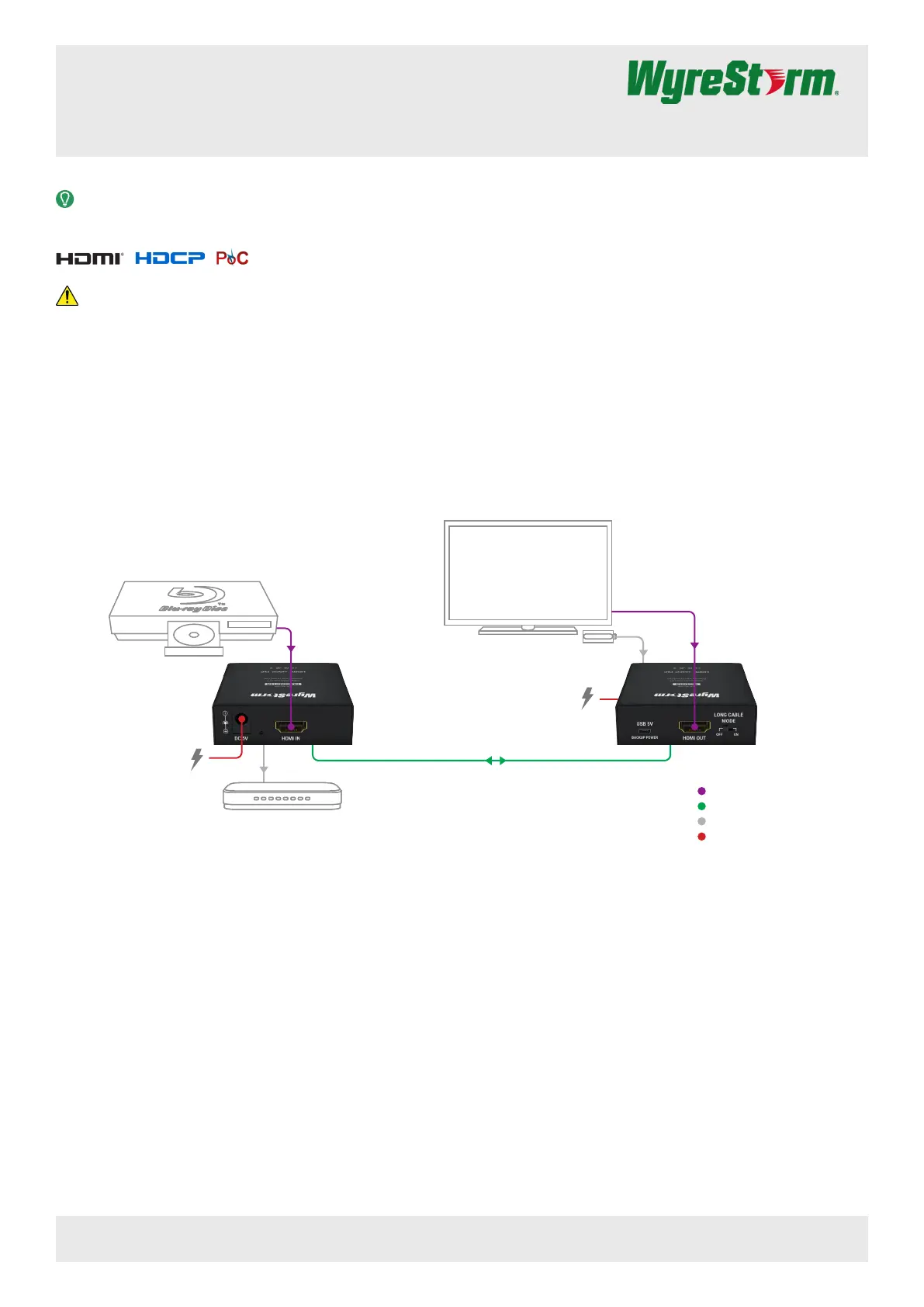

Basic Wiring Diagram
IMPORTANT! Installation Requirements
• Visit the product page to download the latest rmware, document version,
additional documentation, and conguration tools.
• Read through the section for important wiring Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
In the Box
1x EX-40-G3 Transmitter
1x EX-40-G3 Receiver
1x 5V DC 1A Power Supply (US/UK/EU/AU)
1x USB-A to Micro-B RX Power Cable
1x IR Emitter
1x IR Receiver
4x Mounting Brackets (2x for TX | 2x for RX)
1x Quickstart Guide (this document)
IR to Control System
CAB-IR-LINK (Sold Separately)
5V DC
Power Supply
5V DC
Power Supply
HDMI Display
EX-40-G3
Transmitter
EX-40-G3
Receiver
HDBaseT Cat5e/6/6a
HDMI Source
HDMI HDMI
KEY
HDMI
HDBaseT
IR
Power
Transmitter (TX)
Front Panel
Rear Panel
Front Panel
Rear Panel
Receiver (RX)
Power Input 5.5mm Screw Down Barrel Jack
Connect to the included power supply.
HDMI In 19-pin type A HDMI female
Supports HDMI and DVI/D with adapter
UTP Out 8-pin RJ-45 female
Connect the UTP In on the receiver (RX)
UTP In 8-pin RJ-45 female
Connect the UTP Out on the receiver (RX)
USB 5V
BackUp Power
USB Mirco. Connect to USB power when PoC
cannot be used
HDMI Out 19-pin type A HDMI female
Supports HDMI and DVI/D with adapter
CLong Cable Mode
Extends the distance of the AV transmission
past the normal operating distance of
30m/98ft. Refer to section Long Cable Mode
for more details
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
EX-40-G3 Quickstart Guide | 190121
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
2 of 4
BA
BA
BA
B CA
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
• Verify that power is being supplied to the transmitter and receiving device.
• Verify that all HDMI and UTP connections are not loose and are functioning
properly.
• Verify that the HDBaseT cable is properly terminated following EIA568B
standard.
• Verify that the output resolution of the source and display is supported by
this extender.
• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.
No or Intermittent 3rd party Device Control
• Verify that the IR and RS-232 cables are properly terminated following the
Wiring and Connections section.
Troubleshooting Tips:
• WyreStorm recommends using a cable tester or connecting the cable to
other devices to verify functionality.
