Side 1/4
In the Box
1x EXF-300-H2 Transmitter
1x EXF-300-H2 Receiver
1x Dual USB-A to Locking DC Power Plug
1x IR Emitter
1x IR Receiver (30KHz ~ 50KHz)
2x Male Phoenix Connector
4x Mounting Brackets
1x Quickstart Guide (This Document)
Copyright © 2018 WyreStorm Technologies | wyrestorm.com
EXF-300-H2 Quickstart Guide | 180516
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the
installation process.

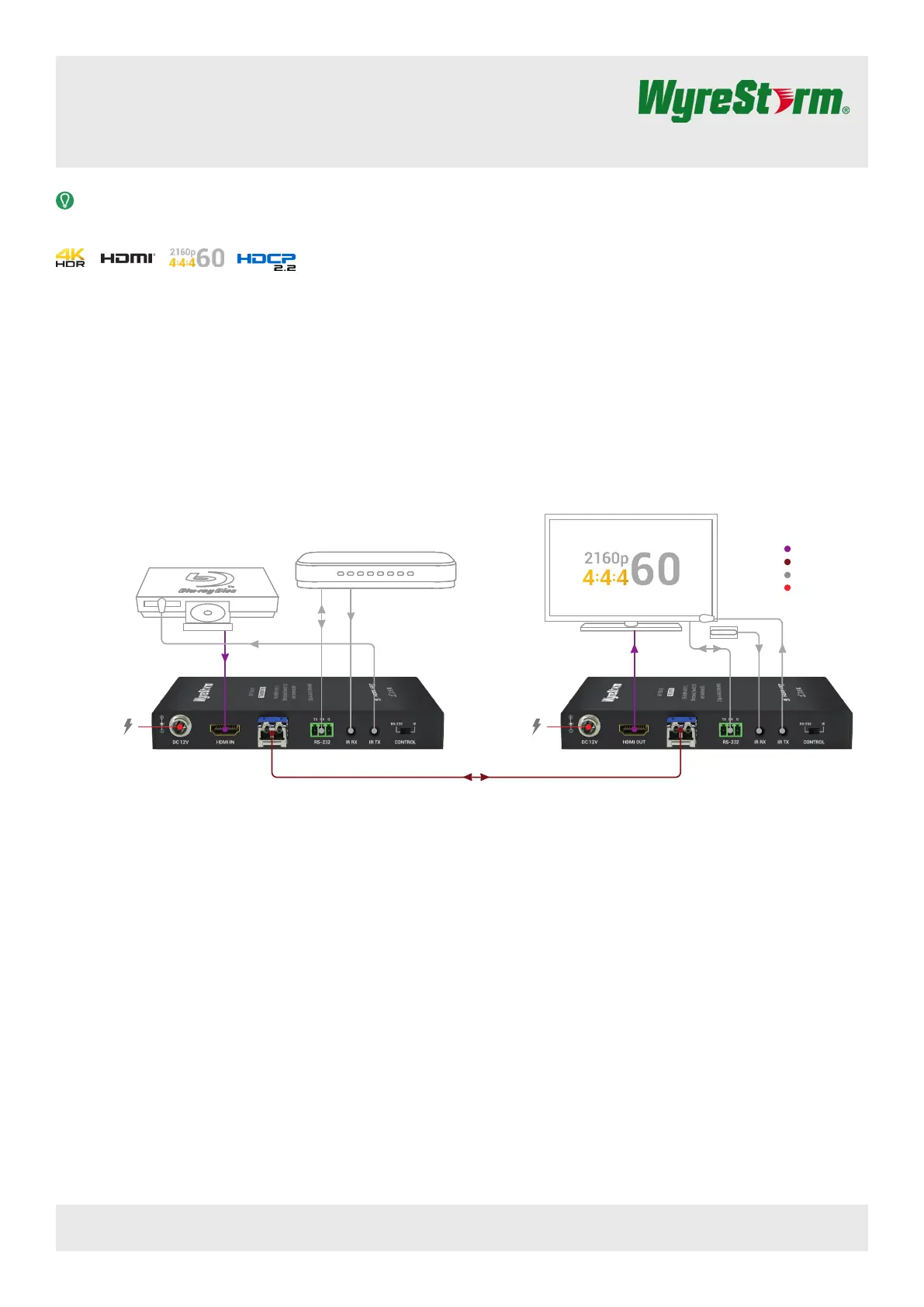

Basic Wiring Diagram
Quickstart Guide
EXF-300-H2
4K 4:4:4 60Hz 18Gbps HDMI, HDCP 2.2 and
Bidirectional IR or RS-232 over OM3 Multi-Mode Fiber
KEY
HDMI
OM3 MM Fiber
IR/RS-232
Power
12v DC
Power Supply
OM3 Multi-Mode Fibre
300m/984ft Note: RS-232 and IR signals cannot be transmitted simultaneously over
OM3 if both are connected. Use either RS-232 or IR to avoid data conflicts.
EXF-300-H2
Transmitter
EXF-300-H2
Receiver
IR
IR using CAB-IR-LINK
(Sold Separately)
HDMI HDMI IR
RS-232
IR
RS-232
HDMI Source
12v DC
Power Supply
Control System
Copyright © 2018 WyreStorm Technologies | wyrestorm.com
EXF-300-H2 Quickstart Guide | 180516
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
2 of 4

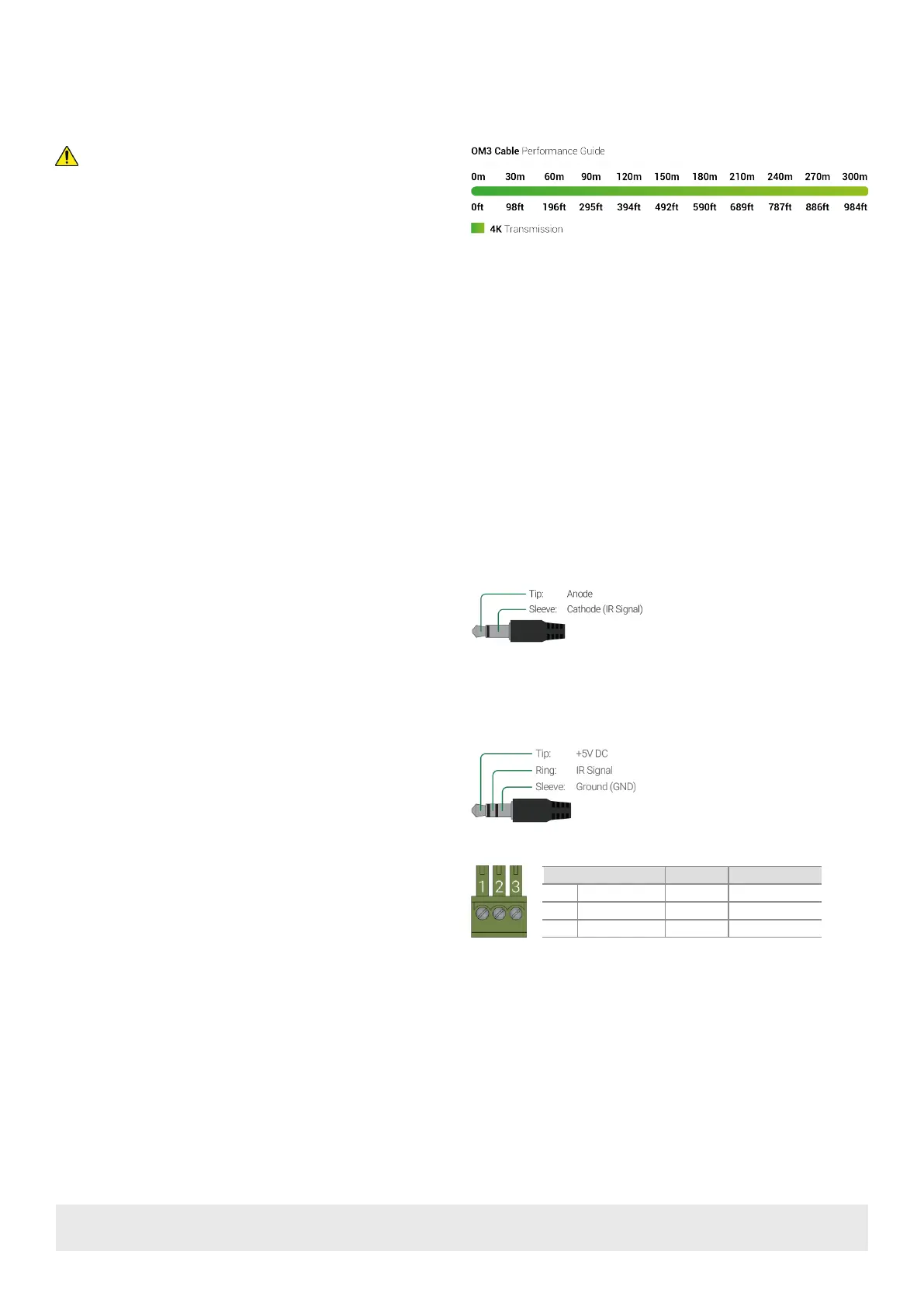

Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its
entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
OM3 Fiber SFP+ Guidelines
The EXF-300-H2 is designed to work with SFP+ OM3 MM ber cables providing a distance of 300m/984ft for all resolutions. This operation can be affected by
how the cables are terminated and routed within an installation. Care should be taken when terminating and routing based on the following guidelines.
• Fiber cable has a bend radius of 6.0cm/2.4in, when routing never exceed this radius as damage to the ber core can occur.
• Fiber core ends should be inspected for damage prior to terminating. Any scratches or blemishes can affect the performance of the connection.
• Never touch the end of the ber core with bare hands so that any oils or dirt can be transferred to the surface of the core.
• Refer to the guidelines and connection parameters from the ber cable manufacturer for more specic information regarding the cable being used.
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable extenders, kinks in cables, and
electrical or environmental interference will have an adverse effect on
signal transmission which may limit performance. Steps should be taken
to minimize or remove these factors completely during installation for best
results
• WyreStorm recommends using pre-terminated HDMI and DP cables due to
the complexity of these connector types. Using pre-terminated cables will
ensure that these connections are accurate and will not interfere with the
performance of the product.
IR TX/RX Guidelines
• Using WyreStorm infrared emitters and receivers is the best way to ensure
that most IR coding formats are transmitted and received Other 3rd party
emitters and receivers can be used; however, these devices must operate in
the same manner as the WyreStorm devices.
• Due to differences in IR across 3rd party control systems their IR ports
should never be connected directly to a NetworkHD system as an
incompatibility may exist. WyreStorm offers a cable that compensates for
voltage differences as well adjusts for differences in the pins used within
the port. Refer to the product page for more information.CAB-IR-LINK
IR TX Port Pinout
Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.
IR RX Port Pinout
Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs
+5V DC to power the included IR receiver.
RS-232 Wiring
The EXF-300-H2 uses a 3-pin RS-232 with no hardware ow control. Most
control systems and computers are DTE where pin 2 is RX, this can vary
from device to device. Refer to the documentation for the connected device
for pin functionally to ensure that the correct connections can be made.
3rd Party Device
Pin 1 TX (Transmit) > To > RX (Receive)--- ---
Pin 2 RX (Receive) > To > TX (Transmit)--- ---
Pin 3 G (Gro d) > To > G (Gro d)un --- --- un
WyreStorm Co ectornn
