SW-515-RX Quickstart Guide | 191212

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the

installation process.

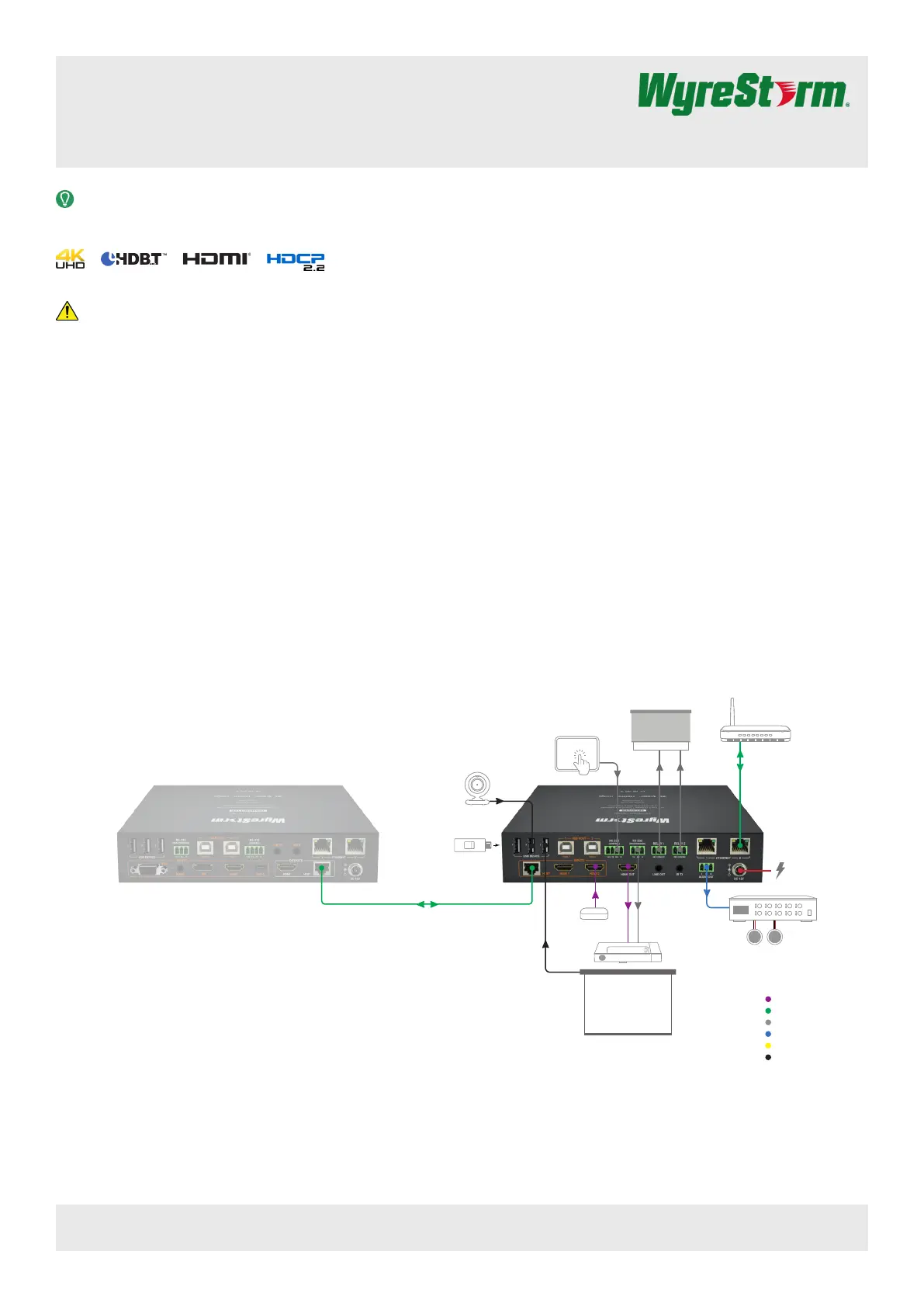

Basic Wiring Diagram

SW-510-TX

Amplifier

Router

Touchscreen

Window Blinds

USB Flash Drive

USB Camera

Interactive

Whiteboard

Short Throw

Projector

Signage Player

12V DC 1.5A

Power Supply

KEY

HDMI/DisplayPort/USB-C

HDBaseT/Ethernet

RS-232/Relay

Analog Audio

Analog Video

USB 2.0

3-input 4K UHD Switching HDBaseT Receiver

with USB Host/Device Ports & Dual Ethernet (4K: 100m/328ft)

SW-515-RX

Quickstart Guide

IMPORTANT! Installation Requirements

• Read through the Wiring and Connections section for important wiring

guidelines before creating or choosing premade cables.

• While this product supports CEC, WyreStorm cannot guarantee

compatibility with all forms of CEC communication.

• Visit the product page to download the latest rmware, document version,

additional documentation, and conguration tools.

Information and Parts Required for Installation

This extender requires connection via RS-232 or Ethernet in order to congure

functions such as EDID. Ensure that the following items are on hand before

proceeding with the installation.

• PC or Mac

• Telnet and Terminal software such as PuTTY

• USB COM Port Adapter (Not Included)

• WyreStorm Part: CAB-USB-3PIN

• Network router and/or switch if using IP telnet for conguration.

• Latest version of the SW-515-RX API for advanced conguration not

covered in this document.

In the Box

1x SW-515-RX Receiver

1x 12V DC Power Supply (US/UK/EU)

1x IR Transmitter

2x Mounting Brackets

3x 3-pin Screw Down Phoenix Connector

1x 4-pin Screw Down Phoenix Connector

1x Quickstart Guide (This Document)

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its

entirety before running or terminating any wires to ensure proper operation and to avoid damaging the equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on

signal transmission which may limit performance. Steps should be taken

to minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends using pre-terminated VGA, HDMI, DP and USB

cables due to the complexity of these connector types. Using pre-

terminated cables will ensure that these connections are accurate and will

not interfere with the performance of the product.

• This product contains a USB-C connection that can be used as an audio/

video input. When using this connection verify that the USB-C cable used

supports audio/video functionality as not all USB-C cables support this

requirement.

Communication Connections

RS-232 Wiring

The SW-515-RX uses a 3-pin RS-232 with no hardware ow control. Most

control systems and computers are DTE where pin 2 is RX, this can vary from

device to device. Refer to the documentation for the connected device for pin

functionally to ensure that the correct connections can be made.

PC Connection

Connection to a PC uses the RS-232 Control connection and requires the use

of a USB to 3-pin Port Adapter cable (CAB-USB-3PIN) in order for a port to

be provided on the PC. Note that this adaptor can be used on both v1 and v2

versions.

RS-232 Passthrough

3rd Party Device

Pin 1 TX (Transmit) ---> To ---> RX (Receive)

Pin 2 RX (Receive) ---> To ---> TX (Transmit)

Pin 3 G (Ground) ---> To ---> G (Ground)

WyreStorm Connector

RS-232 Control

3rd Party Device

Pin 1 12V DC Out No Connection Reserved

Pin 2 TX (Transmit) ---> To ---> RX (Receive)

Pin 3 RX (Receive) ---> To ---> TX (Transmit)

Pin 4 G (Ground) ---> To ---> G (Ground)

WyreStorm Connector

Audio Connections

Audio Out

3rd Party Device

Pin 1 L (Left Signal) ---> To ---> Left Signal (L+)

Pin 2 R (Right Signal) ---> To ---> Right Signal (R+)

Pin 3 GND (Ground) ---> To --->

Left Ground (L-)

Right Ground (R-)

WyreStorm Connector

Troubleshooting

No or Poor Quality Picture (snow or noisy image)

• Verify that power is being supplied to the transmitter and receiving device.

• Verify that all HDMI and HDBaseT connections are not loose and are

functioning properly.

• Verify that the HDBaseT cable is properly terminated following EIA568B

standard.

• Verify that the output resolution of the source and display is supported by

this extender.

• Congure EDID Settings to a lower resolution.

• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.

No or Intermittent 3rd party Device Control

• Verify that the IR, RS-232, and Ethernet cables are properly terminated

following the Wiring and Connections section.

Relays Not Functioning

• Verify polarity of the relay connections.

Troubleshotting Tips

• WyreStorm recommends using a cable tester or connecting the cable to

other devices to verify functionality.

SW-515-RX Quickstart Guide | 191212

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

Relay Wiring

The relays on this extender can be used to be trigger devices such as projector

screens that are Normally Open (NO) or Normally Closed (NC).

3rd Party Device

Pin 1 NO (Normally Open) ---> To ---> NO (Normally Open)

Pin 2 Common (Ground) ---> To ---> Common (Ground)

Pin 3 NC (Normally Closed) ---> To ---> NC (Normally Closed)

WyreStorm Connector

Produkt Specifikationer

Mærke:	WyreStorm
Kategori:	Modtager
Model:	SW-515-RX
Type:	AV-modtager
Bredde:	263 mm
Dybde:	148.7 mm
Højde:	45.5 mm
Vægt:	950 g
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Understøttede videotilstande:	1080p, 2160p
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	10 - 90 %
HDCP:	Ja
Ethernet LAN:	Ja
Understøttede lydformater:	LPCM, PCM
Driftstemperatur (T-T):	0 - 45 °C
Maksimal opløsning:	4096 x 2160 pixel
Understøttede grafikopløsninger:	1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),3840 x 2160,4096 x 2160
Forbindelsesteknologi:	Ledningsført
Certificering:	CE, FCC
Strømforbrug (maks.):	16.25 W
DC-in-stik:	Ja
LED-indikatorer:	Ja
Antal USB-porte:	5
Bæredygtighedscertifikater:	RoHS
Indgangsstrøm:	2 A
Driftsspænding:	12 V
USB-stik type:	USB Type-A, USB Type-B
HSMI-indgang:	2
RJ-45 indgangs-porte:	2
Antal HDMI-udgange:	1
Lydudgang:	3-pin Pheonix
RS-232 indgangsporte:	2
HDCP-version:	2.2
Understøttede kabeltyper:	Cat6, Cat6a, Cat7, HDMI
Båndbredde:	9.2 Gbit/sek.
HDBaseT certificeret:	Ja
Udvidet display identifikationsdata (EDID):	Ja
3,5 mm ud:	Ja
